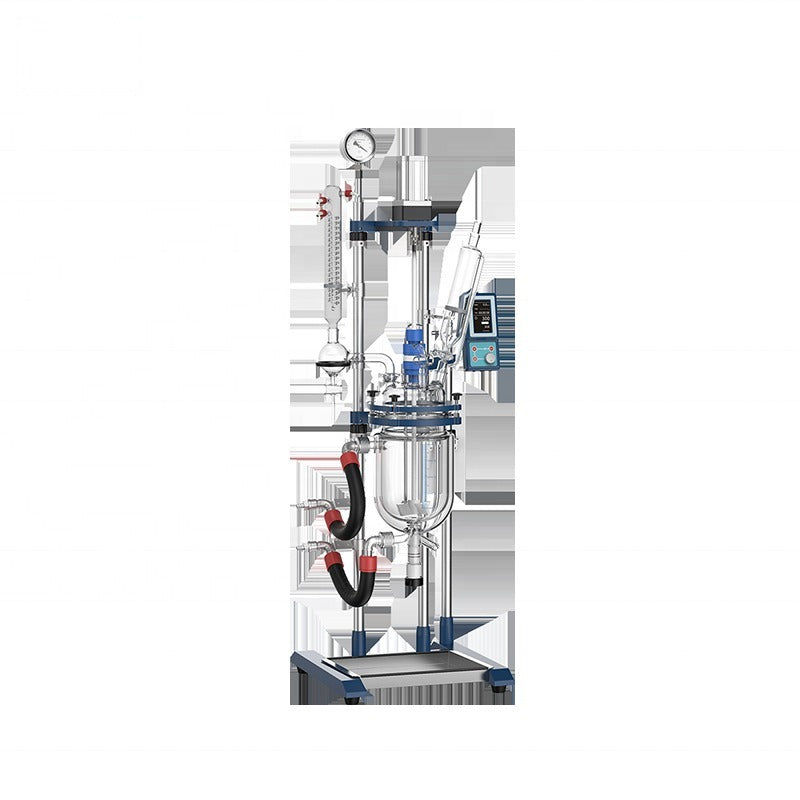

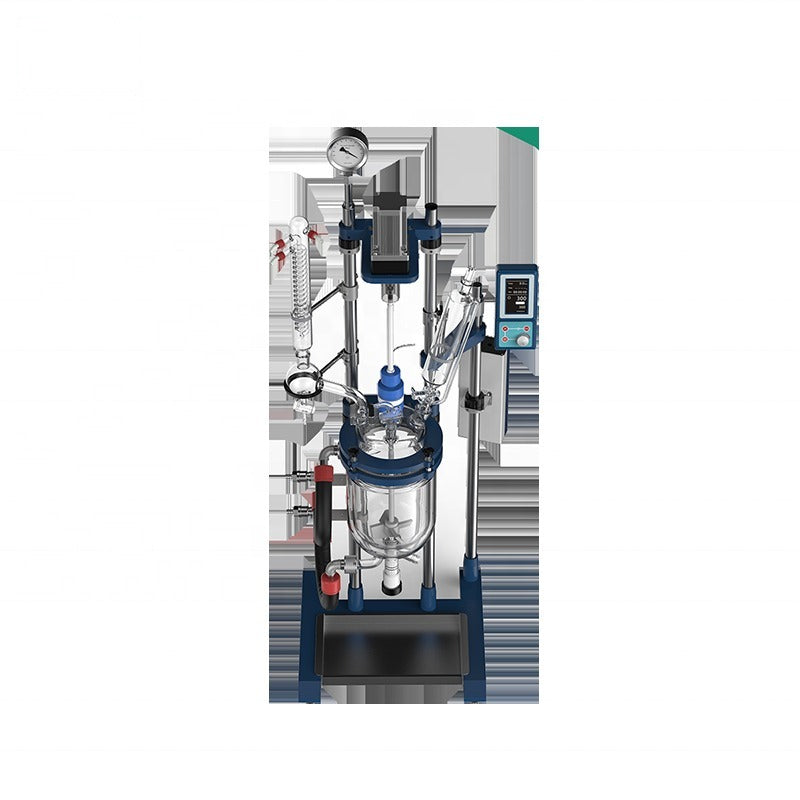

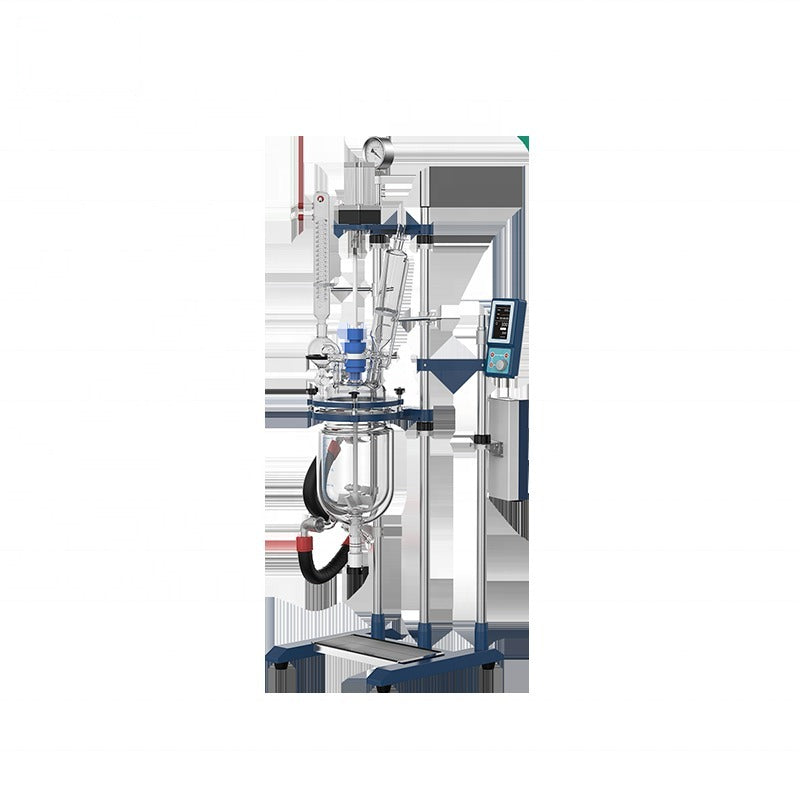

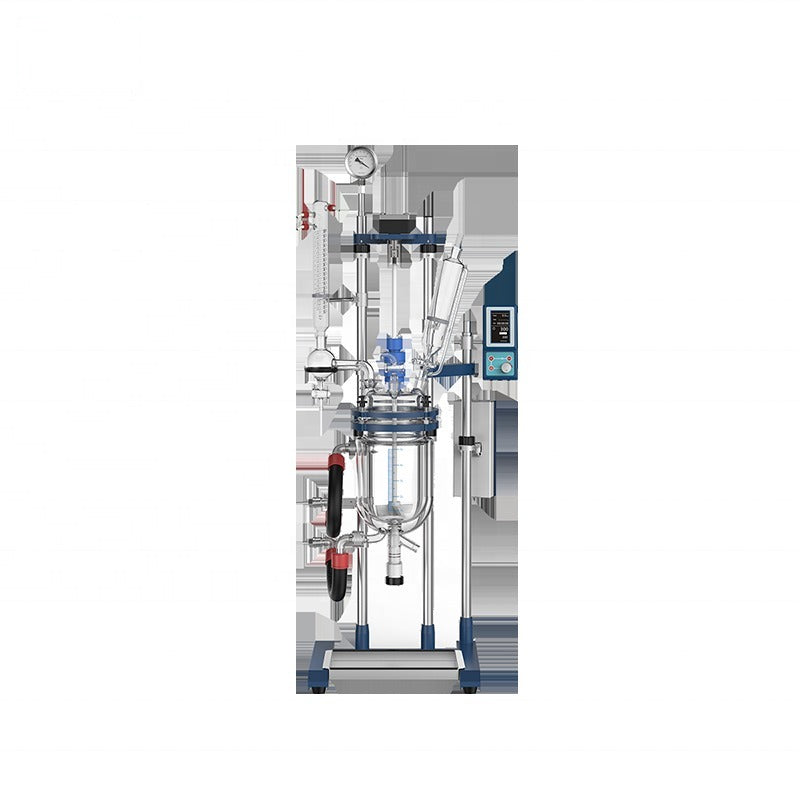

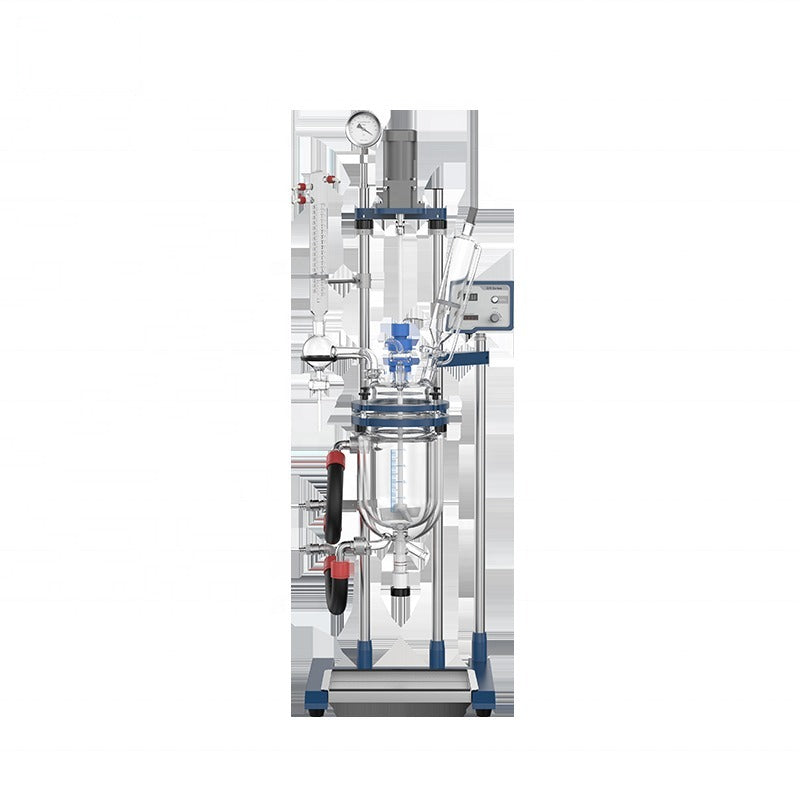

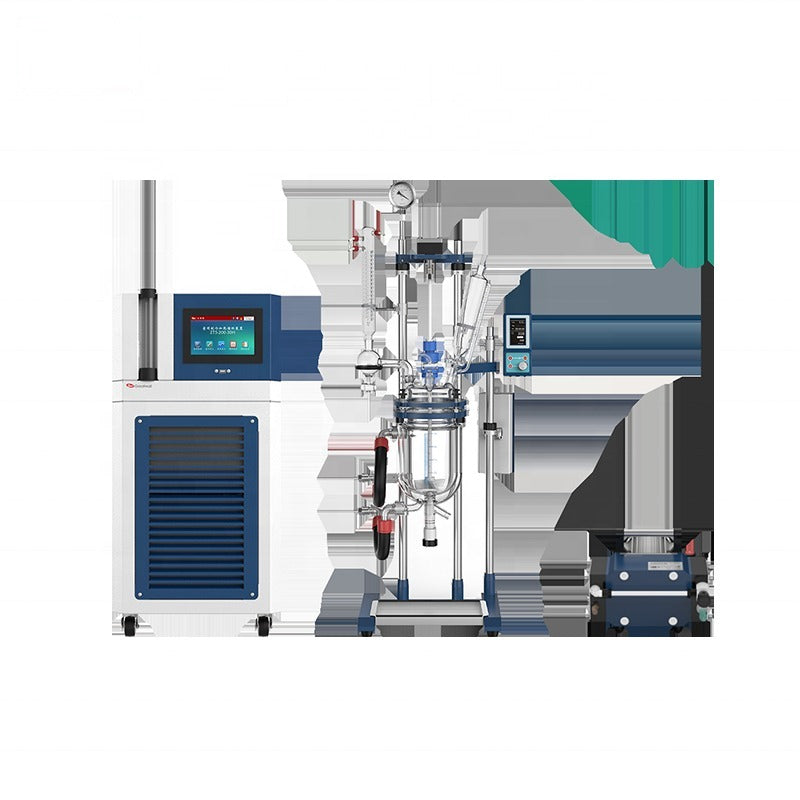

A 5L jacketed glass reactor (reaction kettle) in high borosilicate glass 3.3 with a SUS304 frame, offered as the standard GR-5 and the GR-5CE configuration with identical core specifications.
Model Comparison
Specification
ALAB-GR-5
ALAB-GR-5CE
Capacity
5L
5L
Working Temperature Range
-80 to 200 C
-80 to 200 C
Jacket Capacity
3L
3L
Condensing Surface
0.045 m2
0.045 m2
Constant-Pressure Funnel Capacity
500 mL
500 mL
Power
90W
90W
Voltage
220-240V~, 50/60Hz
220-240V~, 50/60Hz
Weight
85 kg
85 kg
Specifications
Glass Material: High borosilicate glass 3.3
Frame Material: SUS304 + carbon structural steel
Permitted Pressure in Reactor: Negative / normal pressure
Dimensions: 60 x 52 x 160 cm
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
