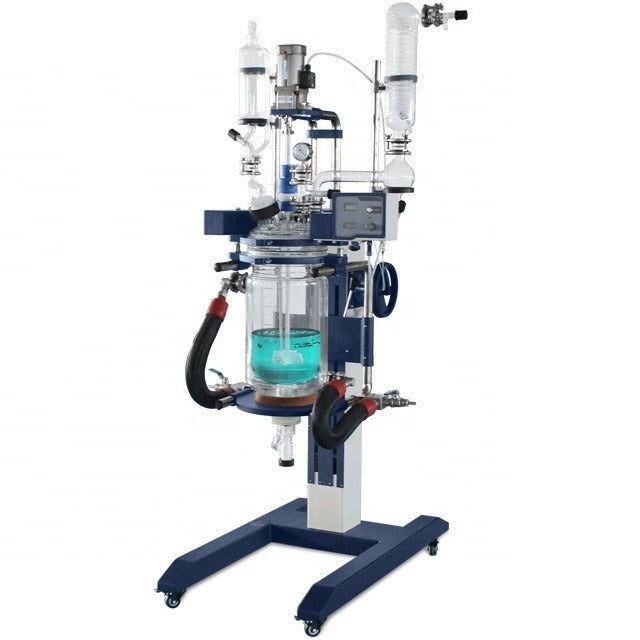

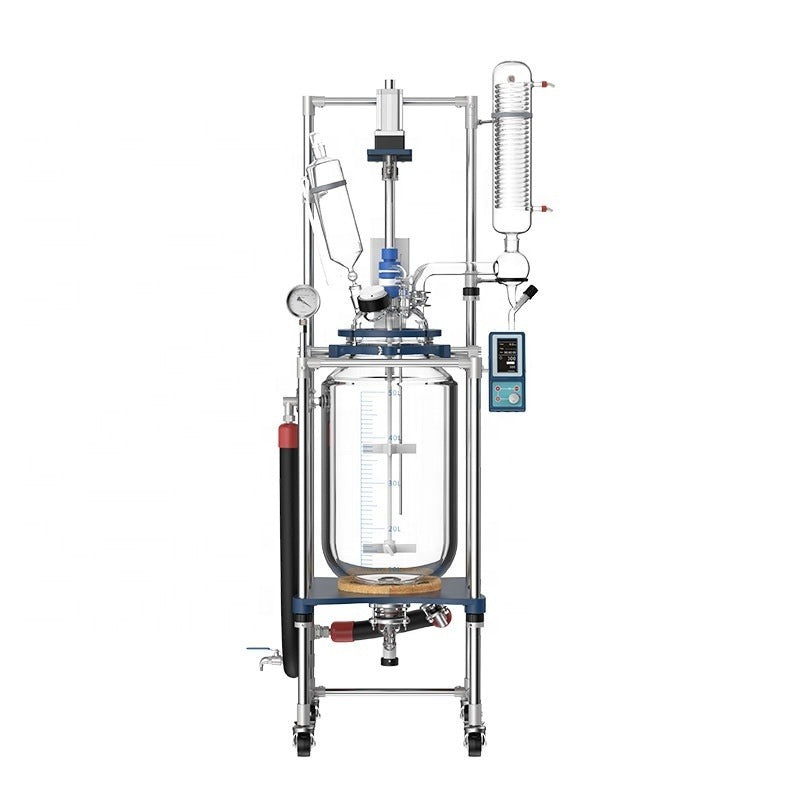

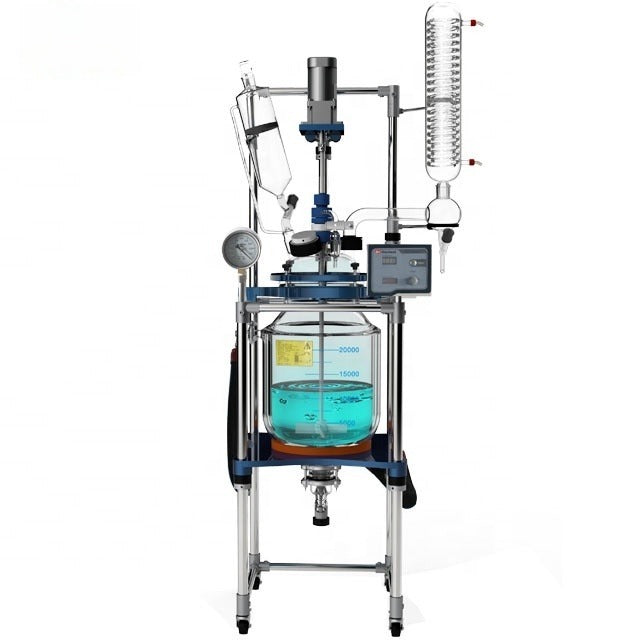

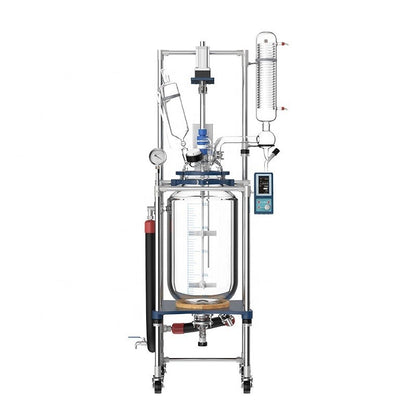

The GR-50 is a 50L two-layer borosilicate glass reactor for pilot-scale synthesis, mixing and temperature-controlled reactions, offered in GR-50 and GR-50CE configurations on the same platform.
Model Comparison
Specification
ALAB-GR-50
ALAB-GR-50CE
Effective Volume
50L
50L
Jacket Capacity
16L
16L
Temperature Range
-80~200°C
-80~200°C
Operating Pressure
Vacuum or constant pressure
Vacuum or constant pressure
Motor Power
140W
140W
Rotary Speed
50-500 rpm
50-500 rpm
Power Supply
1~, 220V~240V, 50/60Hz
1~, 220V~240V, 50/60Hz
Dimensions
660 x 535 x 2150 mm
660 x 535 x 2150 mm
Specifications
Model: ALAB-GR-50 / ALAB-GR-50CE
Effective Volume: 50L
Jacket Capacity: 16L
Heat Transfer Area (Jacket): 0.65 m²
Heat Transfer Area (Condenser): 0.3 m²
Glass Material: High borosilicate glass 3.3
Frame Material: Stainless steel 304
Temperature Range: -80~200°C
Operating Pressure: Vacuum or constant pressure
Motor Power: 140W
Speed Control: Variable frequency speed control
Rotary Speed: 50-500 rpm
Circulating Inlet/Outlet: DN15
Sealing Material: PTFE
Constant Pressure Funnel: 2L
Power Supply: 1~, 220V~240V, 50/60Hz
Dimensions: 660 x 535 x 2150 mm
Weight: 180 kg
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
