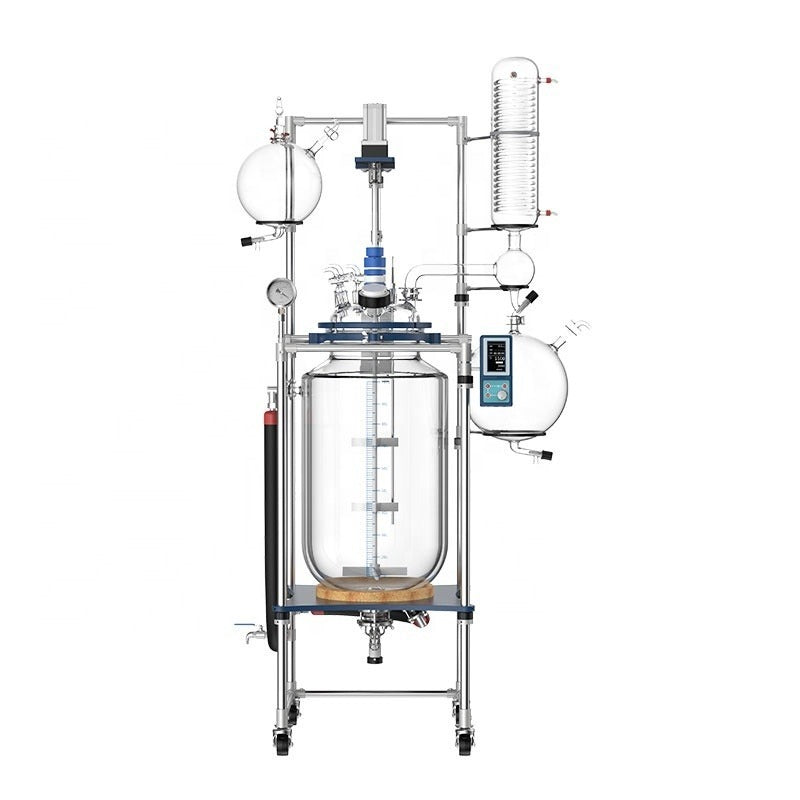

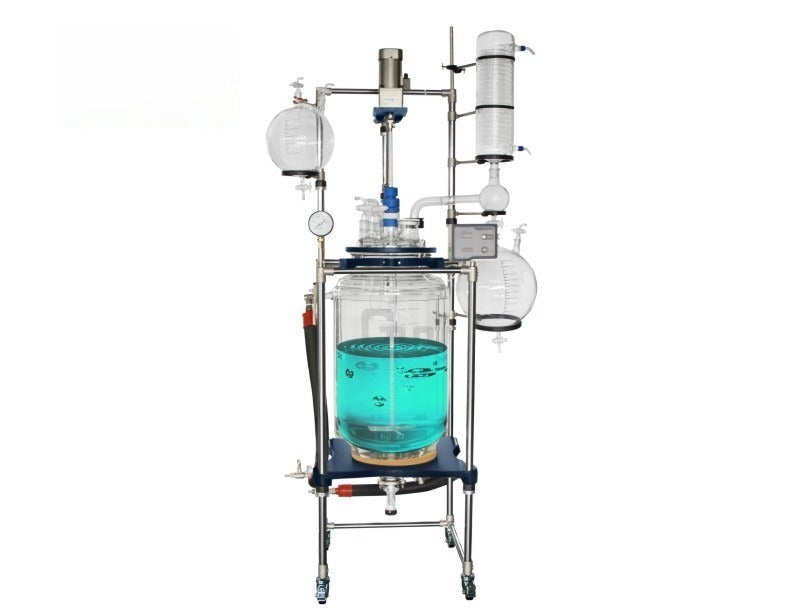

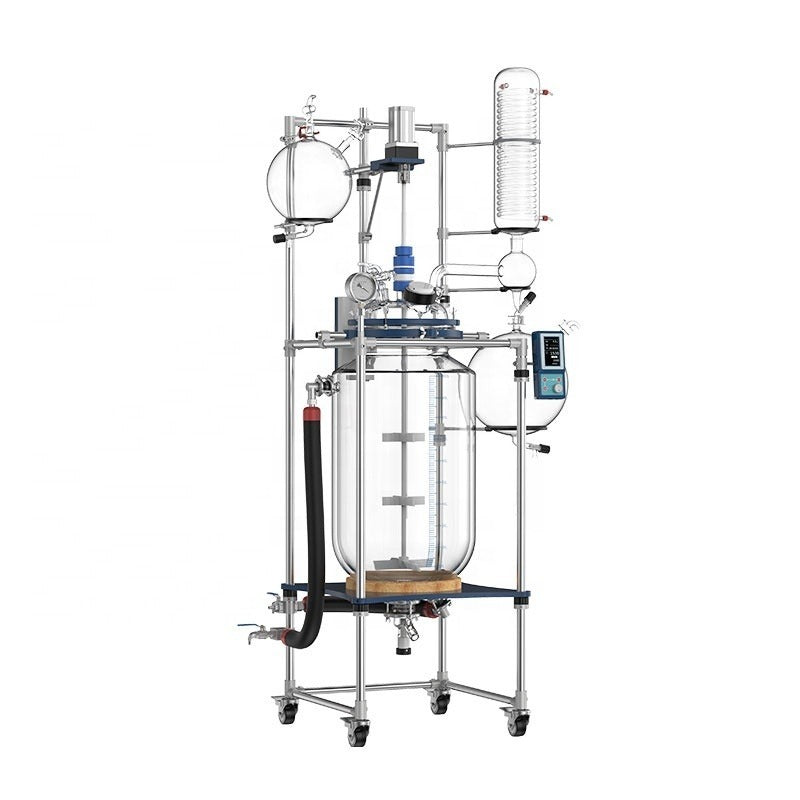

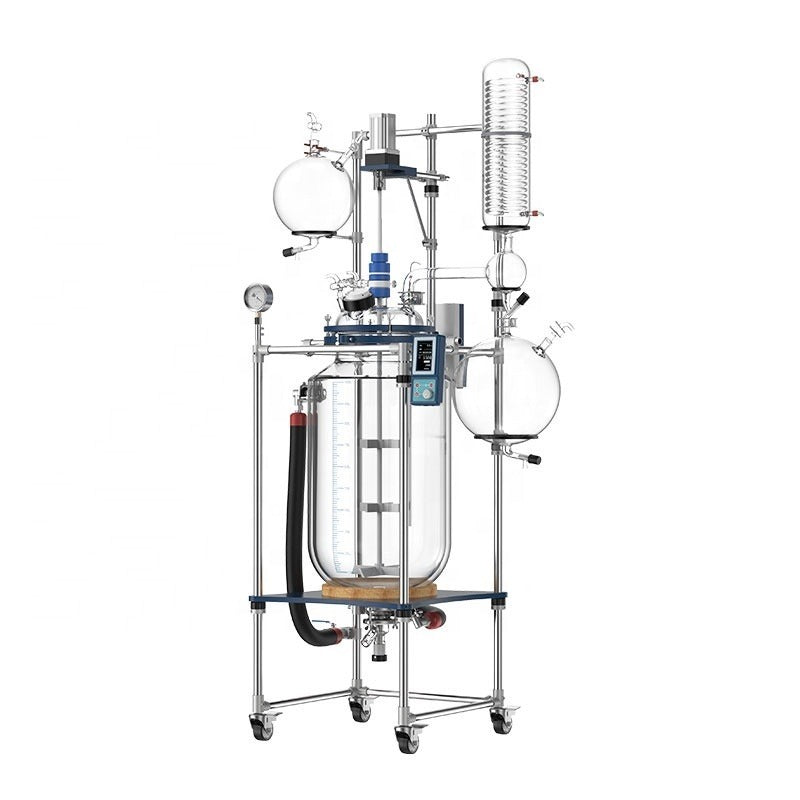

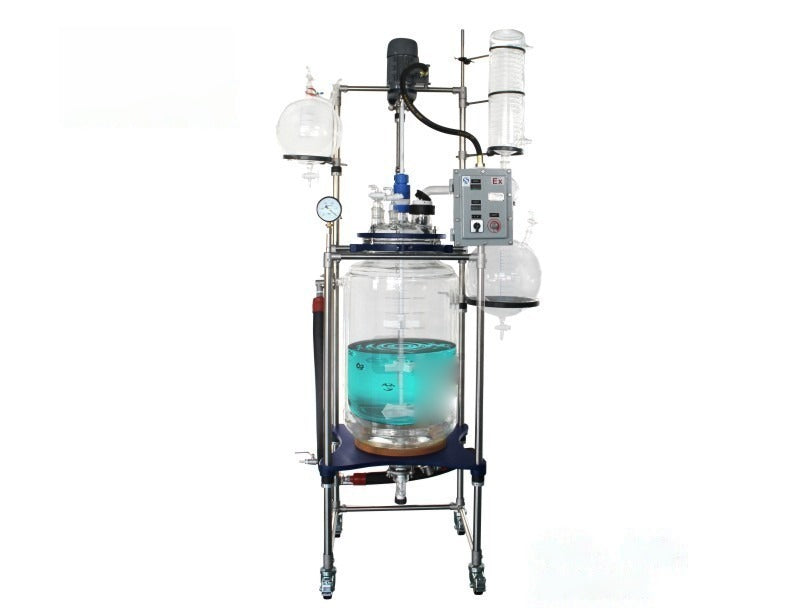

The GR-80 is an 80L two-layer borosilicate glass reactor for pilot-scale synthesis, mixing and temperature-controlled reactions, offered in GR-80 and GR-80CE configurations on the same platform.
Model Comparison
Specification
ALAB-GR-80
ALAB-GR-80CE
Effective Volume
80L
80L
Motor Power
370W
370W
Speed Control
Variable frequency speed control
Variable frequency speed control
Constant Pressure Funnel
10L
10L
Operating Pressure
Vacuum or normal pressure
Vacuum or normal pressure
Power Supply
110V-240V~, 50/60Hz
110V-240V~, 50/60Hz
Dimensions
1270 x 810 x 2360 mm
1270 x 810 x 2360 mm
Weight
180 kg
180 kg
Specifications
Model: ALAB-GR-80 / ALAB-GR-80CE
Effective Volume: 80L
Motor Power: 370W
Speed Control: Variable frequency speed control
Stirring: Rotary vane agitator, stainless steel axis with PTFE outside
Constant Pressure Funnel: 10L
Operating Pressure: Vacuum or normal pressure
Circulating Inlet/Outlet: DN15
Discharge Valve: Open-type of discharge, PTFE material
Frame Material: Stainless steel 304
Power Supply: 110V-240V~, 50/60Hz
Dimensions: 1270 x 810 x 2360 mm
Weight: 180 kg
Warranty: 1 Year
Voltage note for US customers: This unit supports 110-120V power and can be plugged directly into a standard US outlet (the source listing also lists 220V operation).
