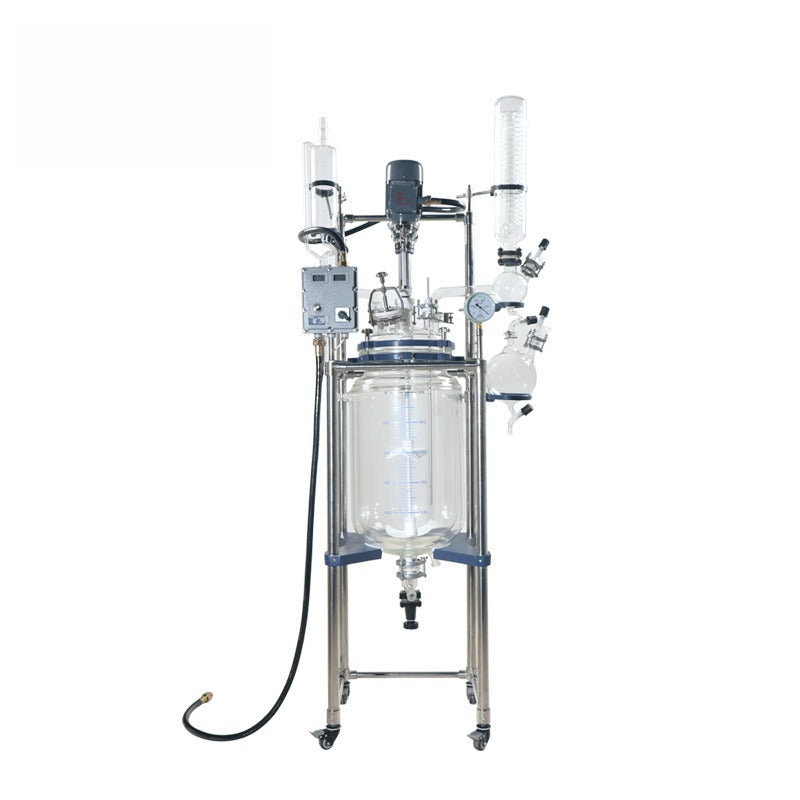

Jacketed Glass Reactor ALAB-YSF

Jacketed Glass Reactor ALAB-YSF

$1,429.00 USD
$1,429.00 USD
Sale Sold out

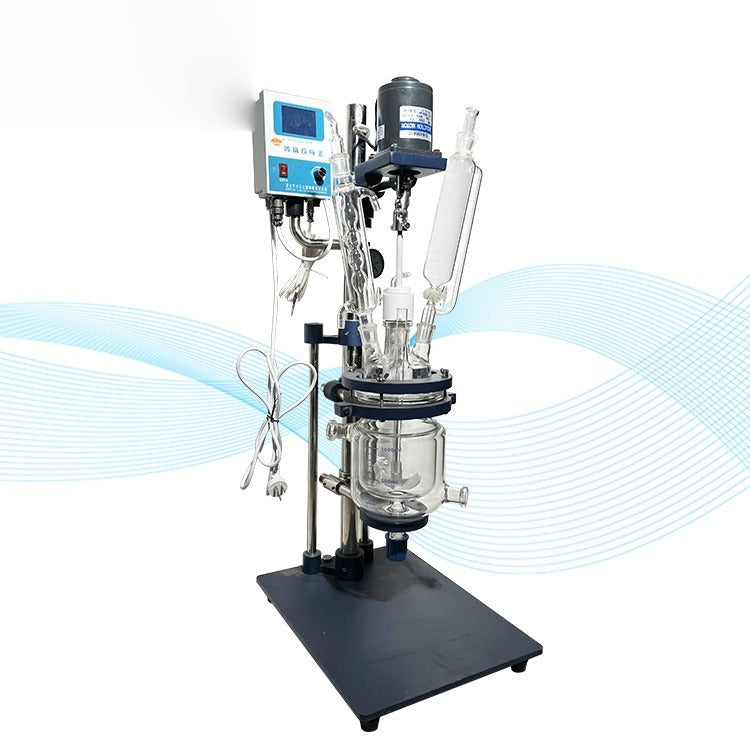

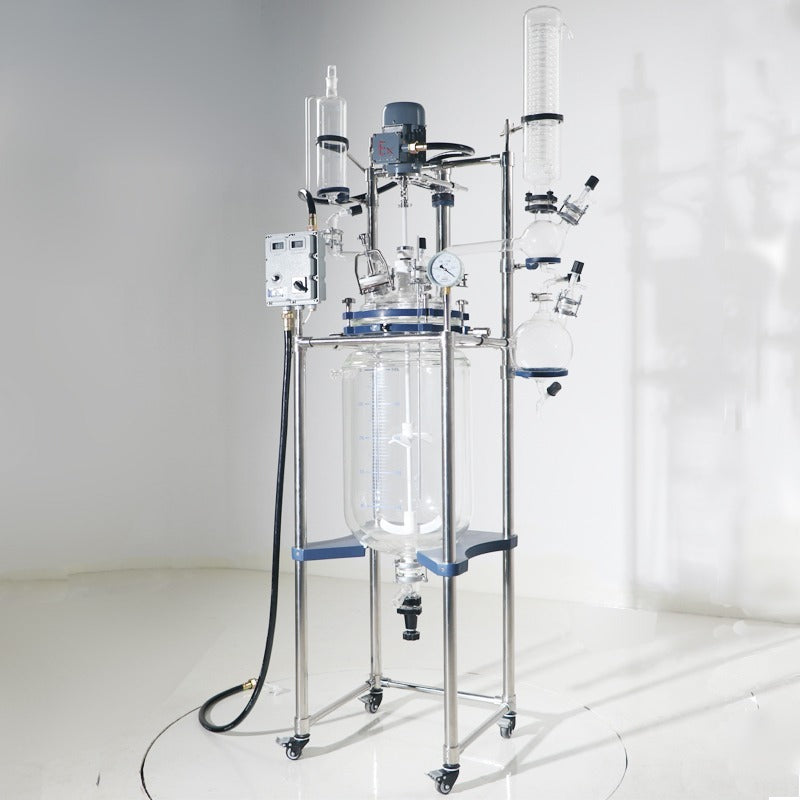

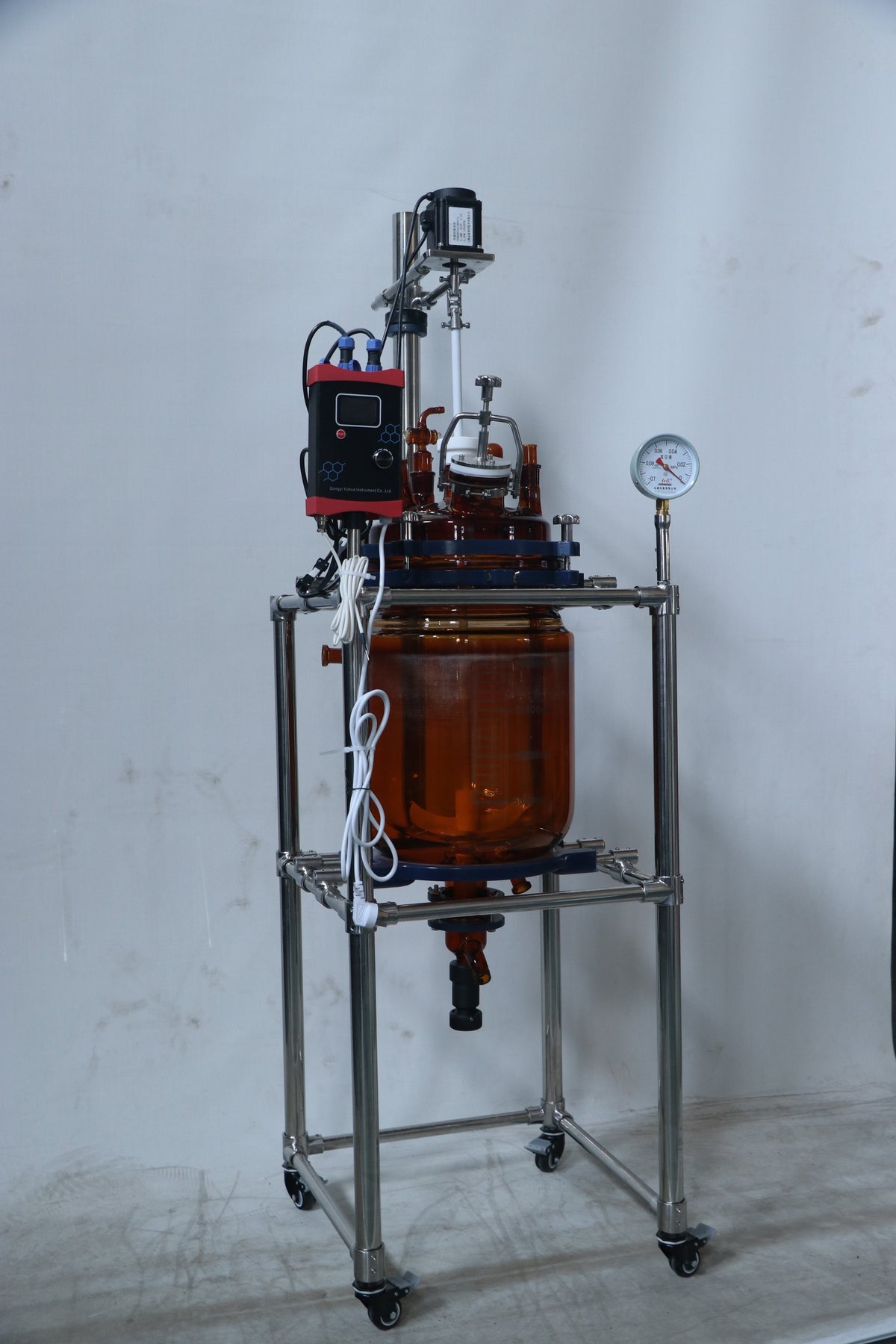

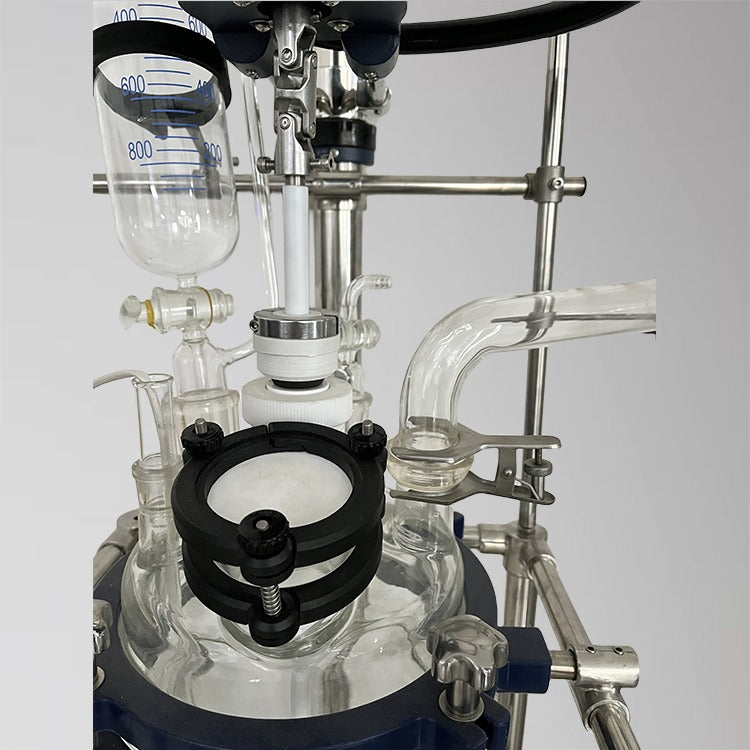

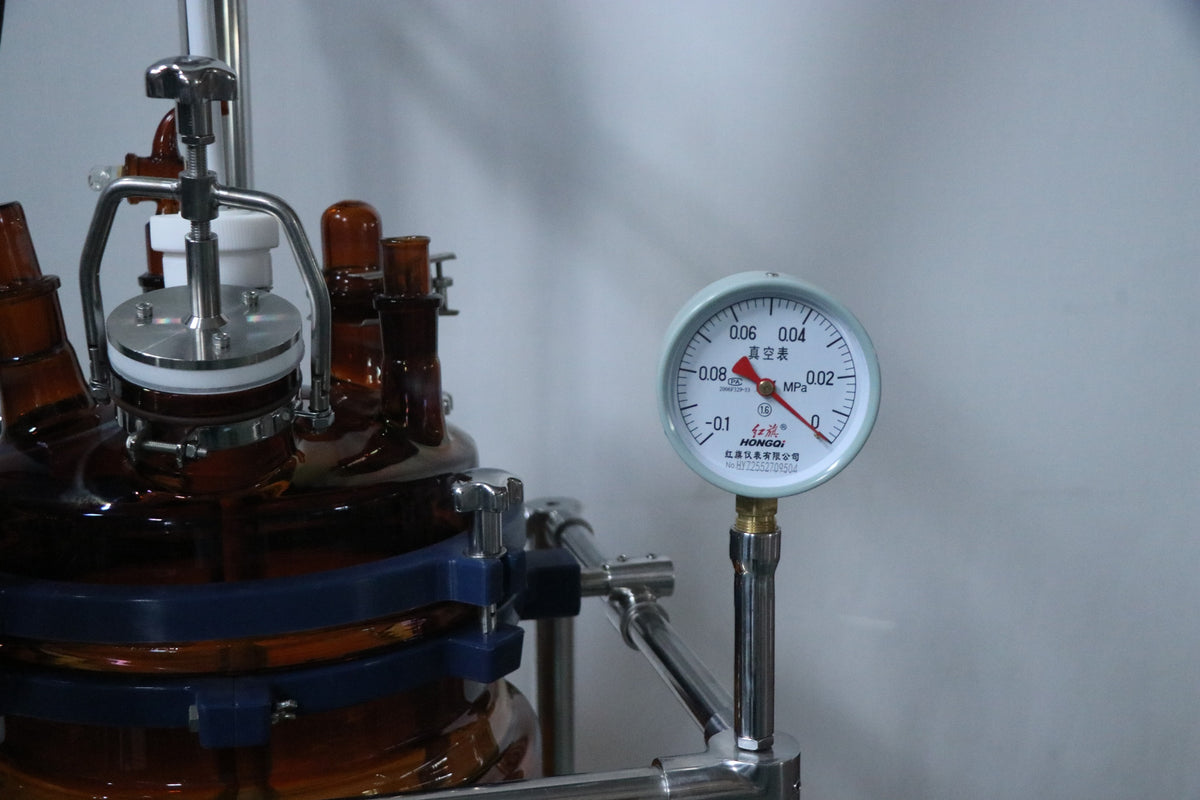

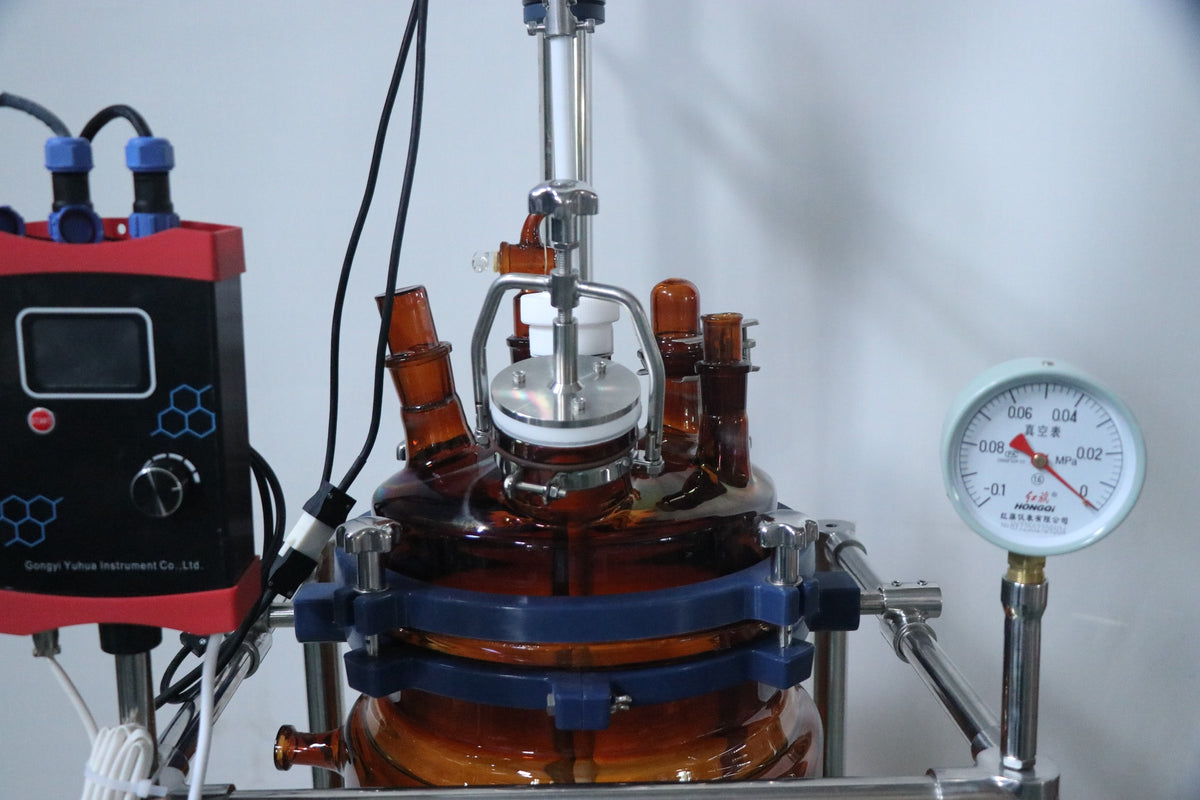

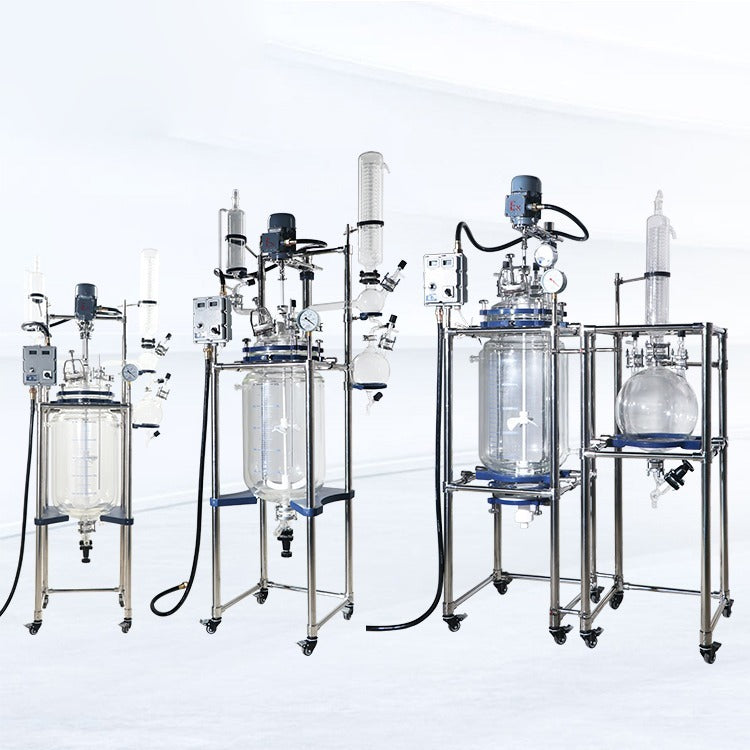

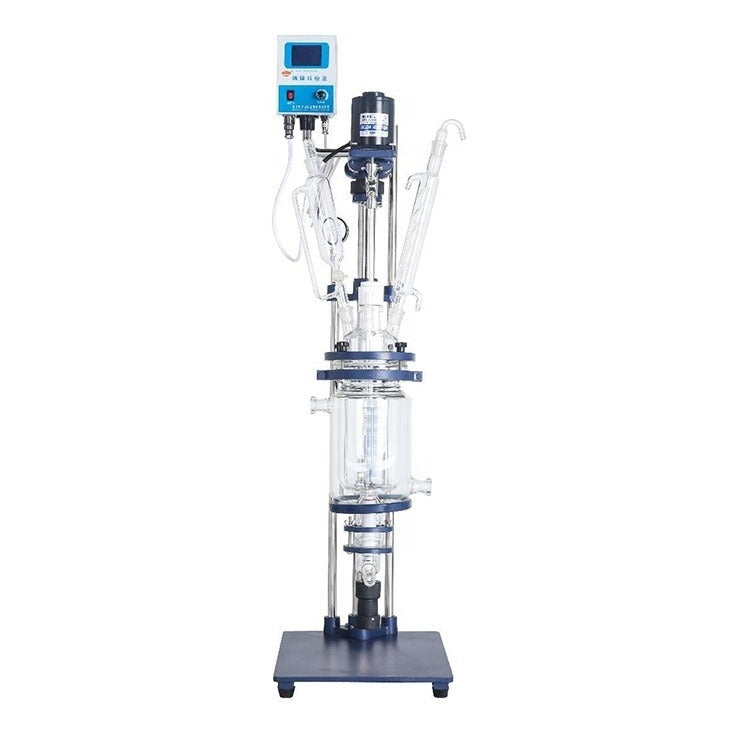

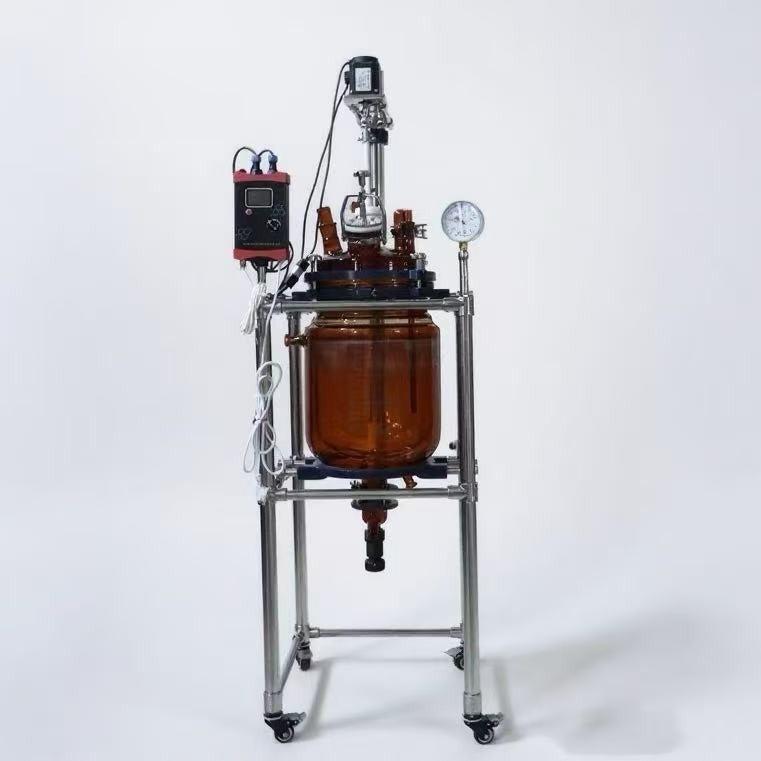

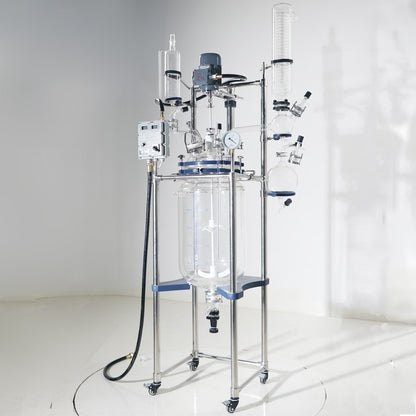

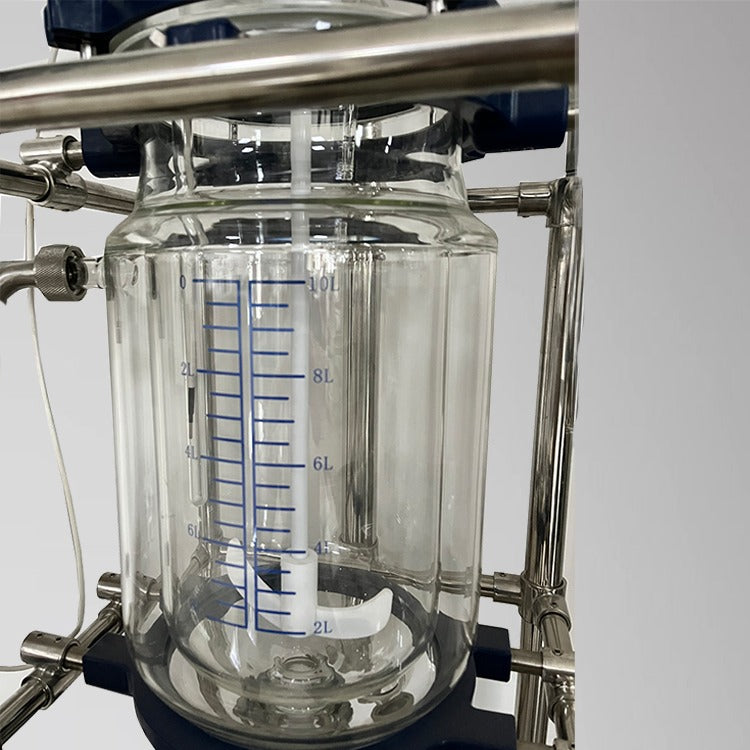

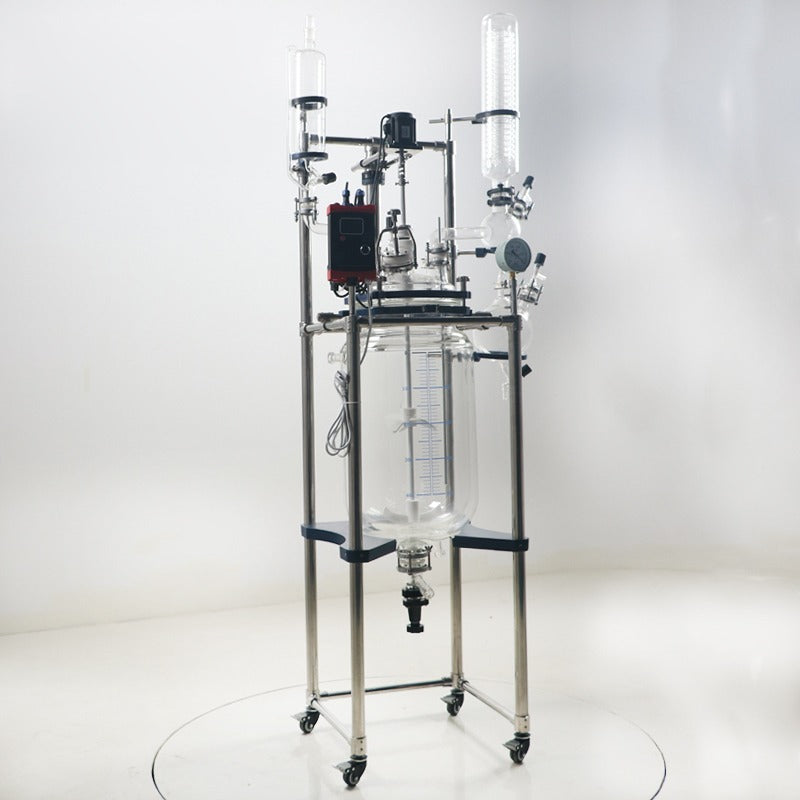

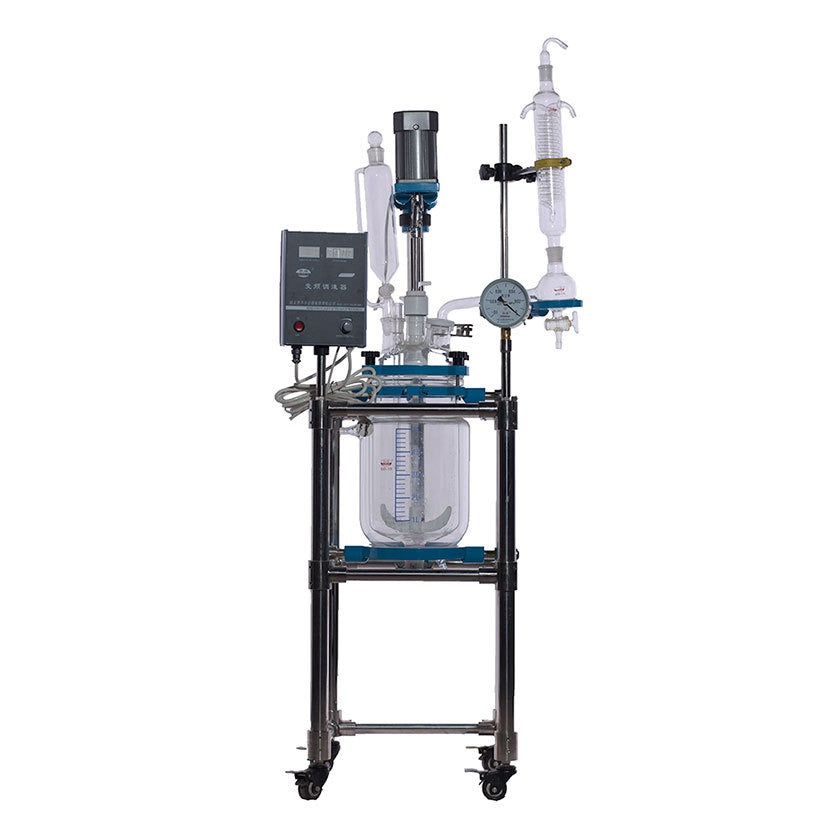

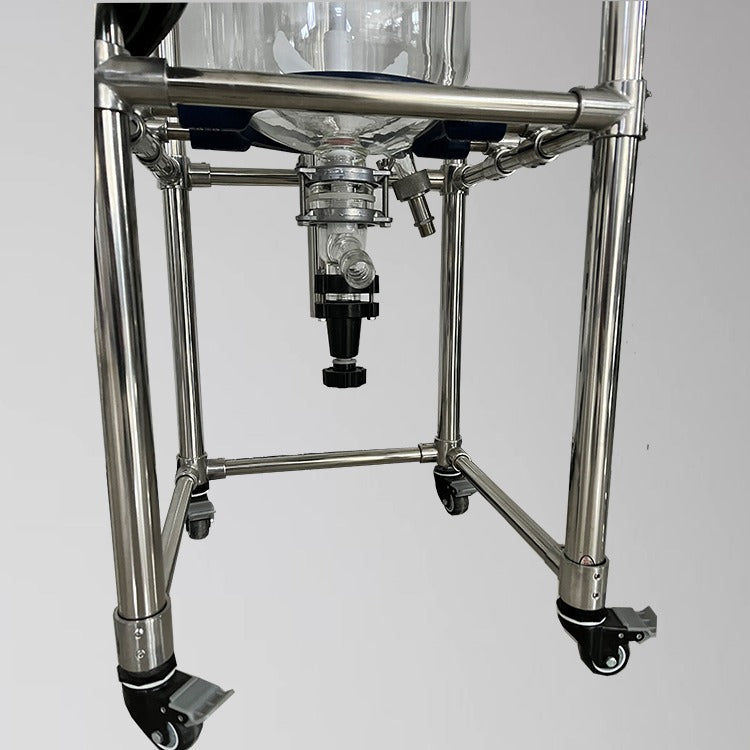

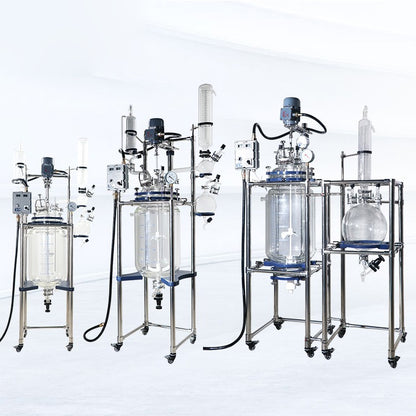

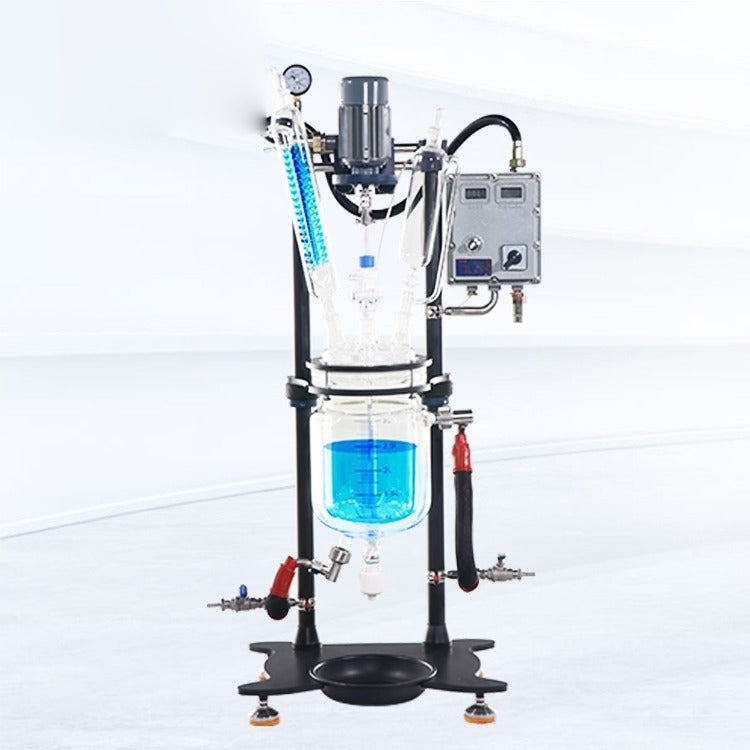

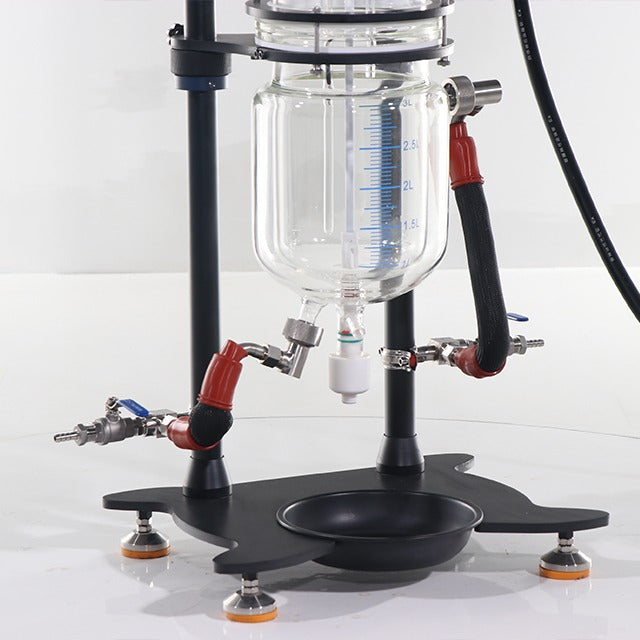

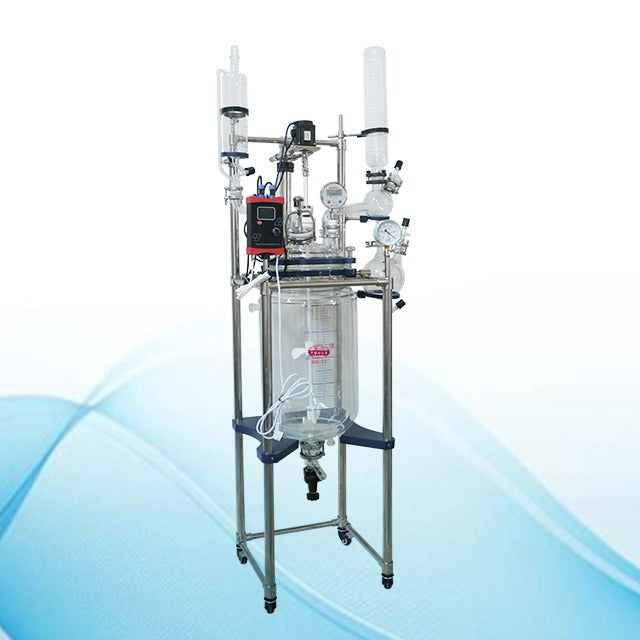

The YSF series is a double-layer jacketed glass reactor (reaction kettle) in borosilicate glass 3.3 (GG-17) on a stainless steel 304 and coated aluminum support frame; the jacket circulates heating or cooling fluid around the reaction vessel. Verified family specifications: working temperature range −60℃ to 200℃, operating pressure from full vacuum to atmospheric pressure, maximum jacket pressure 0.5 bar, stirring speed 0–600 rpm (customizable), and a PTFE (Teflon) bottom discharge valve with no dead space. Sizes run from 1L to 200L, with explosion-proof (EX) motor configurations and complete kits with heater, chiller and vacuum pump.

Model Comparison

Model Configuration Capacity Jacket Volume Motor Power Rated Torque
ALAB-YSF-1L Standard 1L — — —
ALAB-YSF-2L Standard 2L — — —
ALAB-YSF-3L Standard 3L — — —
ALAB-YSF-5L Standard 5L 2L 90W 140 N·cm
ALAB-YSF-10L Standard 10L 5L 120W 177 N·cm
ALAB-YSF-20L Standard 20L 8L 120W 177 N·cm
ALAB-YSF-30L Standard 30L — — —
ALAB-YSF-50L Standard 50L 12L 120W 177 N·cm
ALAB-YSF-80L Standard 80L — — —
ALAB-YSF-100L Standard 100L 18L 200W 285 N·cm
ALAB-YSF-150L Standard 150L — — —
ALAB-YSF-200L Standard 200L 25L 370W 550 N·cm

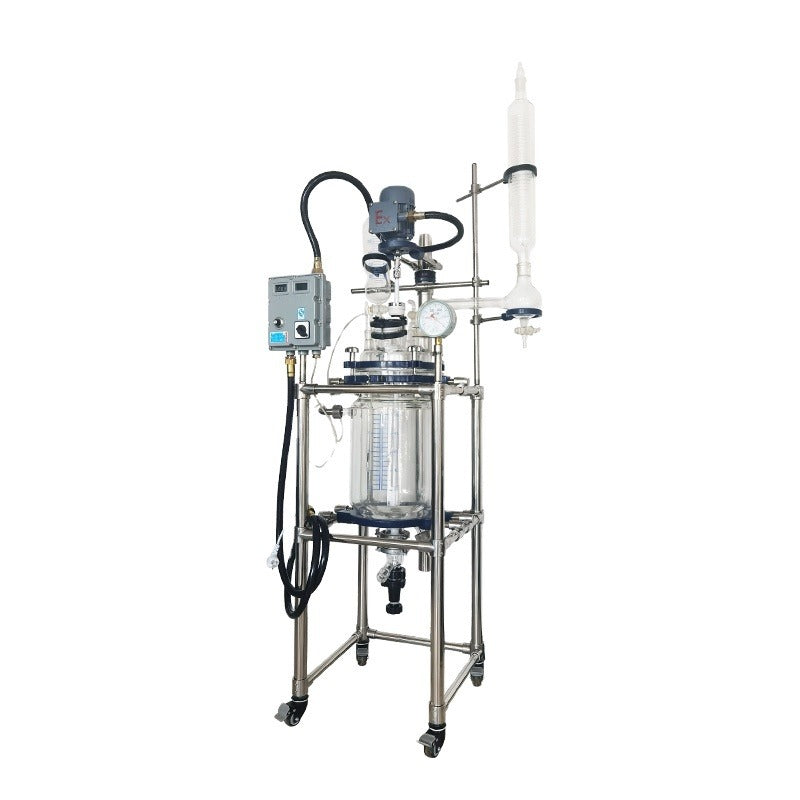

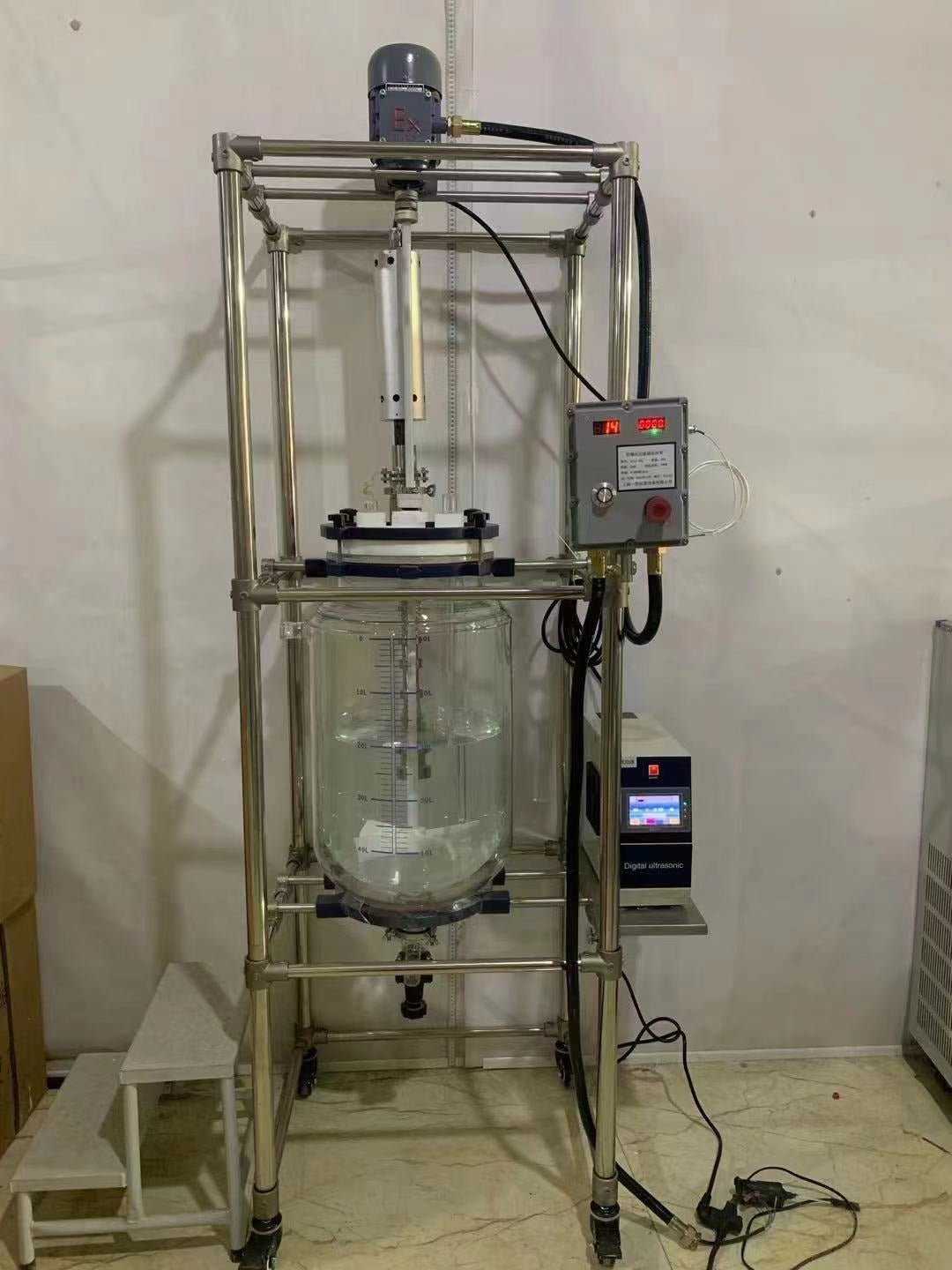

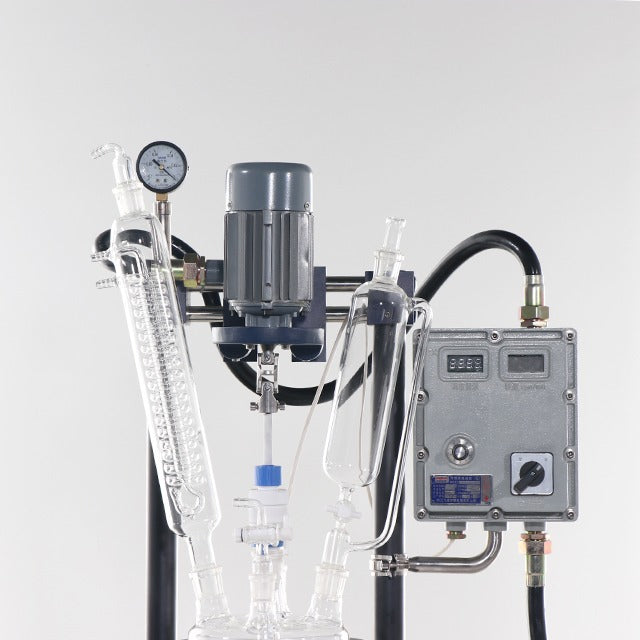

ALAB-YSF-5L-EX Explosion-proof motor 5L — — —
ALAB-YSF-10L-EX Explosion-proof motor 10L — — —
ALAB-YSF-20L-EX Explosion-proof motor 20L — — —
ALAB-YSF-50L-EX Explosion-proof motor 50L — — —
ALAB-YSF-100L-EX Explosion-proof motor 100L — — —

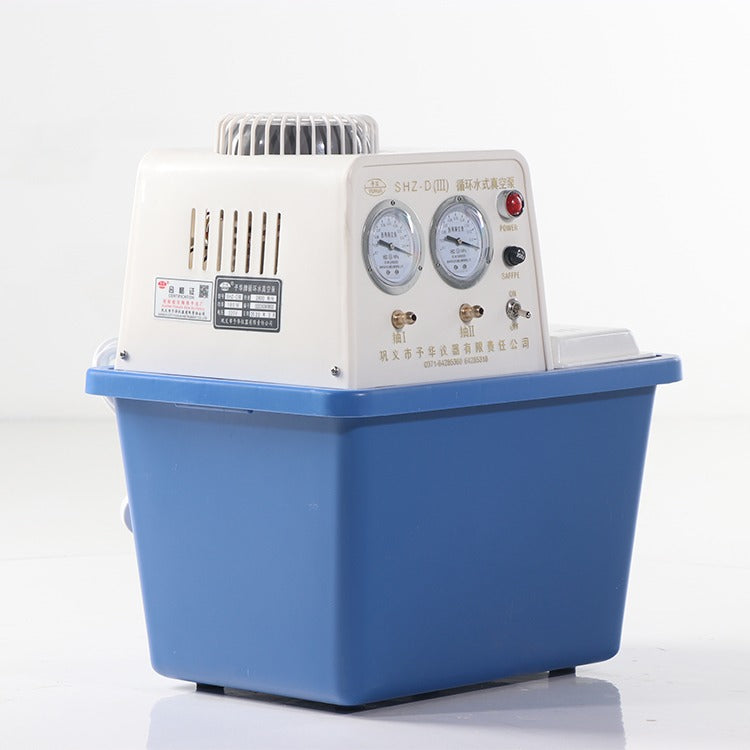

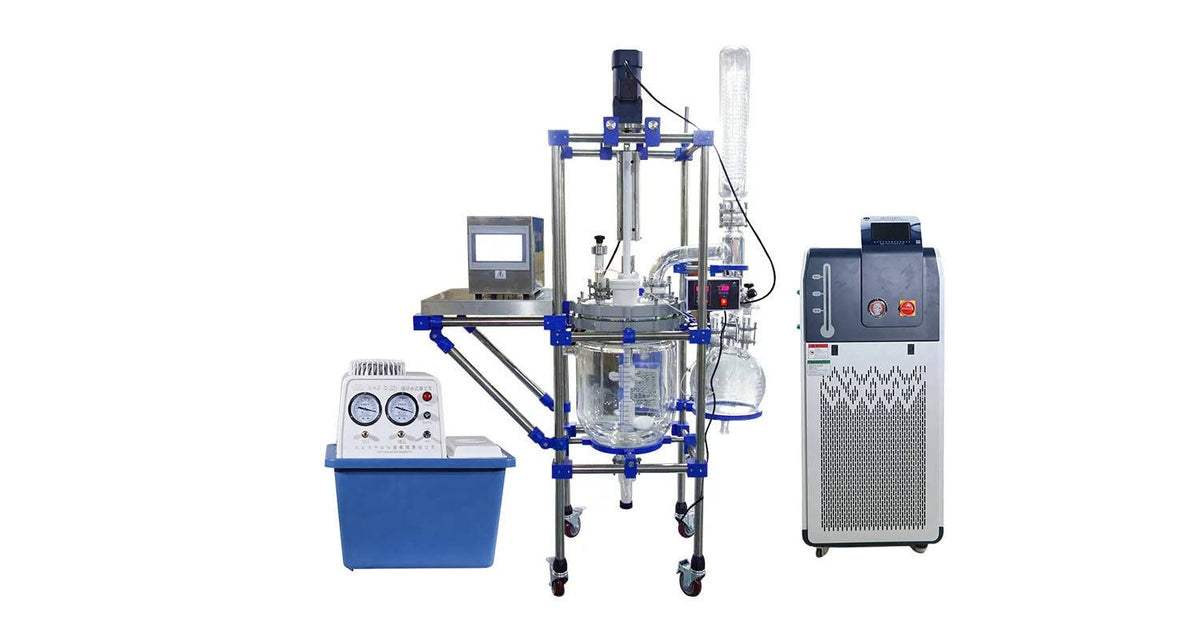

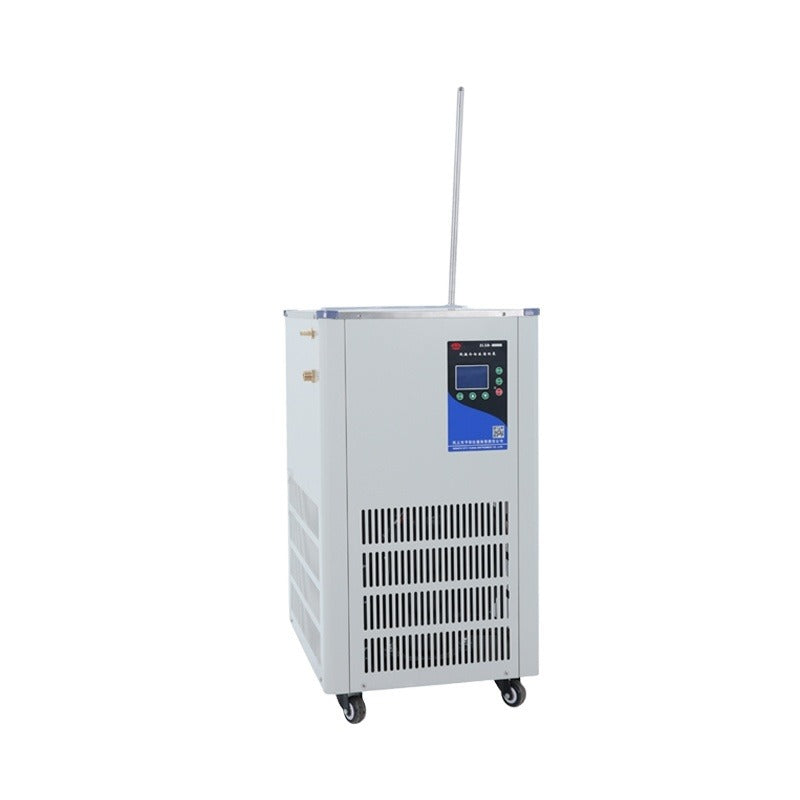

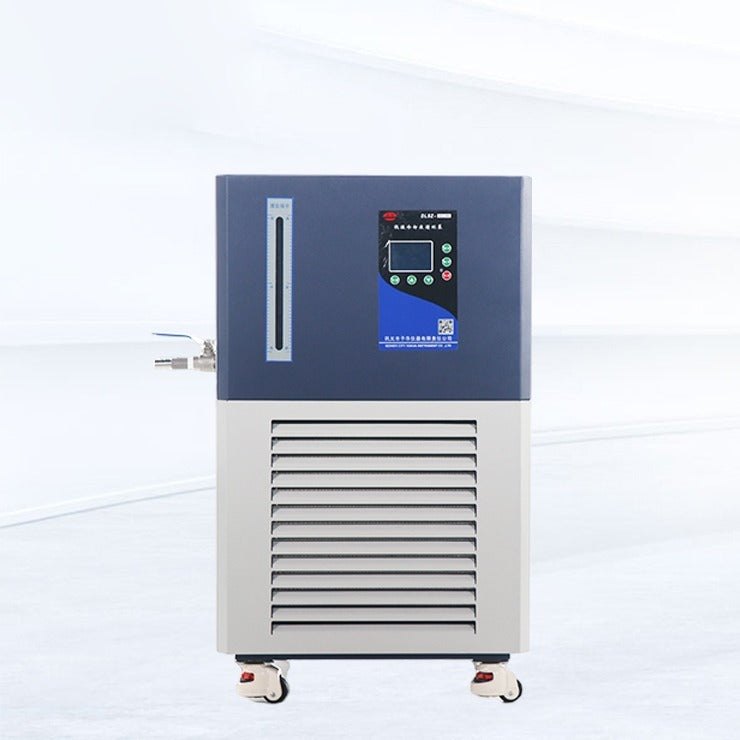

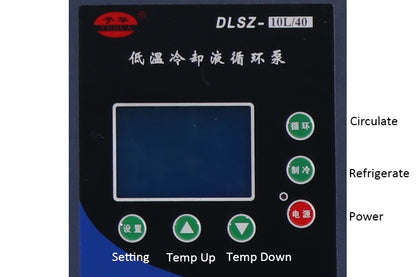

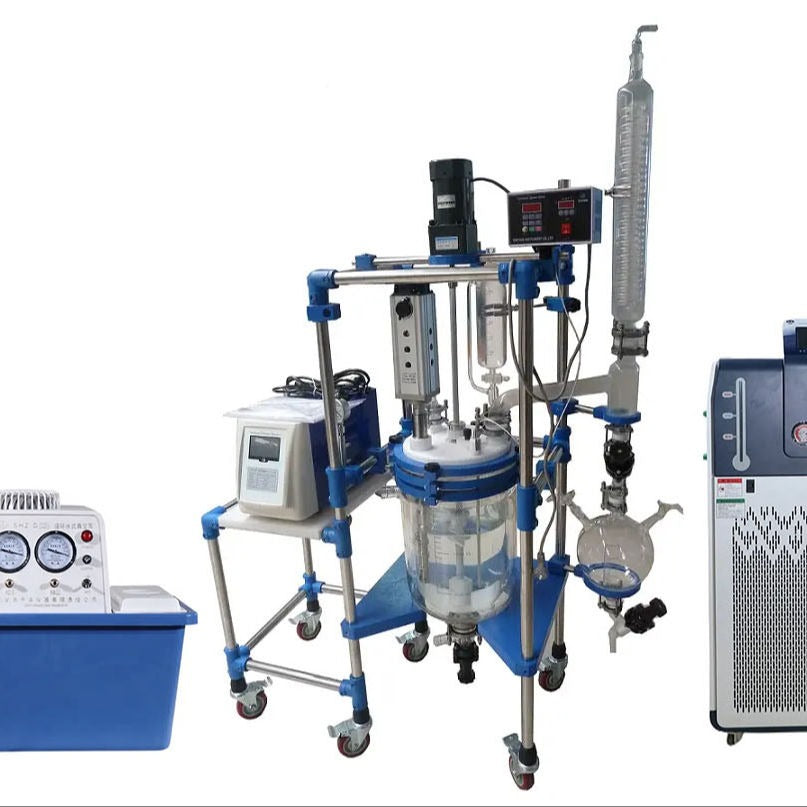

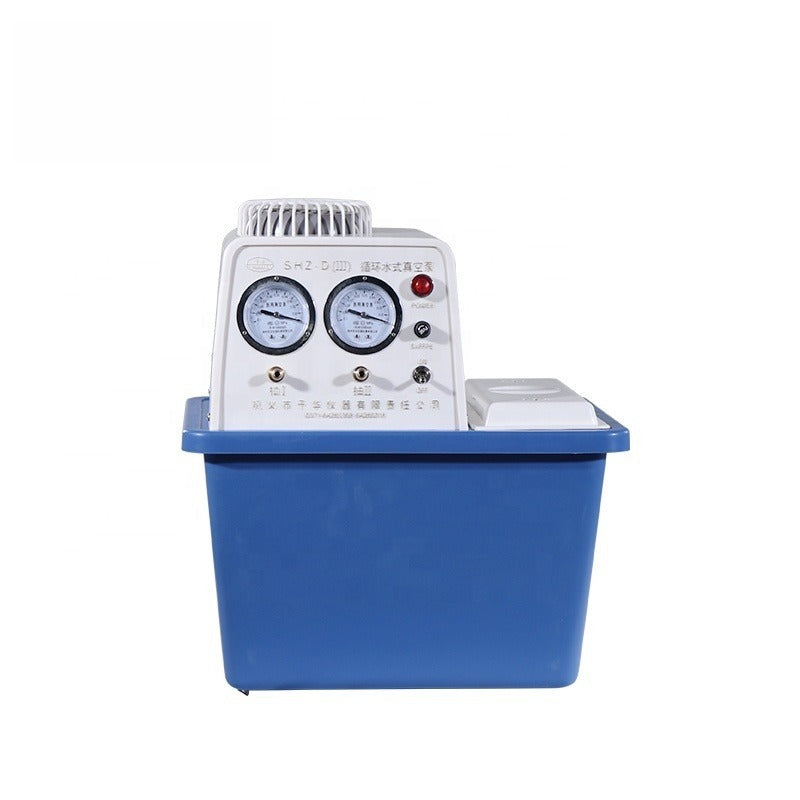

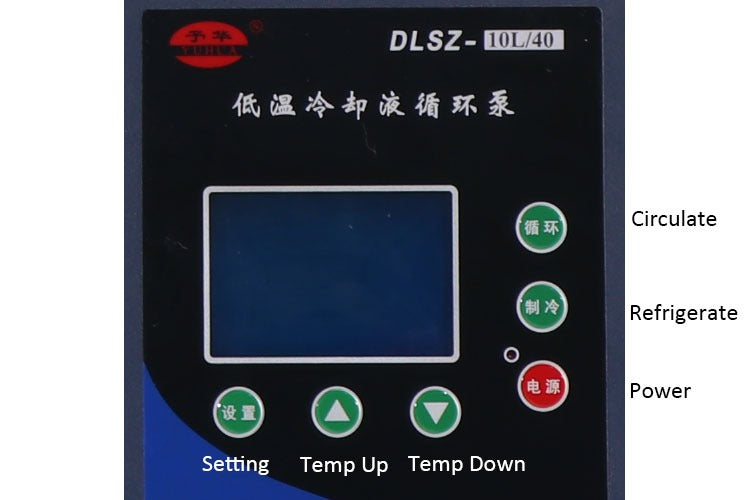

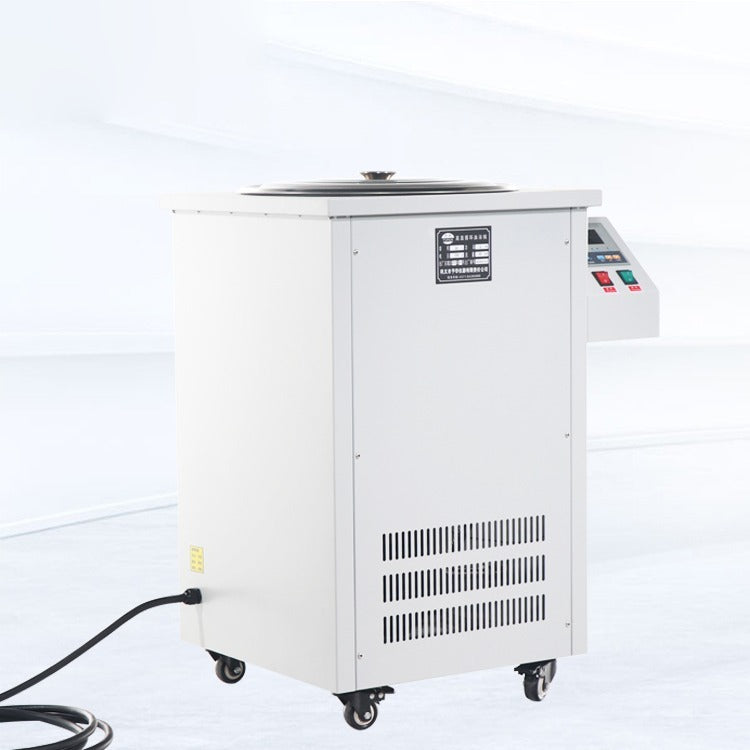

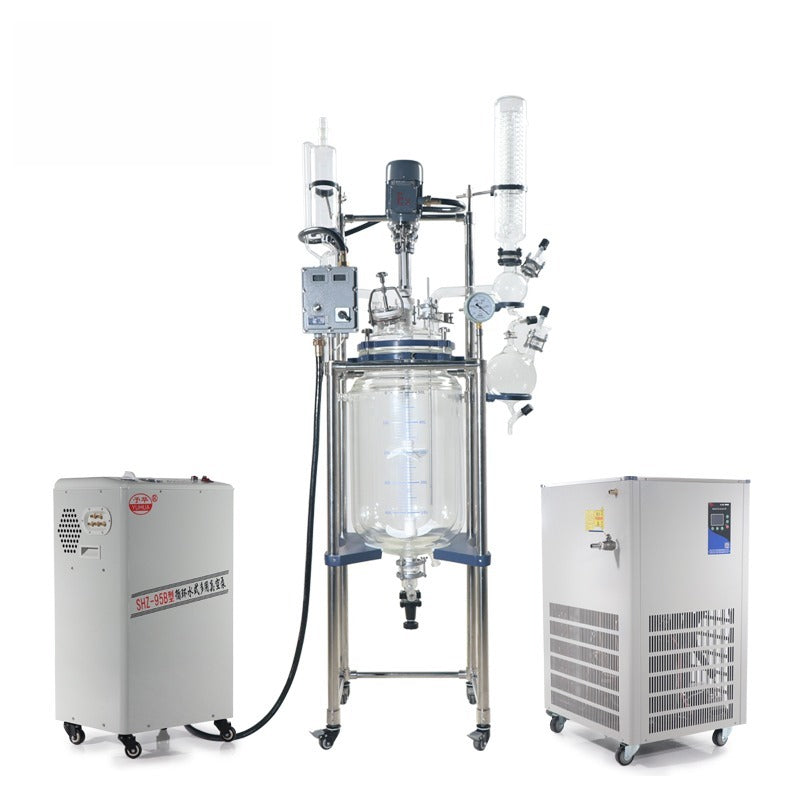

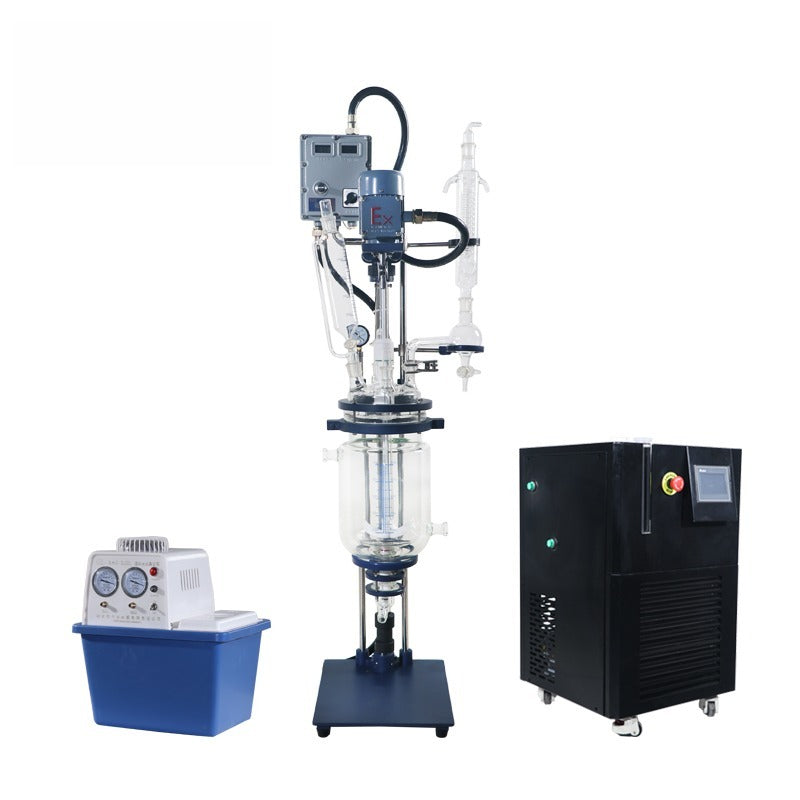

ALAB-YSF-5L Kit Kit with heater, chiller and vacuum pump 5L — — —

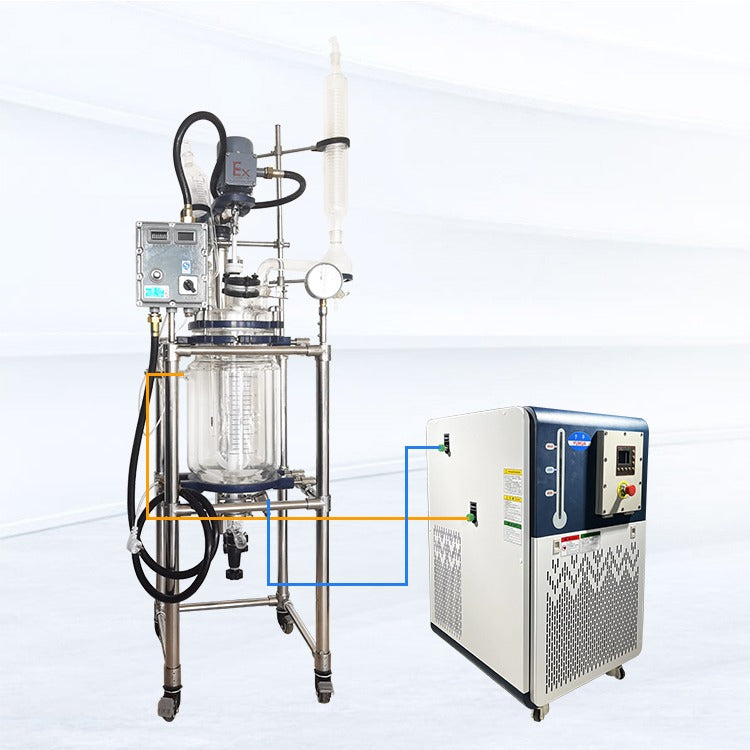

ALAB-YSF-5L EX Kit Explosion-proof kit with heater, chiller and vacuum pump 5L — — —

Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
