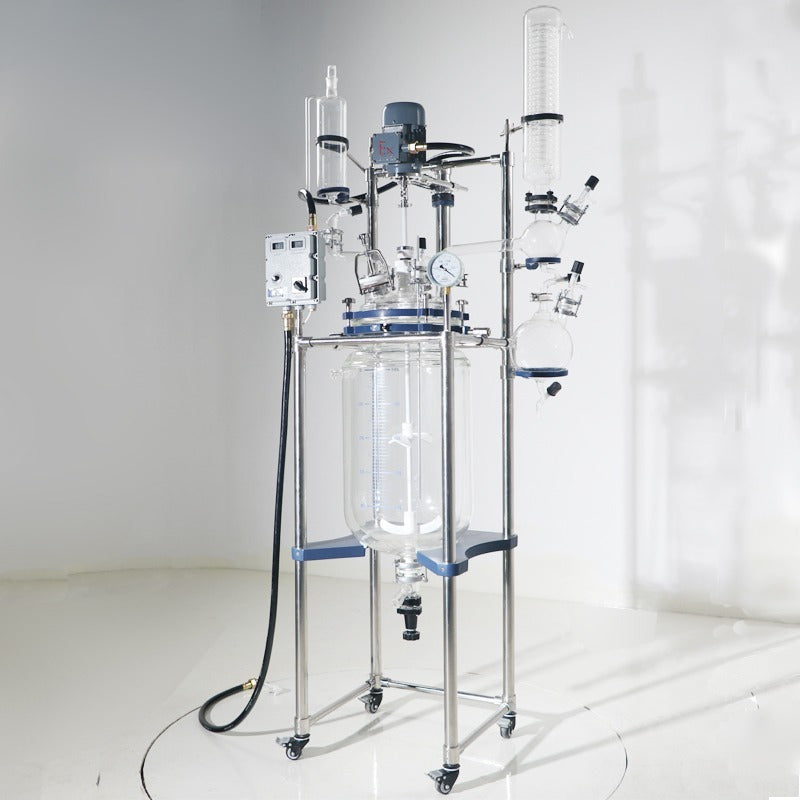

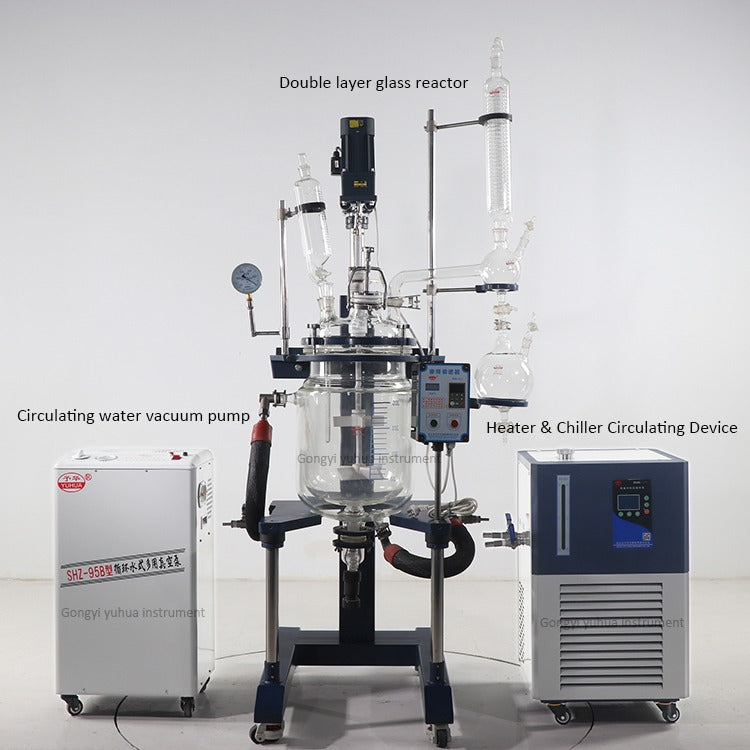

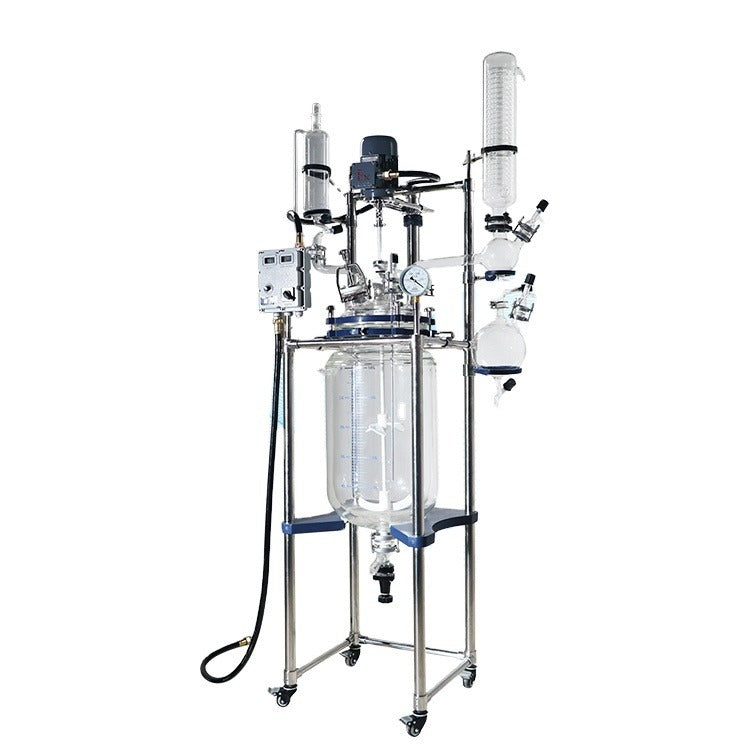

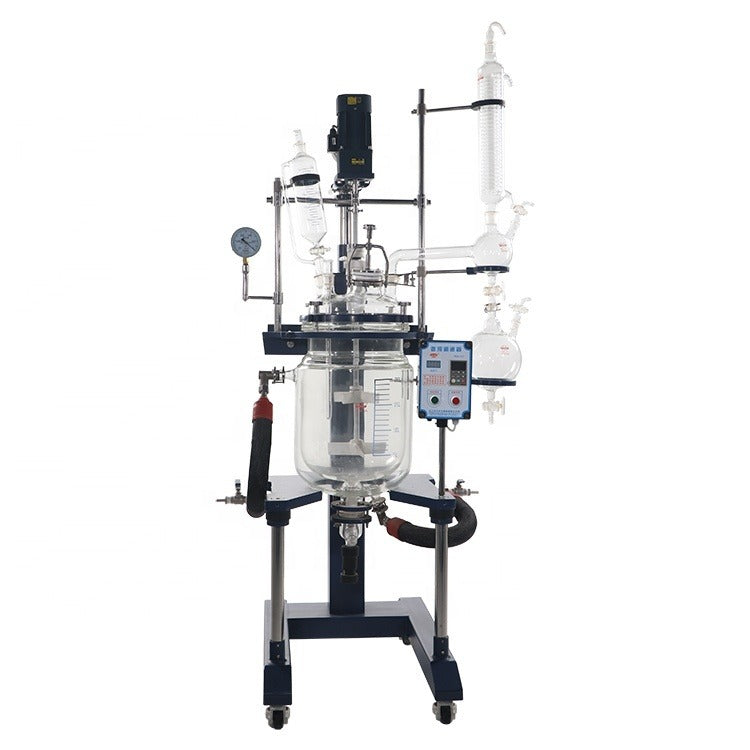

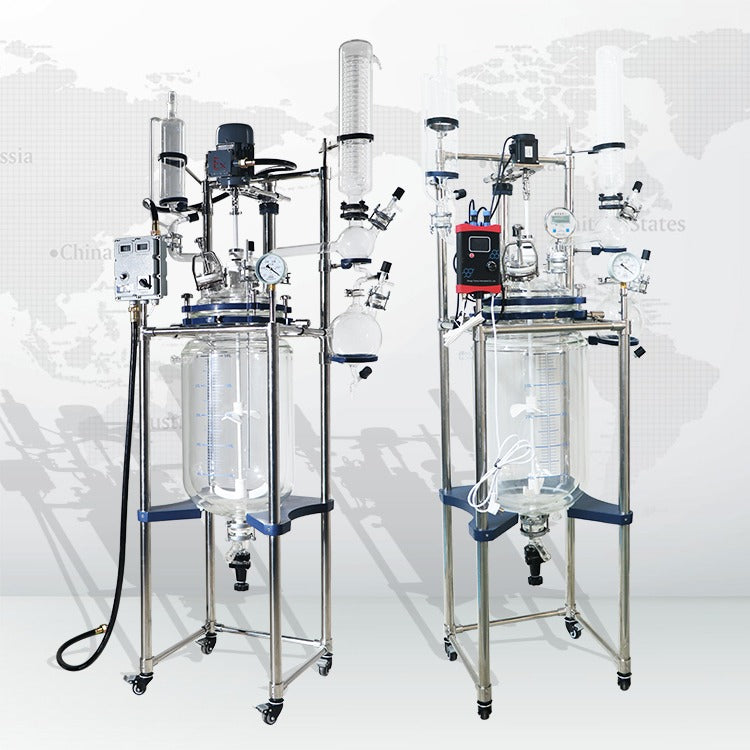

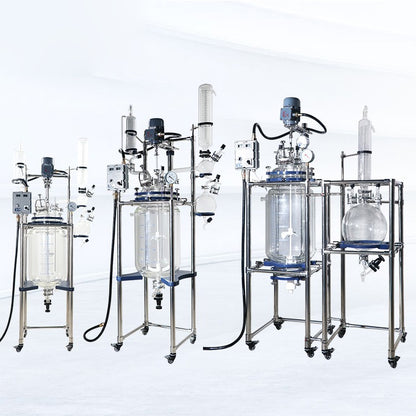

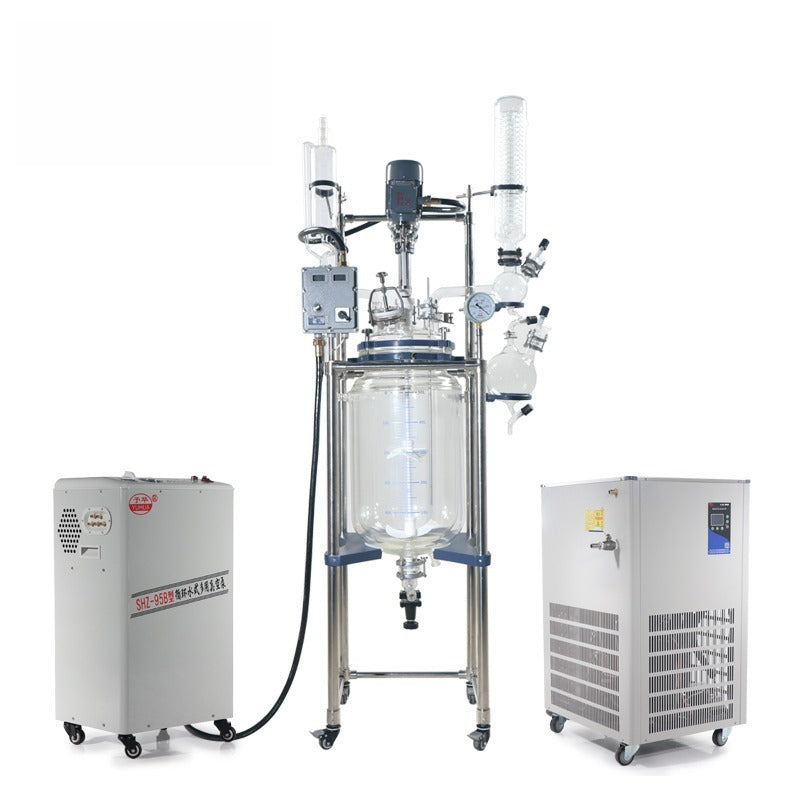

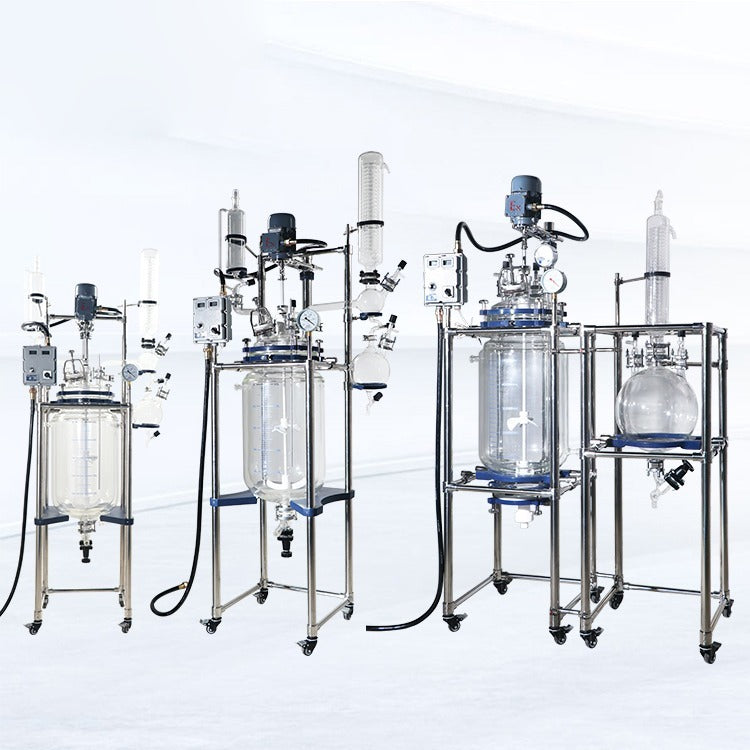

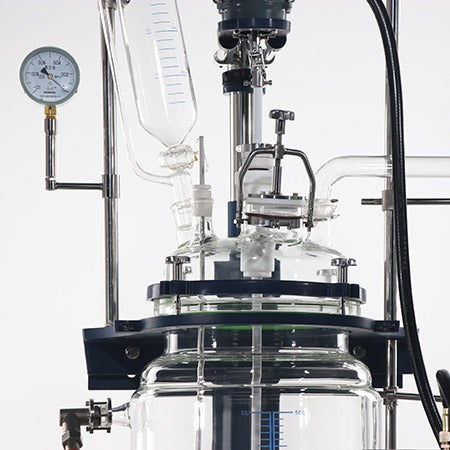

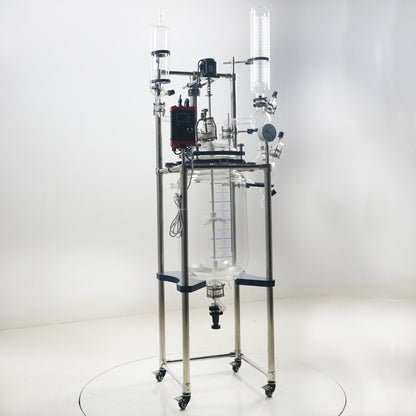

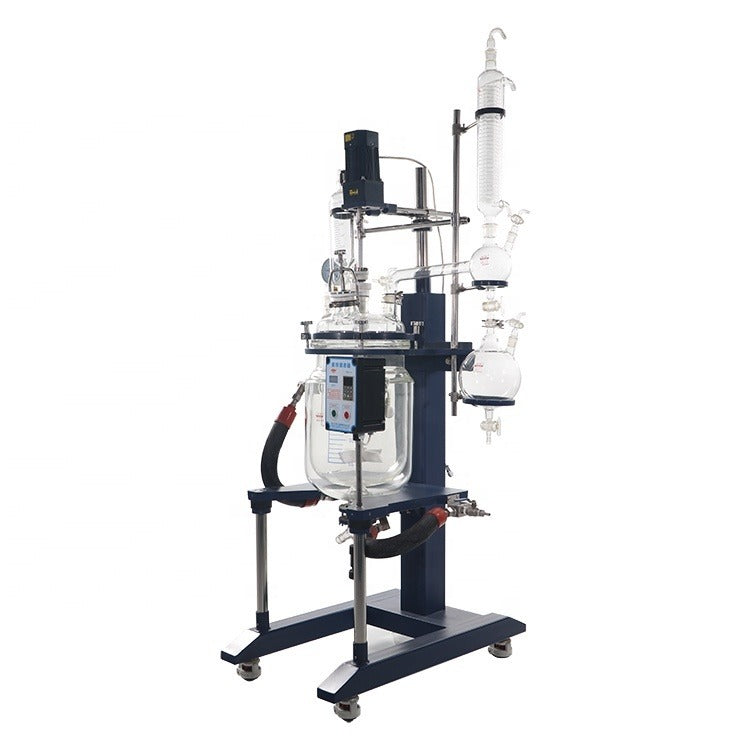

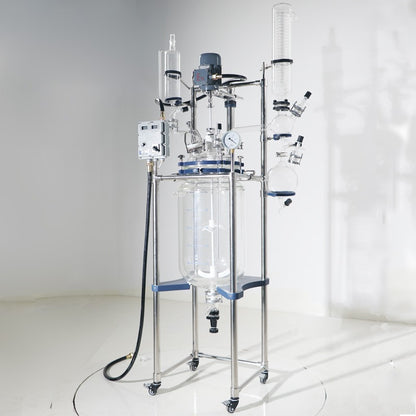

The YSFT series is a jacketed two-layer glass reactor (reaction kettle) in borosilicate glass 3.3 (GG-17) with PTFE vacuum sealing and a six-port lid, impeller-blade stirring and thermal-oil heating circulation, for vacuum operation down to −0.098 MPa. Sizes run from 10L to 100L.
Model Comparison
Specification
ALAB-YSFT-10L
ALAB-YSFT-20L
ALAB-YSFT-50L
ALAB-YSFT-100L
Vessel Capacity
10L
20L
50L
100L
Jacket Capacity
3L
5L
16L
30L
Motor Power (explosion-proof / standard)
120W / 300W
180W / 300W
180W / 300W
550W / 300W
Motor Torque
1000 g·cm
1200 g·cm
1500 g·cm
1800 g·cm
Stirring Speed
0–650 rpm
0–600 rpm
0–600 rpm
0–600 rpm
Stirring Shaft / Blade Span
Φ15mm / 160mm
Φ15mm / 205mm
Φ17mm / 205mm
Φ17mm / 250mm
Machine Size (L×W×H)
65×60×205 cm
85×65×215 cm
85×65×245 cm
90×72×280 cm
Packaged Size (L×W×H)
142×65×61 cm
158×71×71 cm
178×71×71 cm
198×80×75 cm
Machine Weight
76 kg
94 kg
124 kg
138 kg
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
