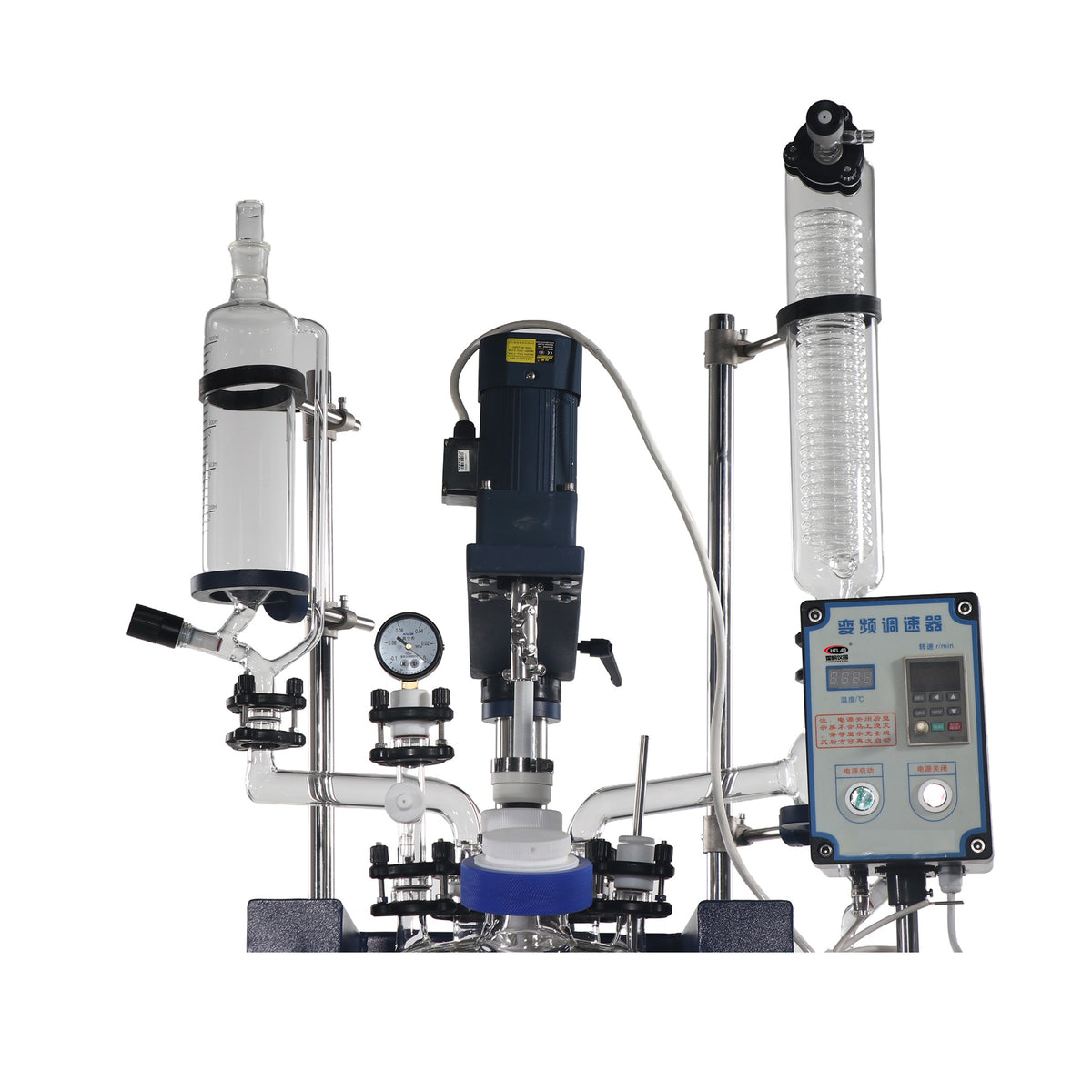

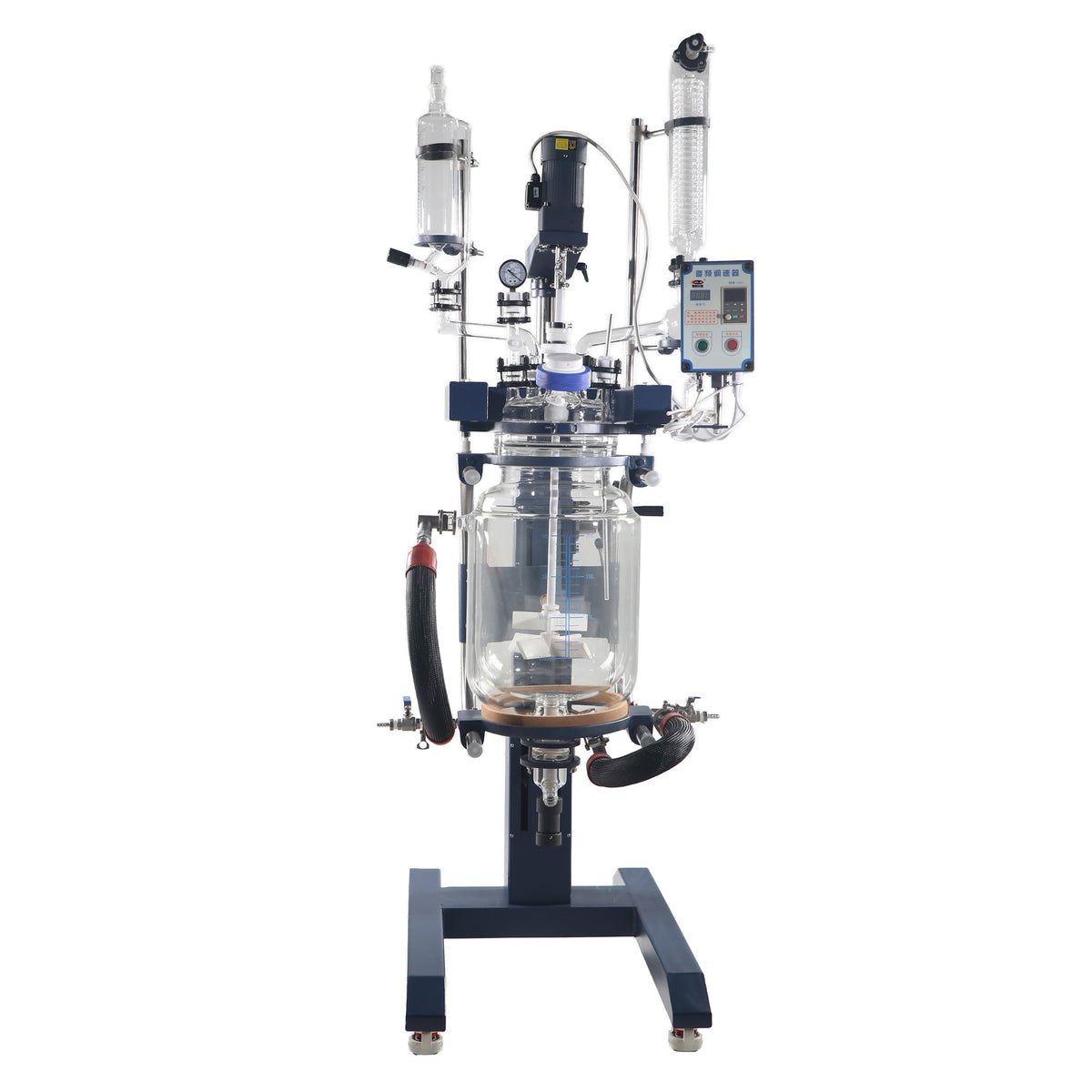

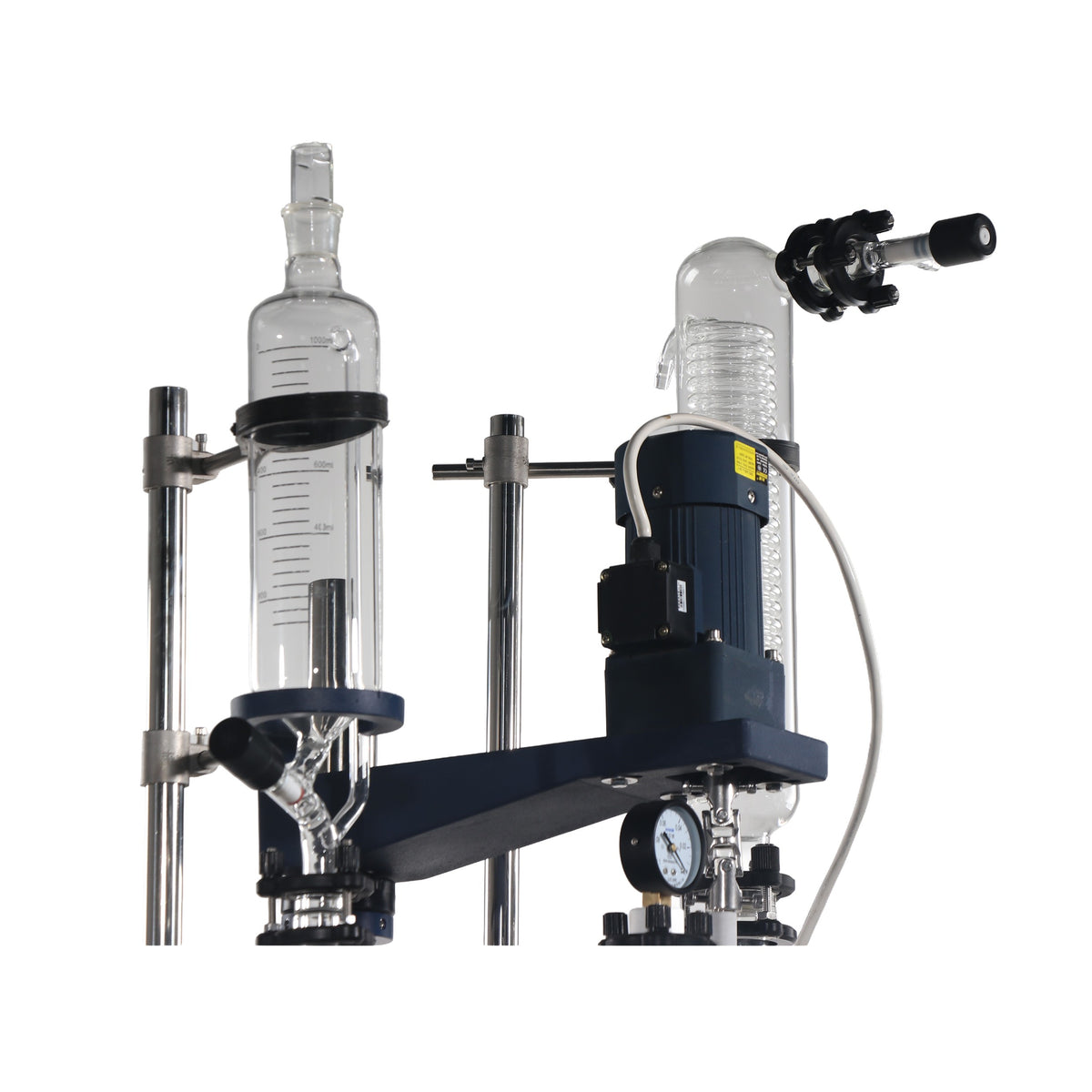

Jacketed Glass Reactor ALAB-ZYSF-10L-HT

The Jacketed Glass Reactor ALAB-ZYSF-10L-HT is a laboratory jacketed glass reactor.

Specifications

• Capacity: 10 L
• Temperature Range: kettle body -80C~+250C; measurement accuracy +/-1C
• Type: Reaction Kettle
• Material: frame SUS304 stainless steel + powder-coated square steel; glass components borosilicate glass 3.3
• Voltage: 220V/50HZ
• Power: 120
• Automatic Grade: Semi-Automatic
• Core Components: SUS304 stainless steel+ powder-coated square steel
• Dimensions: 1100L*860W*2100H(mm)
• Weight: 190 kg
• Vessel Allowable Pressure: -0.1 ~ 0.0 MPa
• Jacket Allowable Pressure: ≤0.03 MPa

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
