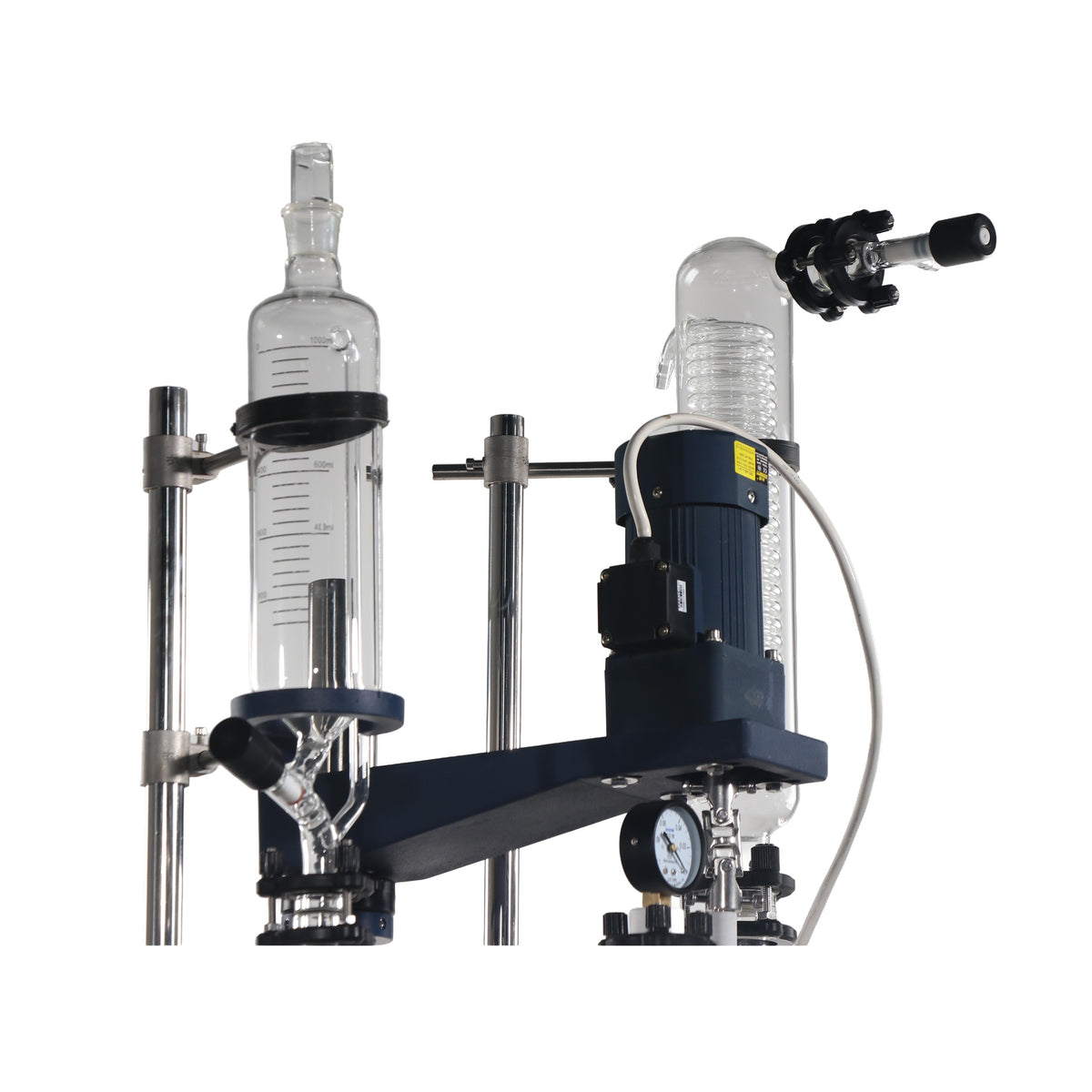

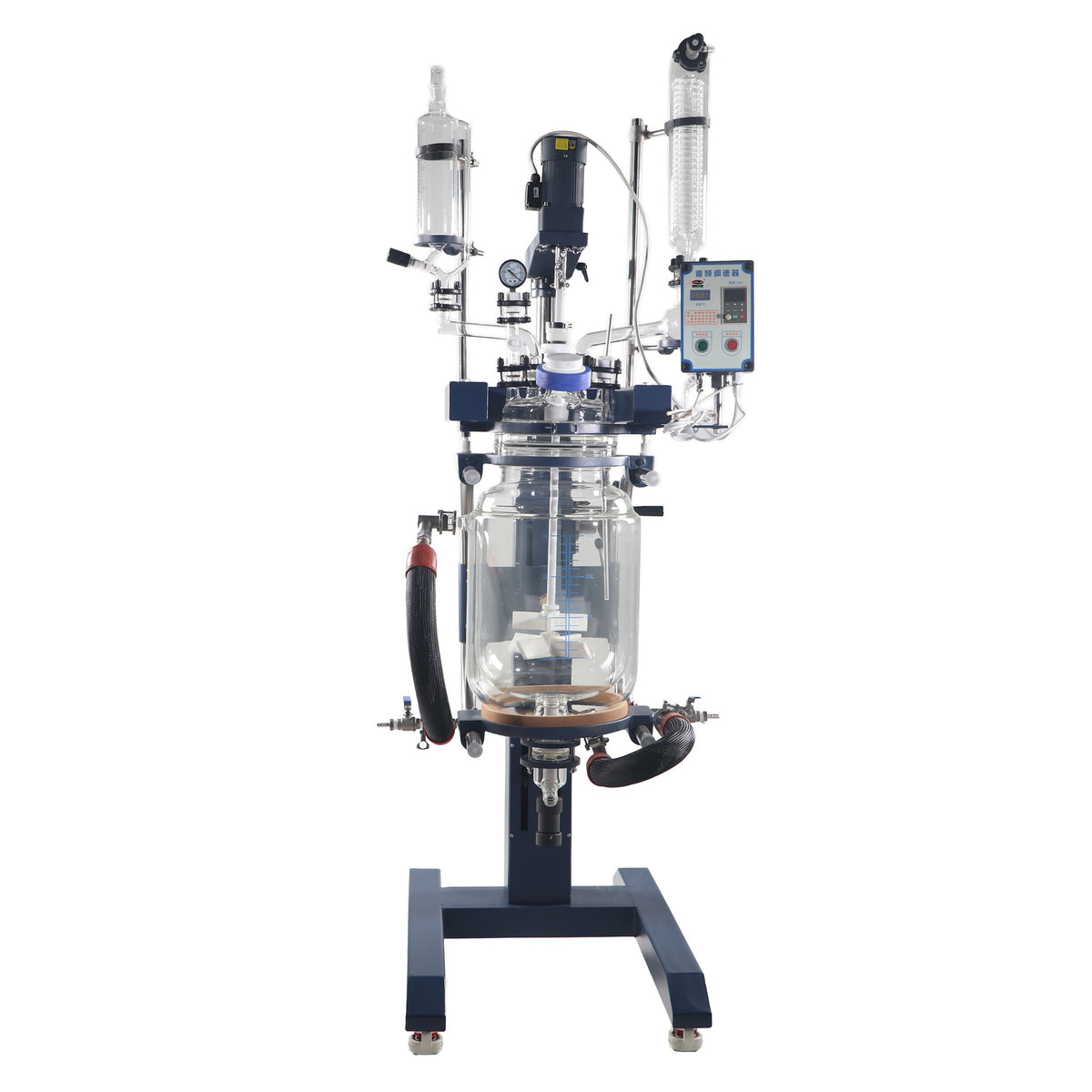

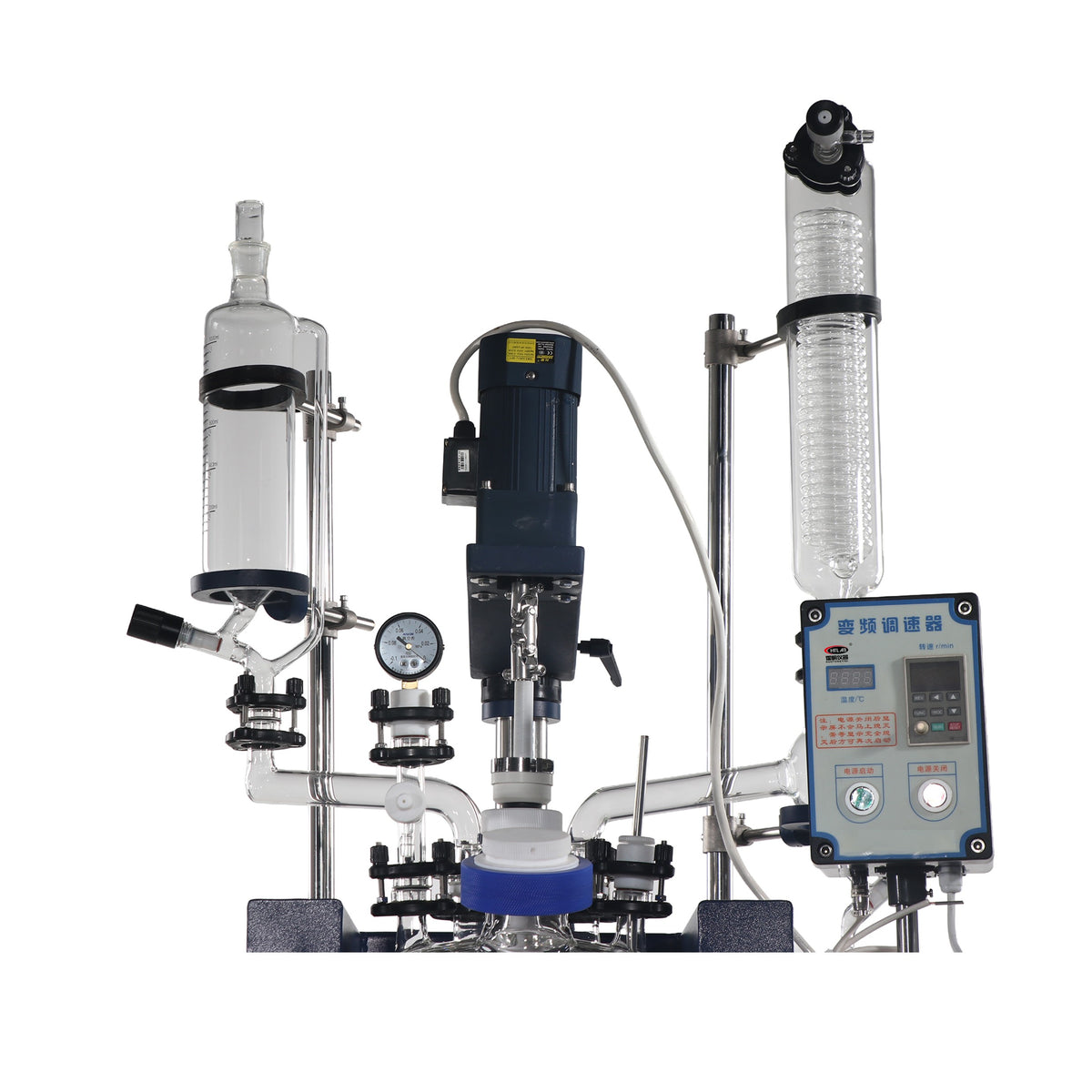

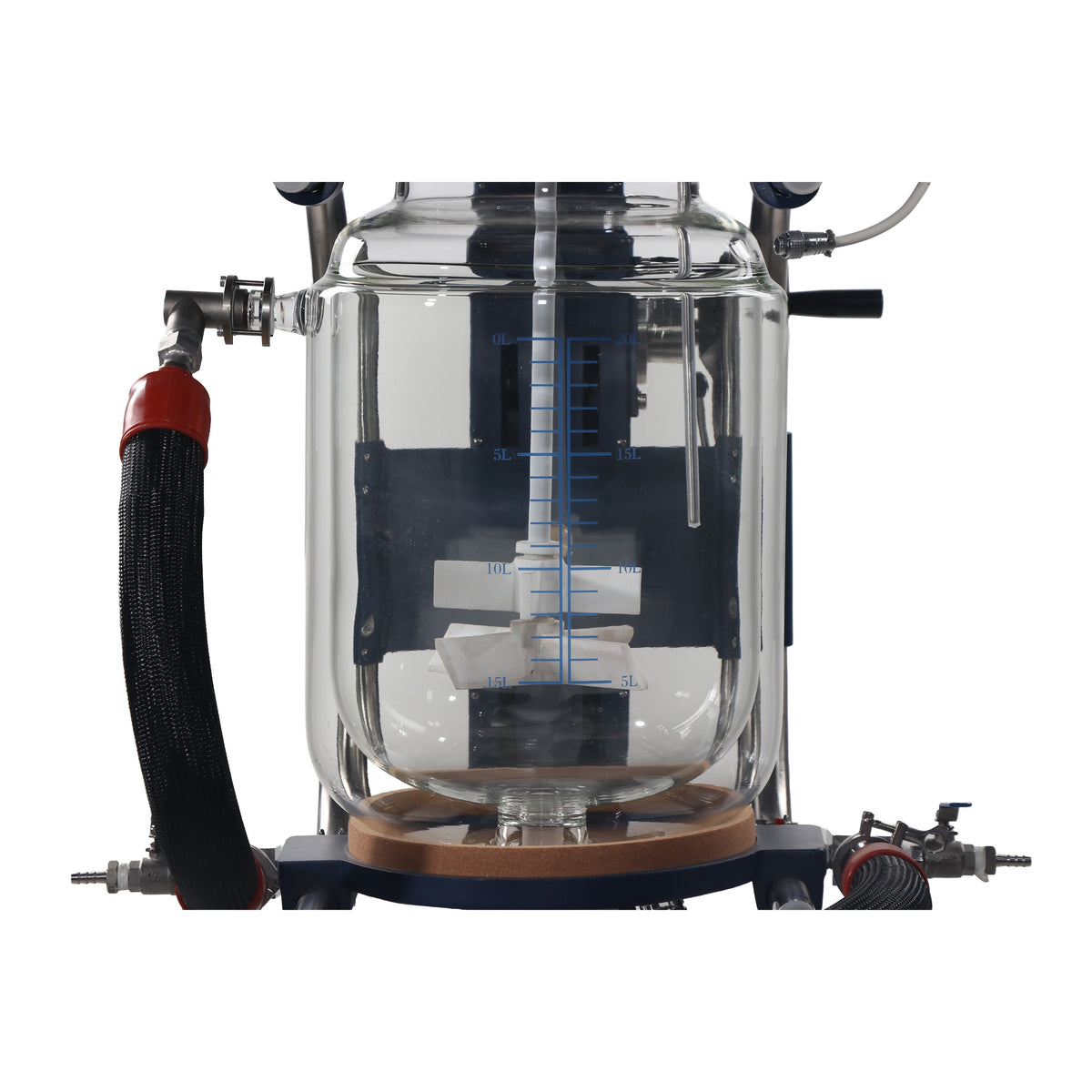

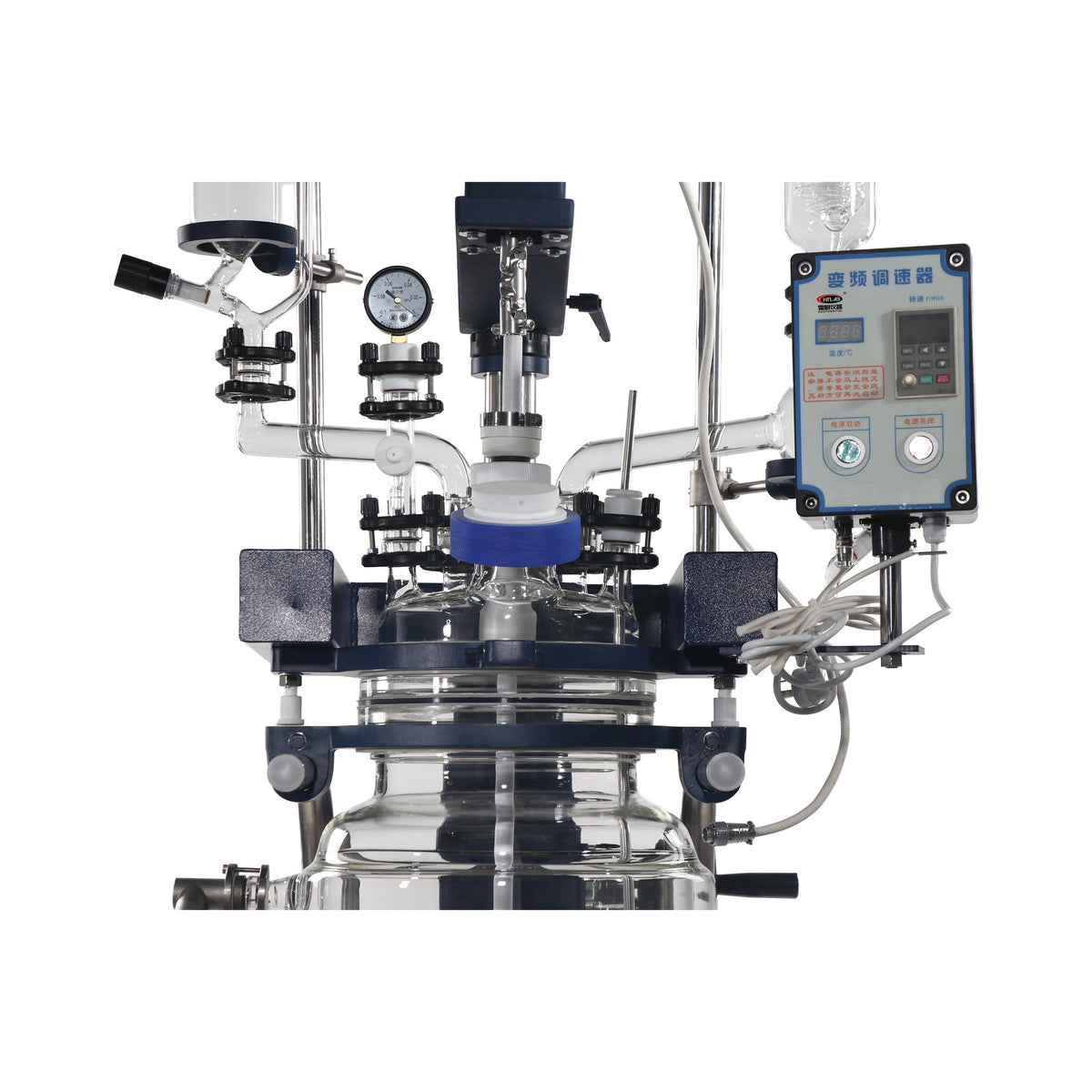

Jacketed Glass Reactor ALAB-ZYSF-50L-HT

The Jacketed Glass Reactor ALAB-ZYSF-50L-HT is a laboratory jacketed glass reactor.

Specifications

• Capacity: 50 L
• Temperature Range: -80℃ ~ +250℃
• Type: Reaction Kettle
• Material: SUS304 stainless steel + powder-coated square steel; High Borosilicate Glass 3.3 (glass components)
• Voltage: 220V/50HZ
• Power: 180W
• Automatic Grade: Semi-Automatic
• Core Components: SUS304 stainless steel + powder-coated square steel
• Dimensions: 1100L*860W*2500H(mm)
• Weight: 230 kg
• Vessel Allowable Pressure: -0.1 ~ 0.0 MPa
• Jacket Allowable Pressure: ≤0.03 MPa

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
