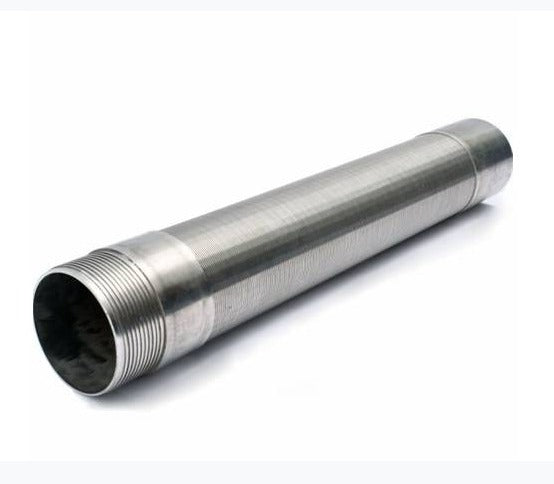

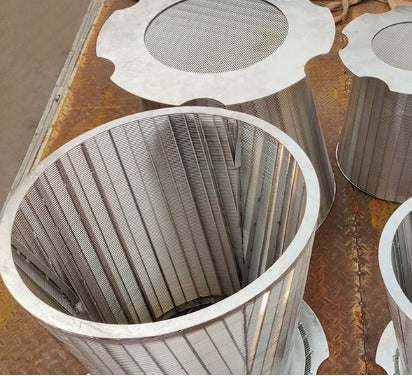

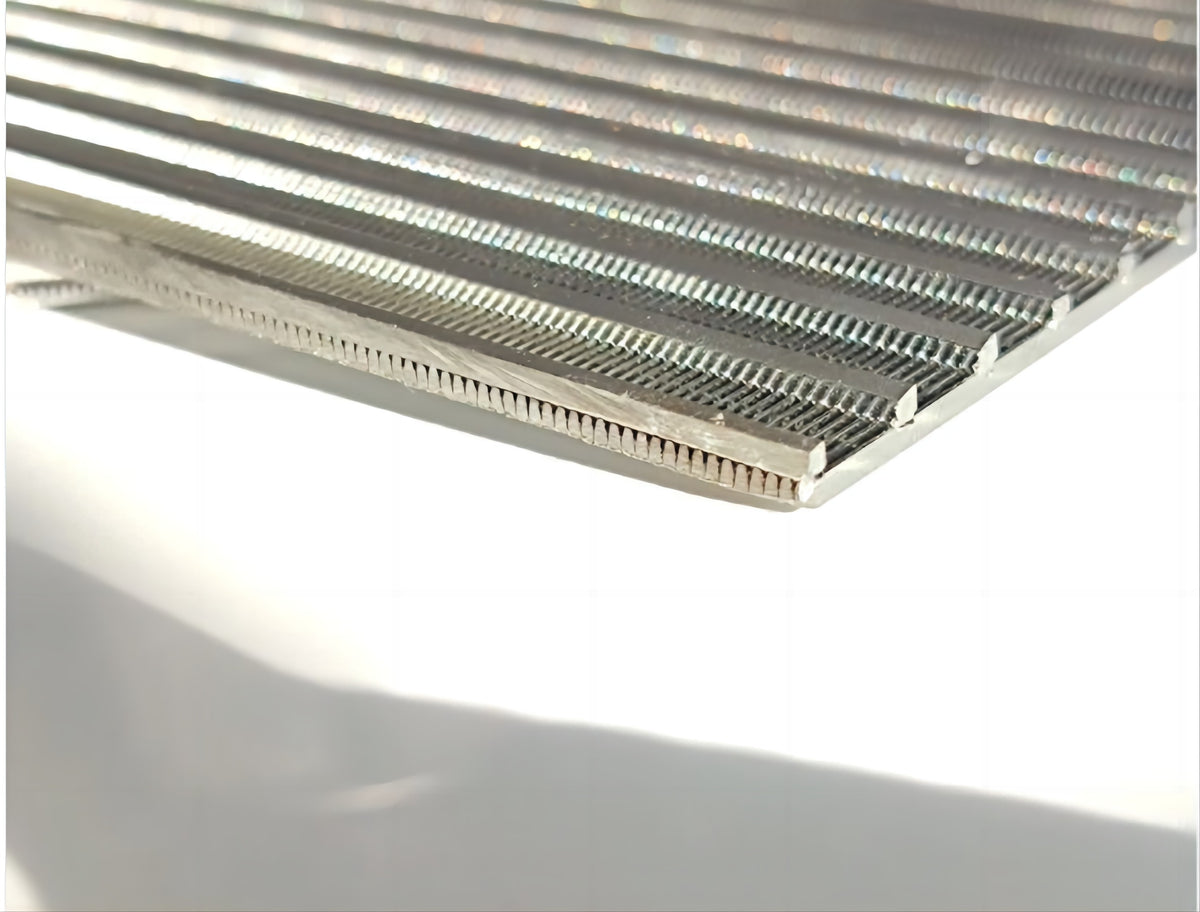

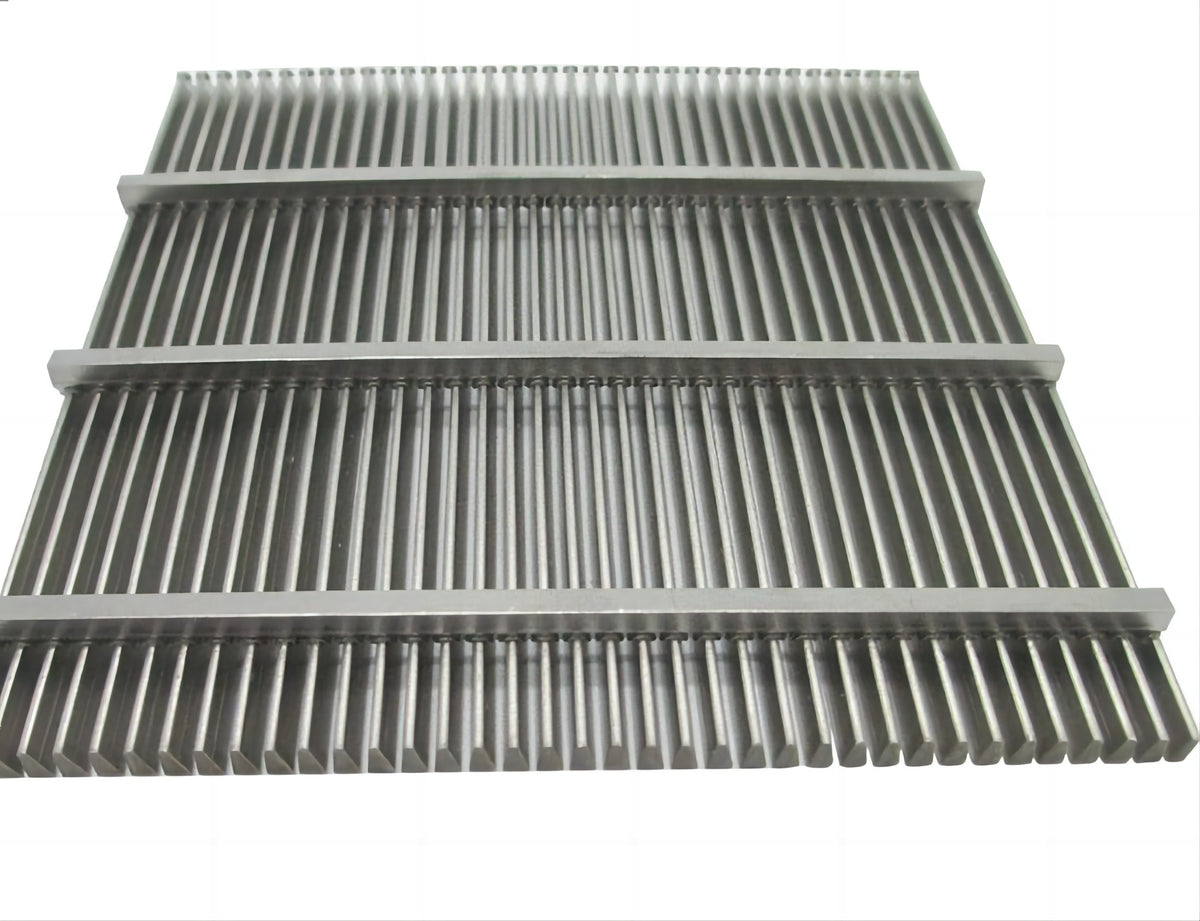

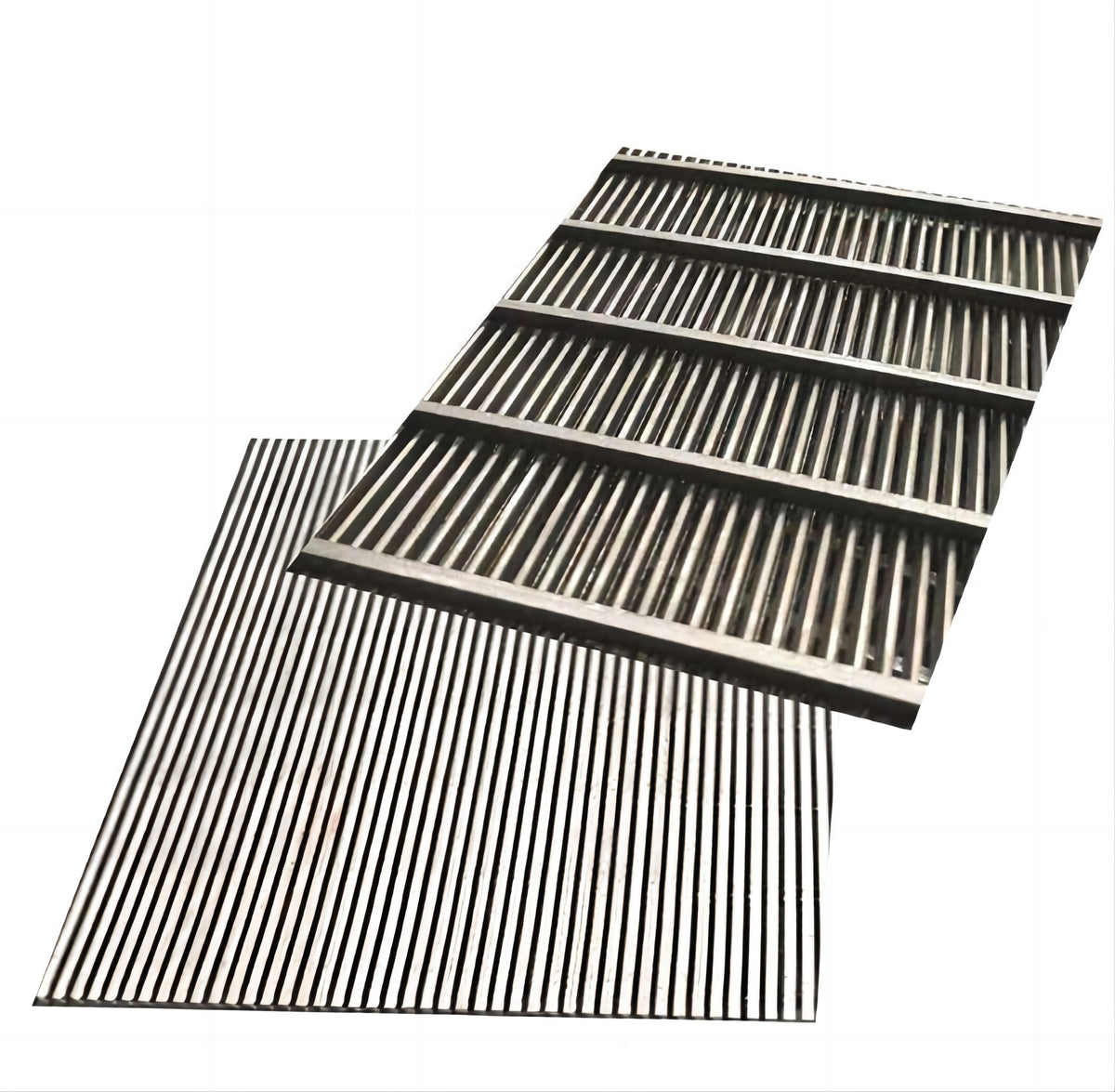

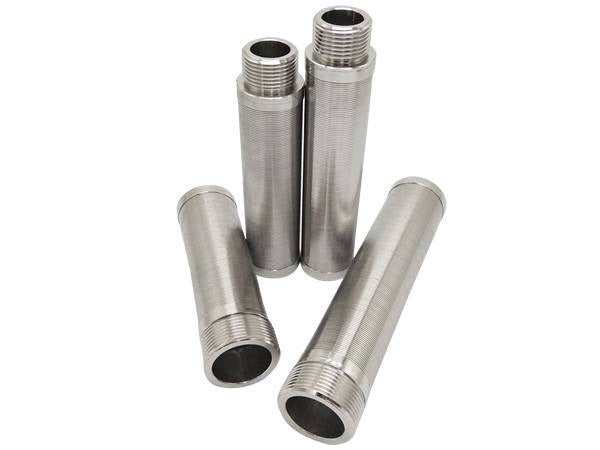

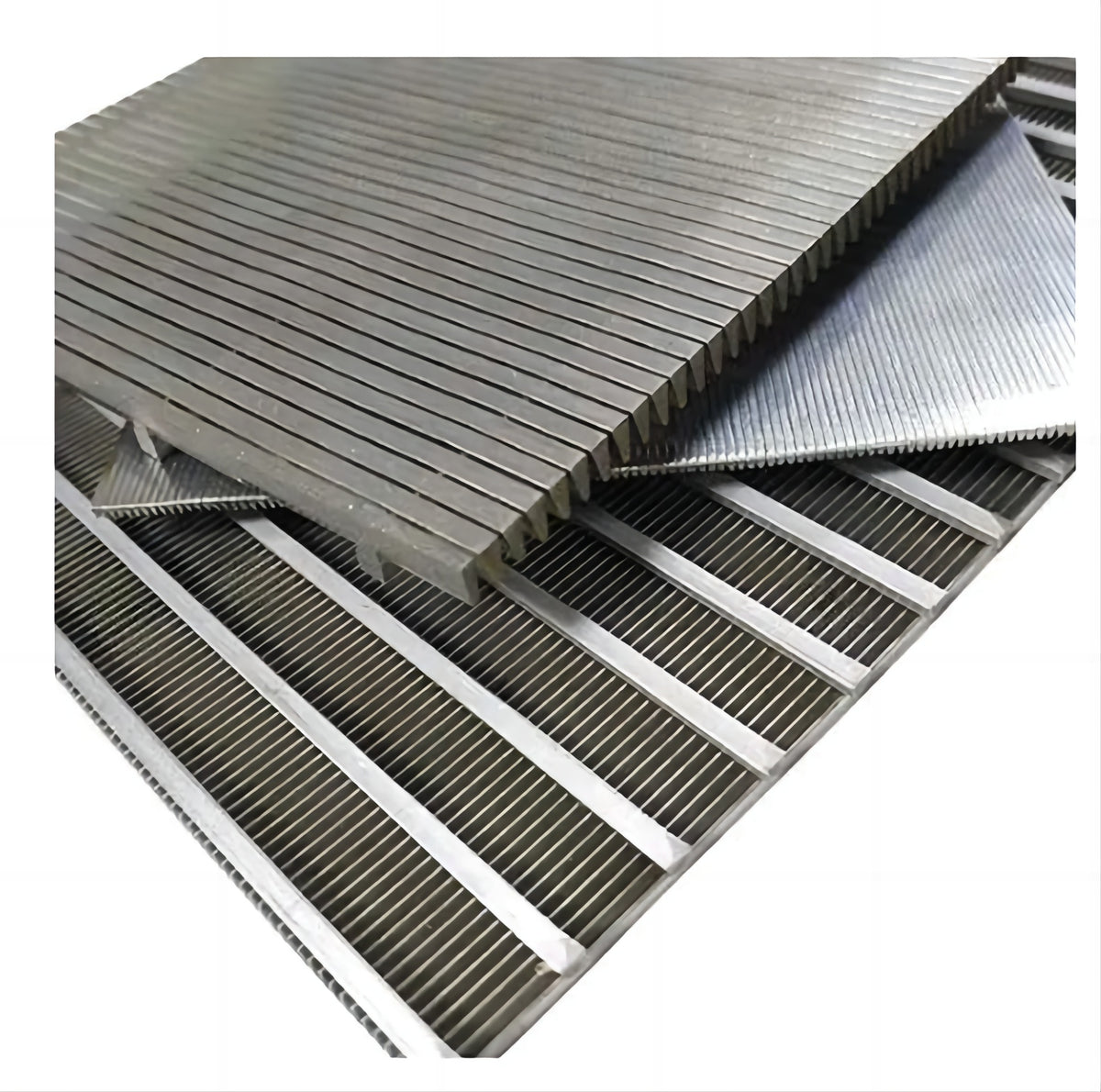

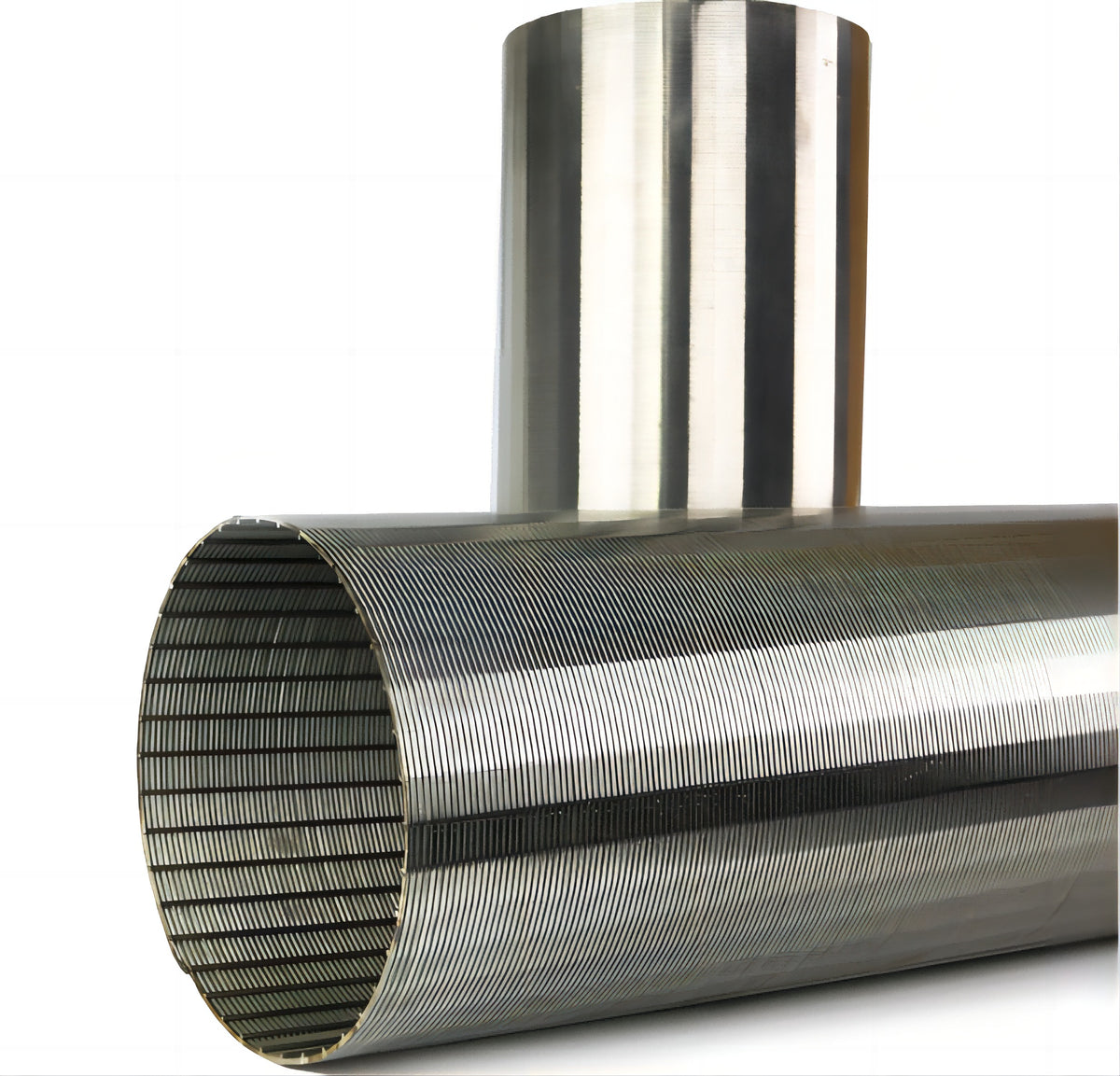

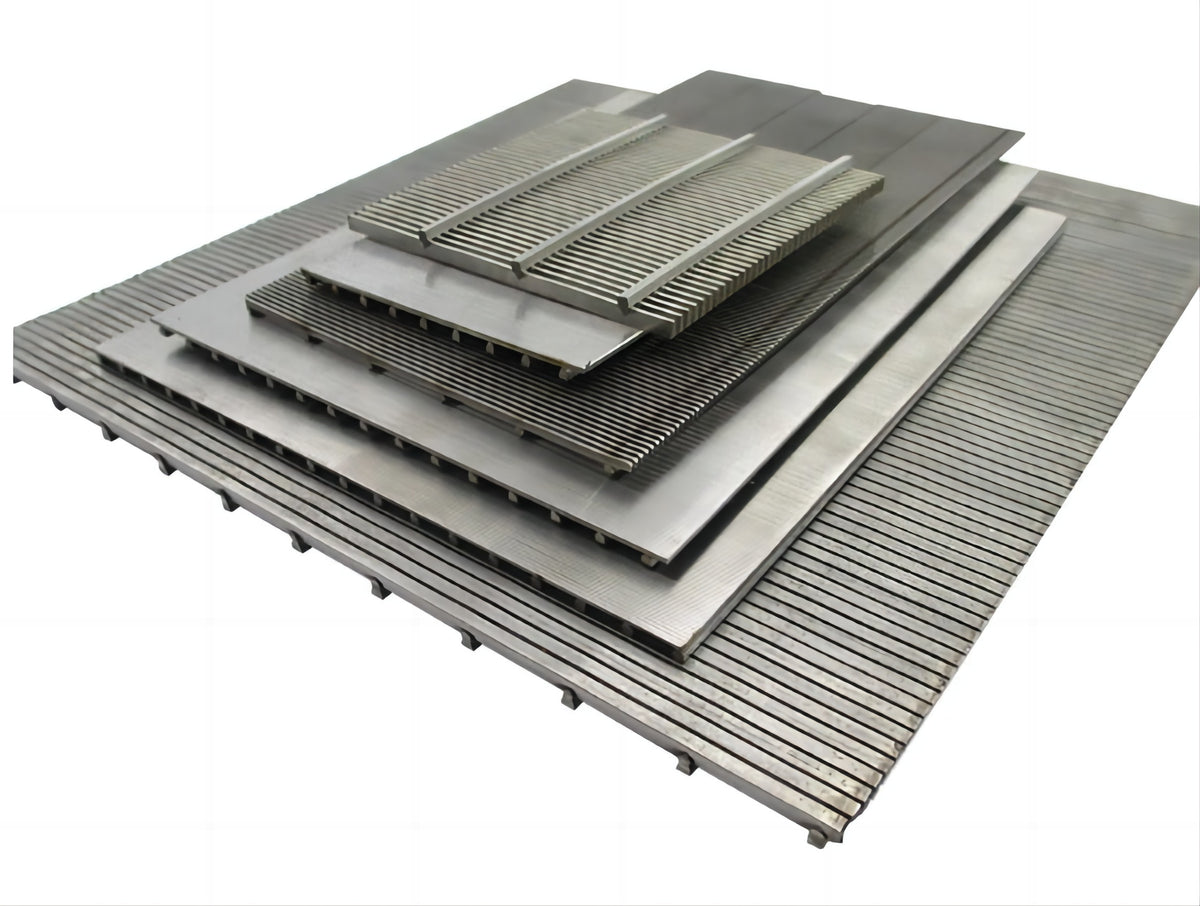

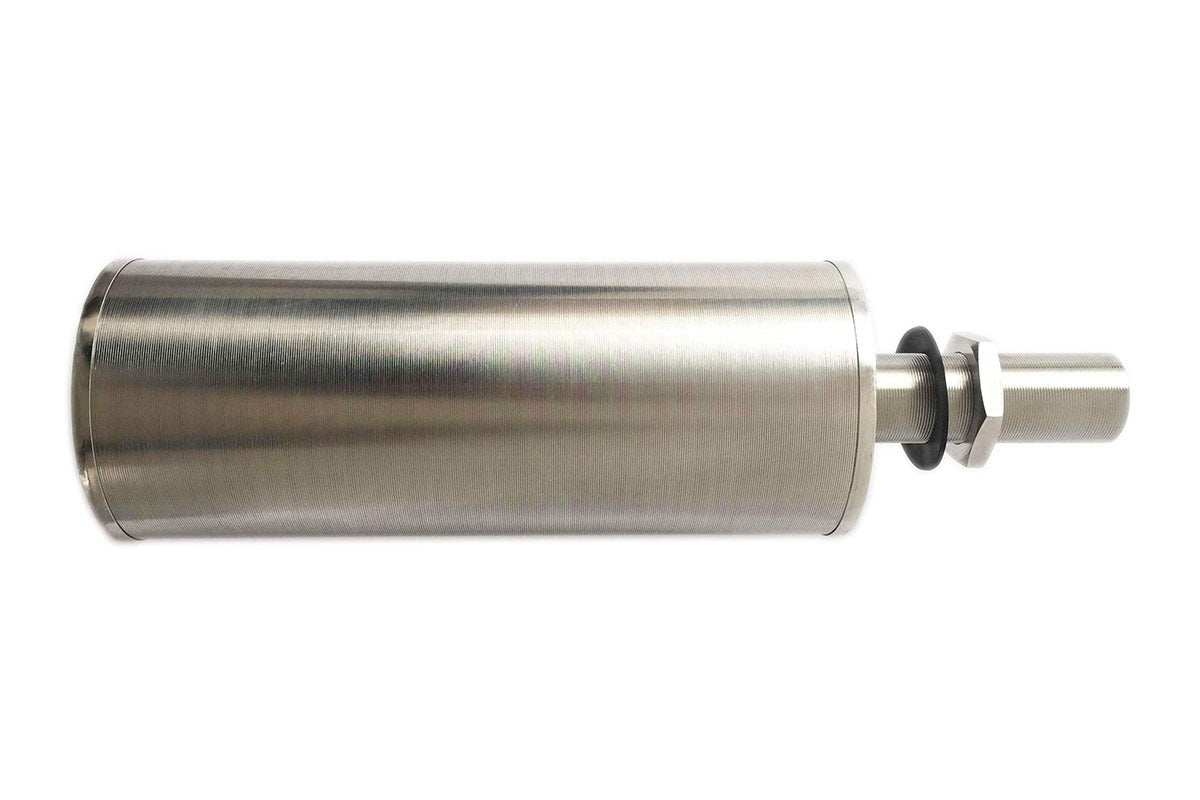

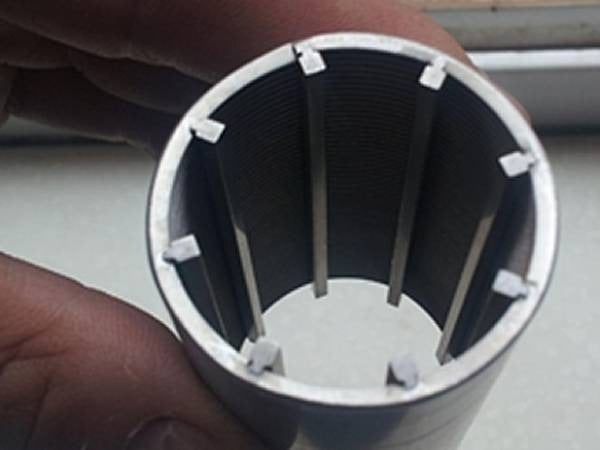

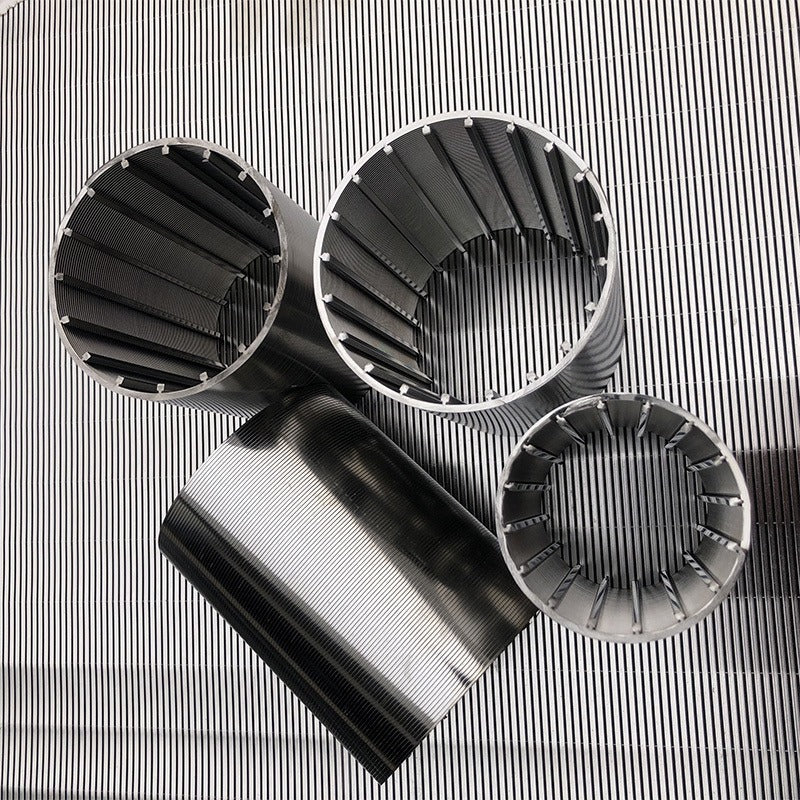

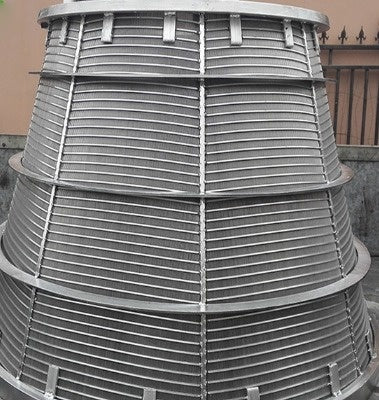

Johnson Wedge Wire Screen

Product Details / Specification table: Material: SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc; Size: Up to 6000*6000mm; Slot Range: 20 micron to 3000 micron (Tolerance:+-5 micron); Other Shapes: Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.; Wedge Wire: 0.5x1.5, 0.75x1.5, 1x2, 1.5x2, 2x3, 2x4, 3x5; Support Rod: 1.5x2.5 2x3 (shown in three consecutive cells), 1.8x2.5 2x3, 2x3 2x4 3x5 3x104x6 [as shown], 2x4 3x5 3x6 3x10 4x6 5x6, 3x5 3x6 3x10 4x6 5x6 5x8.

Specifications

• usage: Solid Filter
• material: SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
• type: Flour Sieving Mesh
• hole shape: slot
• warranty: Unavailable
• machinery test report: Provided
• video outgoing-inspection: Provided
• core components: mesh
• weight (kg): 0.5
• place of origin: China
• filter rating: 99%
• thickness: 125-550mm
• length: 6m-max or as requirment
• width: 6m-max or as requirment
• Usage: Liquid Filter, Air Filter, Solid Filter Type: Filter Elements
• OEM: Agreed
• Advantage: Heat Resistance,long service life,Corrosion
• Shape: pipe,fanshaped
• Standard: ASTM, AISI, DIN, EN, GB, JIS
• slot wire: 0.02mm, 0.05mm, 0.1mm, 0.5mm, 1mm, 2mm, 5mm
• wedge wire: 0.75*1.5mm, 1*2mm, 2*3mm, 1.5*2.5mm, 2*4mm support wire
