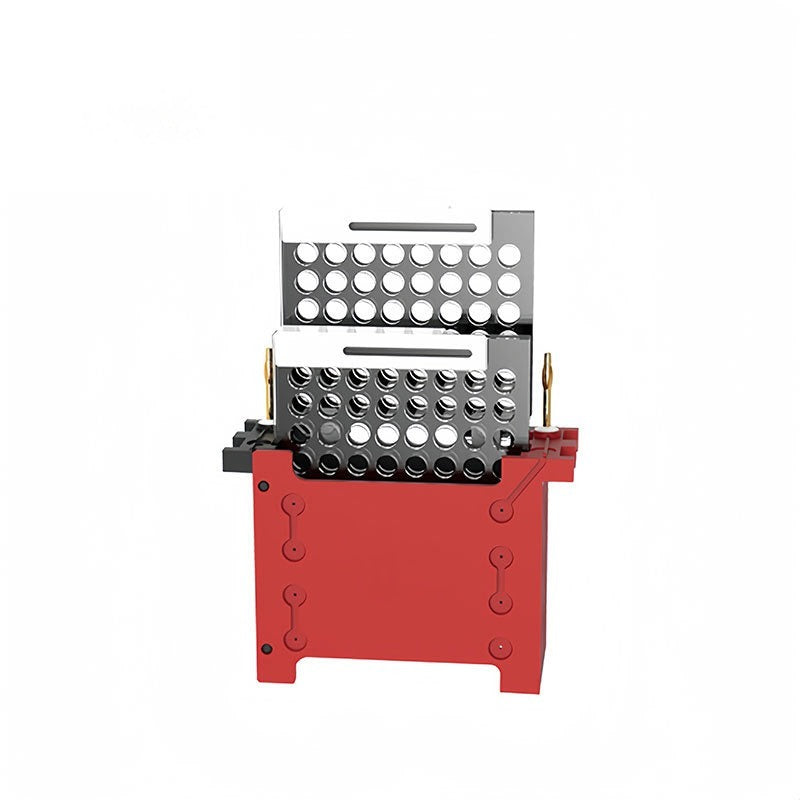

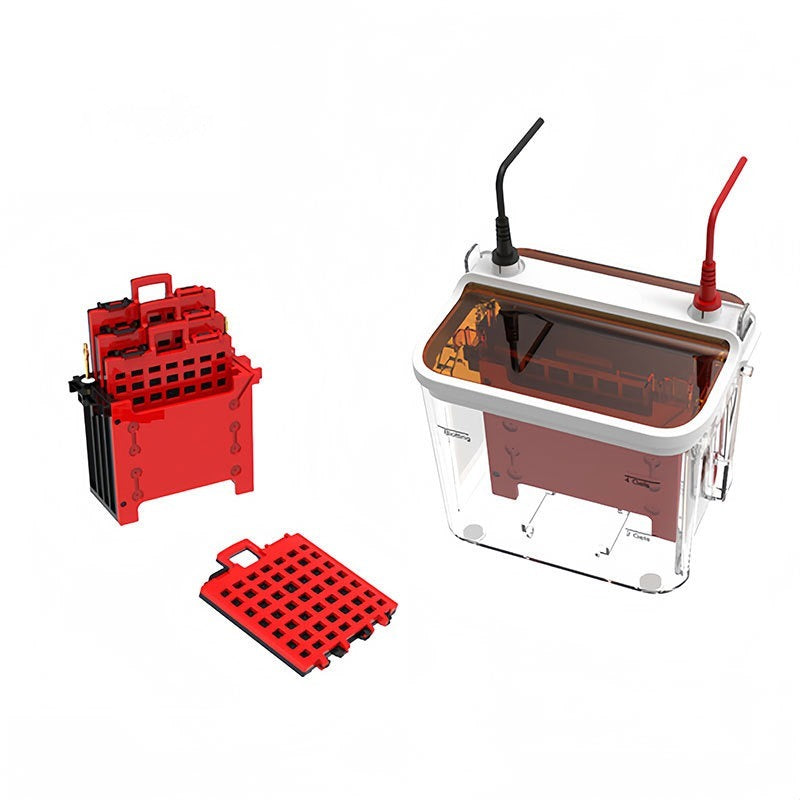

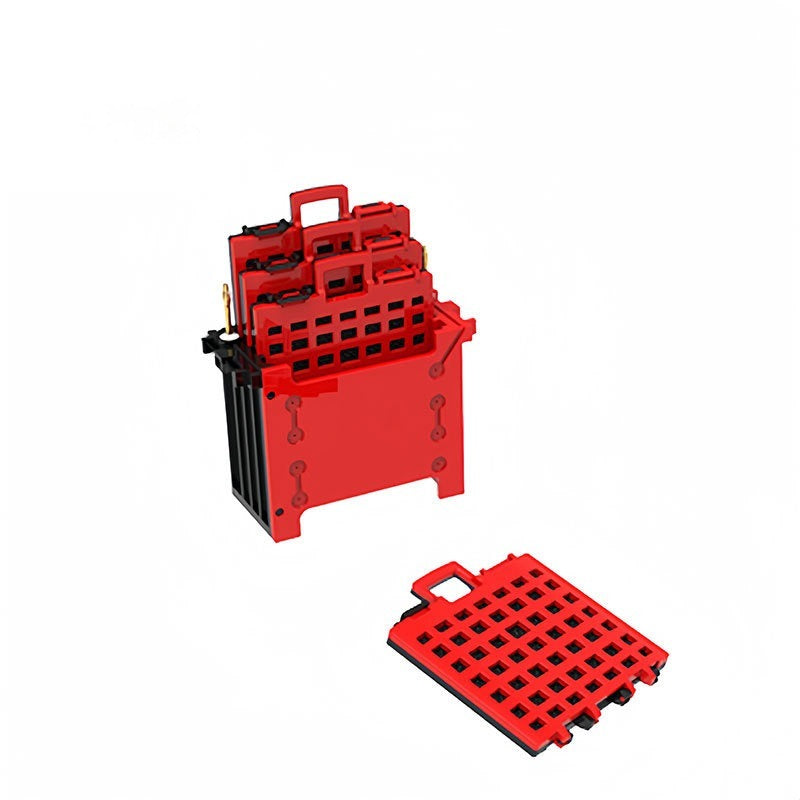

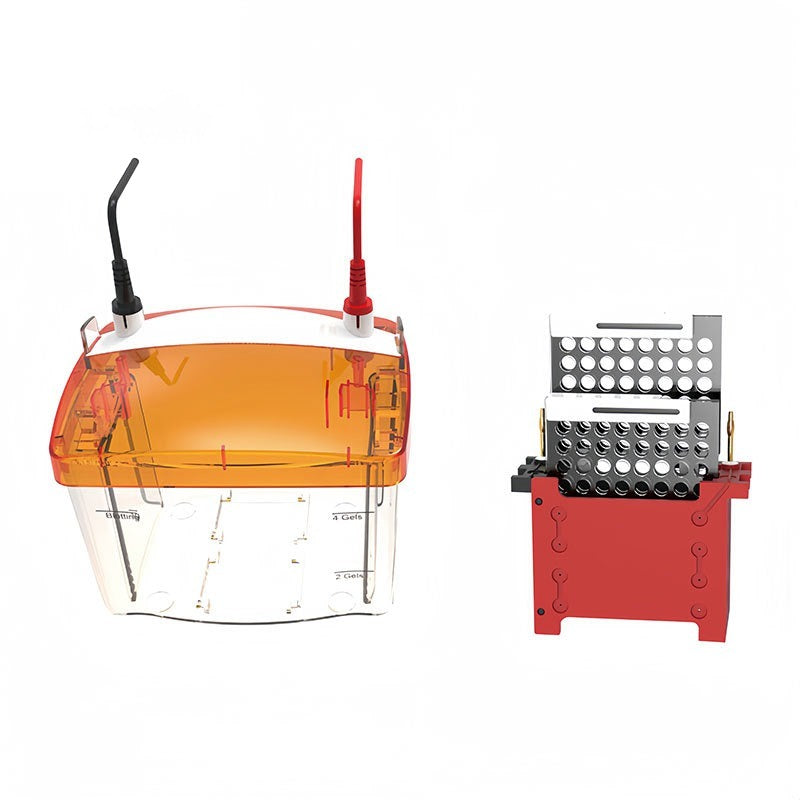

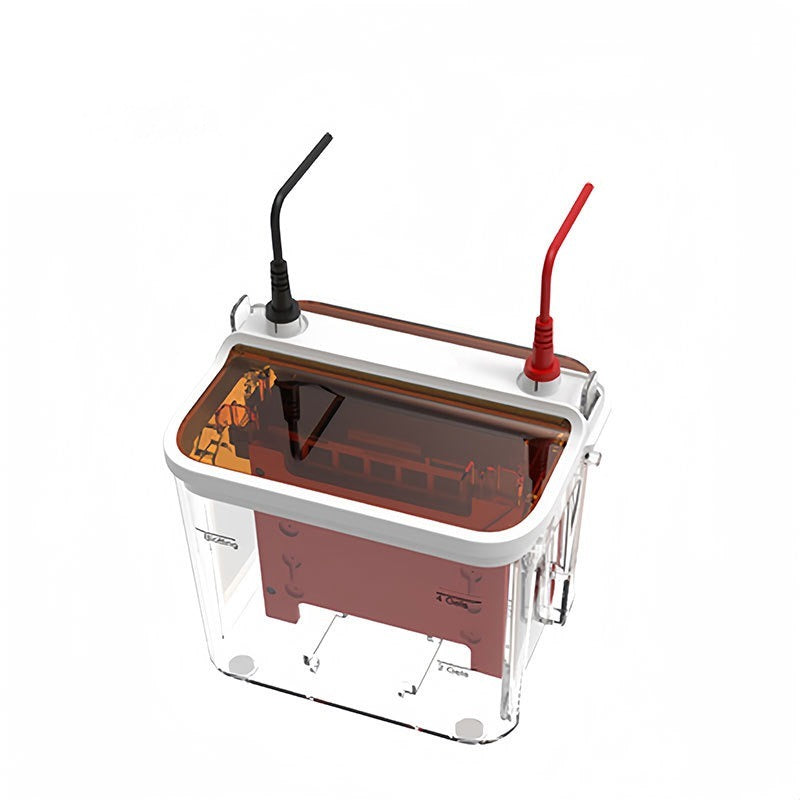

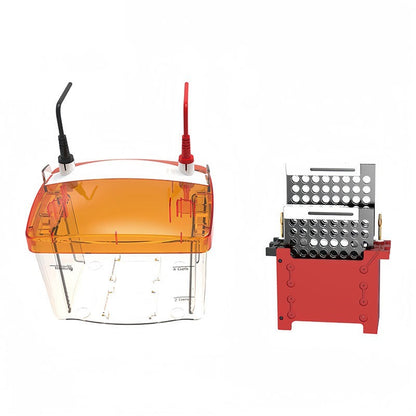

Vertical blot transfer apparatus in two models: the LF-miniBLOT (10104001) for 1-2 gels with a 100x75 mm transfer area, and the LF-miniBLOT4 (10119001) for 1-4 gels with a 110x90 mm transfer area. Both are passive apparatus powered from an external electrophoresis power supply (not included). Per-model specifications are listed in the comparison table below.
Model Comparison
Specification
LF-miniBLOT (10104001)
LF-miniBLOT4 (10119001)
Catalog no.
10104001
10119001
Transfer size
100x75 mm
110x90 mm
Gels
1-2
1-4
Dimension
180x130x160 mm
135x180x180 mm
Package
26x24x21 cm, 2.0 kg gross
30x25x25 cm, 5.0 kg gross
Power
Passive apparatus - requires an external electrophoresis power supply (not included)
Passive apparatus - requires an external electrophoresis power supply (not included)
