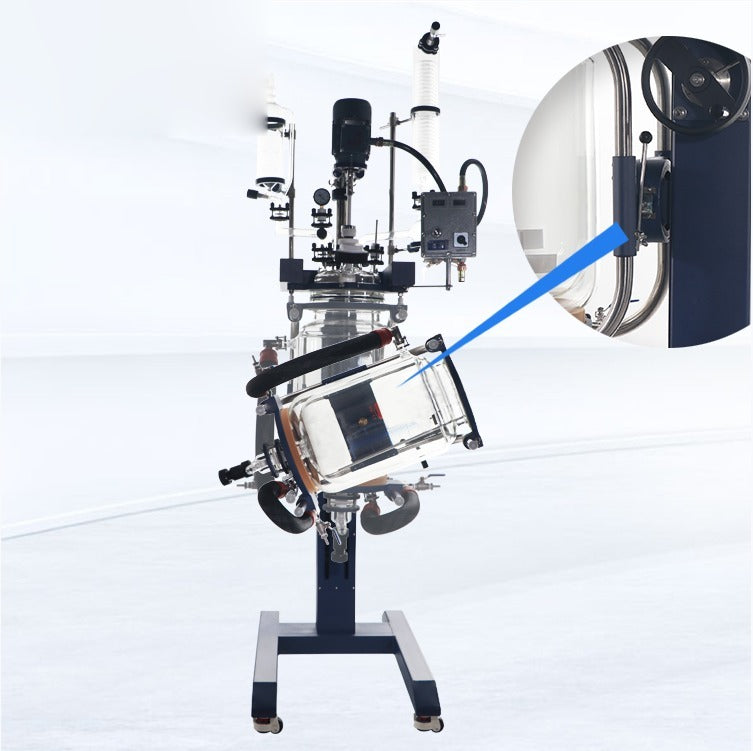

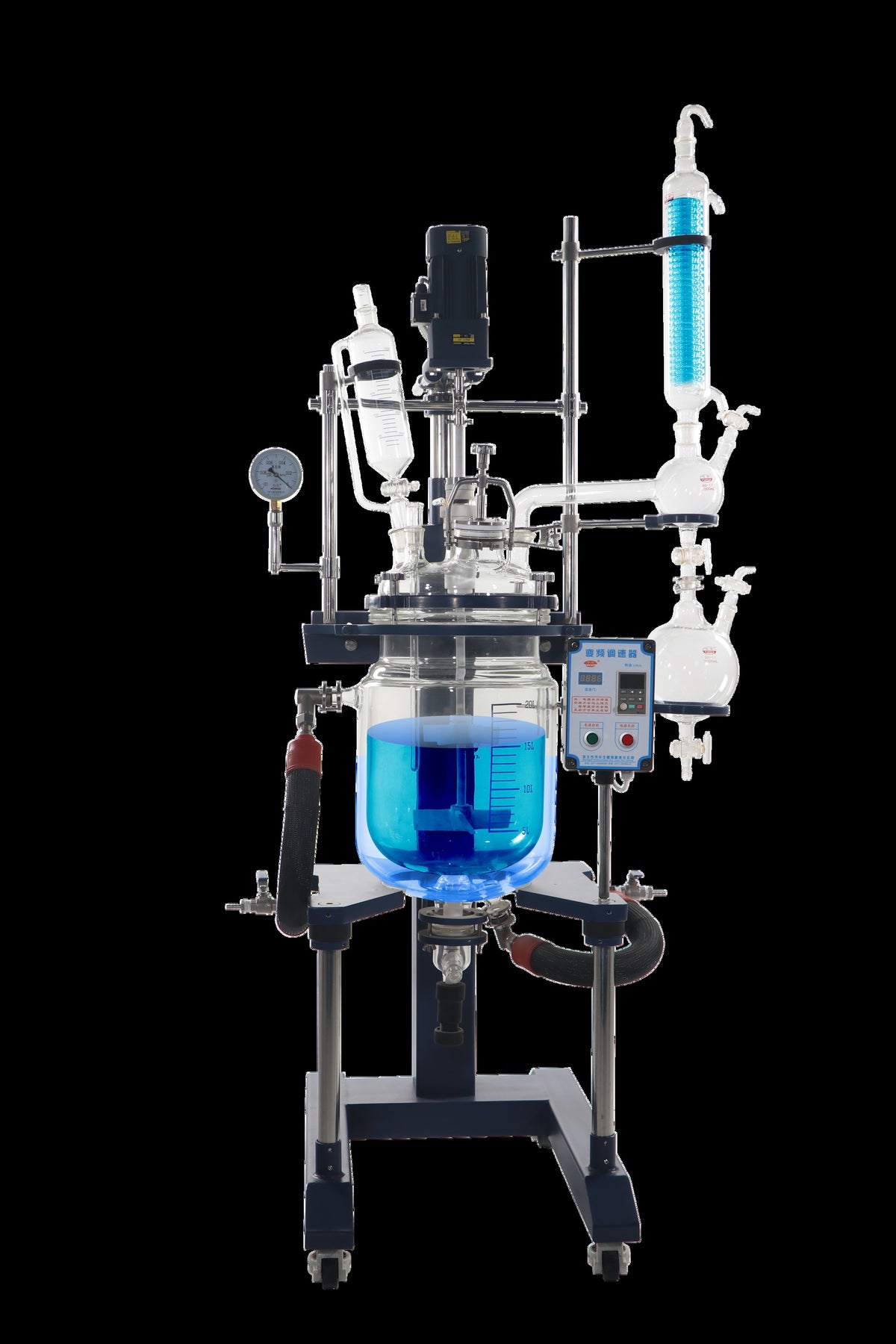

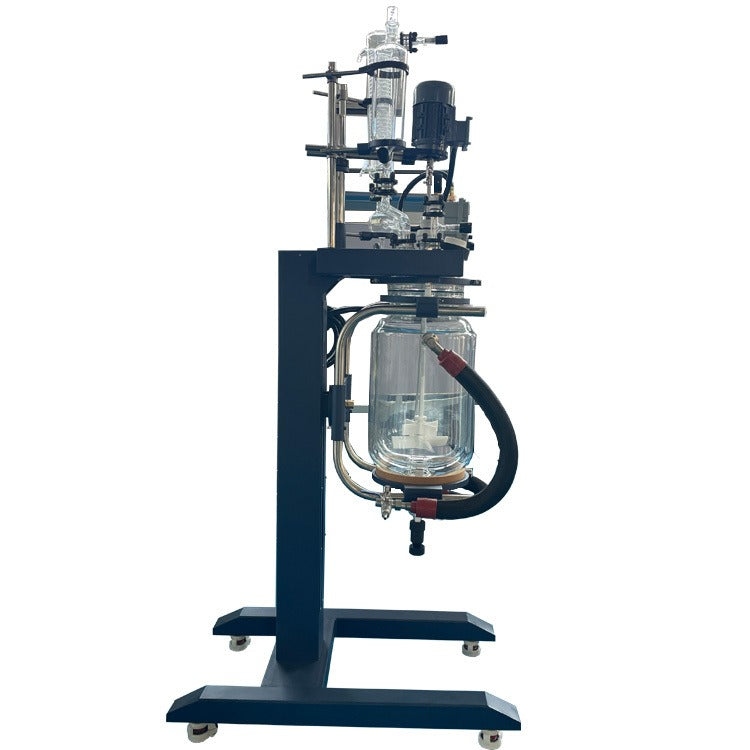

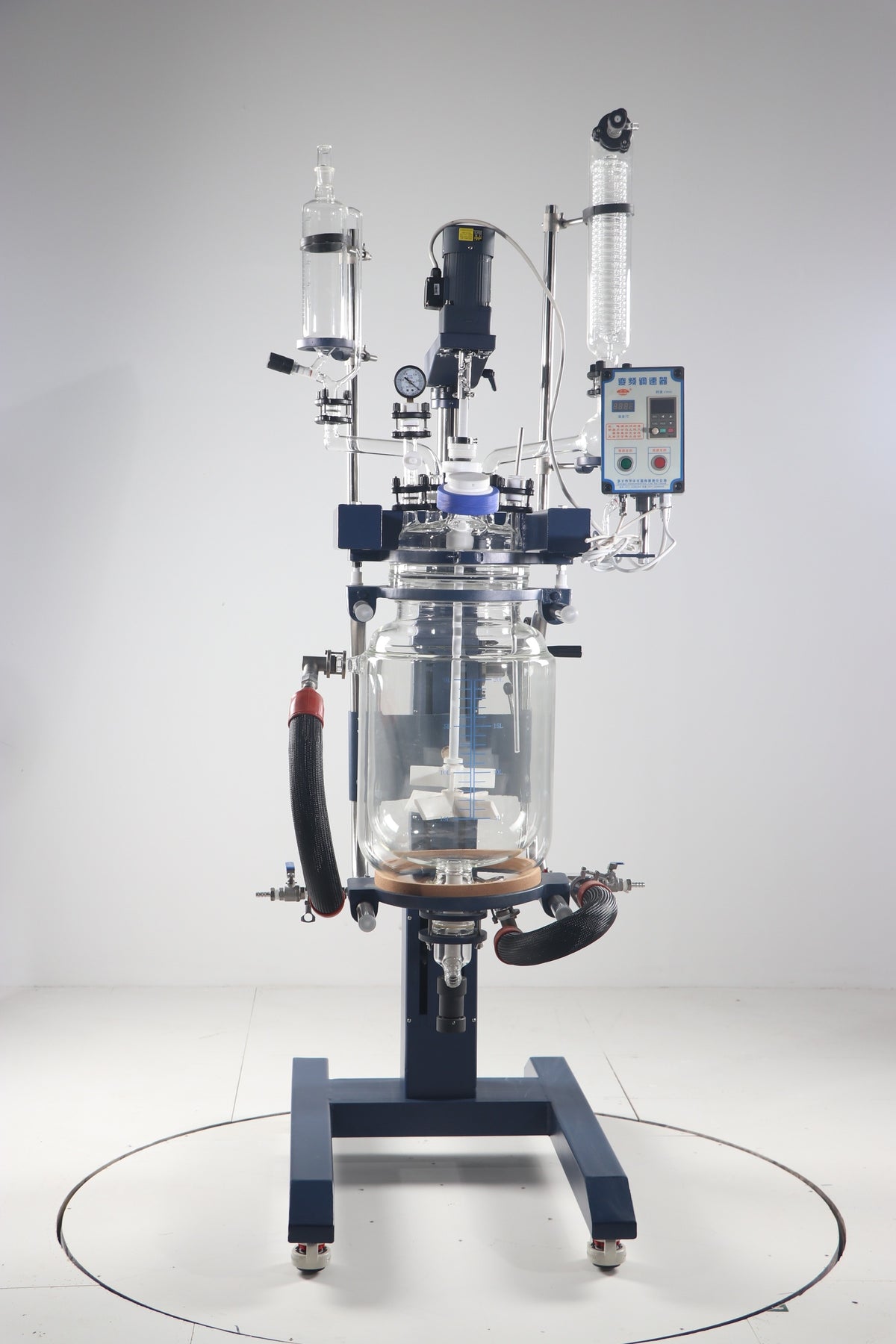

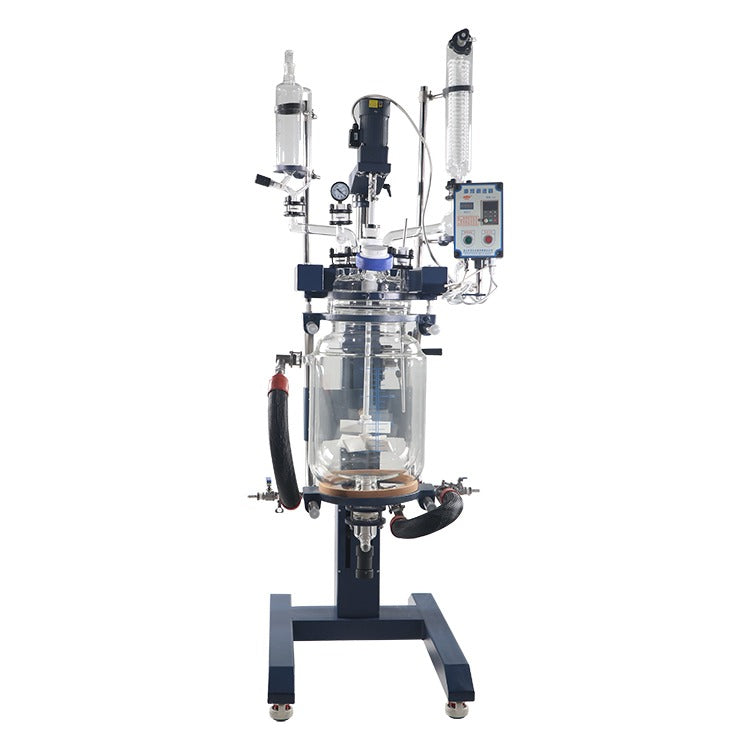

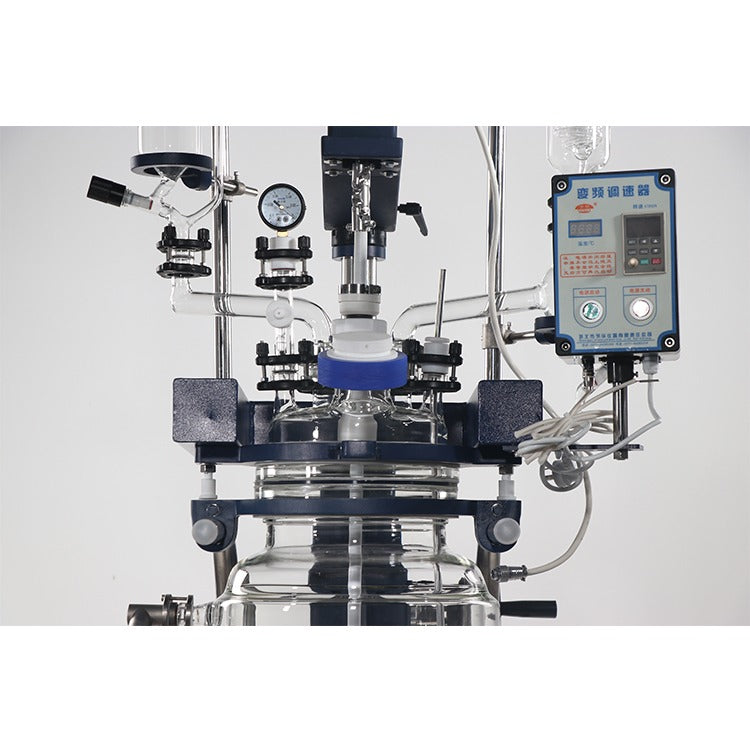

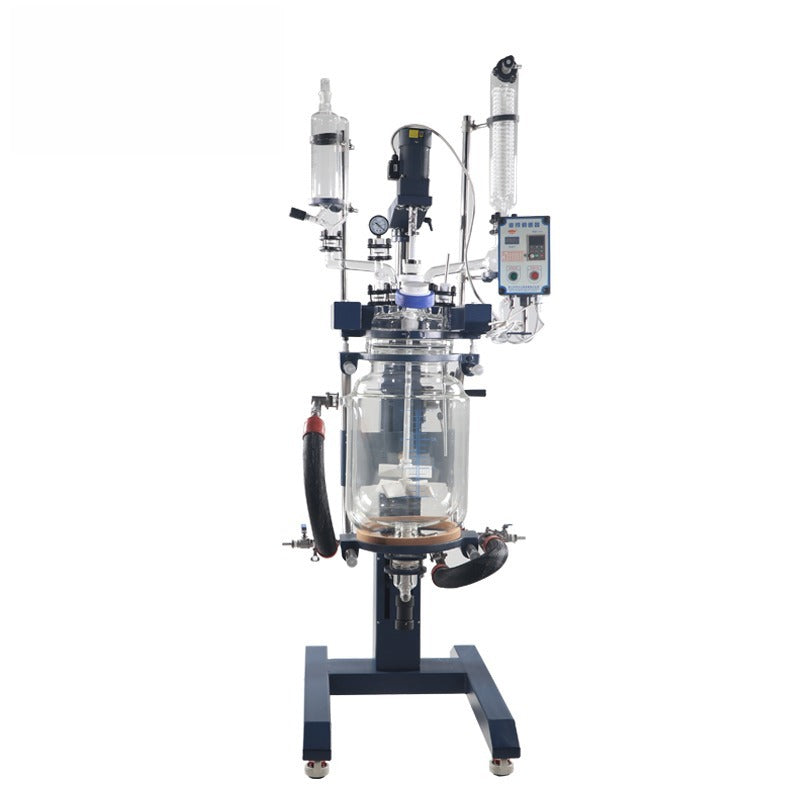

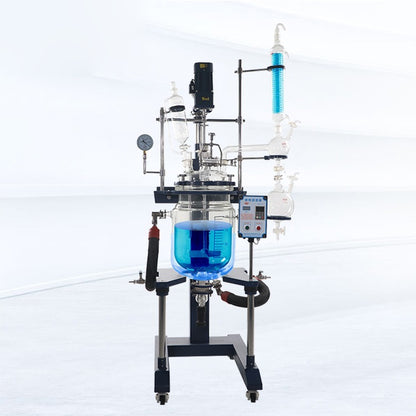

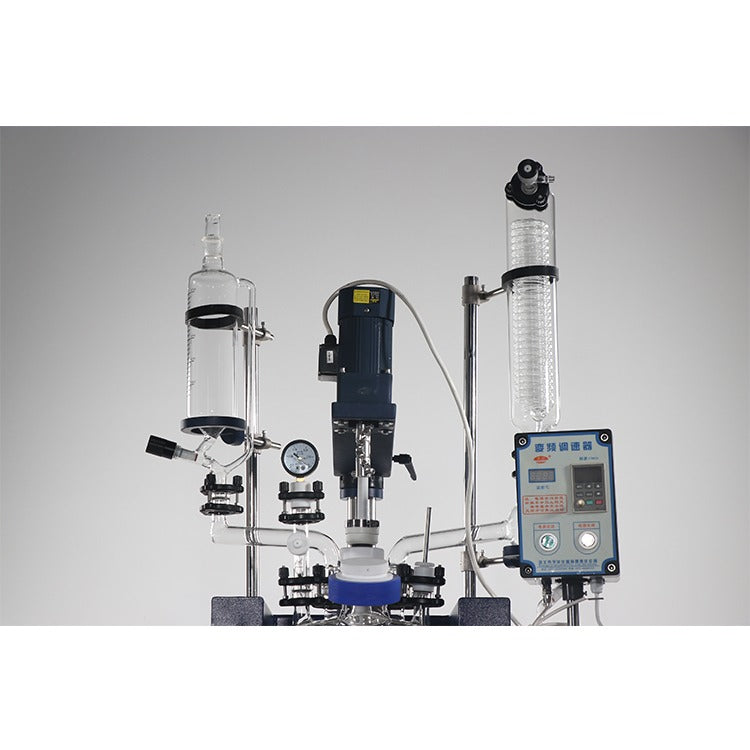

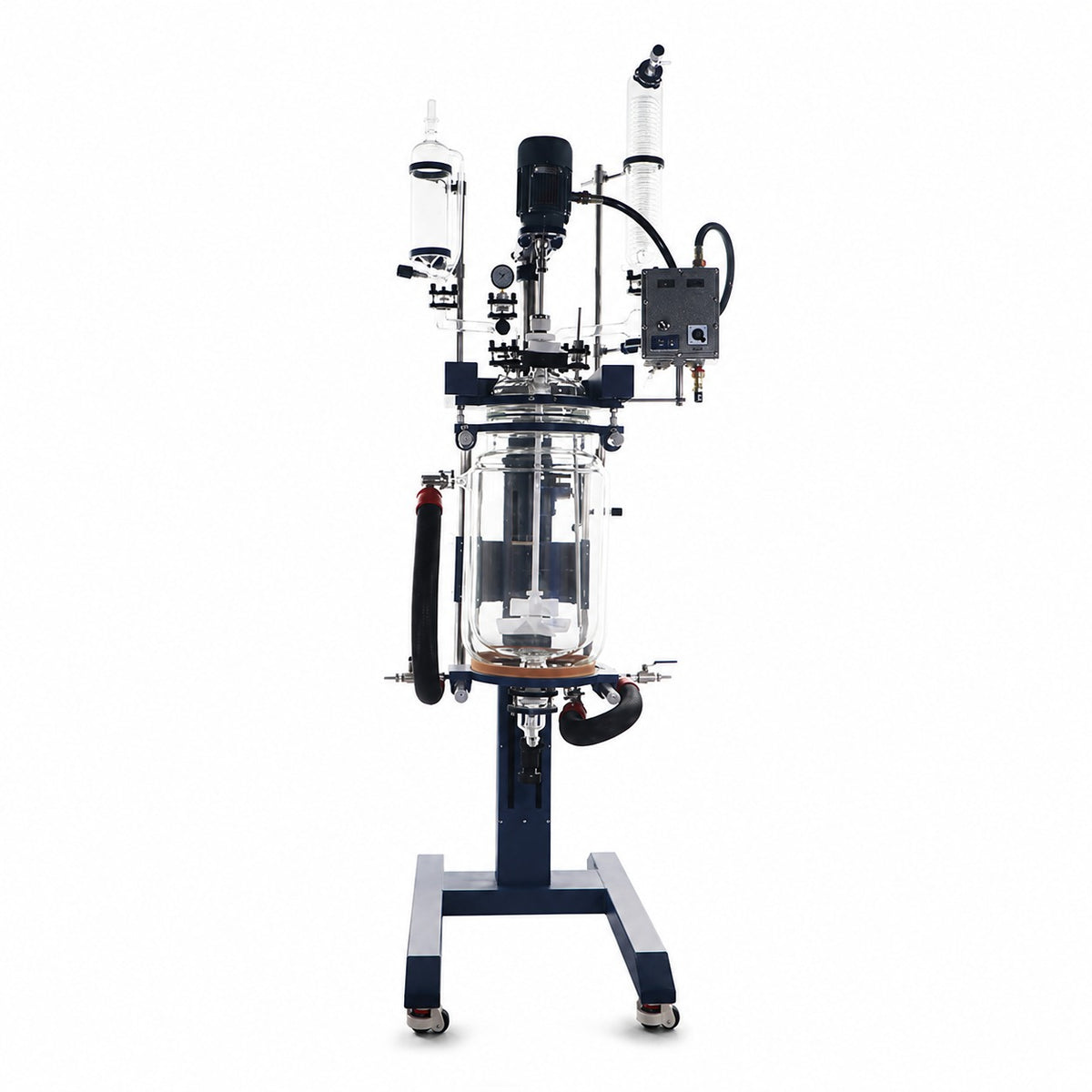

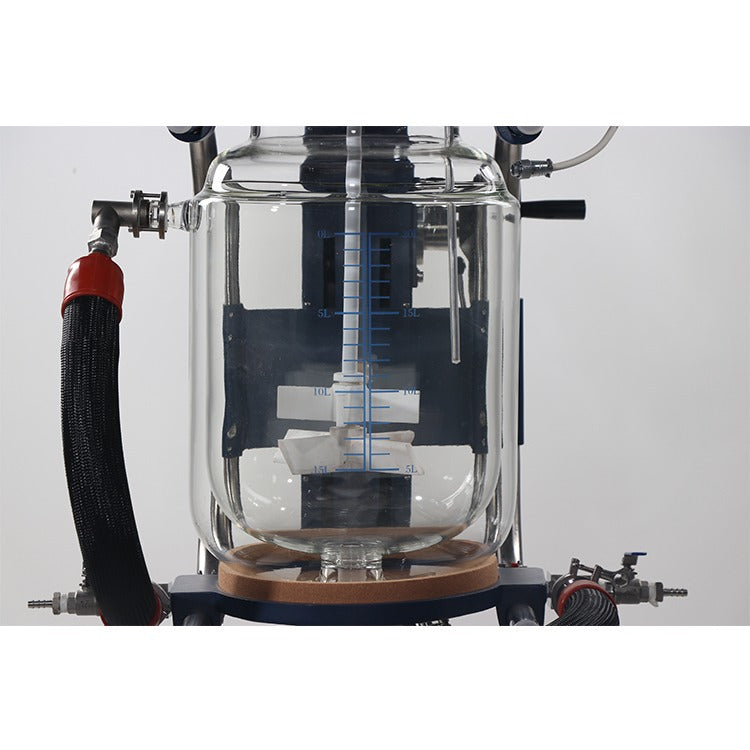

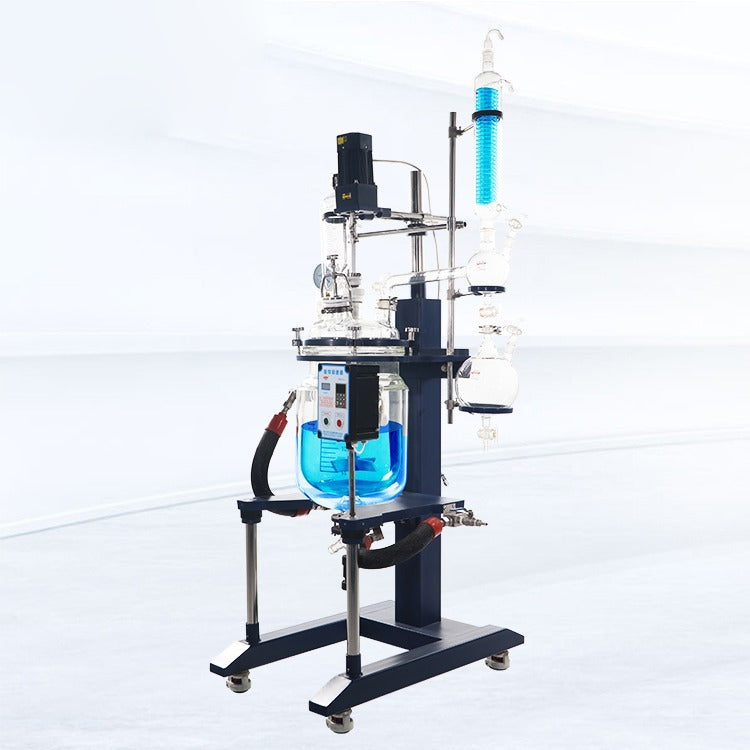

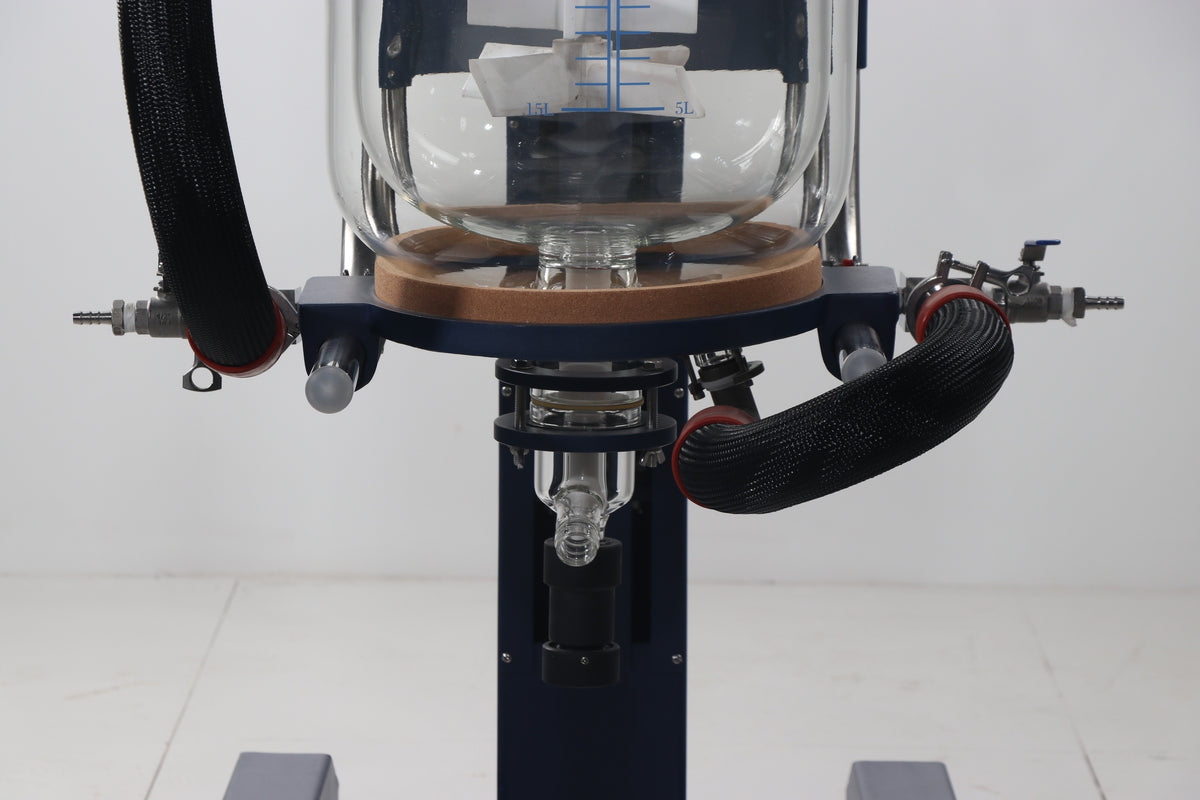

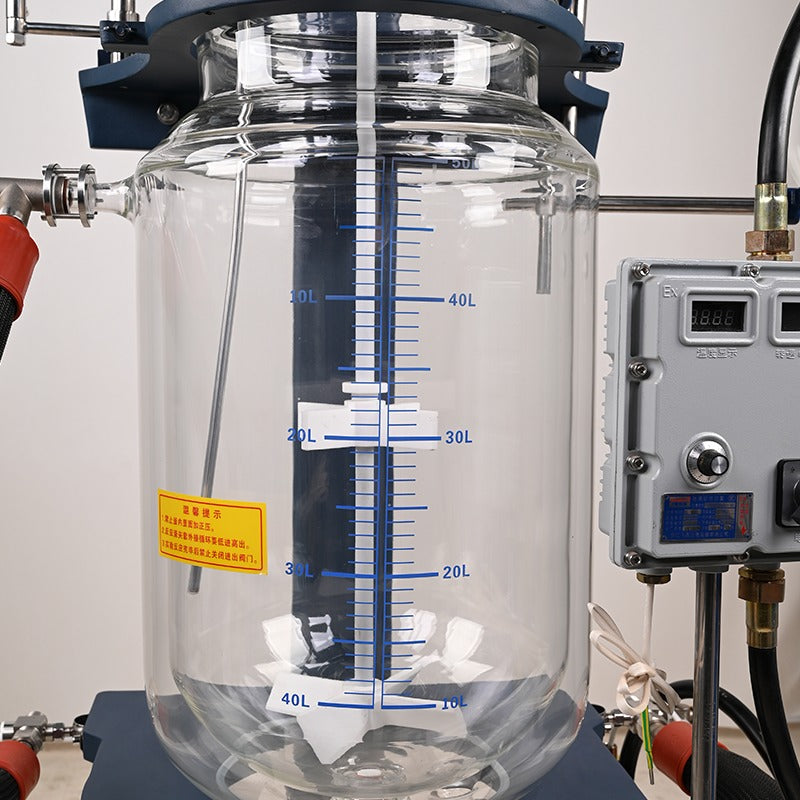

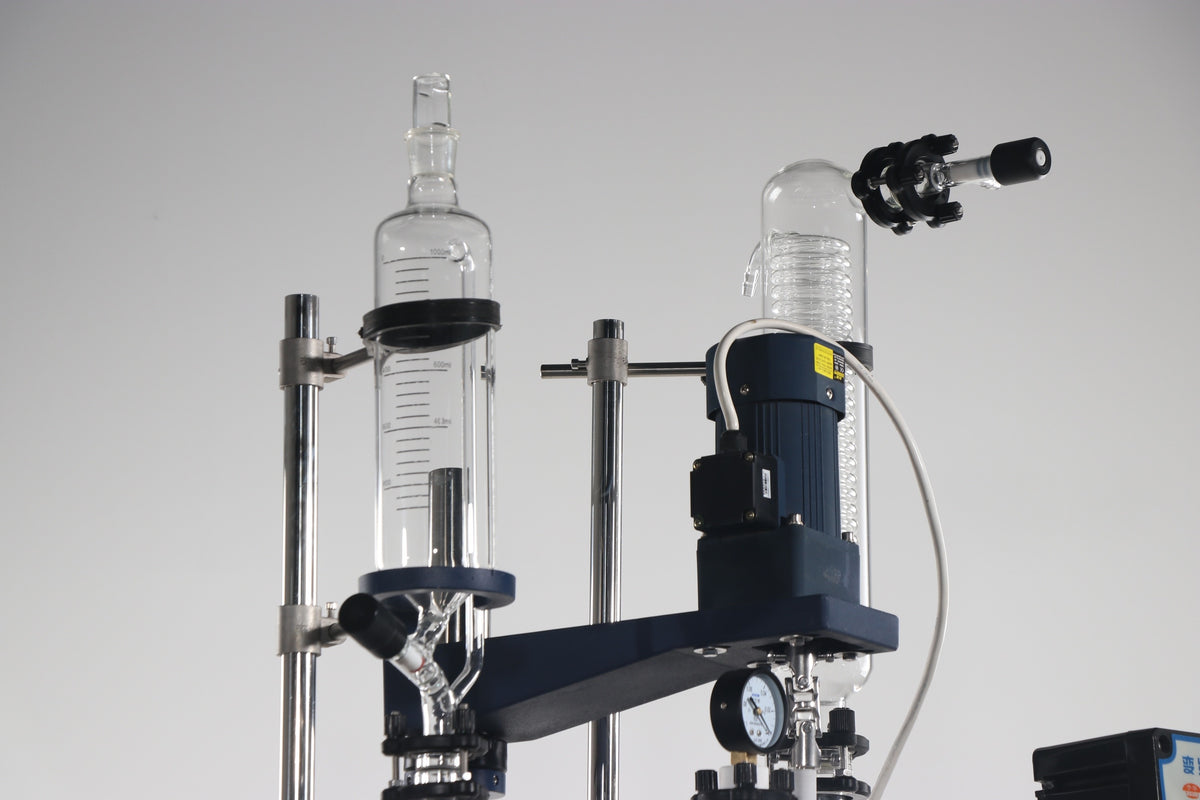

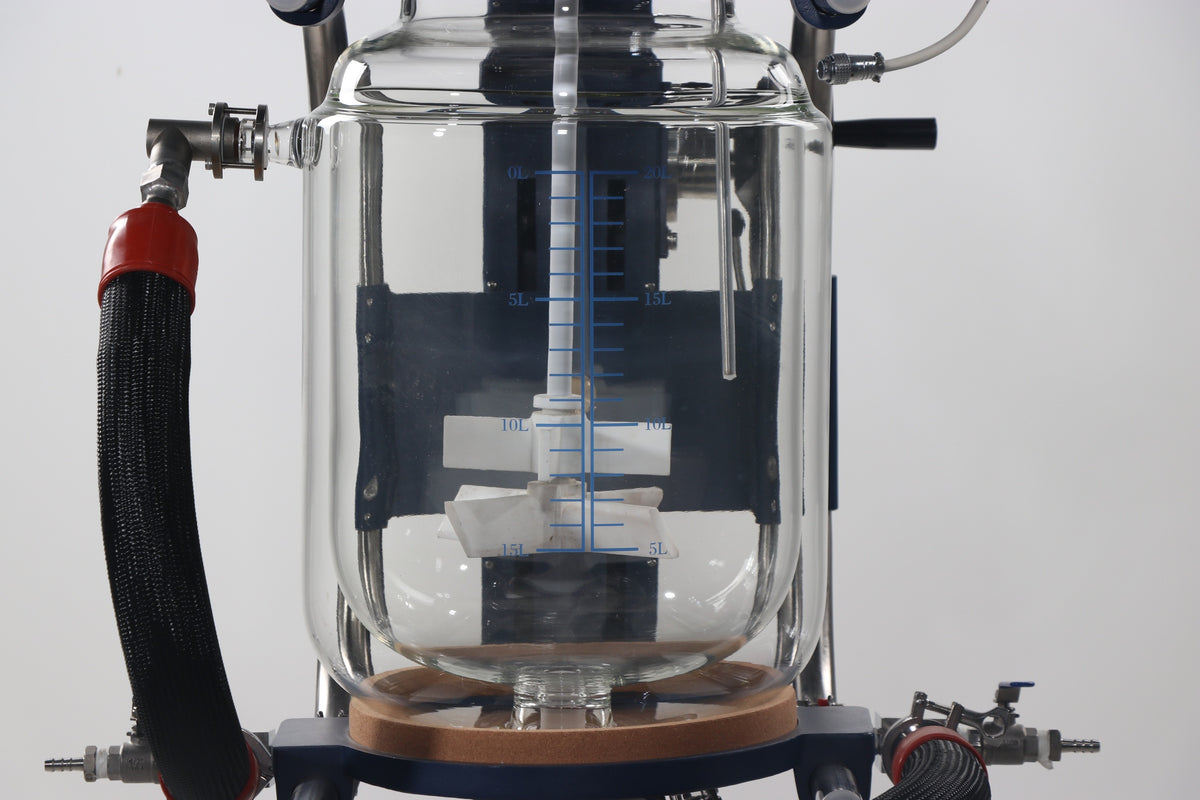

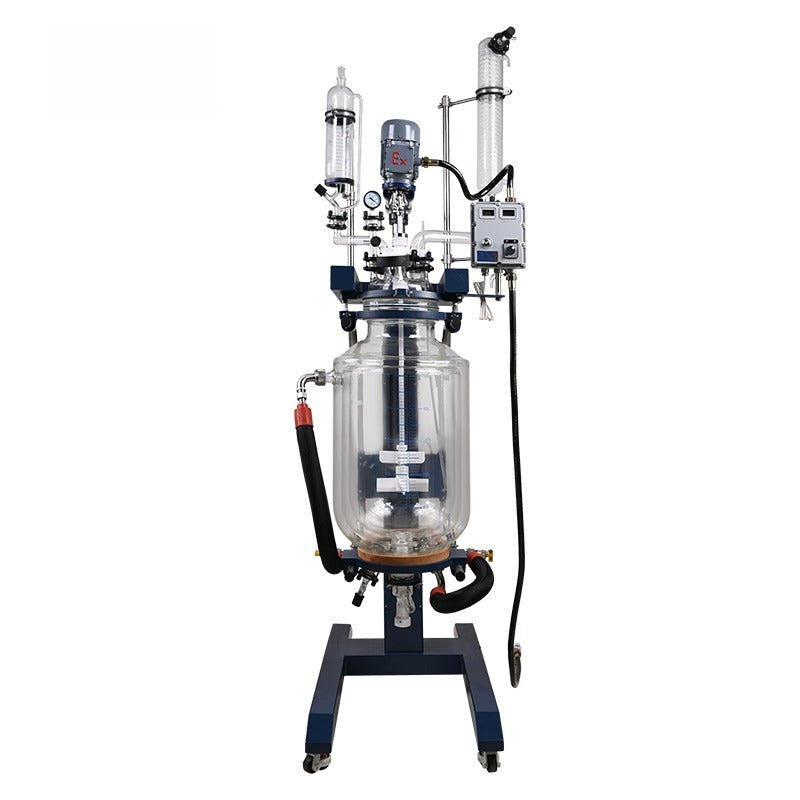

The ZYSF series is a lifting and rotating double-layer jacketed glass reactor (reaction kettle) in borosilicate glass 3.3 (GG-17) on a stainless steel frame with universal casters; the kettle body lifts electrically and rotates for discharge (360° vessel rotation, tilt range 0–120°). Verified family specifications: vacuum degree 0.098 MPa, operating temperature −80℃ to +300℃ (depending on the heating/cooling medium), stirring speed 0–650 rpm with electronic stepless regulation and digital display, PTFE sealing, an anchor-shaped stainless steel stirring paddle wrapped in PTFE, a vertical condenser, and a 120W lifting motor. Sizes run from 10L to 50L, with an explosion-proof motor configuration at 50L.
Model Comparison
Model
Configuration
Capacity
Jacket Volume
Condensation Area
Machine Size (W×D×H)
Machine Weight
ALAB-ZYSF-10L
Standard
10L
3L
0.4 m²
1100×860×2100 mm
130 kg
ALAB-ZYSF-20L
Standard
20L
6L
0.4 m²
1100×860×2200 mm
140 kg
ALAB-ZYSF-30L
Standard
30L
9L
0.5 m²
1100×860×2400 mm
146 kg
ALAB-ZYSF-50L
Standard
50L
15L
0.5 m²
1100×860×2500 mm
155 kg
ALAB-ZYSF-50EX
Explosion-proof motor
50L
—
—
—
—
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
