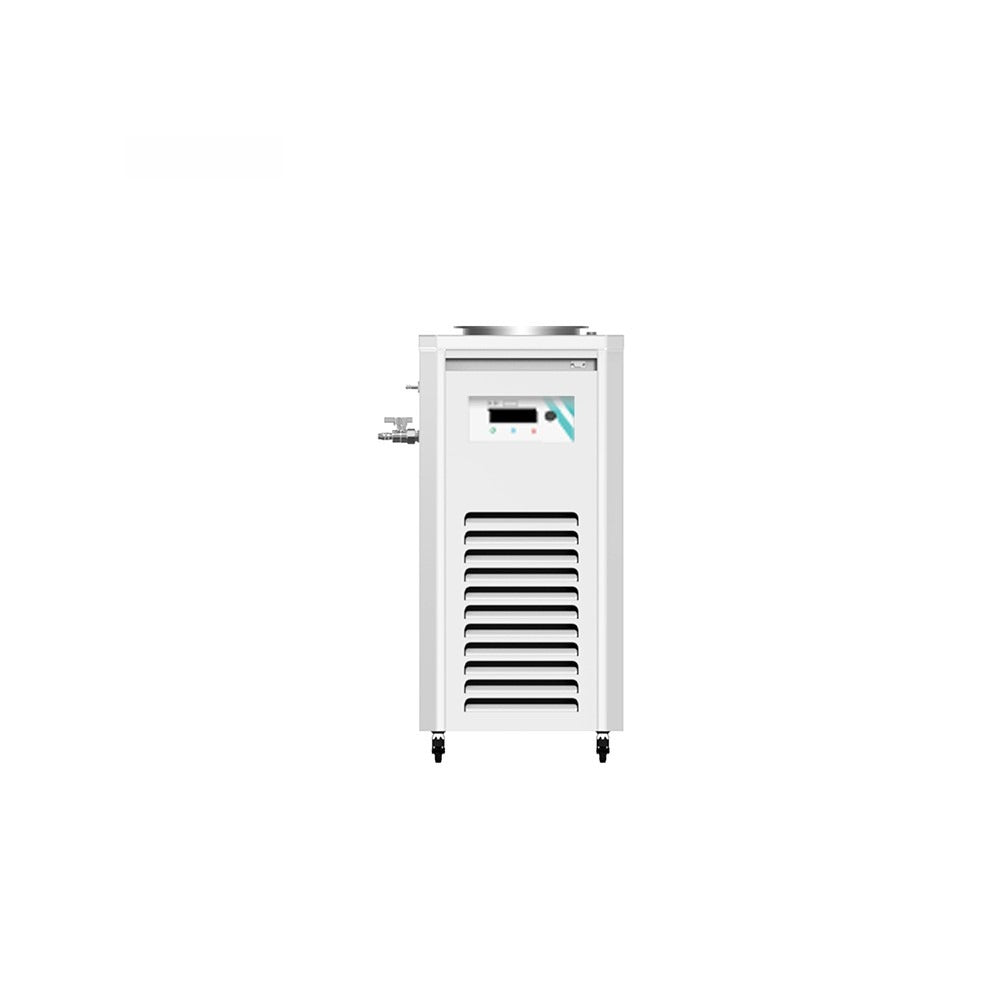

The ALAB-DLBC series high-precision low temperature constant temperature baths provide heating and refrigeration for laboratory temperature-control work across a temperature range of -40 to 98 °C, with bath volumes from 5 L to 80 L and a maximum circulation pump flow of up to 70 L/min depending on the model — see the comparison table below for the full specifications of each model.
Specification
ALAB-DLBC-4005
ALAB-DLBC-4010
ALAB-DLBC-4020
ALAB-DLBC-4030
ALAB-DLBC-4050
ALAB-DLBC-4080
Model
ALAB-DLBC-4005
ALAB-DLBC-4010
ALAB-DLBC-4020
ALAB-DLBC-4030
ALAB-DLBC-4050
ALAB-DLBC-4080
Temperature Range
-40~98 °C
-40~98 °C
-40~98 °C
-40~98 °C
-40~98 °C
-40~98 °C
Bath Volume / Working Slot
5 L (working slot opening 230*150 mm)
10 L (working slot opening 290*200 mm)
20 L (working slot opening 290*350 mm)
30 L (working slot opening 290*350 mm)
50 L (working slot opening 350*400 mm)
80 L (working slot opening 500*450 mm)
Heating Power
1.2 kW
1.5 kW
1.5 kW
1.5 kW
1.5 kW
2.5 kW
Cooling Power
1420~462 W (refrigeration at 25 °C)
2548~980 W (refrigeration at 25 °C)
3635~980 W (refrigeration at 25 °C)
4080~1270 W (refrigeration at 25 °C)
10256~2300 W (refrigeration at 25 °C)
10860~2830 W (refrigeration at 25 °C)
Pump Flow
35 L/min (max)
35 L/min (max)
35 L/min (max)
35 L/min (max)
70 L/min (max)
70 L/min (max)
Temperature Fluctuation
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
Power Supply
1.3 kW
2.6 kW
4.8 kW
-
-
-
Dimensions
520*350*720 mm
580*450*730 mm
630*520*1000 mm
940*710*1010 mm
760*610*1030 mm
1000*800*1100 mm
Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Voltage
220 V
220 V
220 V
220 V
220 V
220 V
Warranty
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
