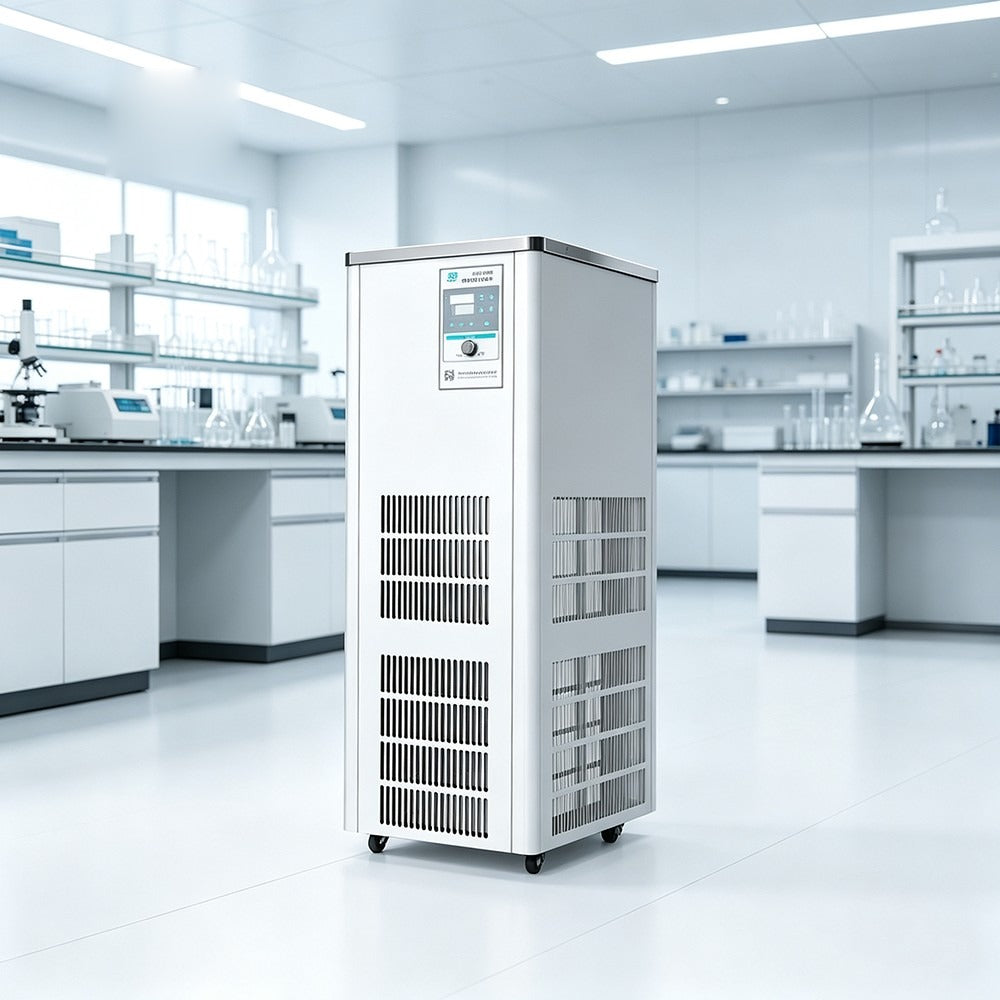

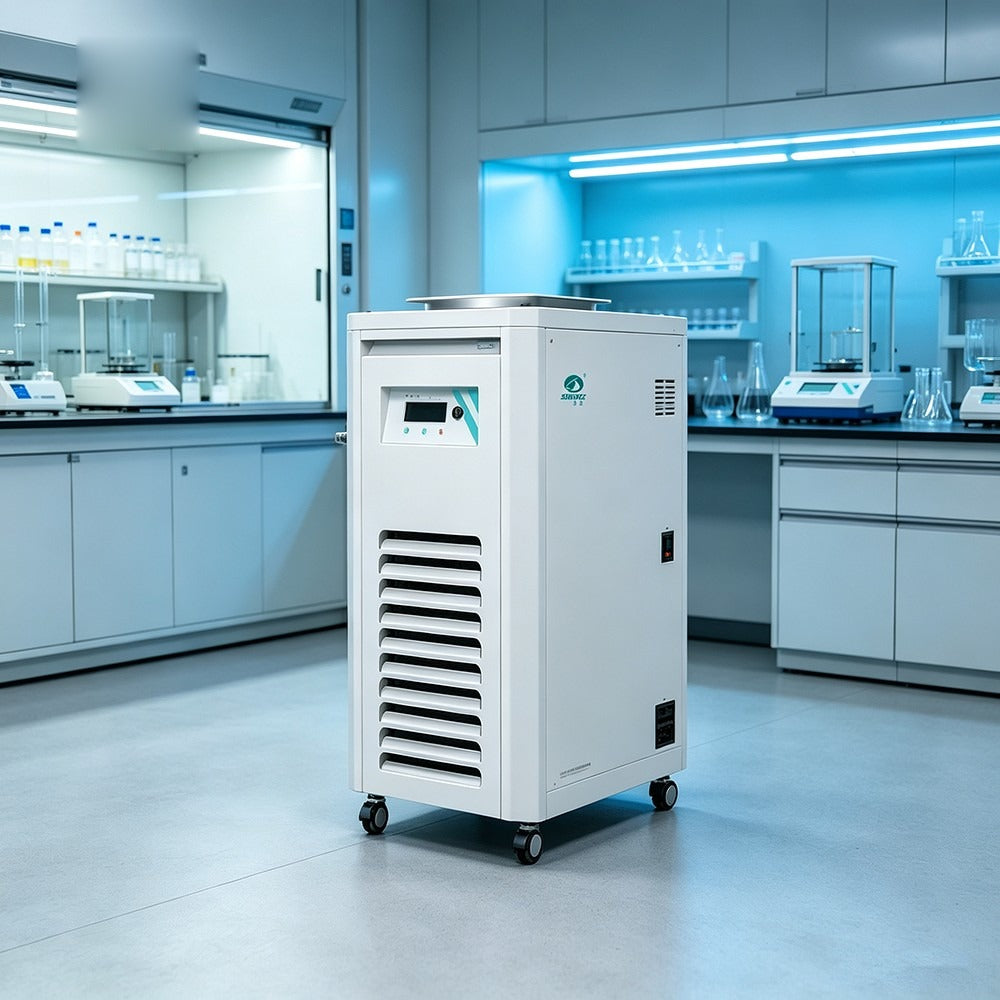

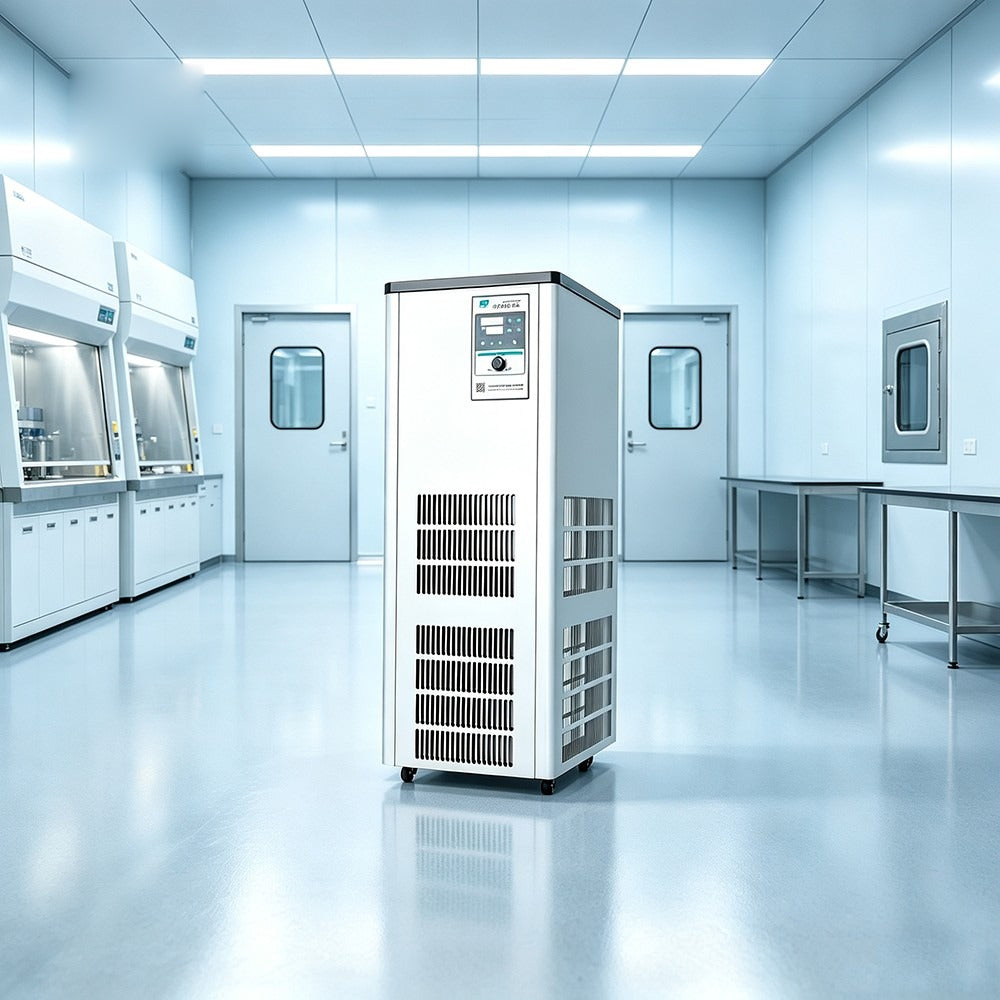

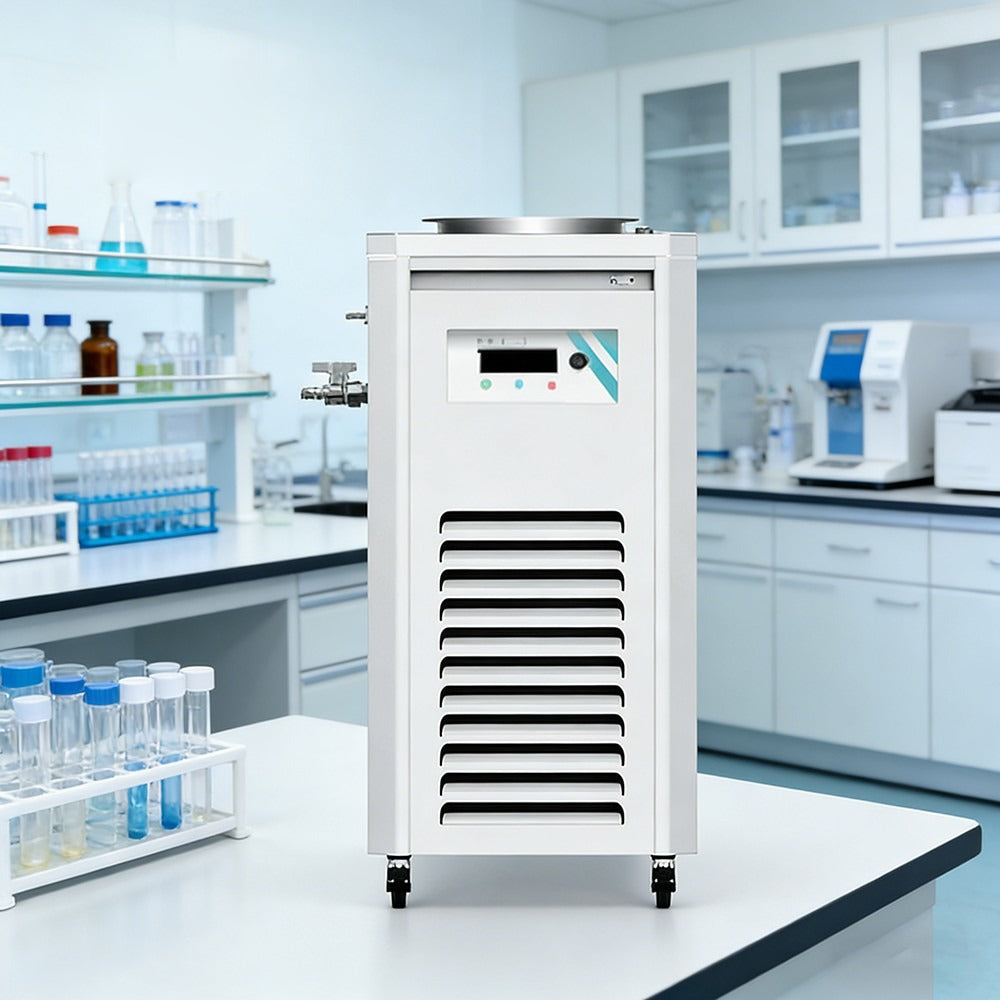

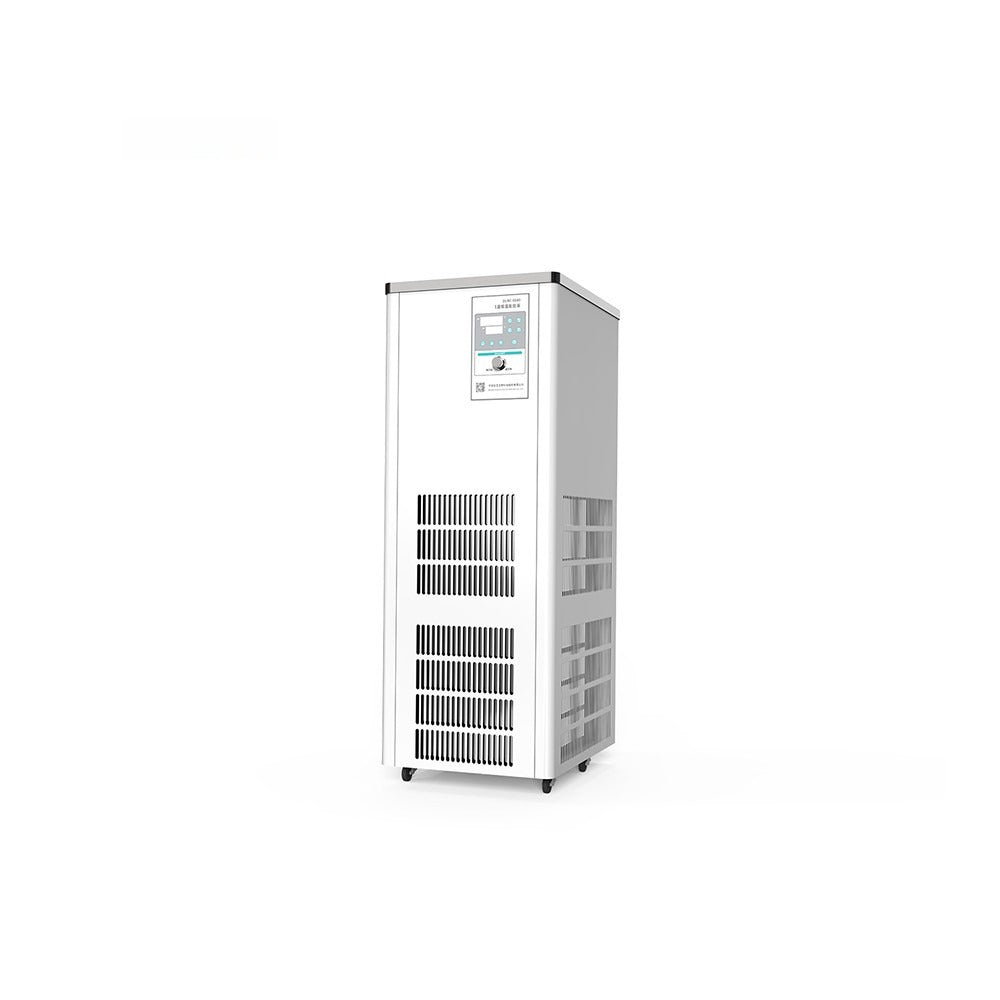

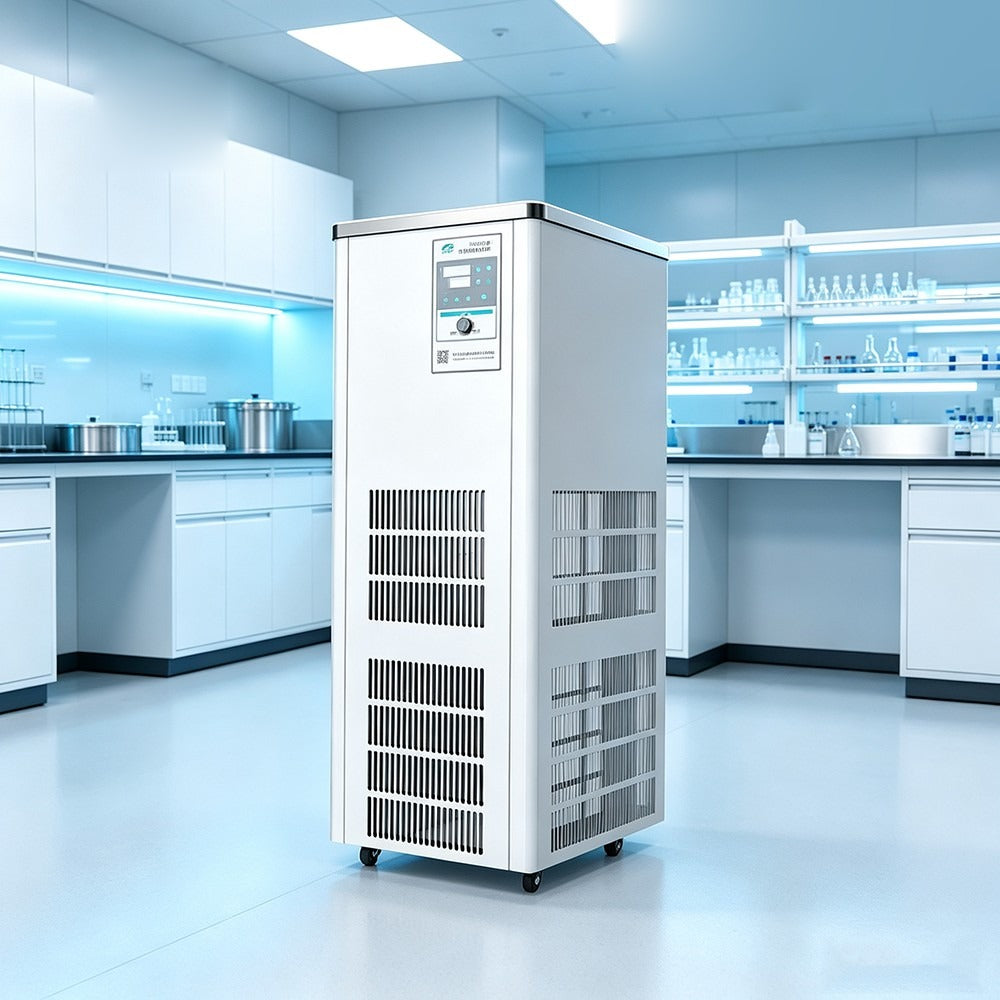

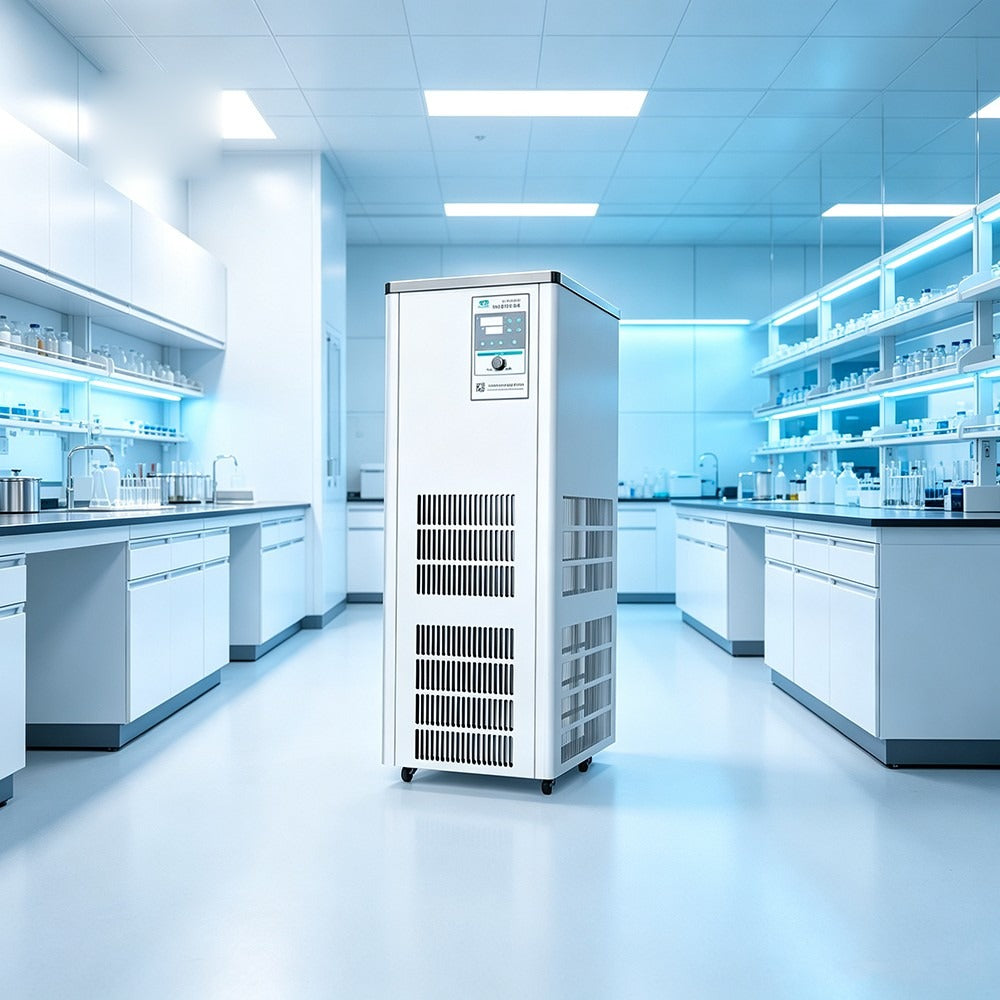

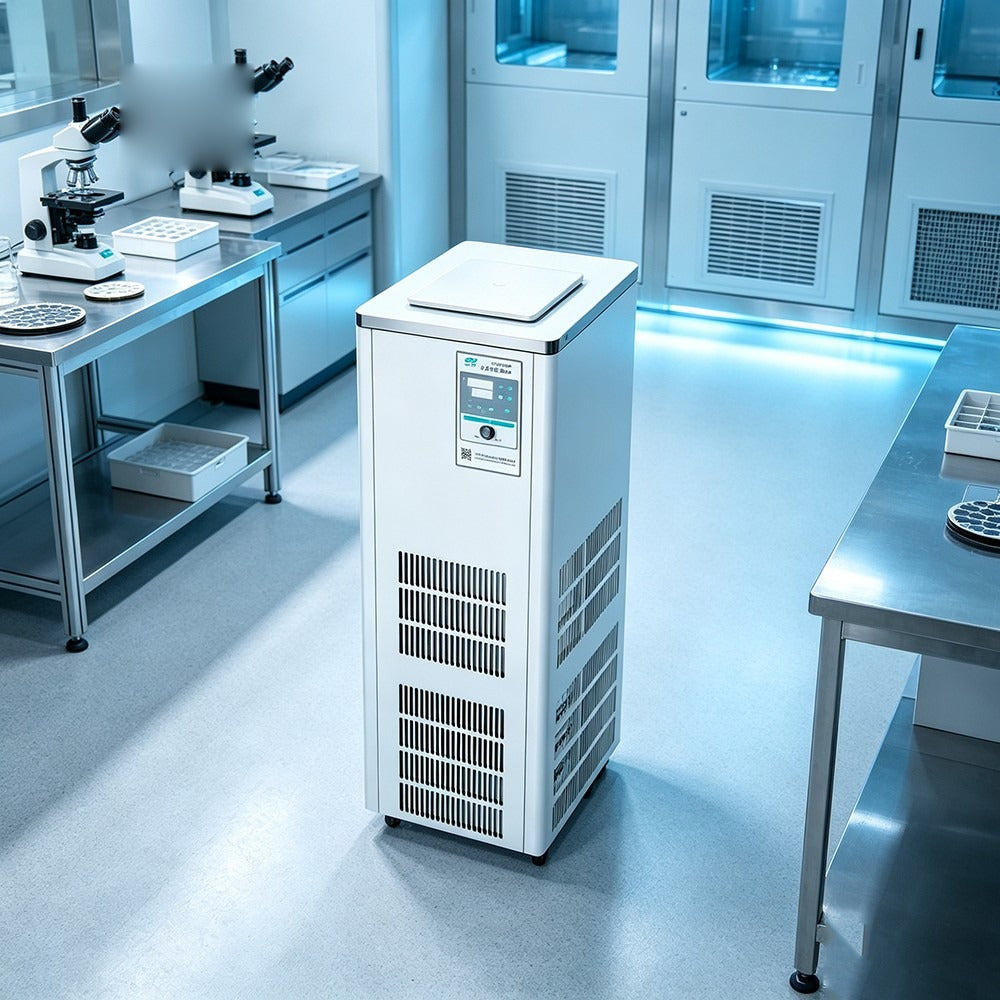

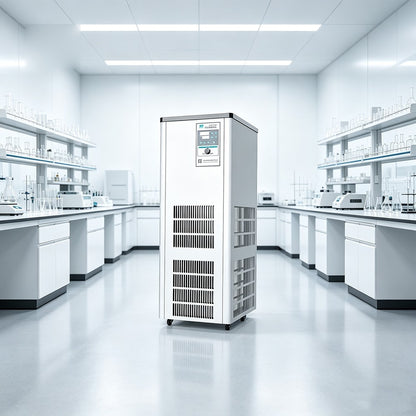

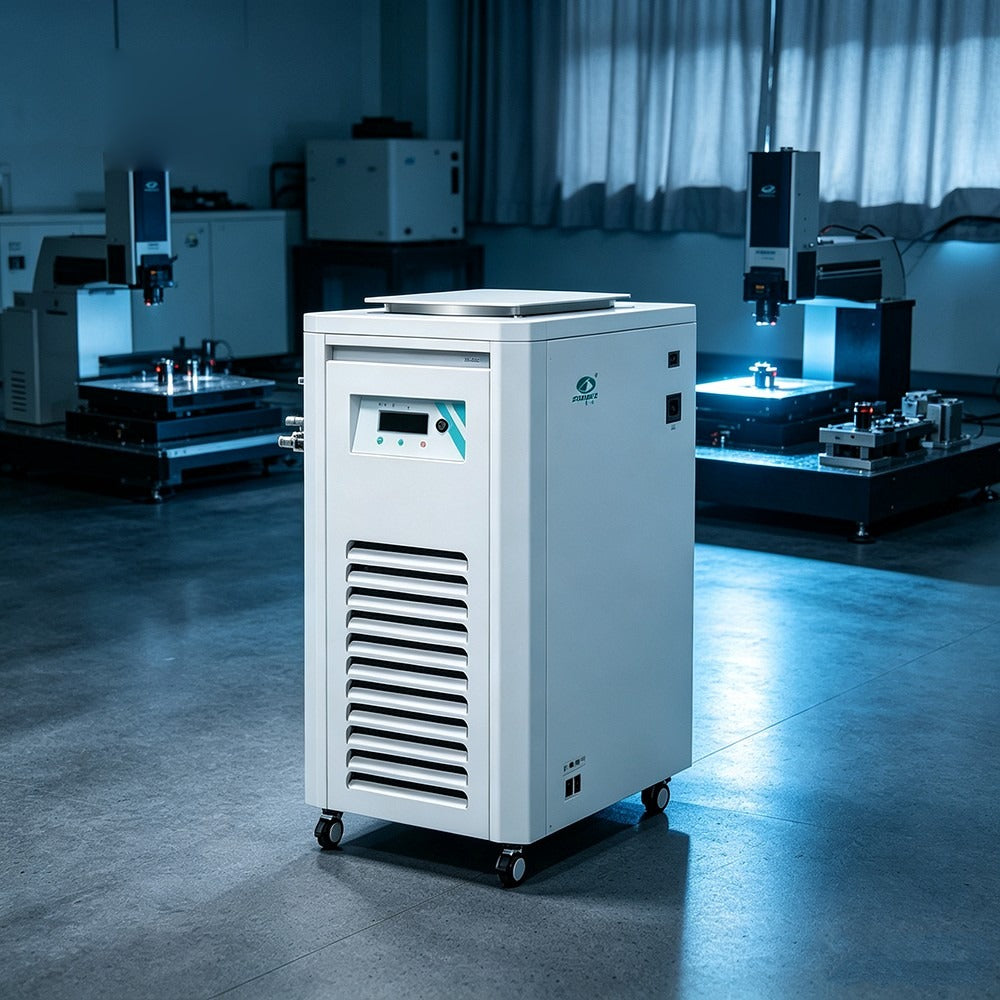

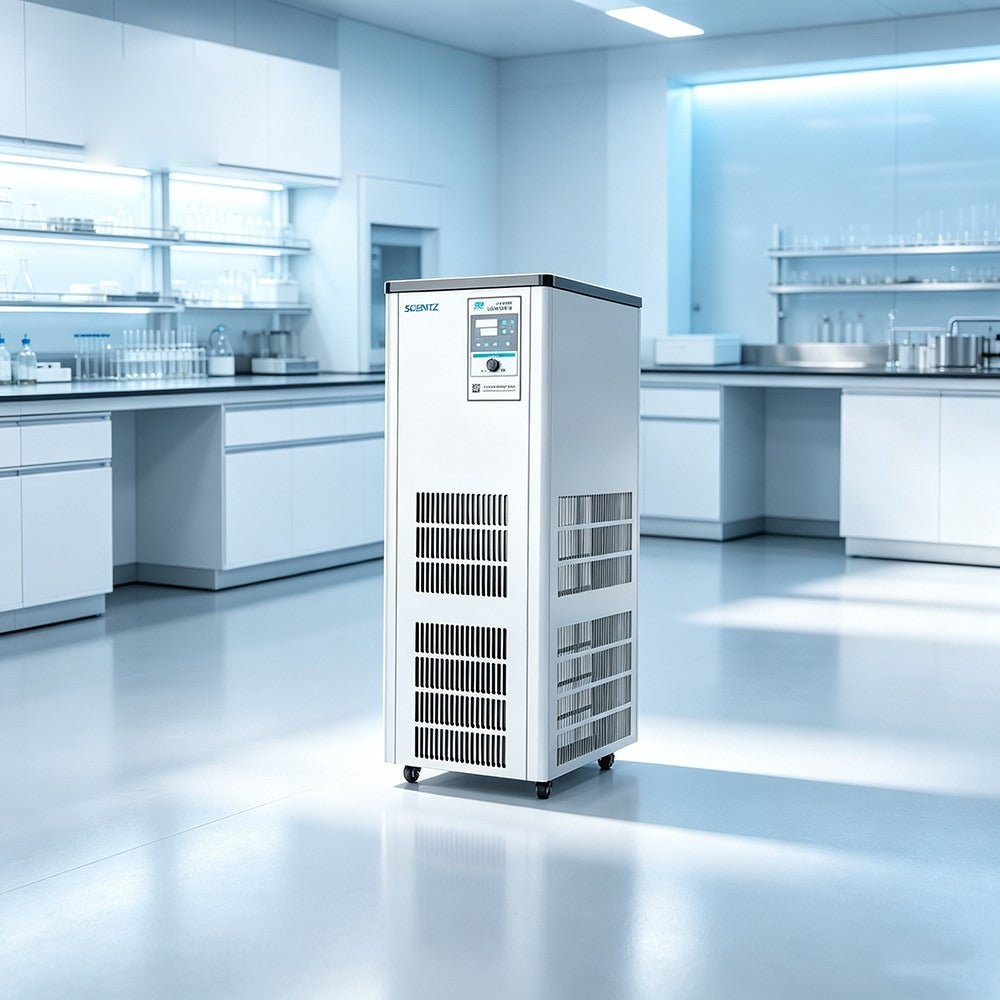

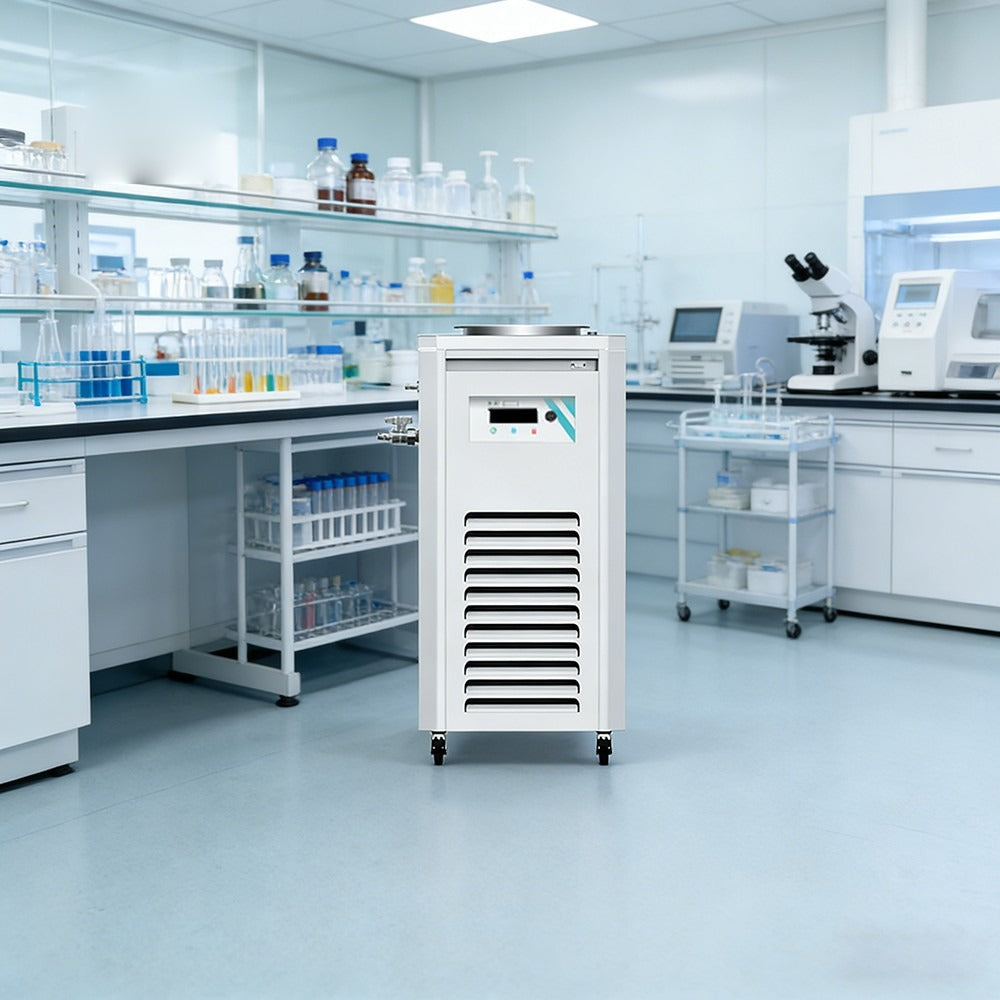

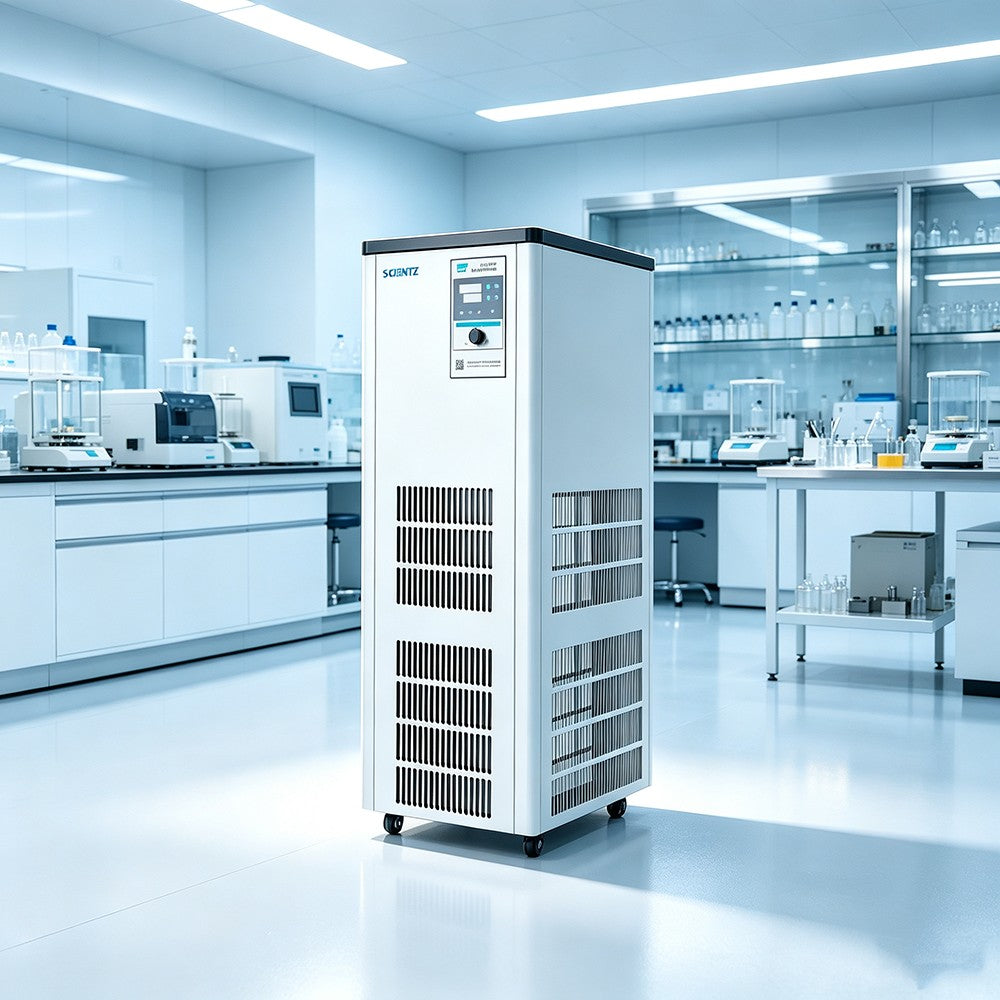

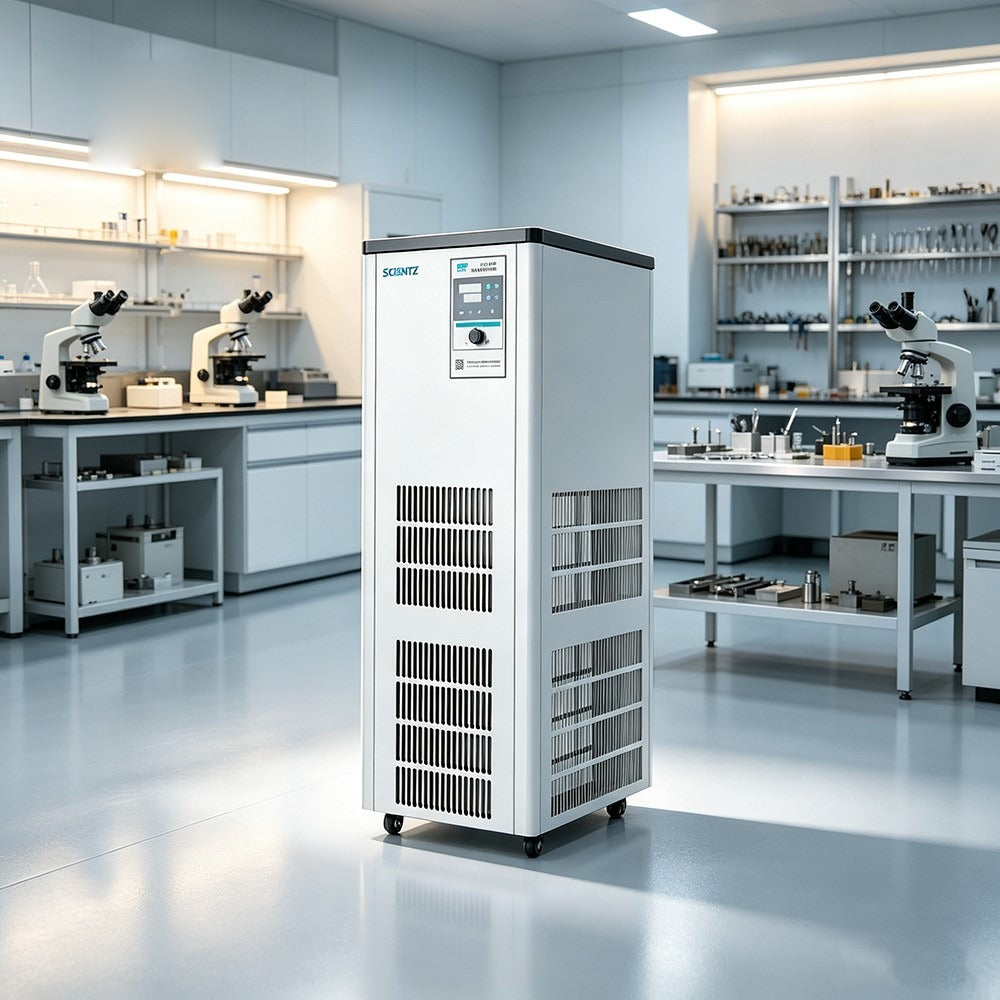

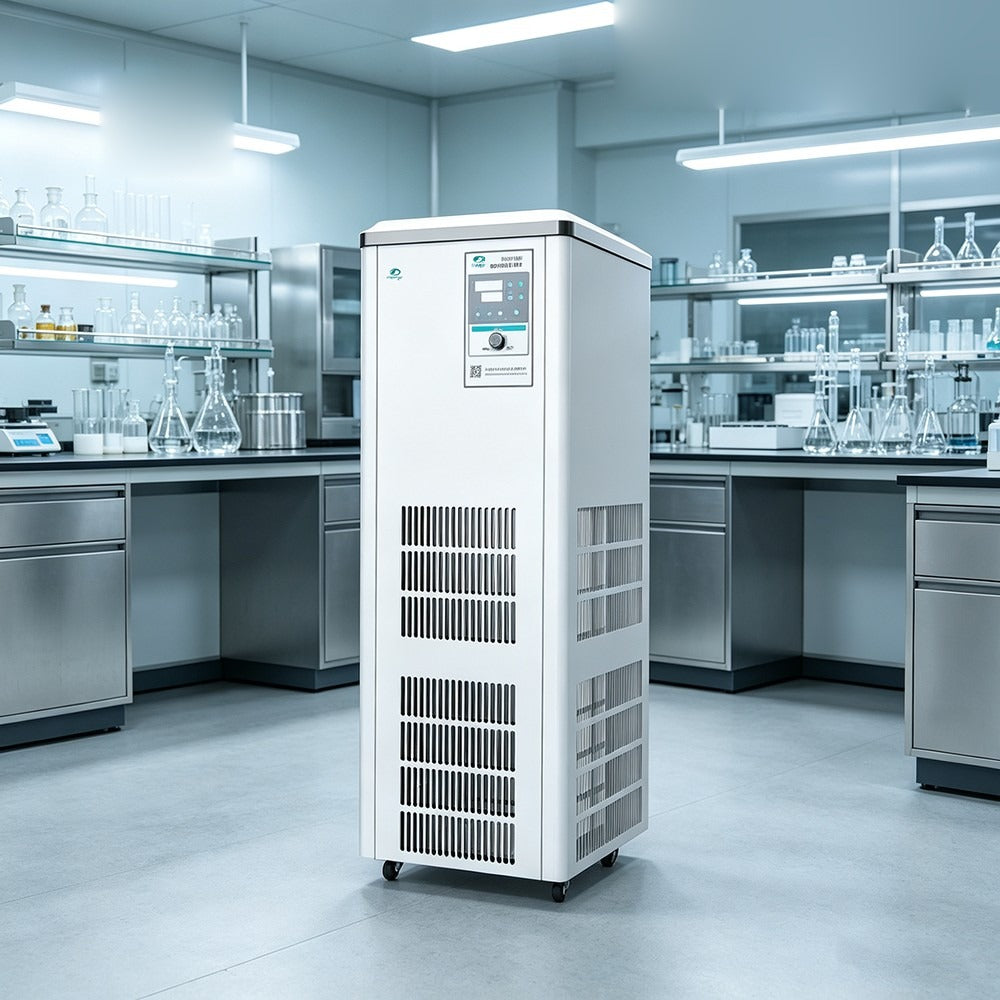

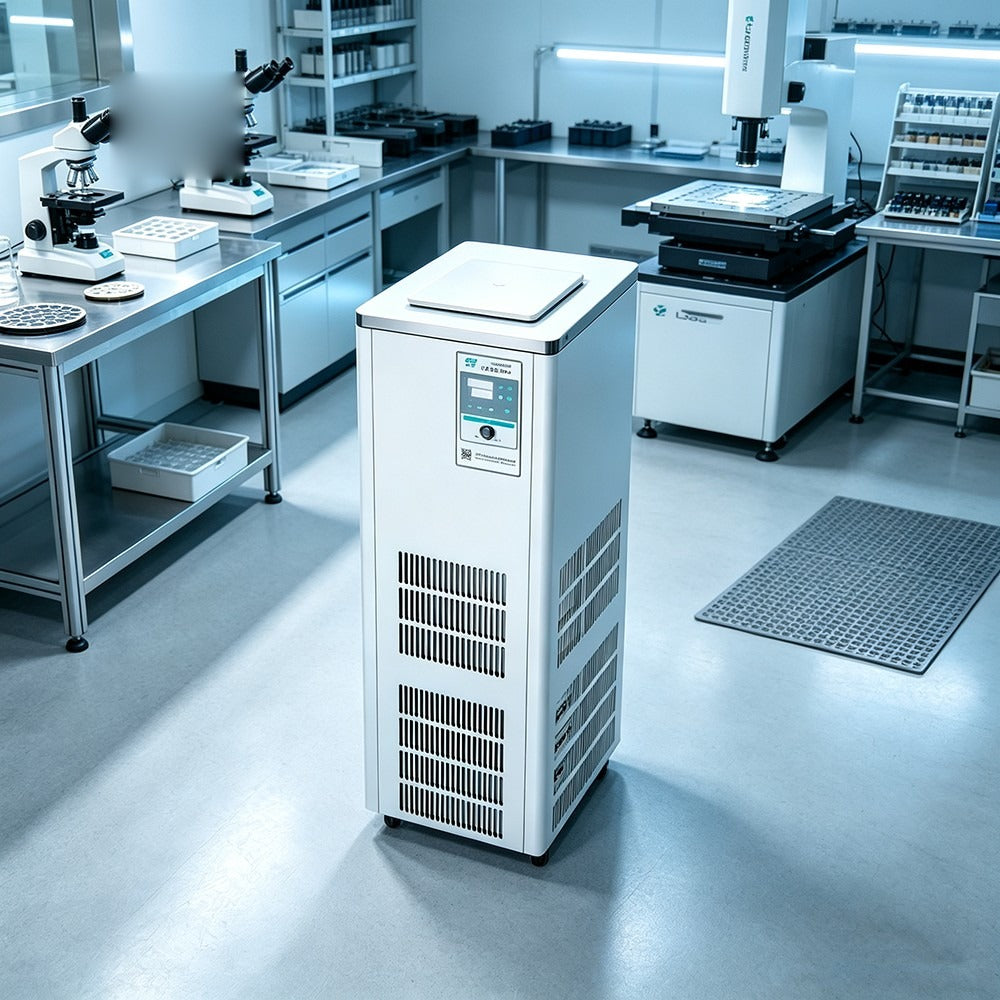

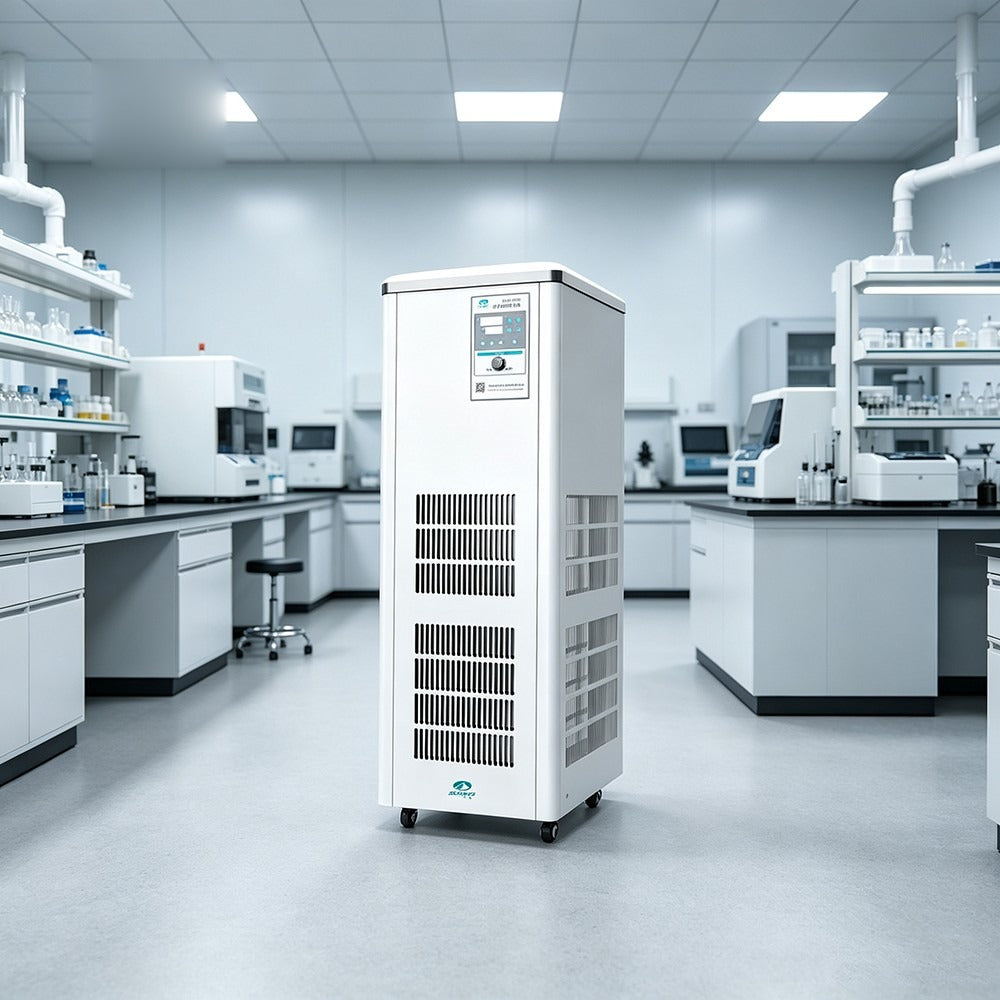

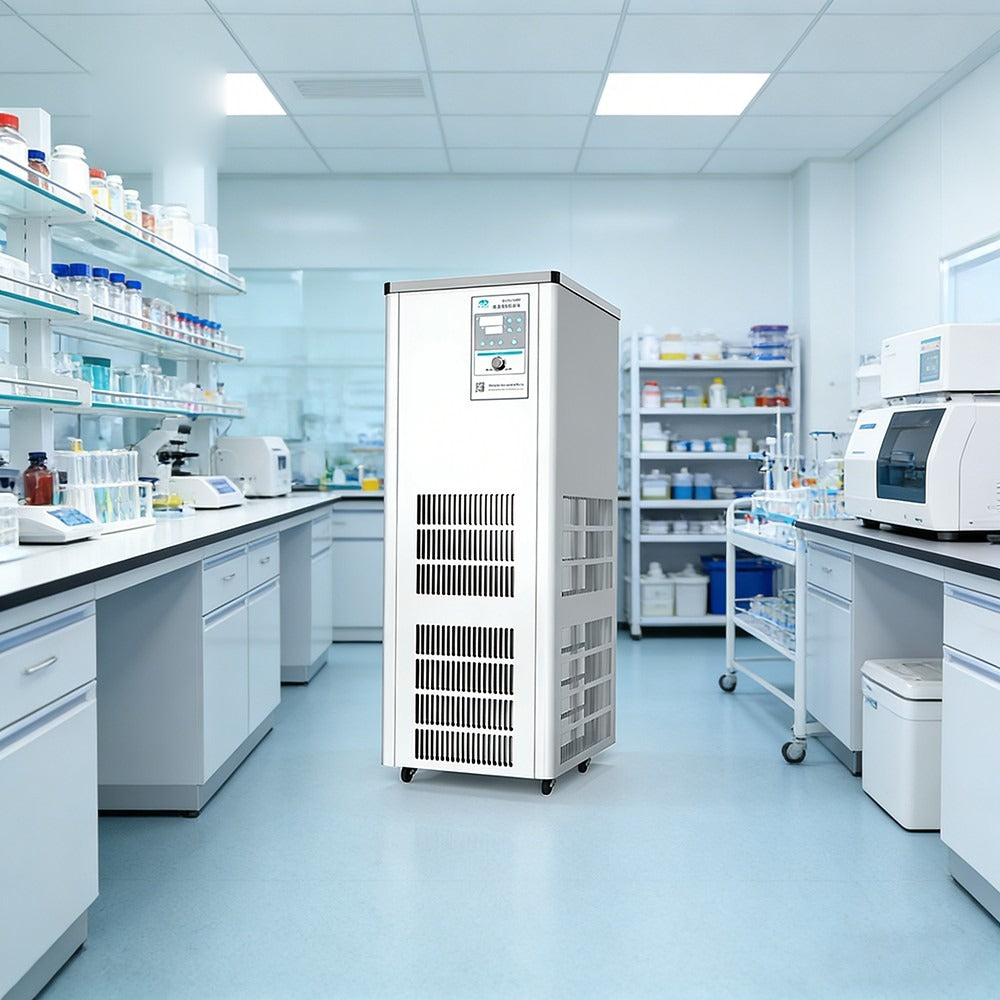

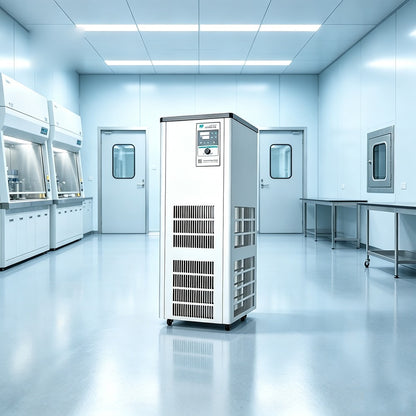

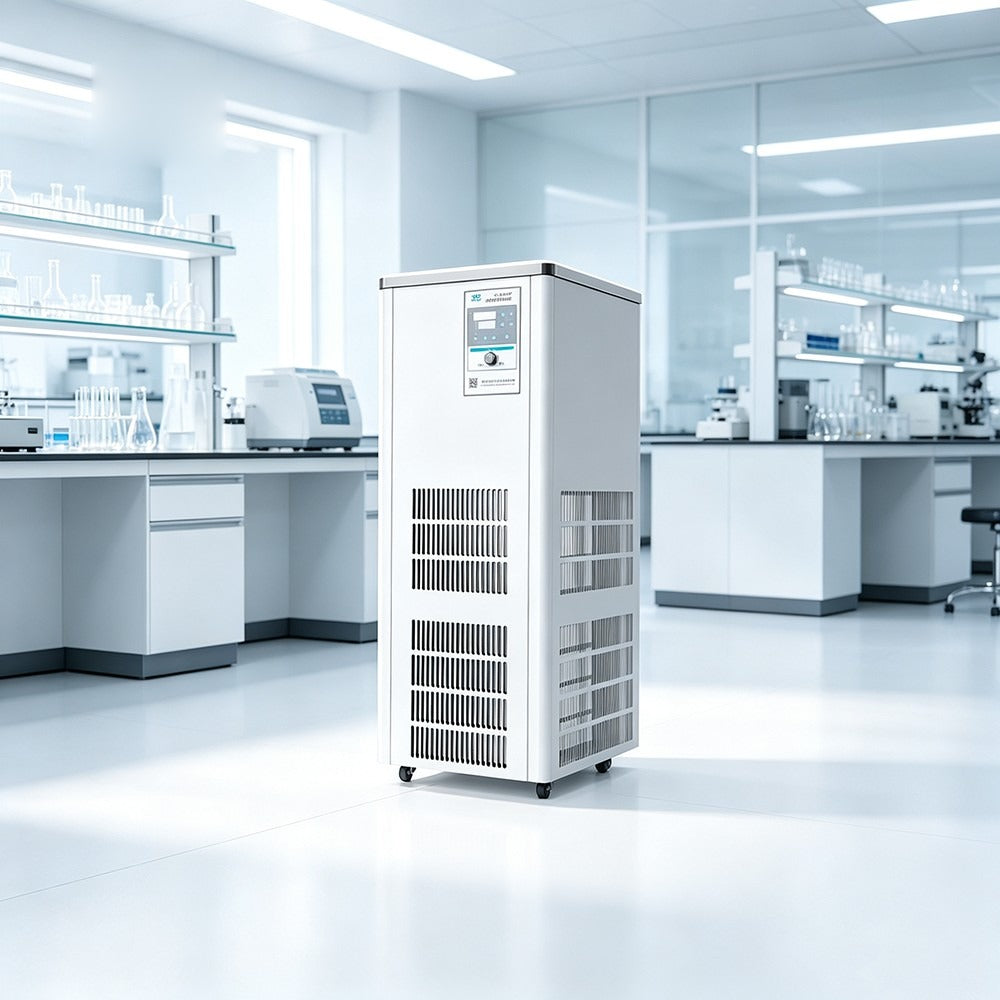

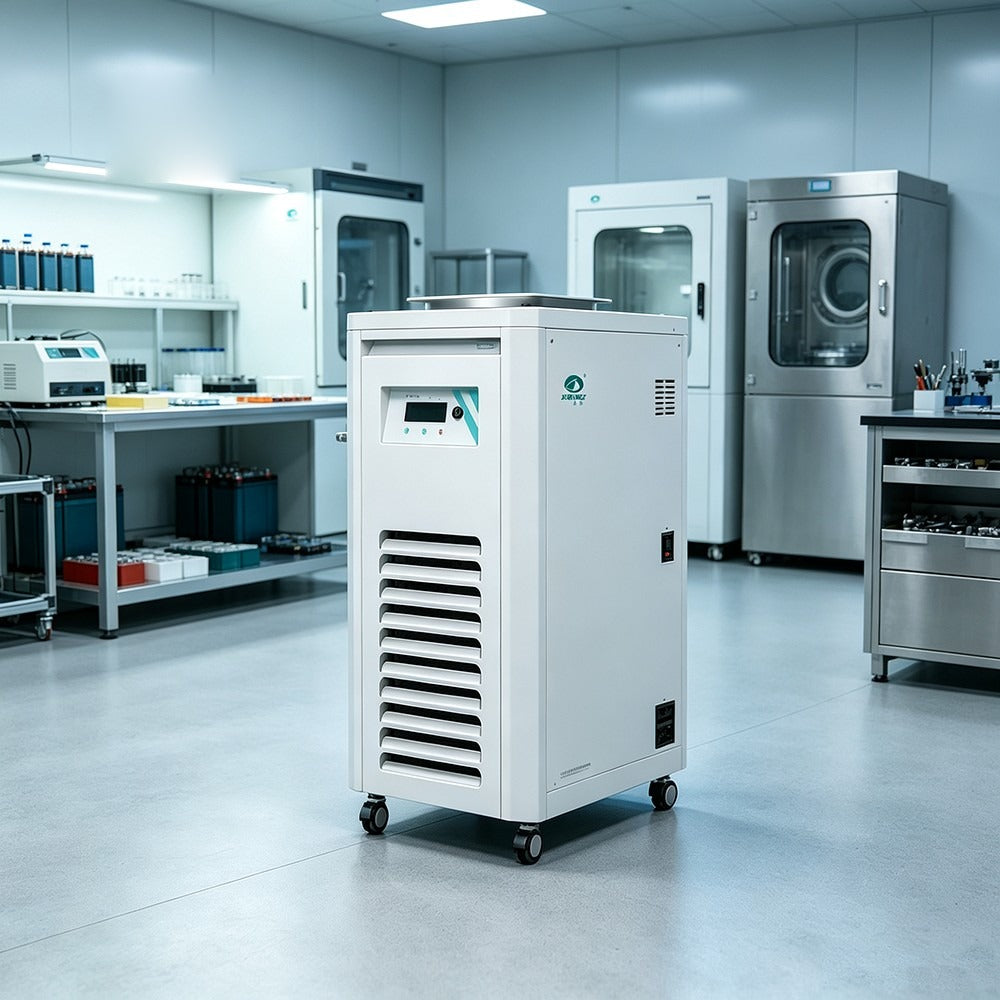

The ALAB-DLBC series high-precision low temperature constant temperature baths provide heating and refrigeration for laboratory temperature-control work across a temperature range of -83 to 98 °C depending on the model, with bath volumes from 5 L to 80 L and a maximum circulation pump flow of up to 70 L/min depending on the model — see the comparison table below for the full specifications of each model.
Specification
ALAB-DLBC-8005
ALAB-DLBC-8010
ALAB-DLBC-8020
ALAB-DLBC-8030
ALAB-DLBC-8050
ALAB-DLBC-8080
Model
ALAB-DLBC-8005
ALAB-DLBC-8010
ALAB-DLBC-8020
ALAB-DLBC-8030
ALAB-DLBC-8050
ALAB-DLBC-8080
Temperature Range
-40~98 °C
-83~98 °C
-83~98 °C
-83~98 °C
-40~98 °C
-83~98 °C
Bath Volume / Working Slot
5 L (working slot opening 230*150 mm)
10 L (working slot opening 290*200 mm)
20 L (working slot opening 290*350 mm)
30 L (working slot opening 290*350 mm)
50 L (working slot opening 500*450 mm)
80 L (working slot opening 500*450 mm)
Heating Power
1.2 kW
1.5 kW
1.5 kW
1.5 kW
1.5 kW
2.5 kW
Cooling Power
1938~200 W (refrigeration at 25 °C)
2900~230 W (refrigeration at 25 °C)
4530~360 W (refrigeration at 25 °C)
4679~422 W (refrigeration at 25 °C)
11200~1480 W (refrigeration at 25 °C)
11670~1800 W (refrigeration at 25 °C)
Pump Flow
35 L/min (max)
35 L/min (max)
35 L/min (max)
35 L/min (max)
70 L/min (max)
70 L/min (max)
Temperature Fluctuation
±0.1% ~ ±0.5% FS
-
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
-
±0.1% ~ ±0.5% FS
Power Supply
3.19 kW
3.8 kW
5.9 kW
6.1 kW
9.8 kW
13.8 kW
Dimensions
430*350*960 mm
720*650*900 mm
940*710*1010 mm
1030*810*1020 mm
1030*860*1030 mm
1220*830*1350 mm
Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Voltage
220 V
220 V
380 V (three-phase)
380 V (three-phase)
380 V (three-phase)
380 V (three-phase)
Warranty
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year
Voltage note for US customers (ALAB-DLBC-8005 and ALAB-DLBC-8010): These units operate on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
Voltage note for US customers (ALAB-DLBC-8020, ALAB-DLBC-8030, ALAB-DLBC-8050 and ALAB-DLBC-8080): These units operate on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required.
