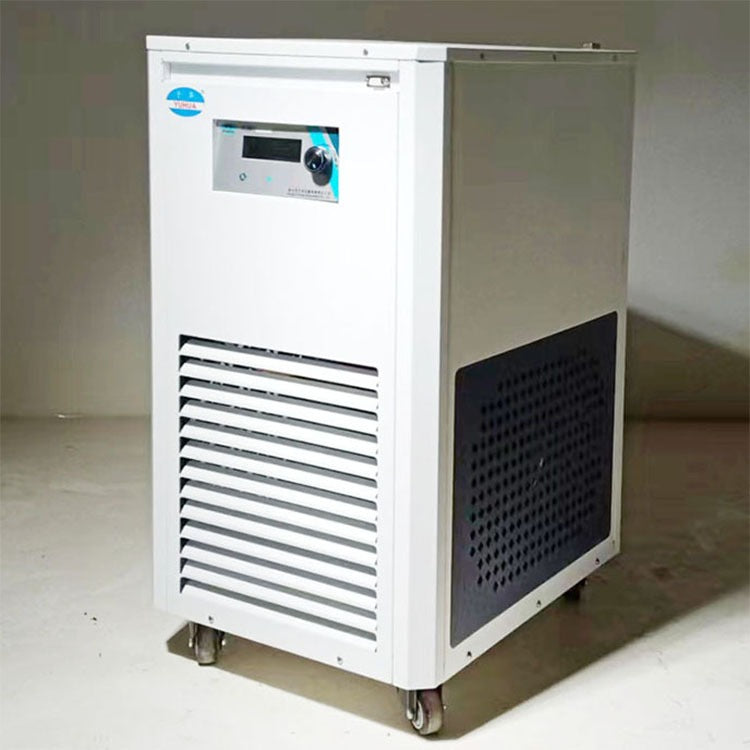

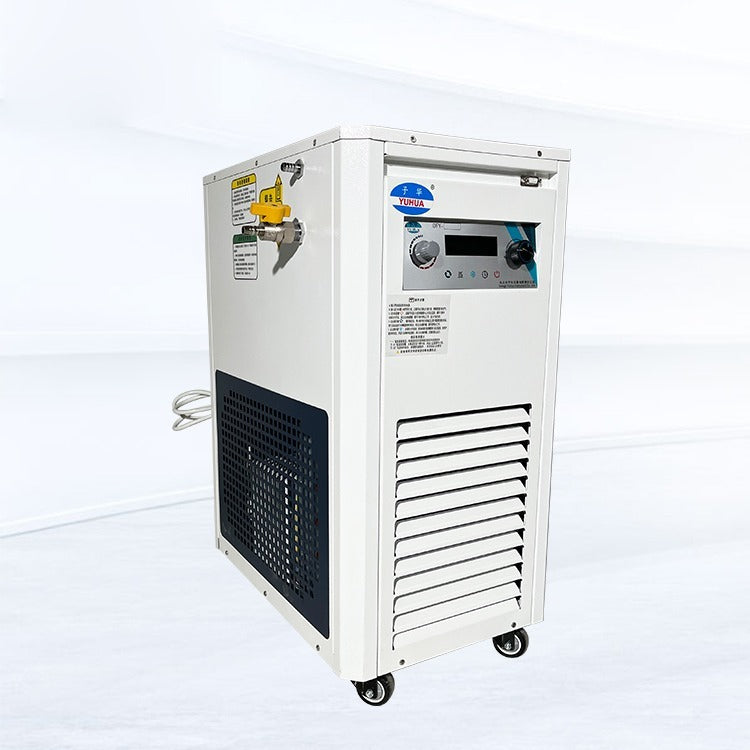

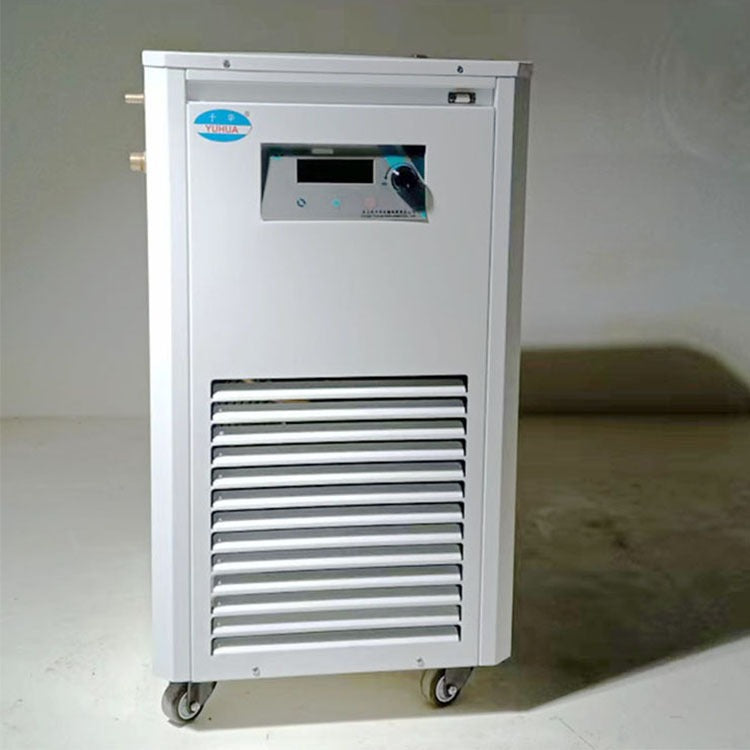

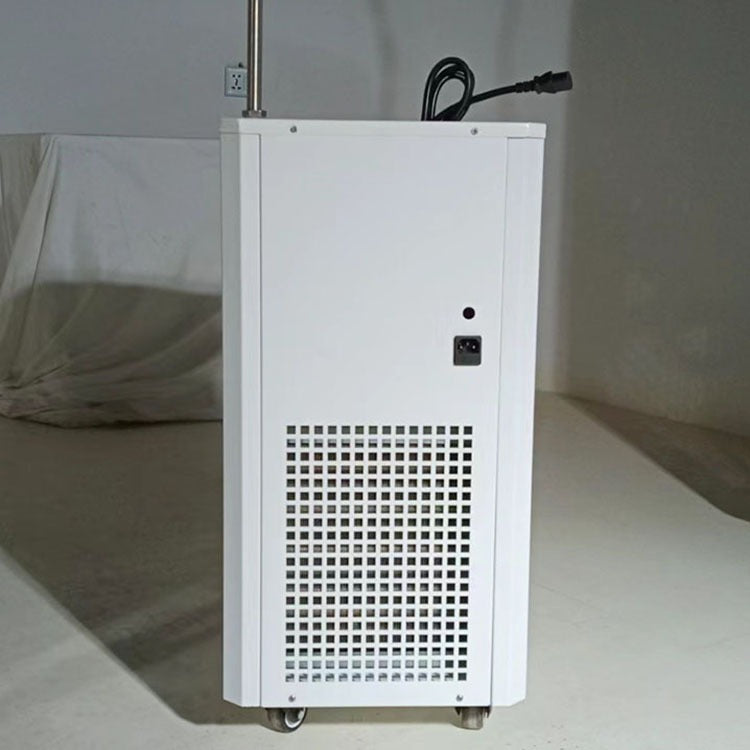

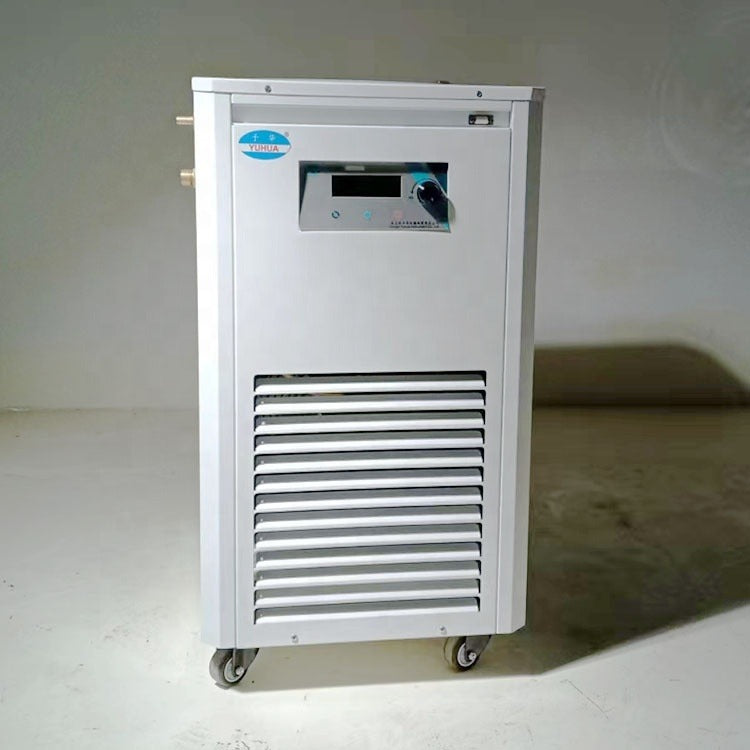

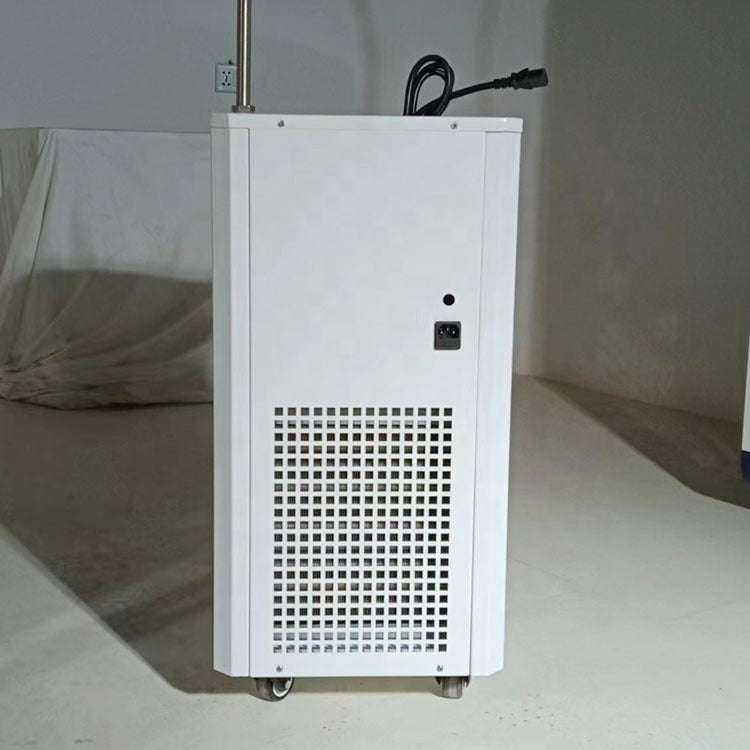

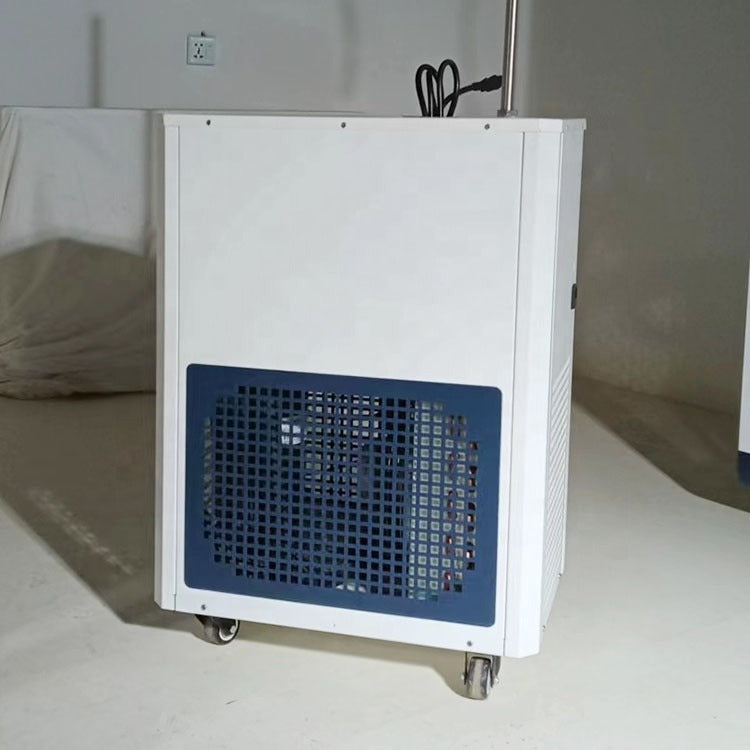

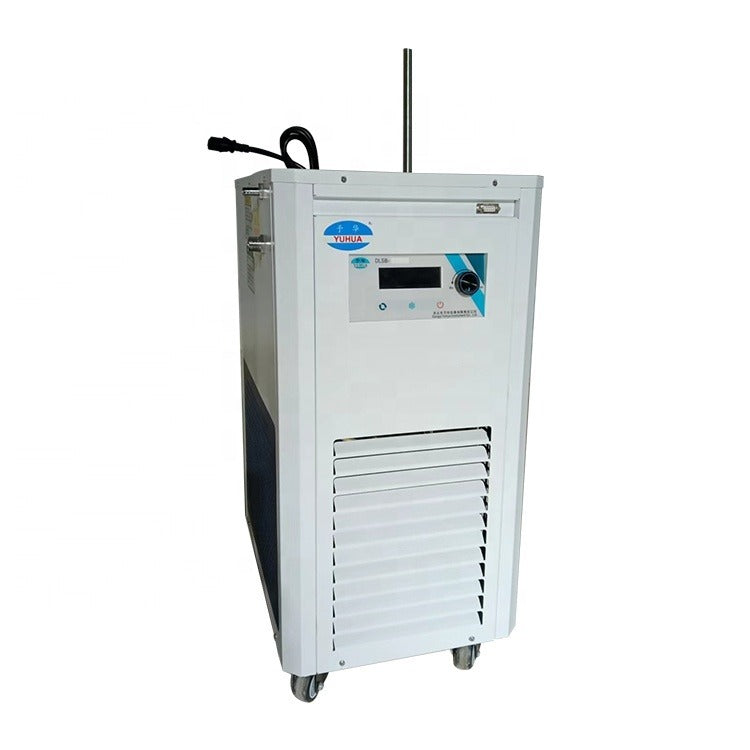

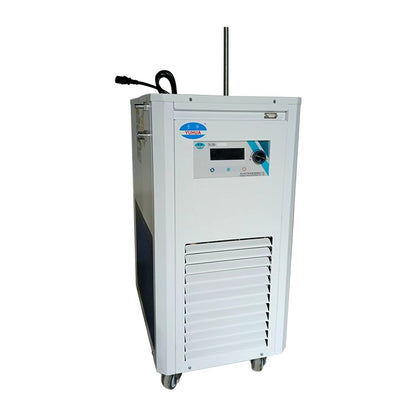

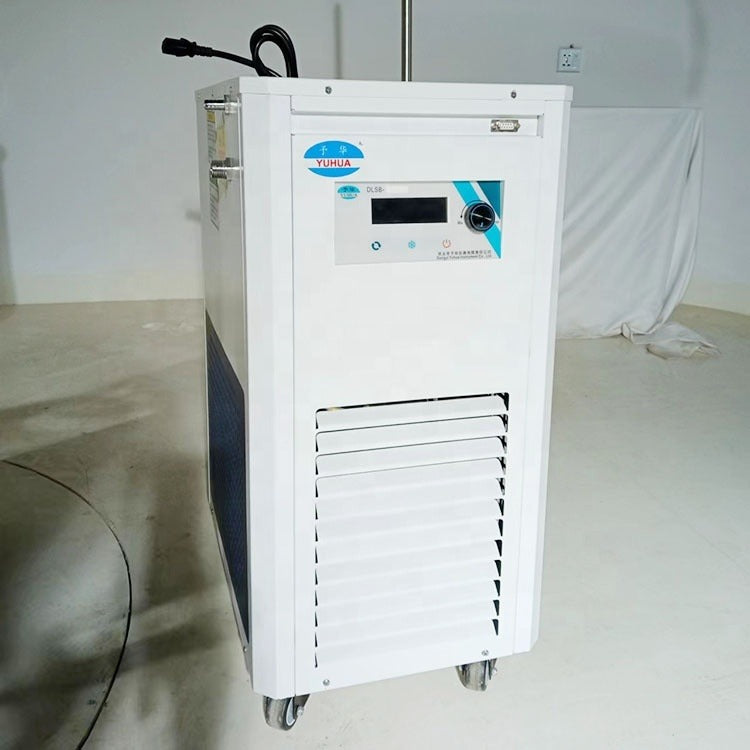

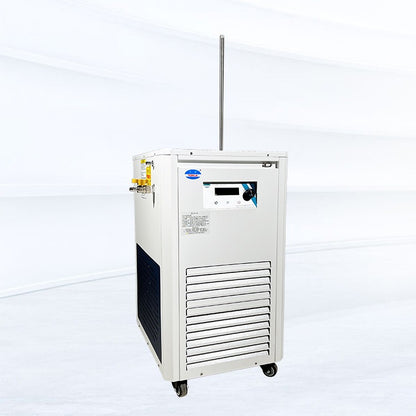

Low Temperature Circulating Chiller ALAB-DLSB

Low Temperature Circulating Chiller ALAB-DLSB

$501.00 USD
$501.00 USD
Sale Sold out

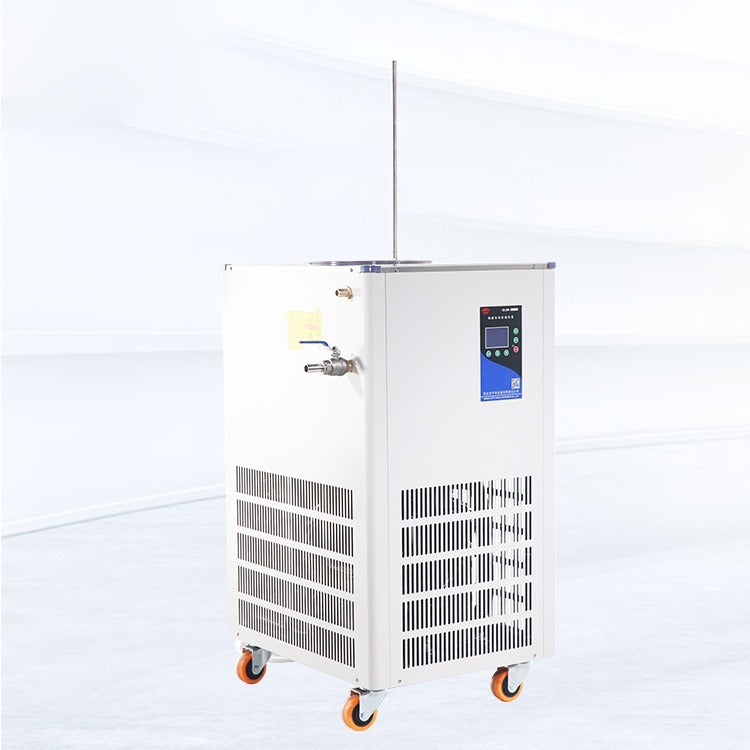

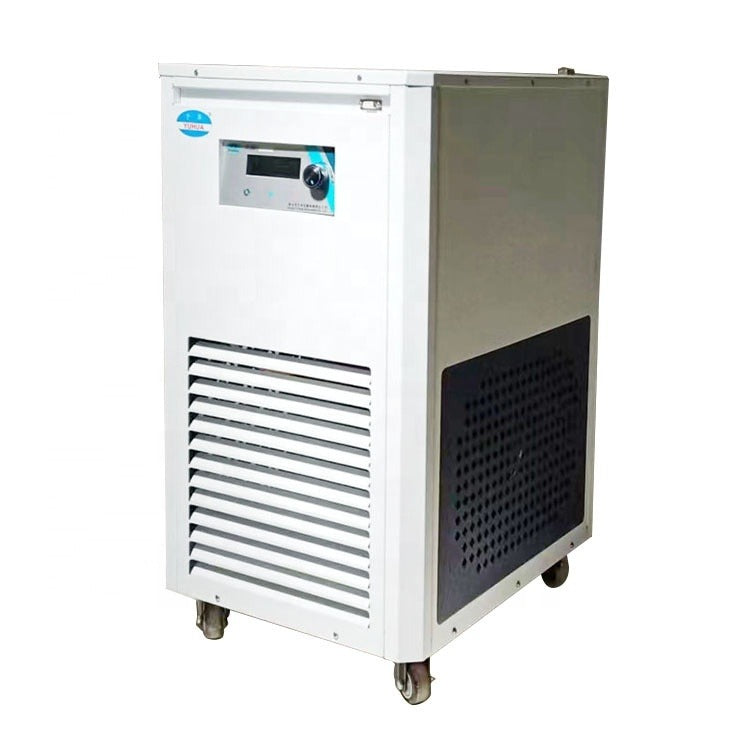

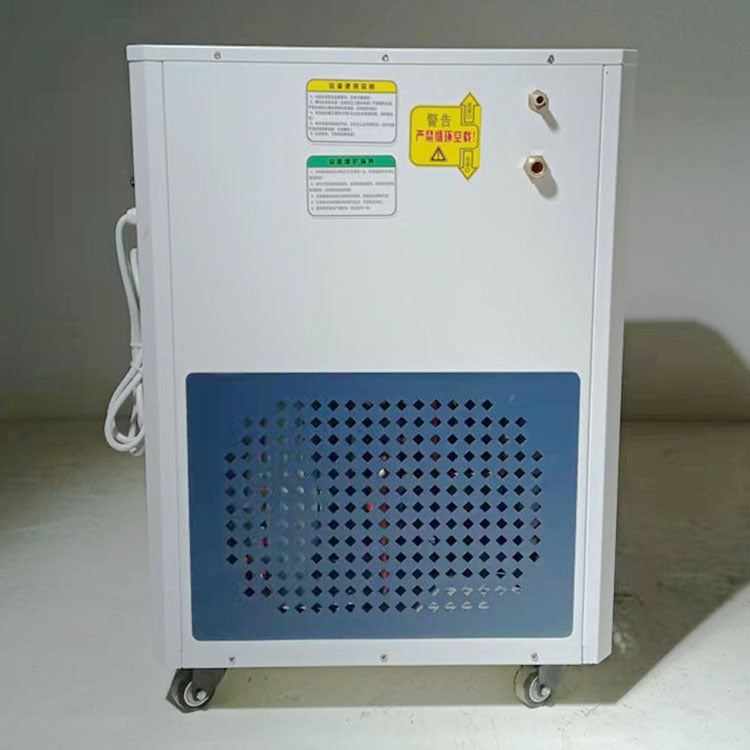

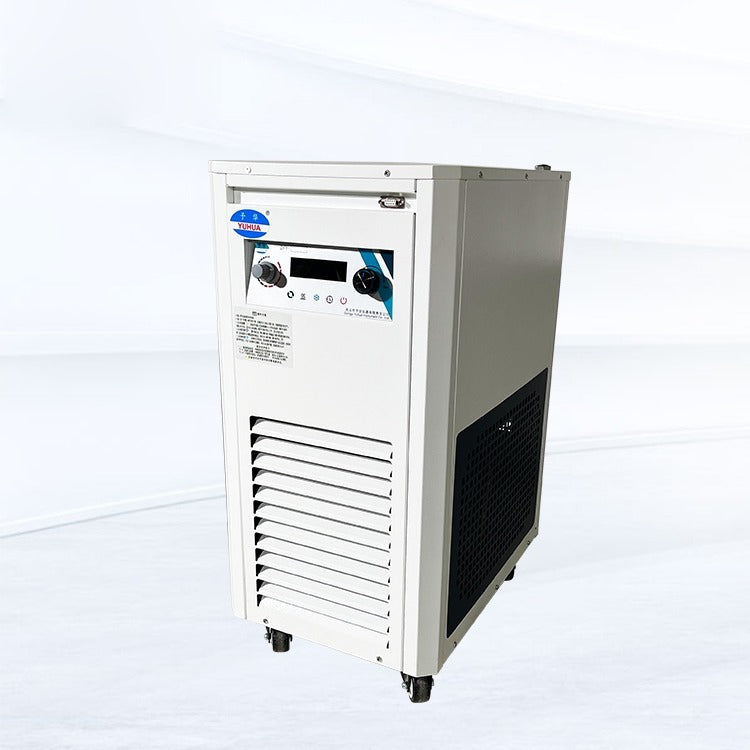

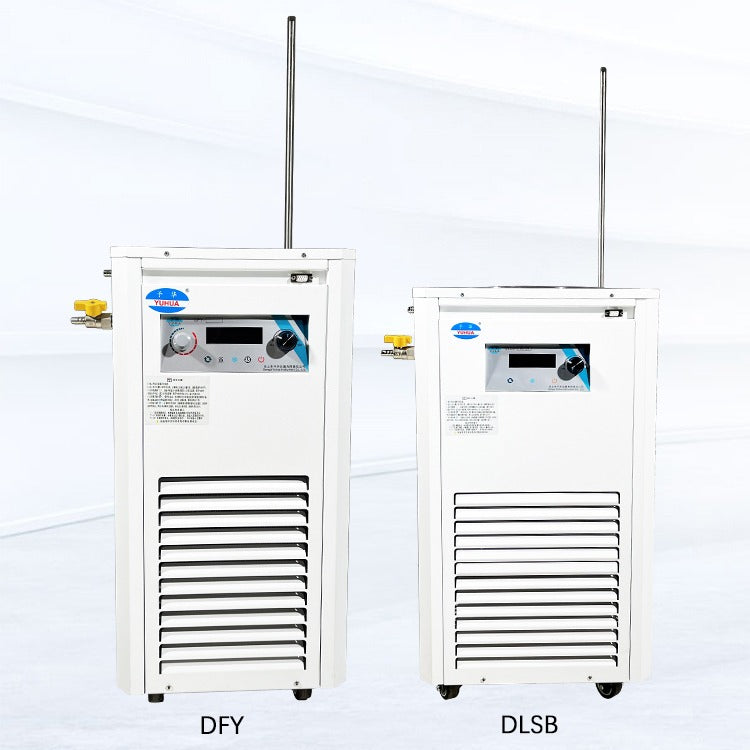

The DLSB series are low temperature circulating chillers (low temperature circulating pumps) with a top-opening tank and a built-in circulating pump, for cooling and temperature control of jacketed glass reactors, rotary evaporators, centrifugal extractors and other laboratory equipment. Thirteen models are available, with tank capacities from 5L to 50L and minimum temperatures from -10°C to -40°C depending on the model - see the comparison table below for the specifications of each model. Verified shared specifications: a circulating flow of 35L/min, a lift of 4–6 m and a temperature control accuracy of ±2°C.

Model Comparison

Model Tank Capacity Working Temperature Range No-Load Minimum Temperature Cooling Capacity Dimensions Circulating Flow Lift Temperature Control Accuracy Voltage Core Components
ALAB-DLSB-5/10 5L -10°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-5/20 5L -20°C ~ Room Temperature -23°C 1248–319 W - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-5/30 5L -30°C ~ Room Temperature -32°C 1375–450 W 580 × 450 × 730 mm 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-5/40 5L -40°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-10/10 10L -10°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-10/20 10L -20°C ~ Room Temperature -23°C 2100–780 W - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-10/30 10L -30°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-10/40 10L -40°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-20/20 20L -20°C ~ Room Temperature -20°C 3126–950 W 630 × 520 × 1000 mm 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-20/30 20L -30°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-30/20 30L -20°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-50/20 50L -20°C ~ Room Temperature -23°C 8520–2170 W - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump
ALAB-DLSB-50/30 50L -30°C ~ Room Temperature - - - 35L/min 4–6 m ±2°C 220V/110V Motor, Pump, Compressor, Condenser, Circulating Pump

Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
