Low Temperature Cooling Circulator

Low Temperature Cooling Circulator

$525.80 USD
$525.80 USD
Sale Sold out

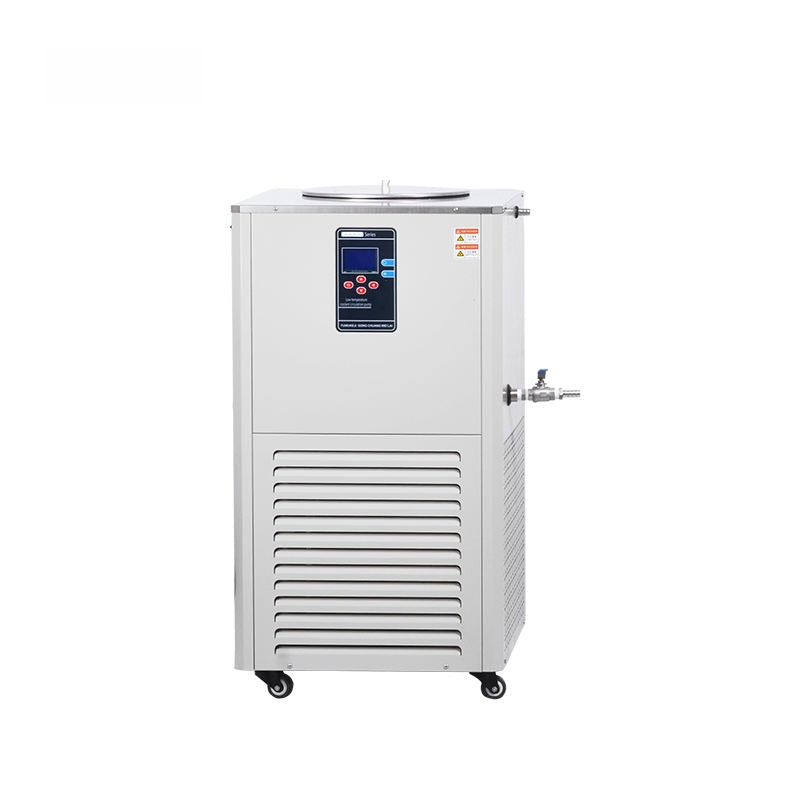

DLSB series low-temperature cooling circulator (recirculating chiller) with a sealed pump and PT100-based control, for cooling rotary evaporators, reactors and other laboratory equipment.

Model Comparison

Model Tank volume Coolant temperature Precision Cooling capacity Rated power Lift Weight Dimensions
DLSB-4/15 4L -15C +/-0.1C 150-550W 230W 4m 26kg 400 x 280 x 545mm
DLSB-5/10 5L -10C — — — — — —
DLSB-5/20 5L -20C to RT +/-1C 1250W @25C, 700W @0C, 240W @-20C 750W 6m 45kg 480 x 350 x 680mm
DLSB-5/30 5L -30C to RT +/-1C 875W @RT, 650W @0C, 255W @-30C 550W 6m 42kg 480 x 350 x 680mm
DLSB-5/40 5L -40C +/-1C 275-550W 850W 6m 45kg 370 x 470 x 680mm
DLSB-10/10 10L -10C +/-0.1C 650-2010W 1000W 6m 60kg 410 x 520 x 800mm
DLSB-10/30 10L -30C +/-0.1C 650-2010W 1000W 6m 60kg 410 x 520 x 800mm
DLSB-20/30 20L -30C to RT +/-1C 2800W @RT, 2300W @0C, 600W @-30C 1400W — 71kg —
DLSB-20/60 10L -60C to RT +/-0.1C 6750W @RT, 6100W @0C, 4500W @-40C, 1100W @-60C 5000W — — 970 x 770 x 1100mm
DLSB-20/120 20L -120C +/-1C 1400-8760W — 6m 68kg 860 x 660 x 970mm
DLSB-30/30 30L -30C +/-0.1C 600-4600W 2200W 8m 87kg 635 x 515 x 985mm
DLSB-30/40 30L -40C +/-0.1C 1200-7300W 3200W — 87kg 700 x 560 x 990mm
DLSB-40/80 40L -80C +/-0.1C 550-15330W 10500W 8m 320kg 980 x 770 x 1240mm
DLSB-50/30 50L -30C +/-0.1C 900-10500W 3750W 8m 120kg 740 x 640 x 1190mm
DLSB-50/40 50L -40C +/-0.1C 650-12775W 5300W 6m 120kg 740 x 640 x 1190mm
DLSB-50/80 50L -80C +/-0.1C 550-15330W 10500W 8m 338kg 980 x 770 x 1240mm
DLSB-50/120 50L -120C +/-1C 550-15330W 10500W 8m 120kg 980 x 770 x 1240mm
DLSB-100/40 100L -40C +/-0.1C 550-15330W 5800W — 380kg 960 x 760 x 1330mm
DLSB-200/80 200L -80C to RT — 30000W @RT, 25000W @0C, 11000W @-40C, 1700W @-80C 15000W 15m — 1400 x 970 x 1580mm
DLSB-300/80 300L -80C to RT +/-0.5C 29000W @25C, 25000W @0C, 14000W @-40C, 5000W @-80C 20000W — — —
View full details
