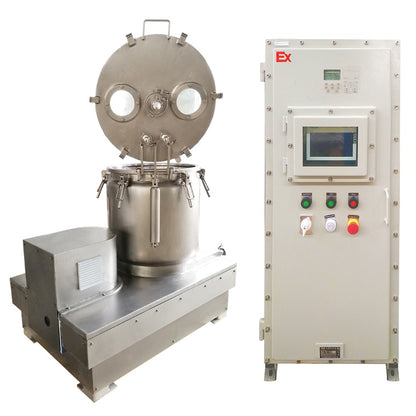

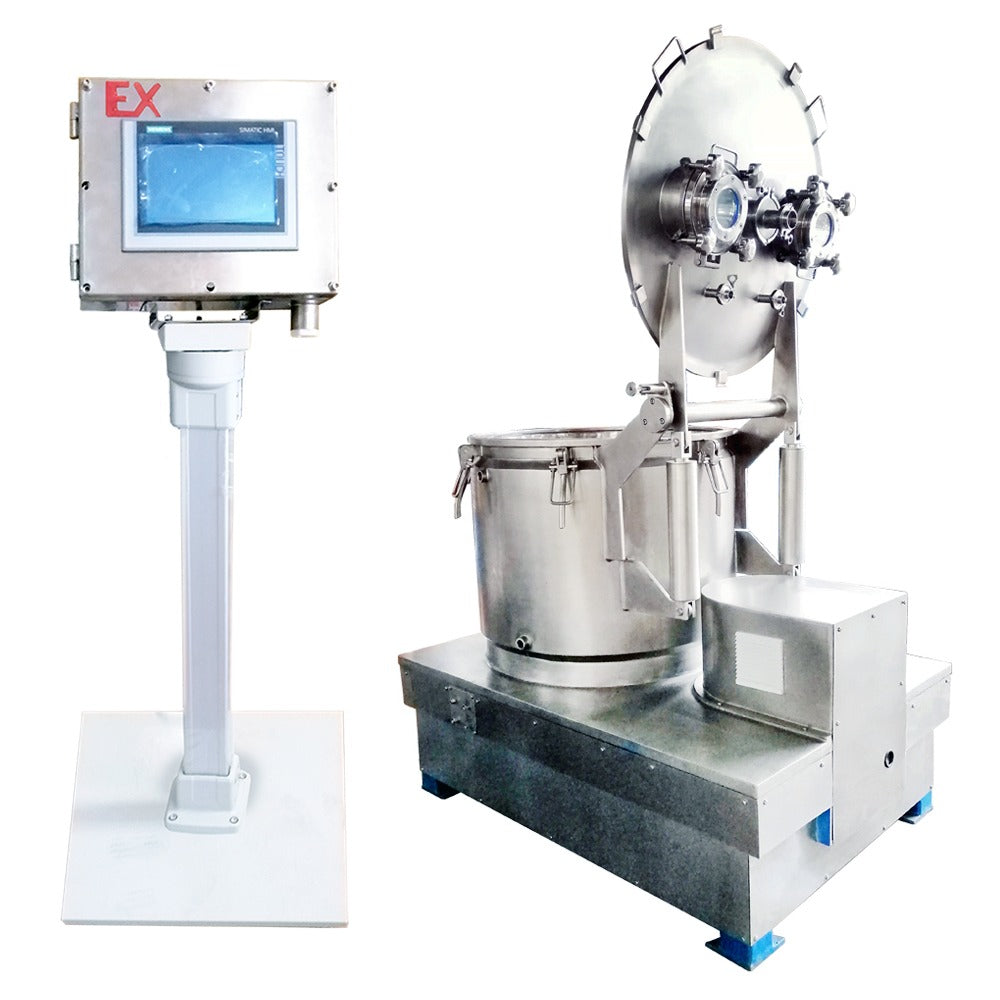

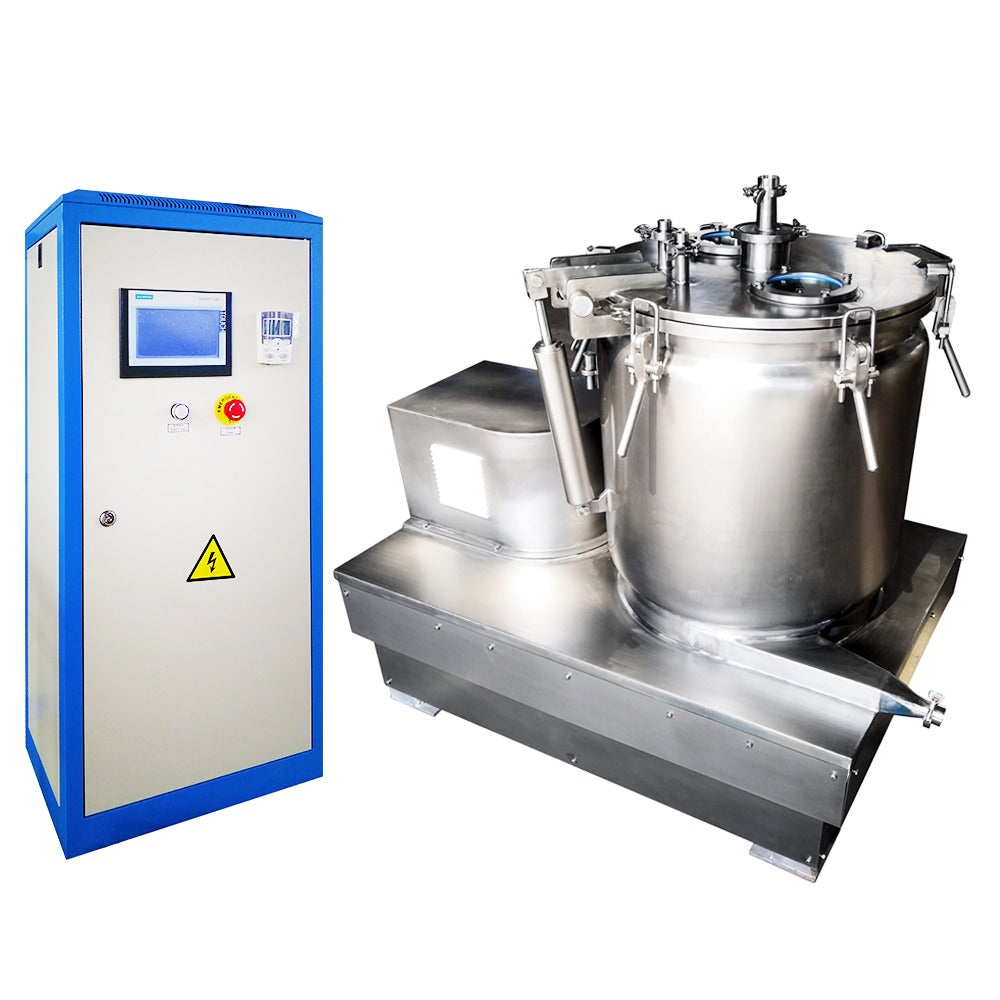

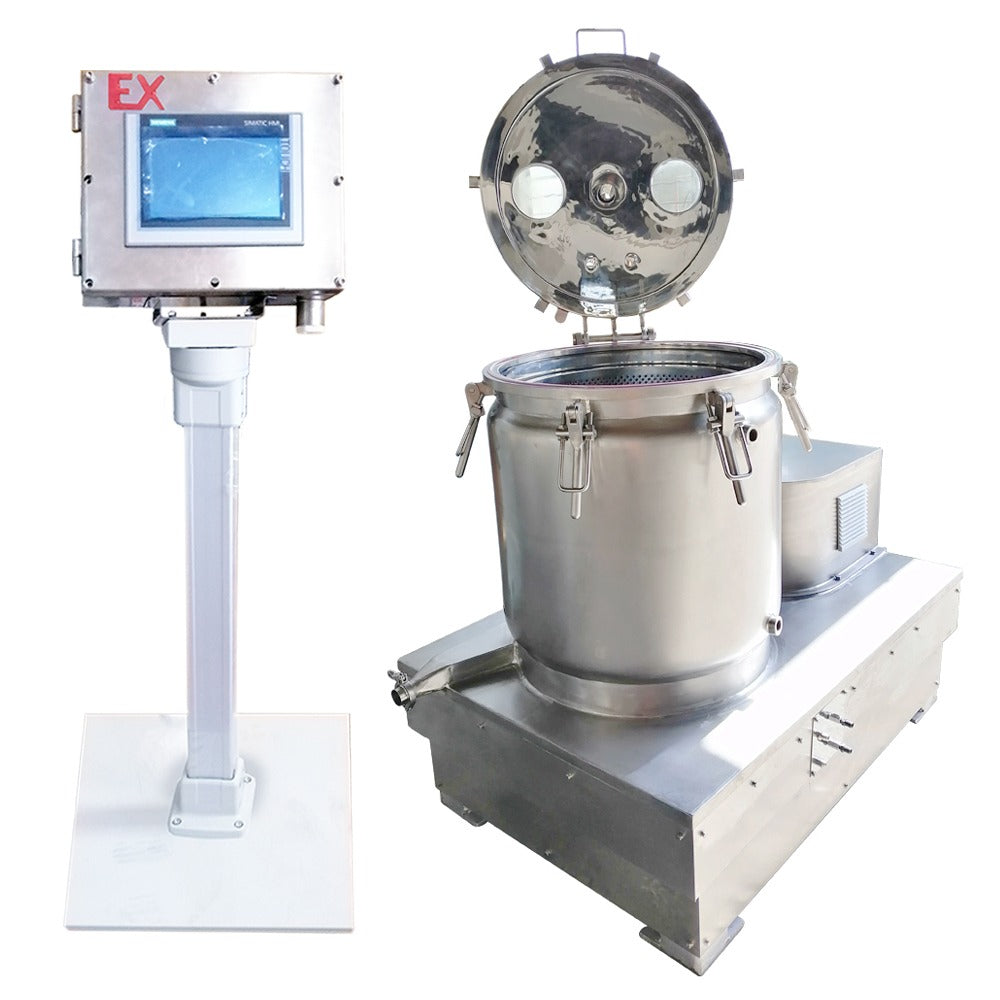

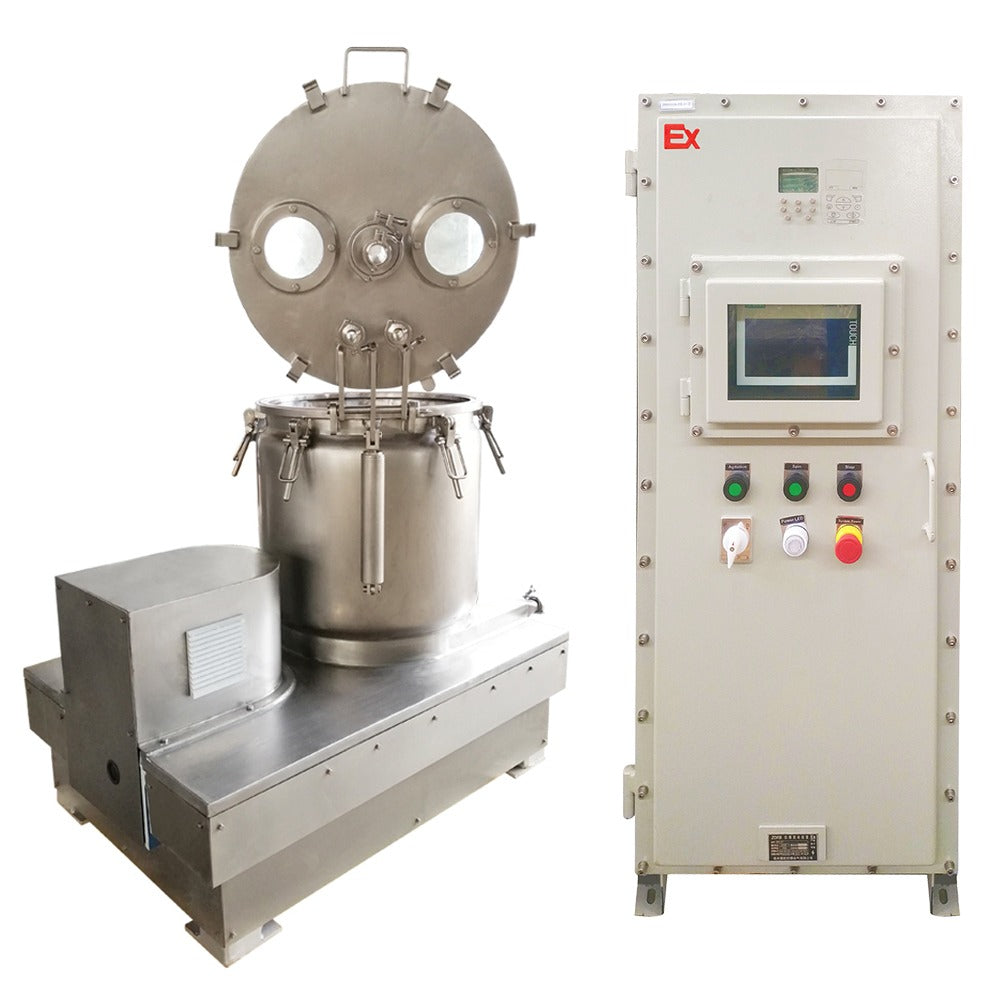

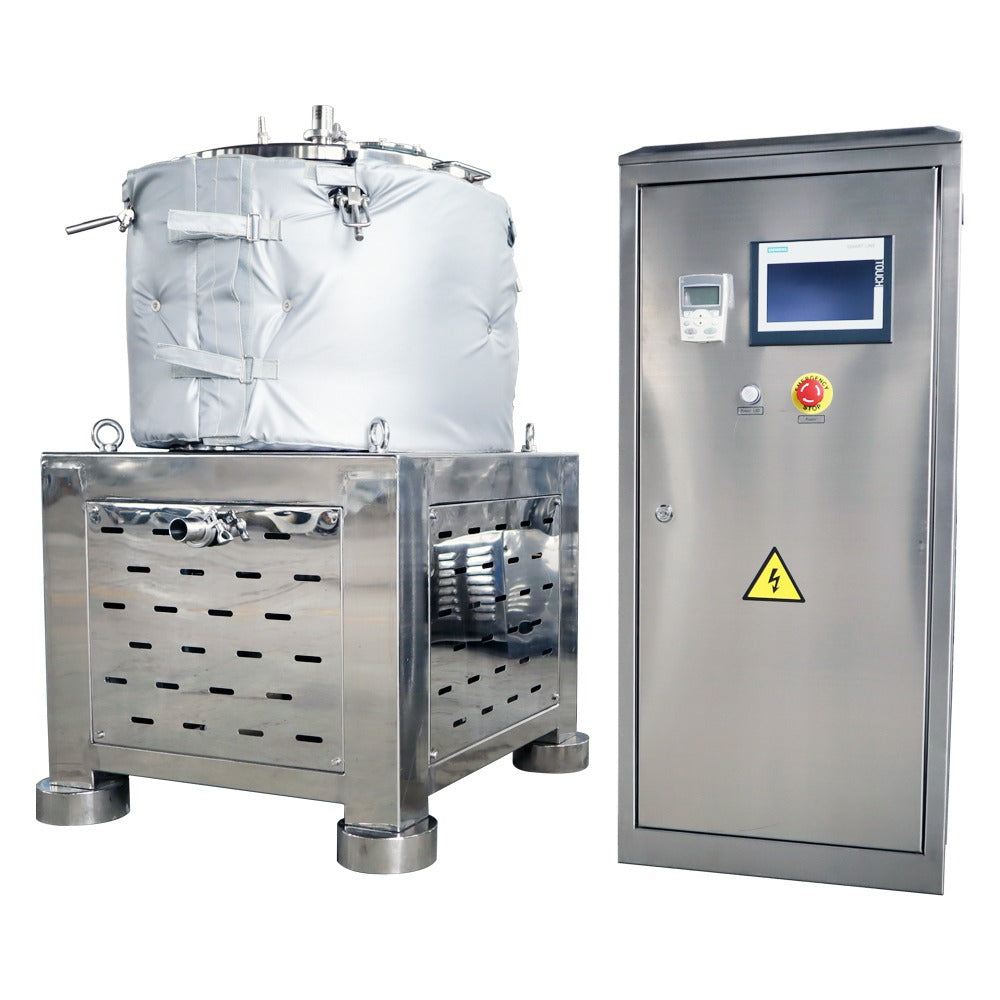

BB series centrifuge is top discharging, hermetic closure type equipment, for plant material extraction…
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin dry…
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it uses a flat-plate structure with counterweight and high-viscosity damping vibration reducer for absorbing vibration…
The BB series centrifuge is top discharging, floodable jacketed hermetic closure type equipment, with…
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove…
The alcohol wash is then collected to some container for further processing.
For requirements of markets, our team design and manufacture the centrifuge to carry out oil extraction…
Features: 304 and 316L Sanitary Stainless Steel Construction; Low temperature rating: -40C~-80C; Reinforced Sight Glass; Bi-Directional Agitation; Auto/Manual Controls; Digital HMI Interface; Variable Speed Control; Easy Material Loading/Unloading; Heavy-Duty Spin Drying; No foundation required
Our advantages: 1. Cold temperature operation, 2. High recovery rate till 90%+, 3. Variable capacity from 10 pounds till 280 pounds per batch, 4. Less labor needed, 5. Low power consumption, 6. Small loss, 7. A to Z complete line provider, 8. Commissioning and training
Application: 1. Low temperature ethanol extraction, 2. Trim and leaf extraction, 3. Any dry biomass extraction
Model Comparison
| Model |
Basket Diameter (mm) |
Motor Power (kw) |
Max Capacity per Batch (kg/pound) |
Overall Dimension (L*W*H) (mm) |
| ALAB-BB-30 |
500 |
3.7 |
17/35 |
1260*920*1180 |
| ALAB-BB-100 |
800 |
7.5 |
50/110 |
1600*1100*1460 |
| ALAB-BB-150 |
1000 |
11 |
80/170 |
1800*1420*1530 |
| ALAB-BB-200 |
1200 |
11 |
125/280 |
2000*1620*1570 |
