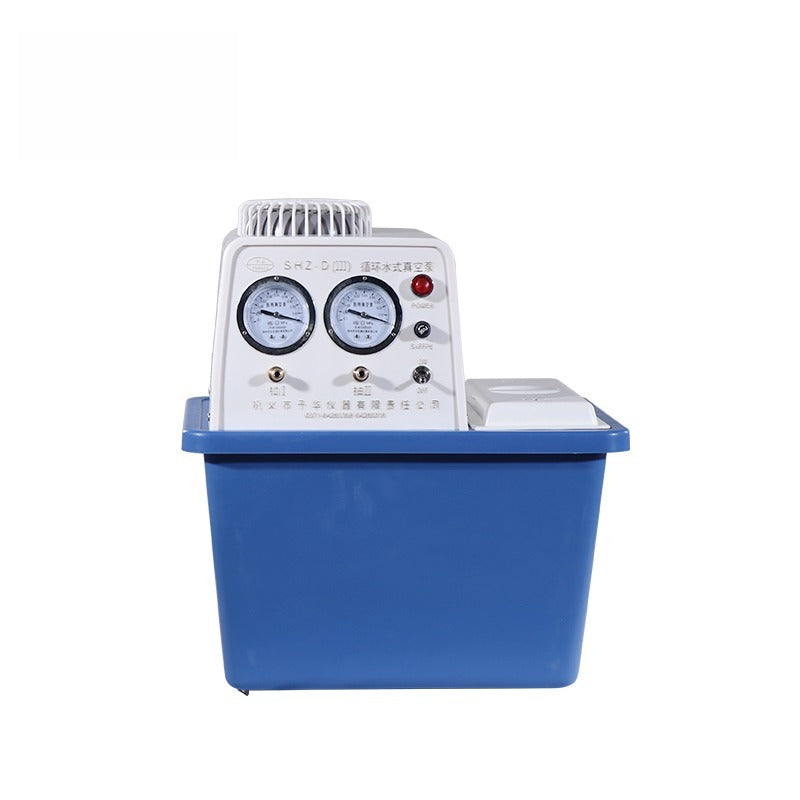

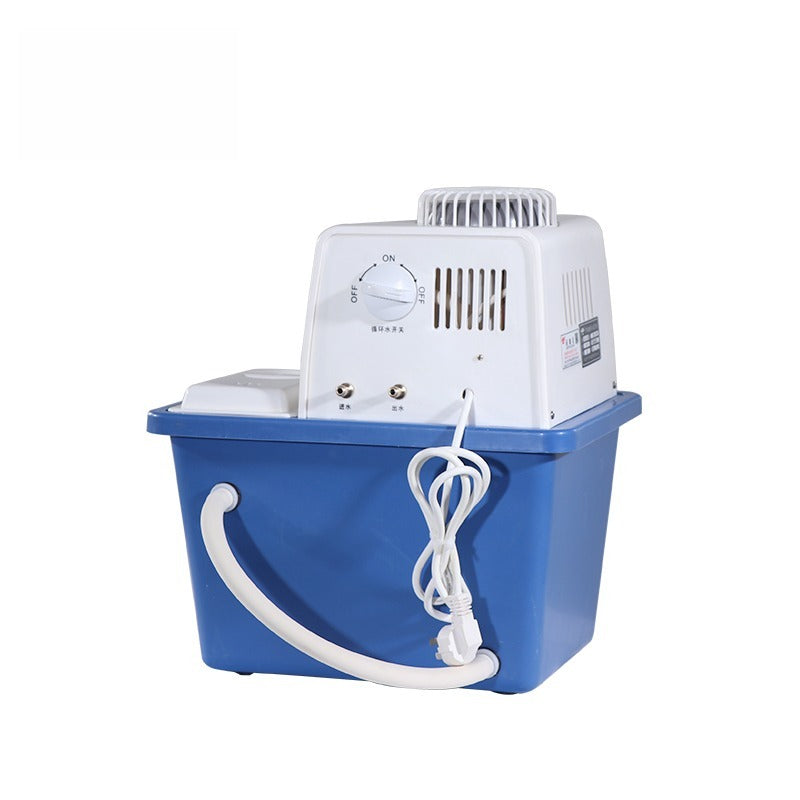

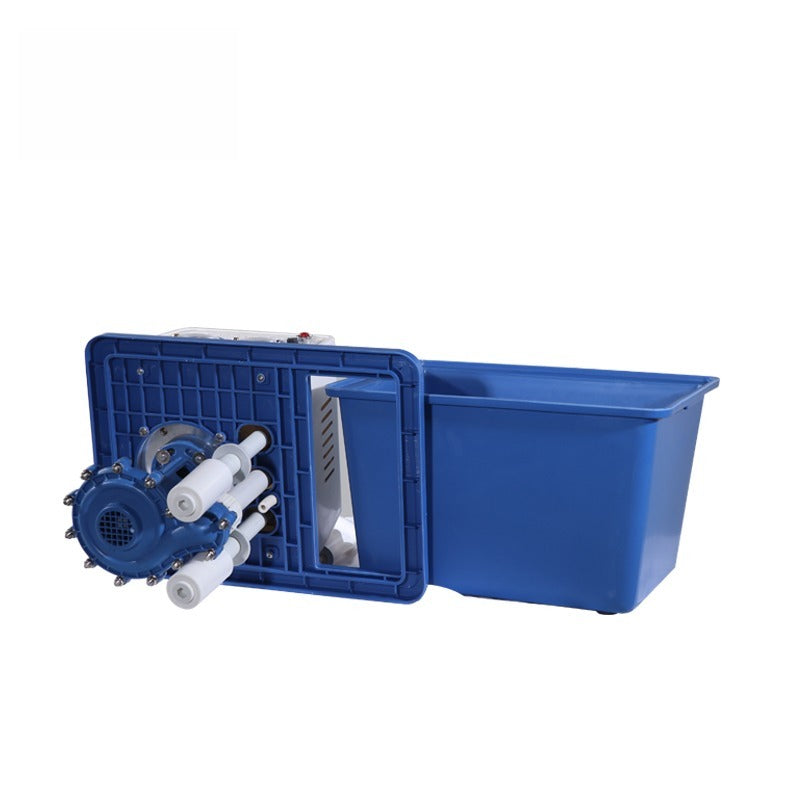

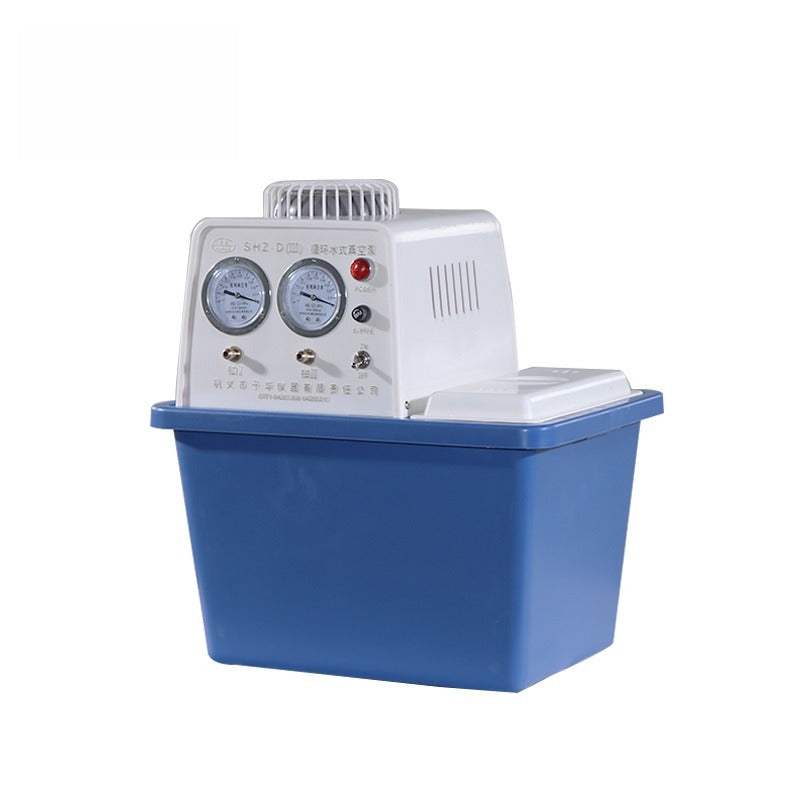

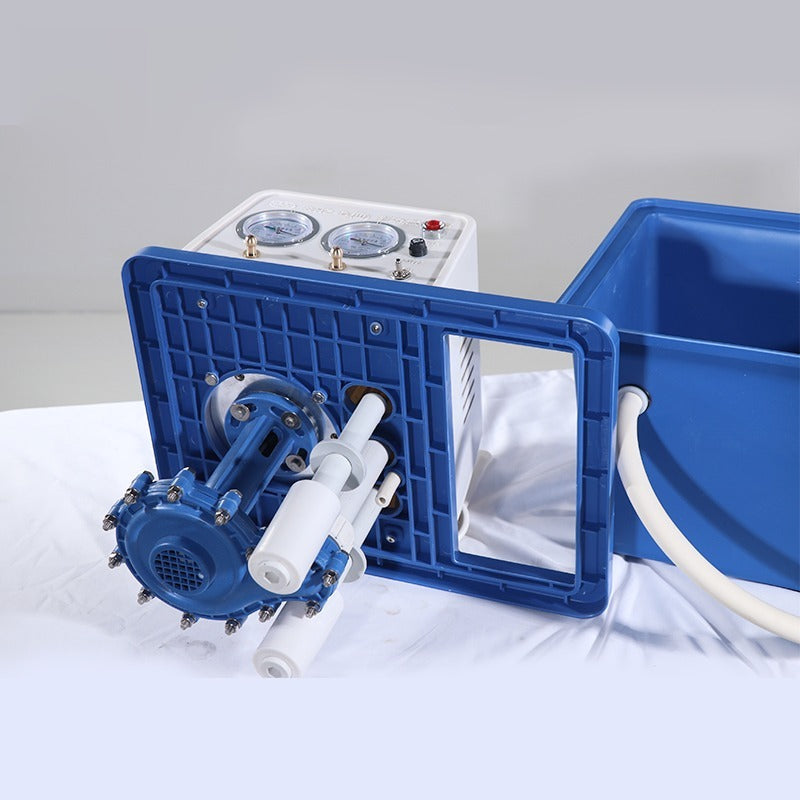

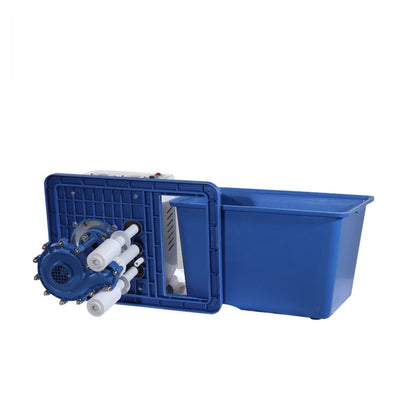

The SHZ multi-tap series are anti-corrosion circulating water vacuum pumps for laboratory use. Six models are available (ALAB-SHZ-D, ALAB-SHZ-IV, ALAB-SHZ-A, ALAB-SHZ-B, ALAB-SHZ-CB and ALAB-SHZ-CD) at the source page's verified per-model prices - see the comparison table below for the platform specifications recorded for the series.
Model Comparison
Specification
ALAB-SHZ-D
ALAB-SHZ-IV
ALAB-SHZ-A
ALAB-SHZ-B
ALAB-SHZ-CB
ALAB-SHZ-CD
Motor Power
180W
180W
180W
180W
180W
180W
Maximum Vacuum
0.098 MPa
0.098 MPa
0.098 MPa
0.098 MPa
0.098 MPa
0.098 MPa
Flow Rate
60 L/min
60 L/min
60 L/min
60 L/min
60 L/min
60 L/min
Lift
8 m
8 m
8 m
8 m
8 m
8 m
Water Tank Capacity
15L
15L
15L
15L
15L
15L
Single-Tap Suction Rate
10 L/min
10 L/min
10 L/min
10 L/min
10 L/min
10 L/min
Shell Material
Anti-corrosion PP
Anti-corrosion PP
Anti-corrosion PP
Anti-corrosion PP
Anti-corrosion PP
Anti-corrosion PP
Tap Material
PTFE
PTFE
PTFE
PTFE
PTFE
PTFE
Power Supply
220V 50Hz or 110V 60Hz
220V 50Hz or 110V 60Hz
220V 50Hz or 110V 60Hz
220V 50Hz or 110V 60Hz
220V 50Hz or 110V 60Hz
220V 50Hz or 110V 60Hz
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
