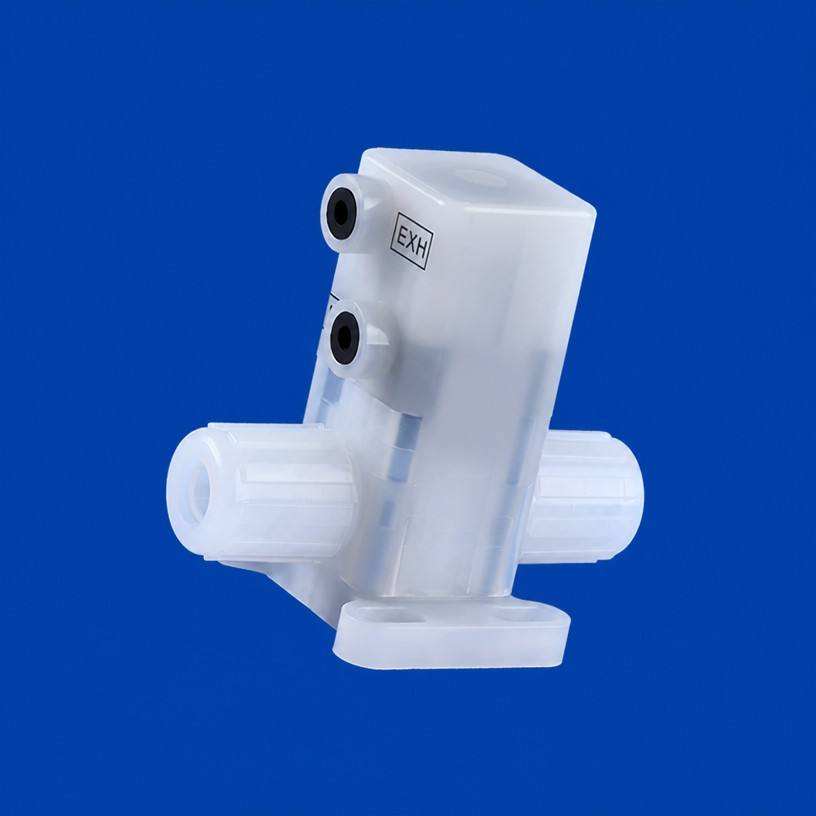

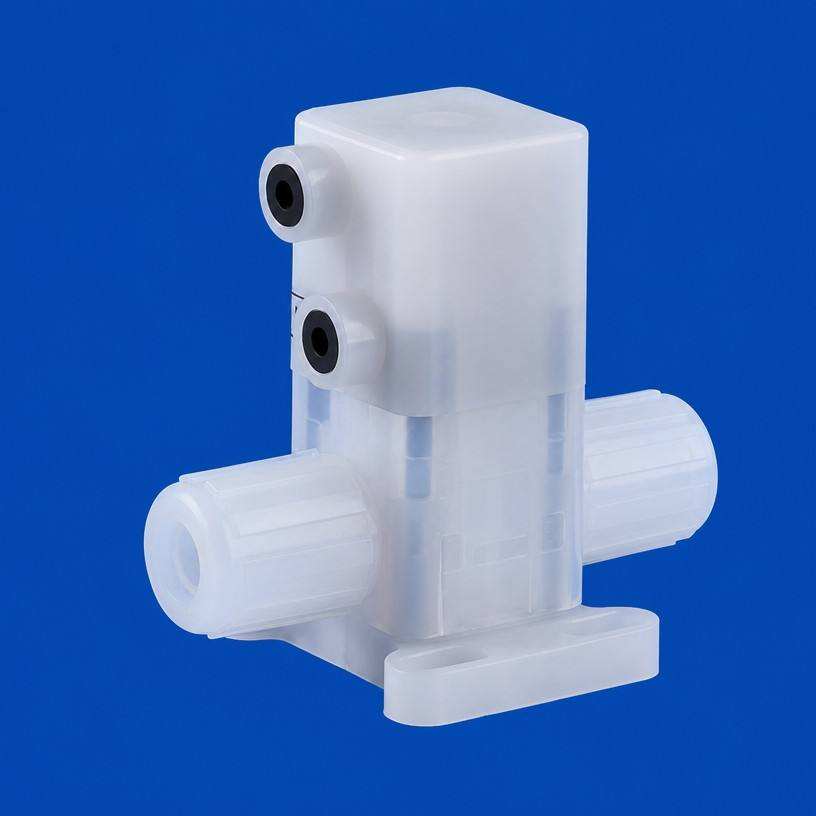

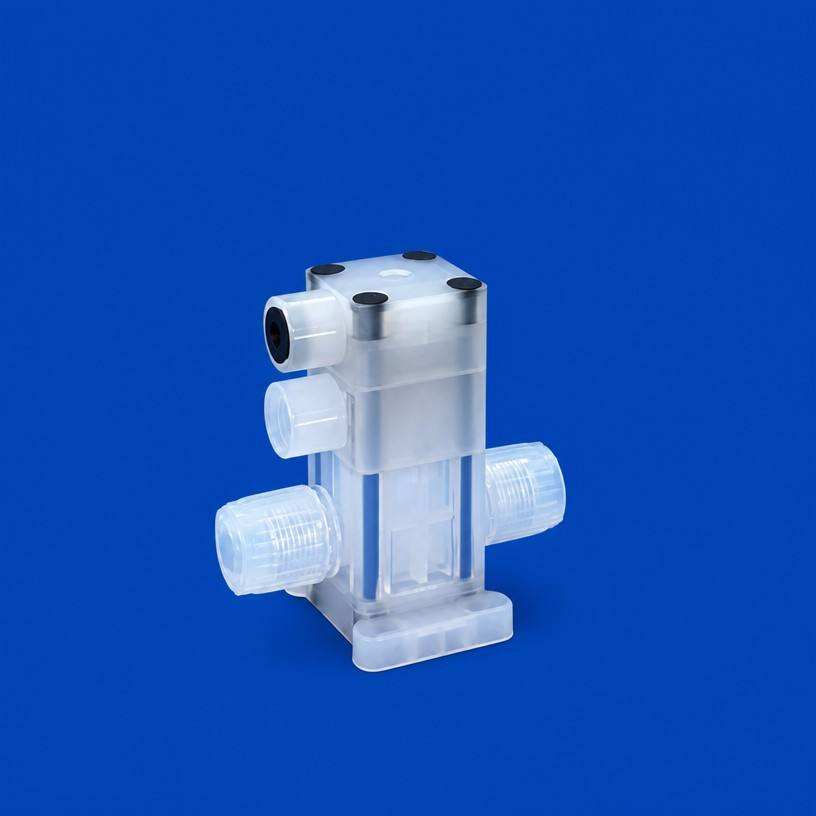

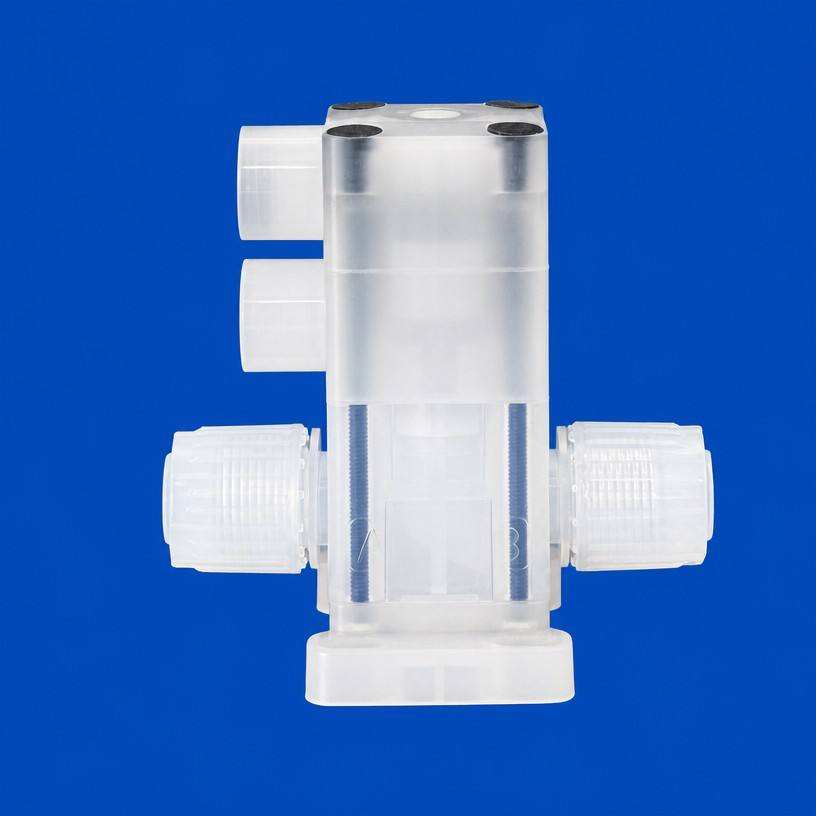

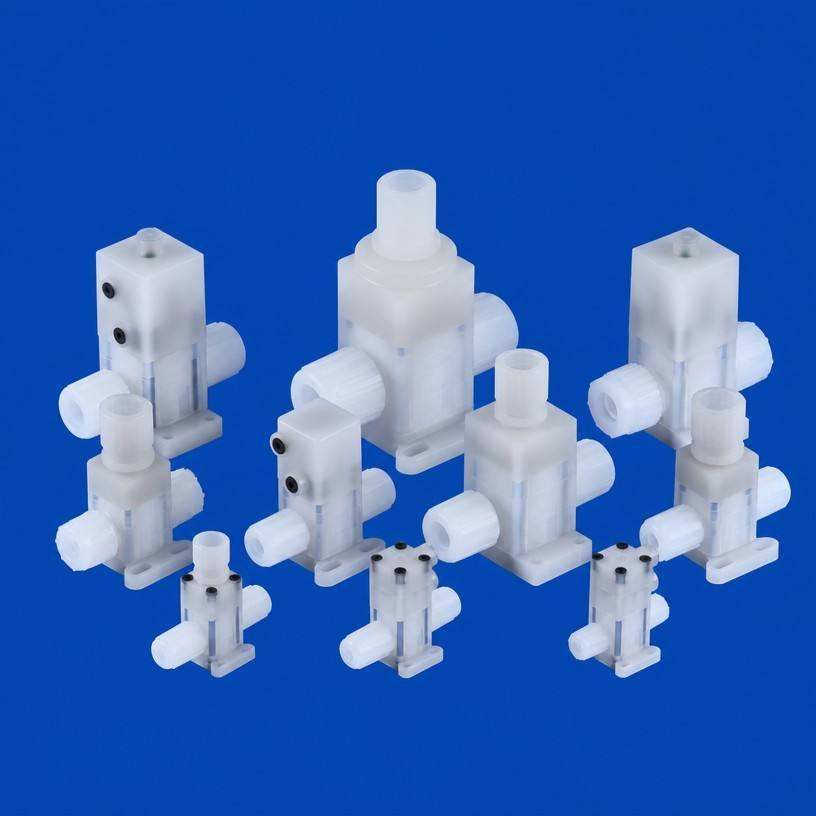

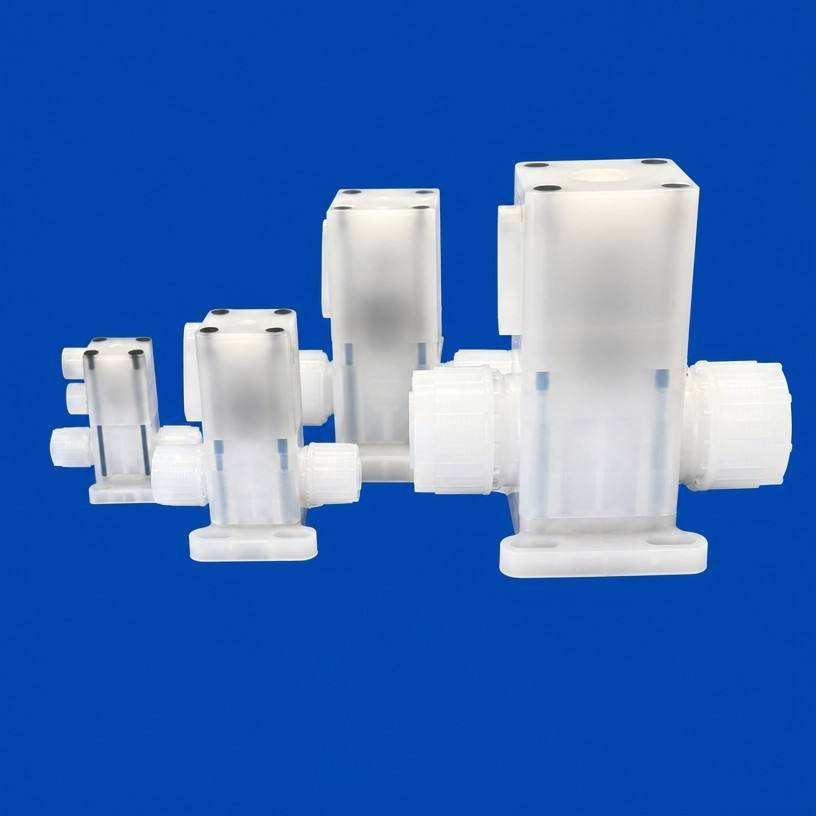

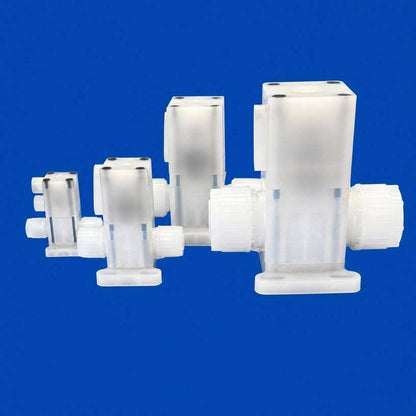

PFA Diaphragm Valve, 2-Way, Pneumatic

$116.60 USD

Sale Sold out

Two-way PFA pneumatic (air-operated) diaphragm valve for chemical fluid handling, with a PTFE/PFA diaphragm and PVDF actuator; normally open or normally closed operation on 0.3-0.5 MPa control air.

Model Comparison

Specification	Standard
Type	2-way pneumatic diaphragm valve
Diaphragm material	PTFE / PFA
Actuator material	PVDF
Control air pressure	0.3-0.5 MPa
Working mode	Normally open / normally closed
Port type	Flare / bead / thread (optional)
Max. working temperature	120 °C
