PTFE Standard Sealed Electrochemical Cell, Capacity 10 to 500 ml

PTFE Standard Sealed Electrochemical Cell, Capacity 10 to 500 ml

$105.00 USD
$105.00 USD
Sale Sold out
Shipping calculated at checkout.

This PTFE Standard Sealed Electrochemical Cell is designed for precision-controlled electrochemical experiments requiring a chemically inert and airtight environment.
Constructed entirely from high-purity PTFE, it offers excellent resistance to acids, alkalis, and organic solvents. The cell includes a PTFE body and lid, ensuring complete chemical compatibility and long-term durability.

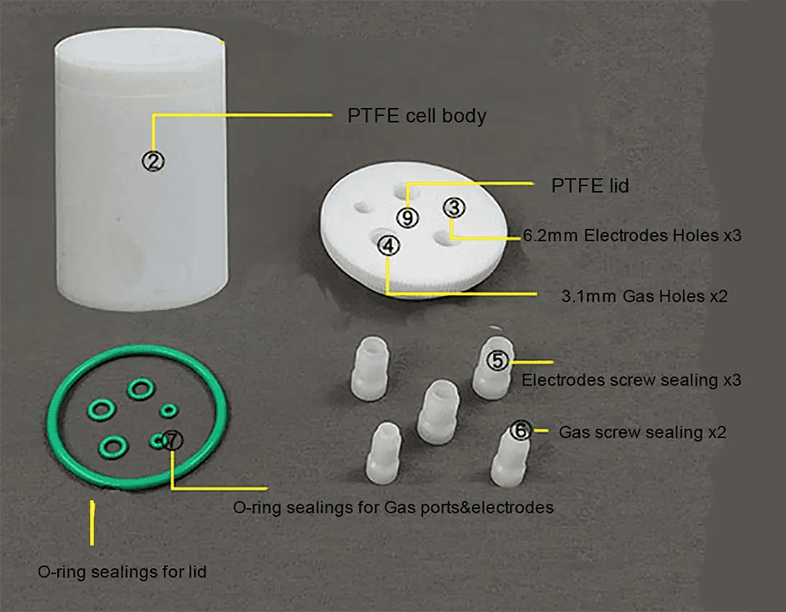

Equipped with six O-ring sealings (one for the lid, three for electrode holes, and two for gas inlet/outlet ports) this cell provides a secure and stable seal during operation. The five-screw sealing design ensures firm closure and minimizes leakage risk, even under extended experimental conditions.

Key Features:

  • Capacity: 10 to 500 ml

  • Material: High-purity PTFE (Polytetrafluoroethylene)

  • Structure: One PTFE cell body and one PTFE lid

  • Sealing:

    • 6 O-ring sealings (1 for lid, 3 for electrodes, 2 for gas ports)

    • 5 screw sealing design for airtight operation

  • Chemical Resistance: Excellent against strong acids, bases, and solvents

  • Temperature Stability: Suitable for a wide range of electrochemical conditions

Volumes of a chamber in ml Chamber Size (Diameter x Height in mm) Electrodes Holes (Quantity x Diameter in mm) Gas Holes (Quantity x Diameter in mm)

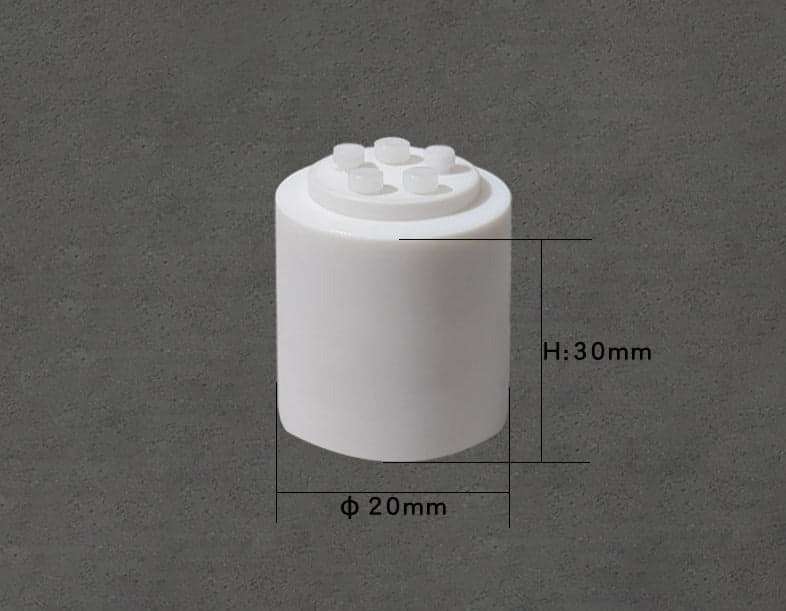

10 ml Φ20 x 30 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
20 ml Φ25 x 40 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
30 ml Φ40 x 35 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
50 ml Φ40 x 48 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
100 ml Φ50 x 60 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
150 ml Φ60 x 62 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
200 ml Φ60 x 80 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
300 ml Φ70 x 88 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
500 ml Φ90 x 90 mm 3 x Φ6.2 mm 2 x Φ3.1 mm
