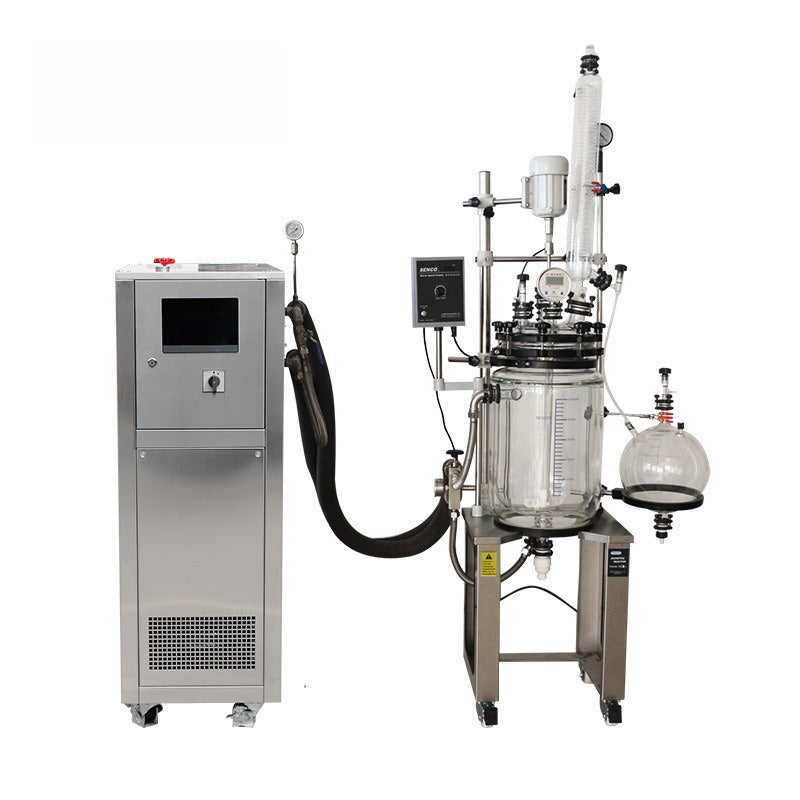

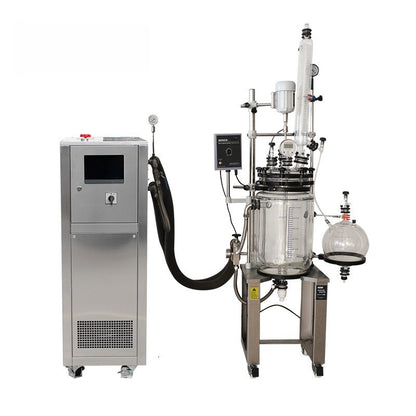

The Reactor Process Circulating Thermostat combines refrigerated and heated circulation for reactor process control over a working range of -60 to 300 °C (optionally -120 to 350 °C), with 5 kW cooling capacity, 5.5 to 25 kW heating capacity, a KAORI plate heat exchanger, SUS 304 case and a 7-inch color touch panel.
Temperature range: -60~300 °C (optional: -120~350 °C) Cooling capacity: 5 kW Heating capacity: 5.5~25 kW Heat exchanger: KAORI plate Case: SUS 304 Refrigerant: R-404A / R23 Weight: 260 kg Warranty: 1 year
Voltage note for US customers: This unit operates on 380V. Standard US outlets supply 110-120V, so a 380V circuit or a suitable step-up transformer is required.
