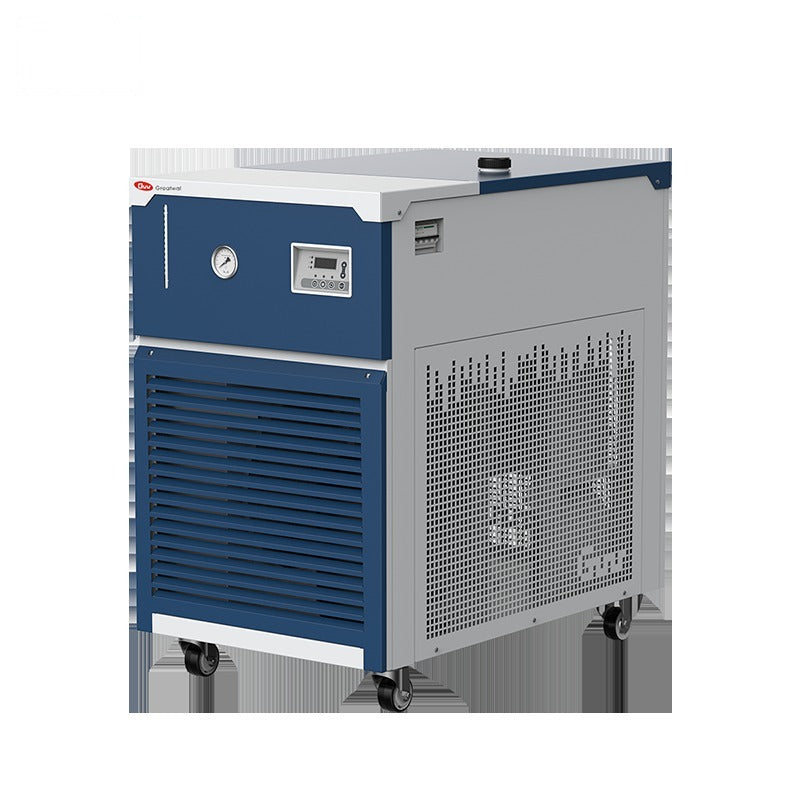

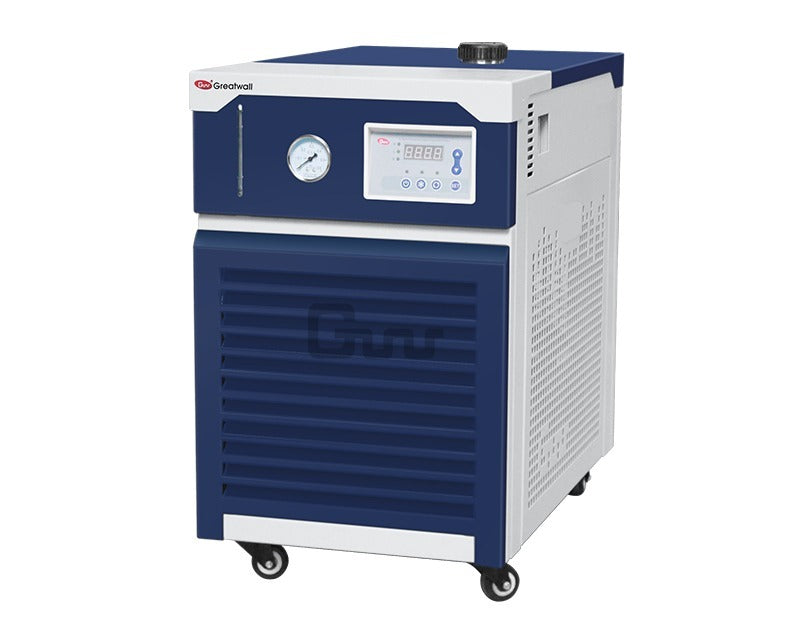

Recirculating Chiller ALAB-DL30-2500

The DL30-2500 is an industrial recirculating chiller with a 40L reservoir, cooling from -30 to 5 C with up to 6000W of cooling capacity at 0 C.

Specifications

• Model: DL30-2500
• Temperature Range: -30 C to 5 C
• Reservoir Capacity: 40 liters
• Cooling Capacity: 6000W @ 0 C; 4000W @ -10 C; 2500W @ -20 C; 1100W @ -30 C
• Compressor: Panasonic (Japan)
• Refrigerant: R404A
• Recirculating Pump: 370W; 40 L/min; 1 bar
• Reservoir Material: 304 stainless steel
• Temperature Controller: Digital microprocessor PID
• Temperature Sensor: Pt100
• Electrical Requirements: Three phase 380V/50Hz
• Recommended Coolant: Ethyl alcohol
• Safety: Compressor over-temperature protection, short-circuit and ground protection, over-current protection
• Dimensions: 105 x 65 x 107 cm
• Weight: 195 kg
• Warranty: 1 Year

Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110-120V, so a suitable industrial power supply is required.
