Regular price
$2,200.00 USD
Regular price
Sale price
$2,200.00 USD
Sale
Sold out

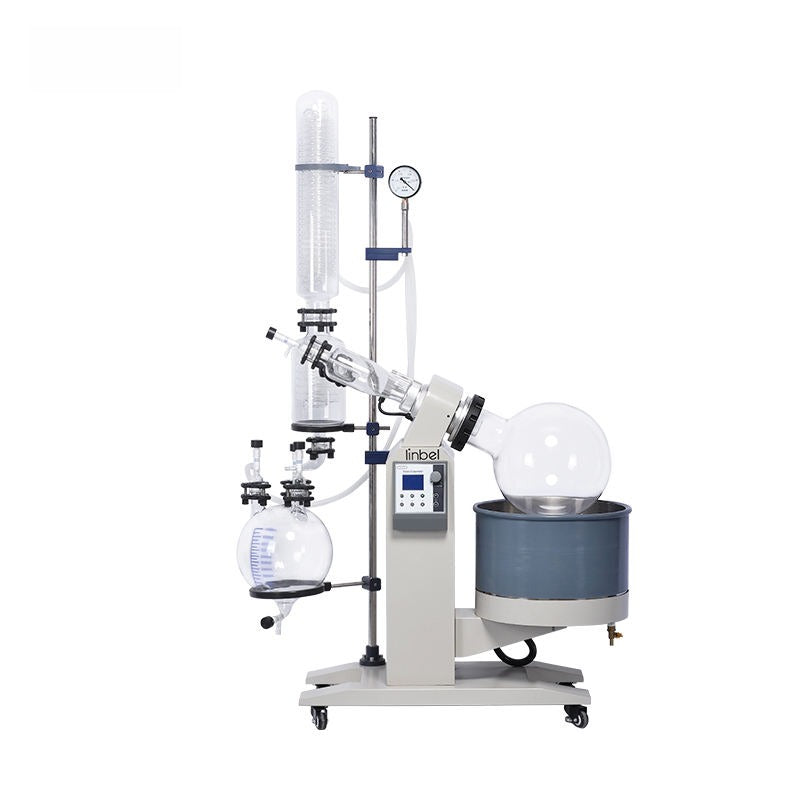

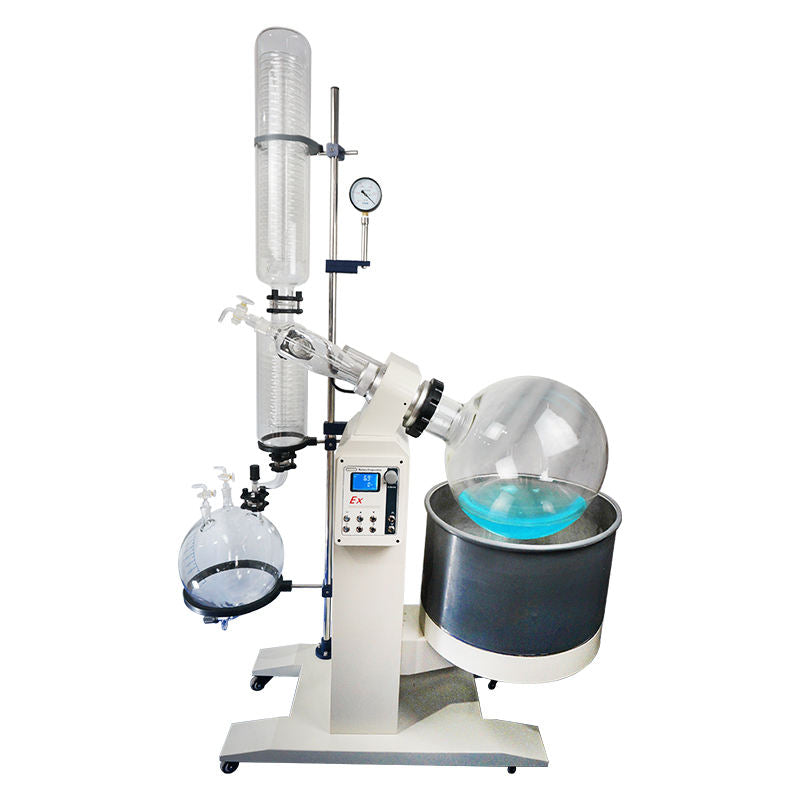

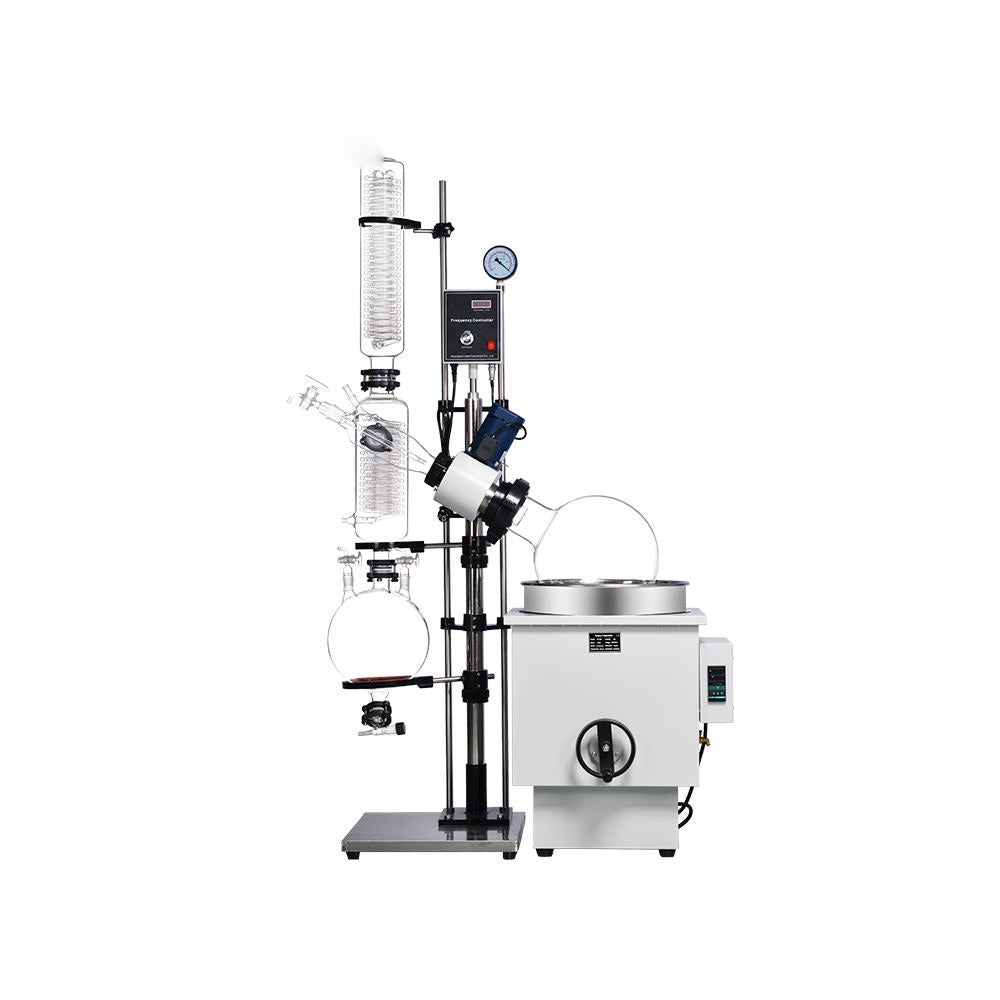

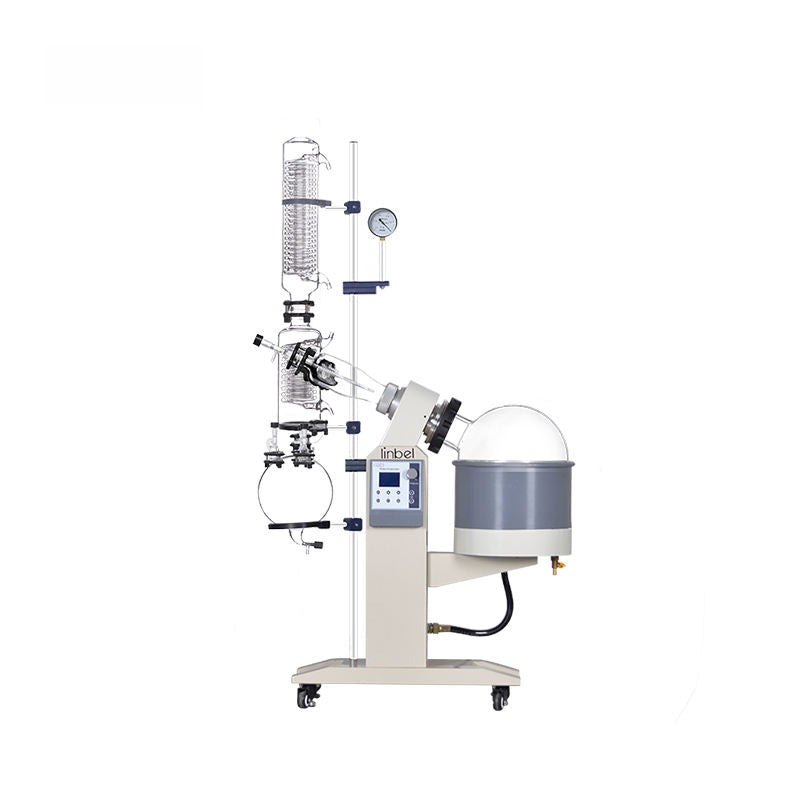

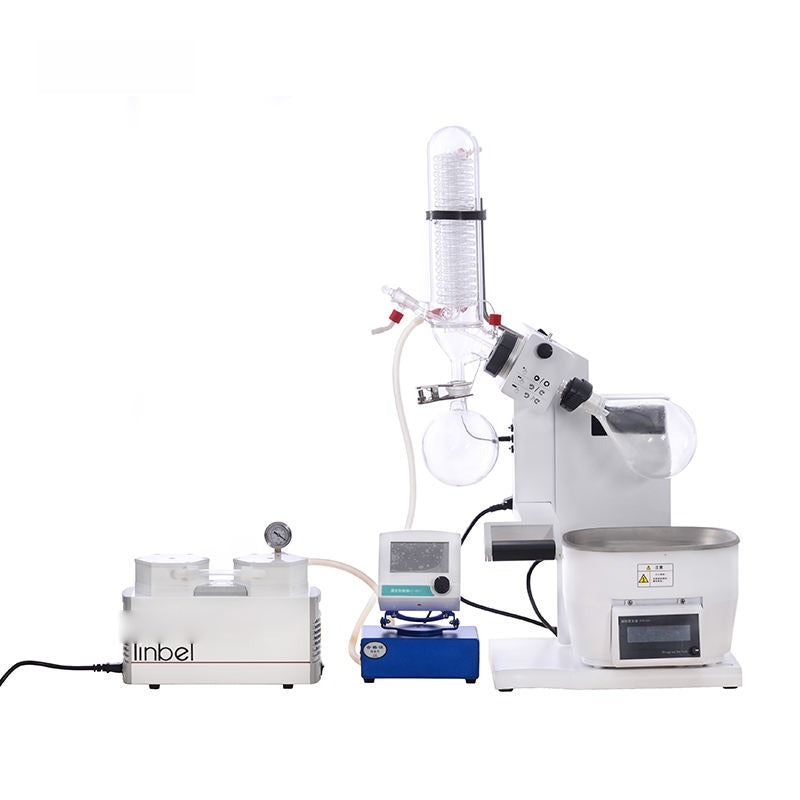

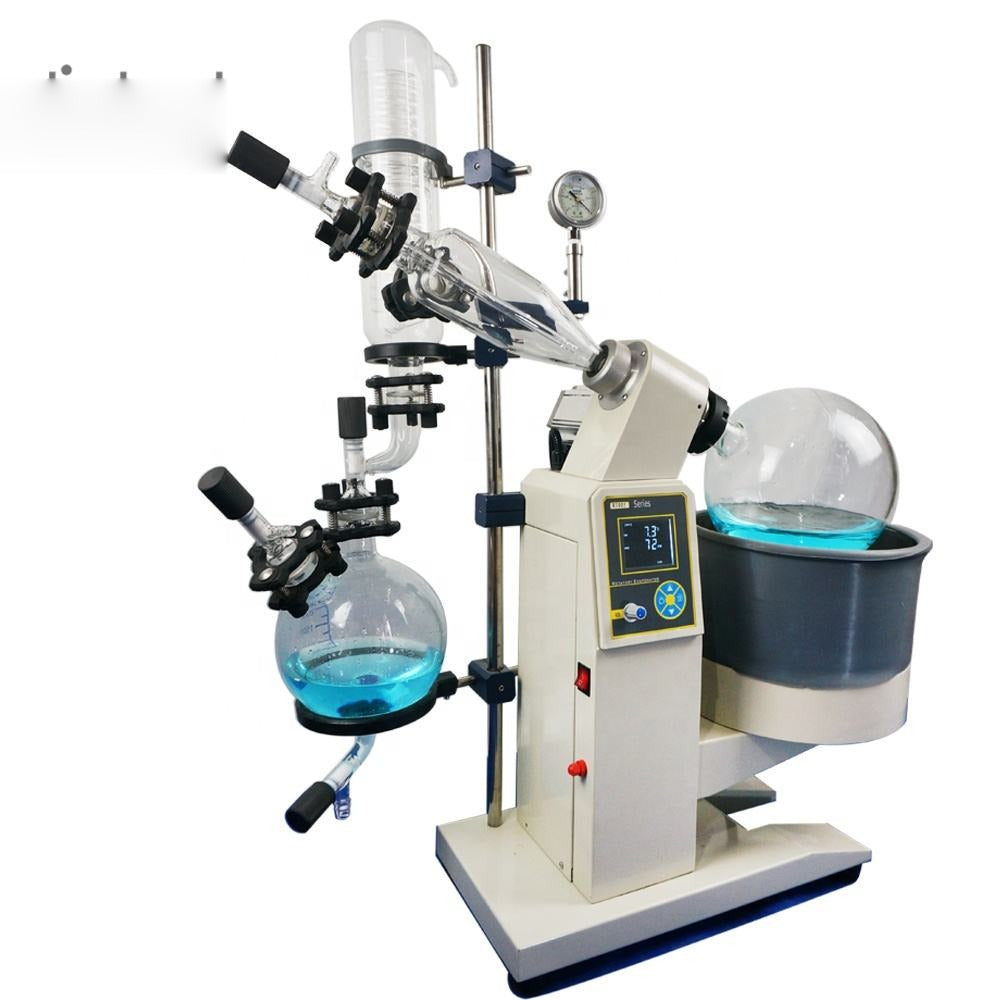

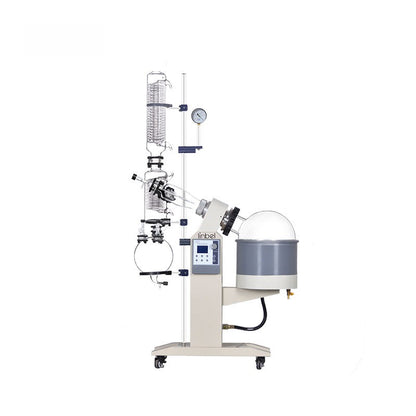

Laboratory rotary evaporator with a vertical condenser, digital speed and temperature control and a SUS304 heating bath, from 2L benchtop to 50L pilot scale. Chiller and vacuum pump are sold separately.
Model Comparison
Specification
R1002
R1005
R1010
R1020
R1050
RE2002
Rotary flask
2L
5L
10L
20L
50L
20L
Collection flask
2L
3L
5L
10L
20L
10L
Rotation speed
35-200rpm
10-140rpm
0-120rpm
20-130rpm
20-110rpm
3-90rpm
Rotary motor
100W
40W
100W
250W brushless
250W brushless
180W
Condenser
Vertical, double serpentine
Vertical, double serpentine
Vertical, main + sub, three-return
Vertical, main + sub, three-return
Vertical, main + sub, three-return
Vertical, main + sub, three-return
Condensation area
0.15 m2
0.27 m2
Main 0.42, sub 0.22 m2
Main 0.8, sub 0.39 m2
Main 0.91, sub 0.52 m2
1.0 m2
Evaporation speed (water)
2 L/h
>=2 L/h
3.2 L/h
>=5 L/h
>=10 L/h
>5 L/h
Maximum vacuum
399.9Pa
399.9Pa
399.9Pa
399.9Pa
399.9Pa
399.9Pa
Temperature control
20-99C
RT-99C
RT-99C
RT-99C
RT-99C
Water RT-90C, oil RT-200C
Lift
Electric, 180mm
Electric, 0-150mm
Electric, 0-160mm
Electric, 0-190mm
Electric, 0-180mm
Manual
Power supply
110/220V, 50/60Hz
220V, 60Hz
110/220V, 50/60Hz
380V, 60Hz, 3-phase
220V / 380V
380V, 50Hz
Dimensions
650 x 420 x 900mm
860 x 500 x 1000mm
920 x 550 x 1700mm
1250 x 600 x 2100mm
1320 x 770 x 2340mm
950 x 850 x 900mm
