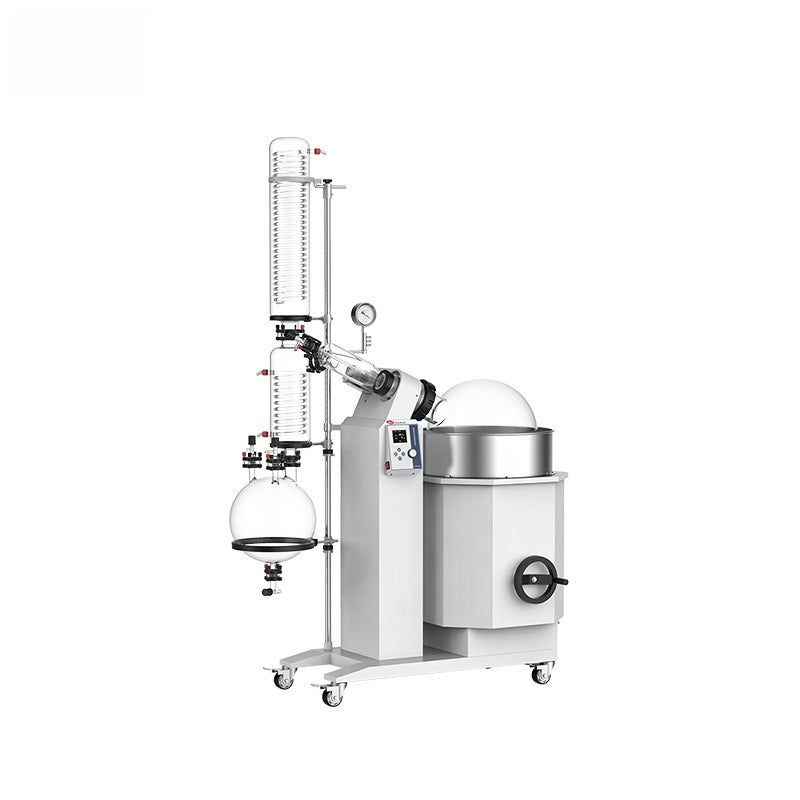

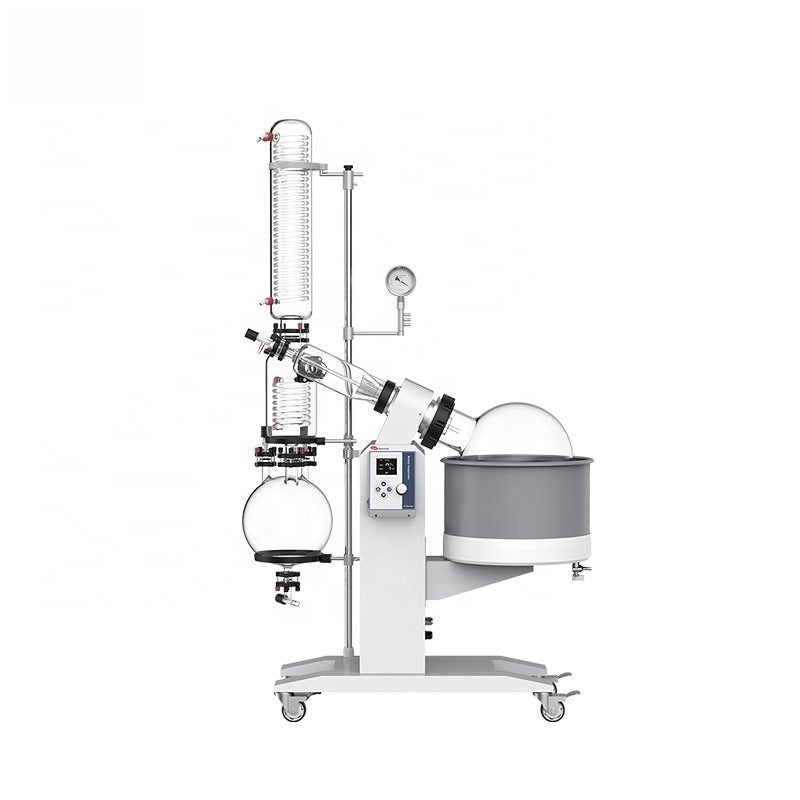

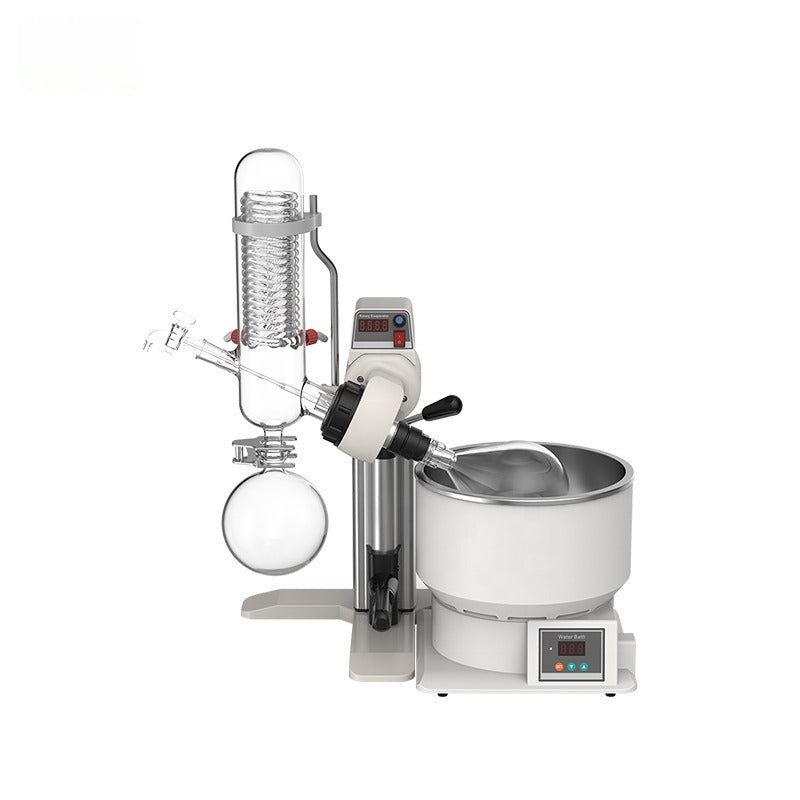

The R-1005 is a 5L rotary evaporator for vacuum distillation and solvent recovery, with high borosilicate glassware, a stainless steel water bath and motorized or manual lifting.
Specifications
Model: ALAB-R-1005
Evaporating Flask: 5L

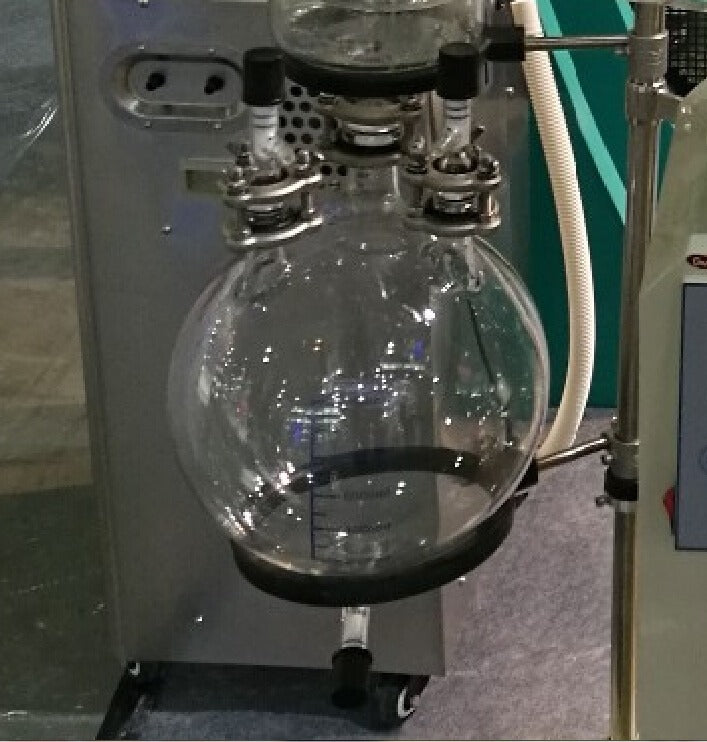

Receiving Flask: 3L
Rotation Speed: 20-130 rpm
Motor Power: 250W
Overall Power: 2.3 KW

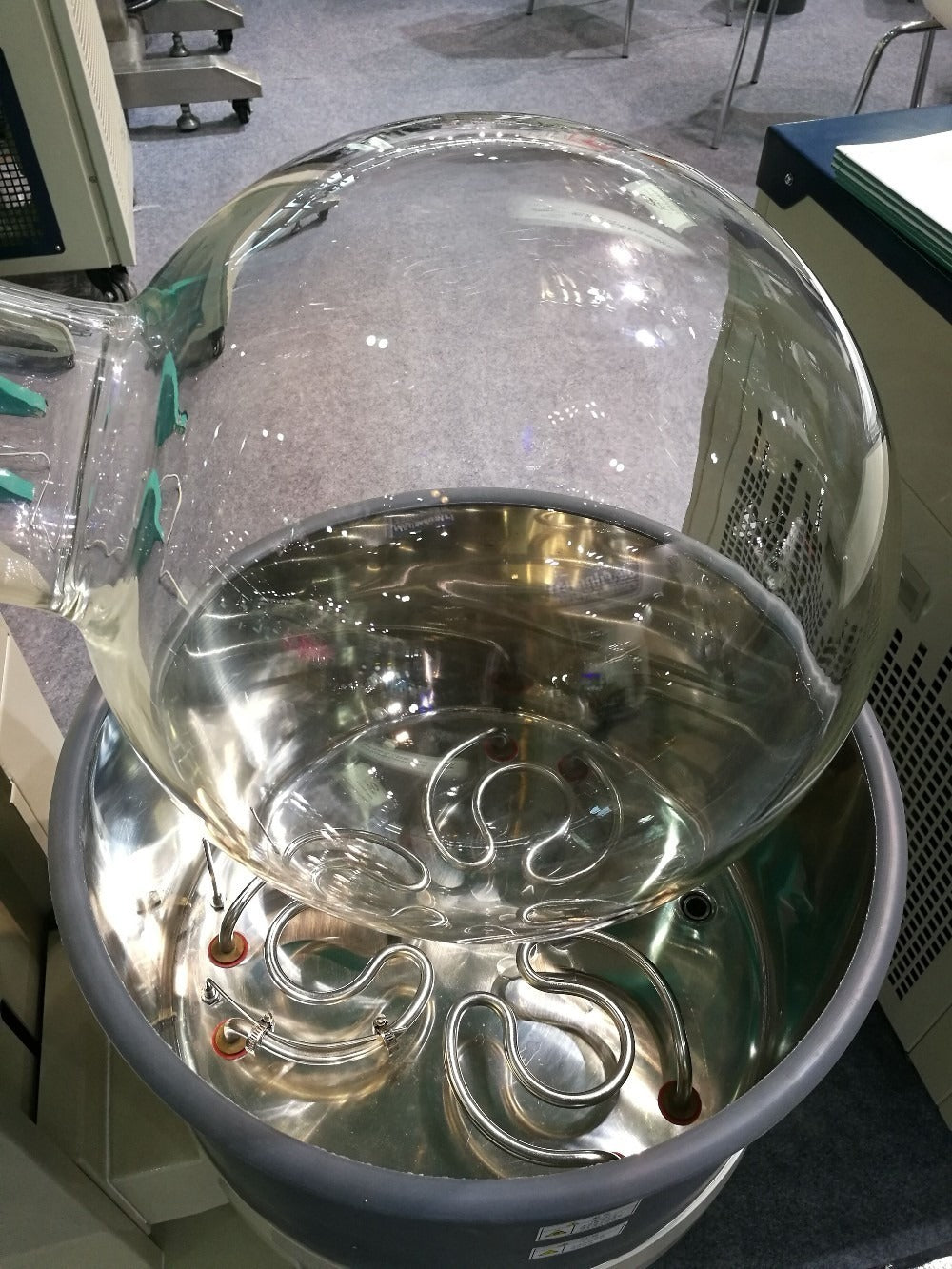

Bath: Stainless steel water bath
Temperature Control: Digital display, RT~99°C
Lifting: Motorized or manual lift, stroke 0-150 mm
Evaporating Speed: Water ≥2 L/h; Ethanol ≥5.4 L/h
Achievable Vacuum: 399.9 Pa (below 3 mmHg)

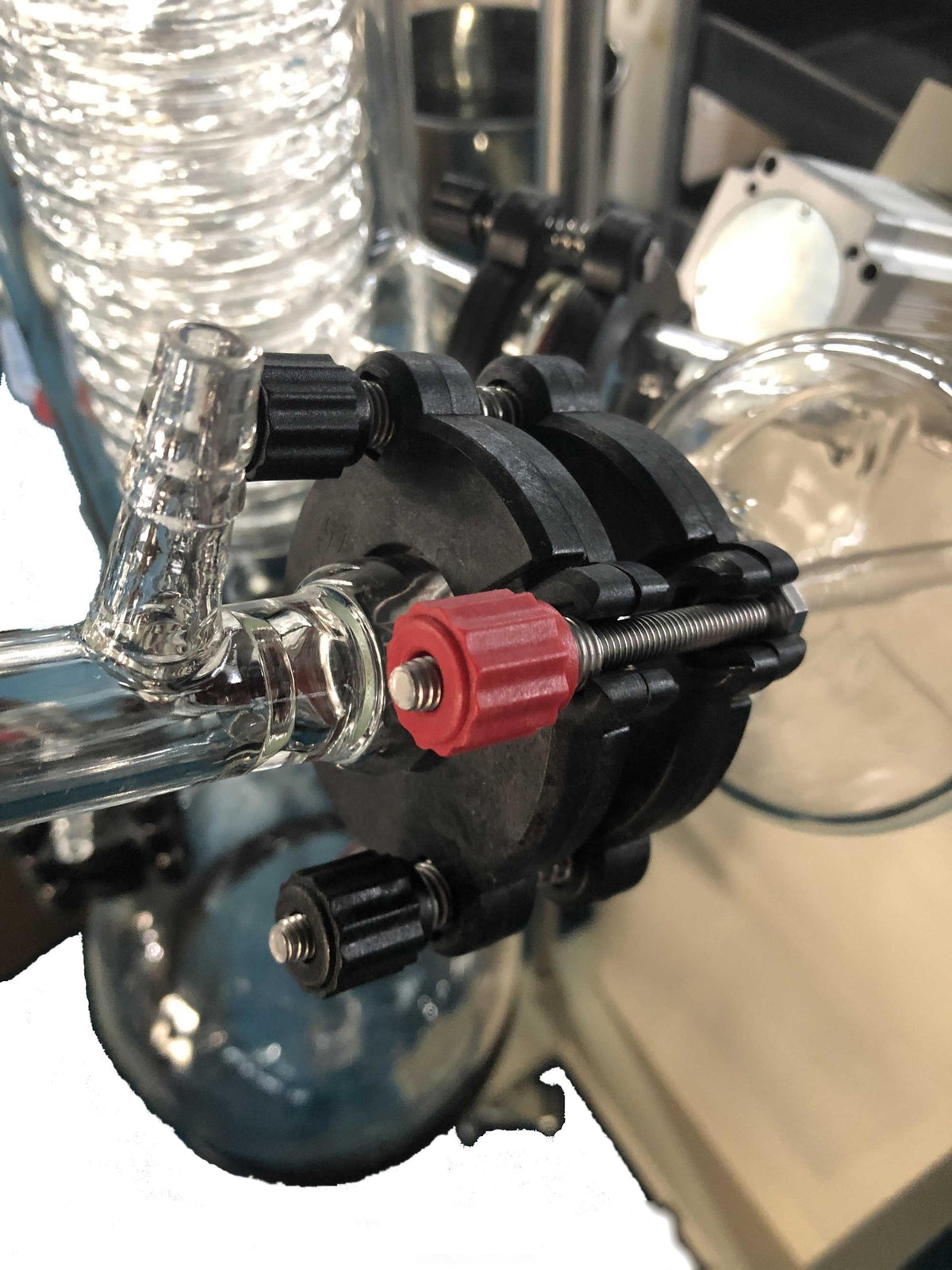

Vacuum Sealing: PTFE
Material: High borosilicate glass
Voltage: Single phase 110V/60Hz, 220V/50-60Hz
Weight: 35 kg
Warranty: 1 Year
Voltage note for US customers: This unit supports 110-120V power and can be plugged directly into a standard US outlet (the source listing also lists 220V operation).
