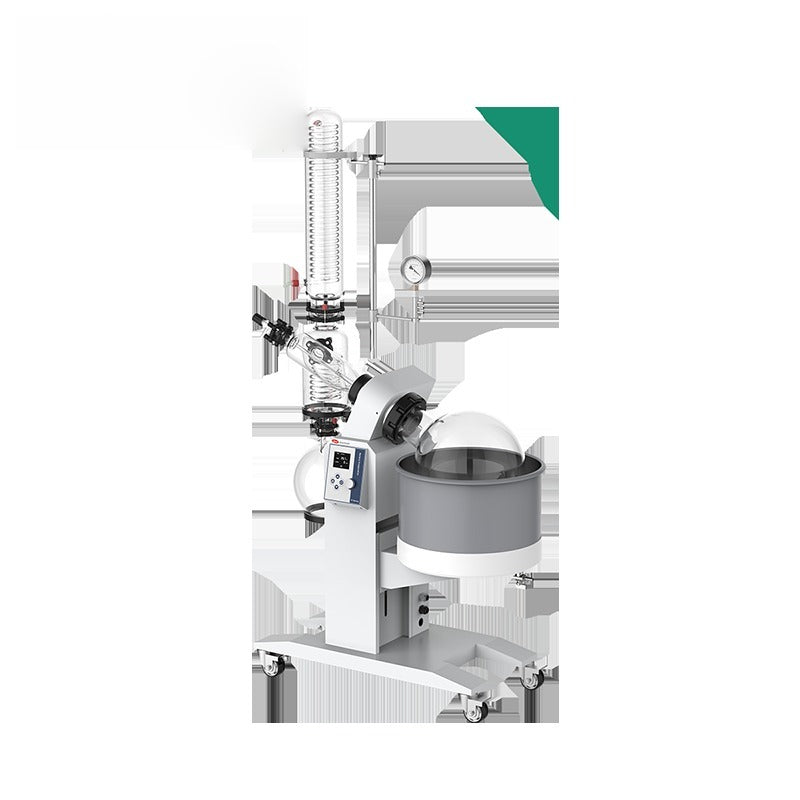

The R-1010 is a 10L rotary evaporator for vacuum distillation and solvent recovery, with high borosilicate glassware, motorized lift and digital temperature control.
Specifications
Model: ALAB-R-1010
Rotary Flask: 10L
Collecting Bottle: 5L
Rotary Speed: 20-130 rpm
Power: 3200W
Evaporating Capability: Water 3.2 L/h; Ethanol 8.6 L/h
Lift: Motorized lift, stroke 0-160 mm
Temperature Control: Room temp~95°C (water bath); Room temp~180°C (oil bath)
Sealing: PTFE
Vacuum Leakage: ≤2 kPa/h
Material: High borosilicate glass
Dimensions: 1040 x 580 x 1760 mm
Voltage: 220-240V
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
