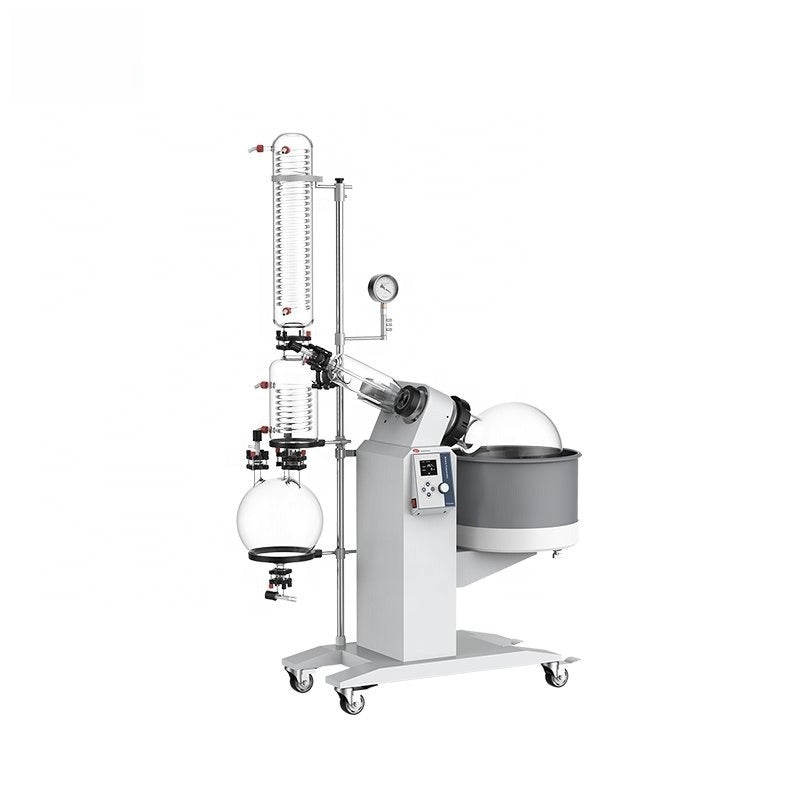

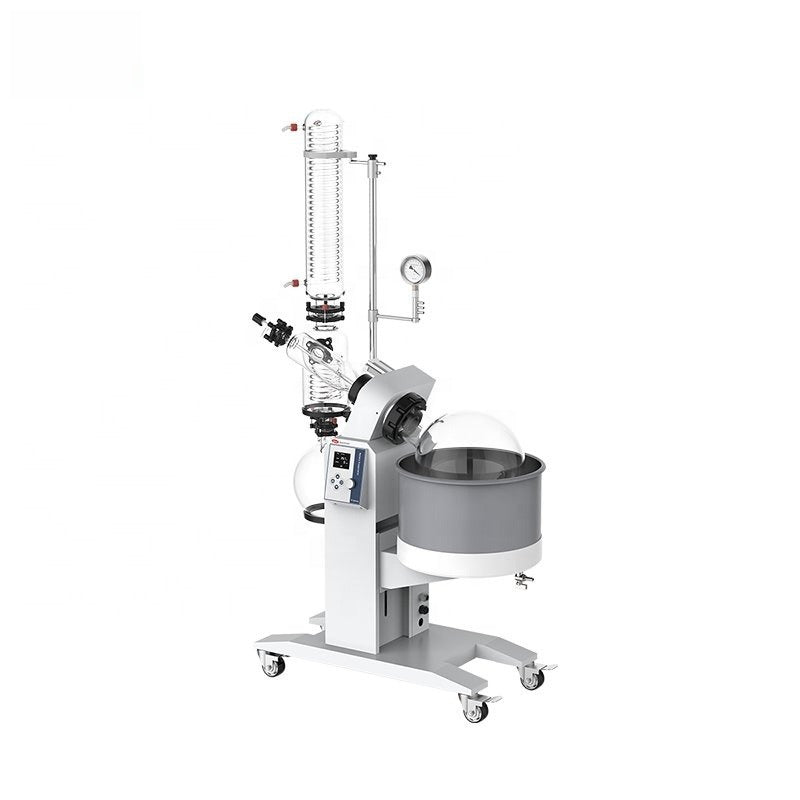

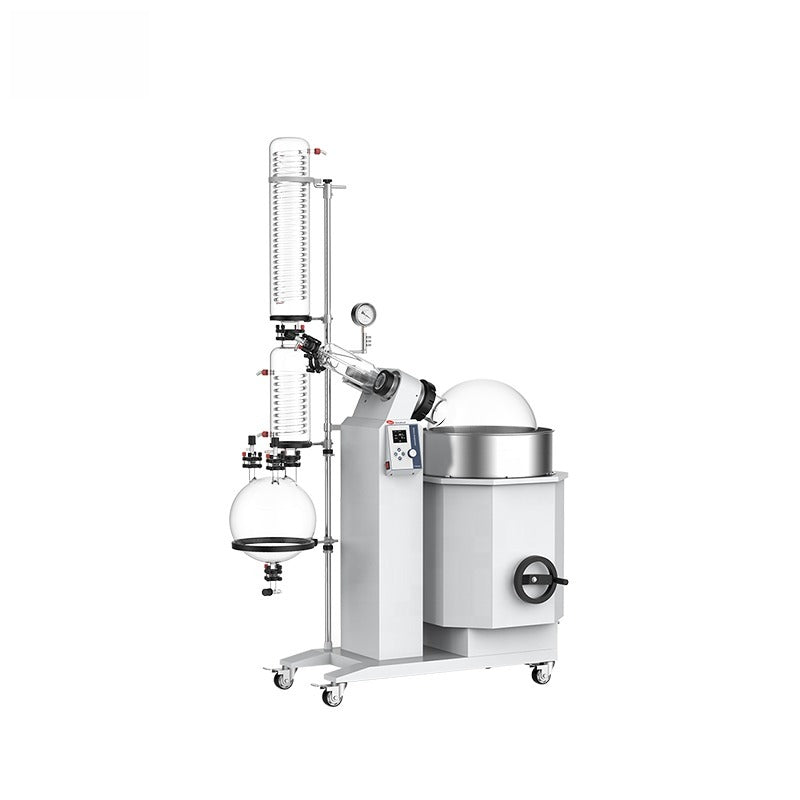

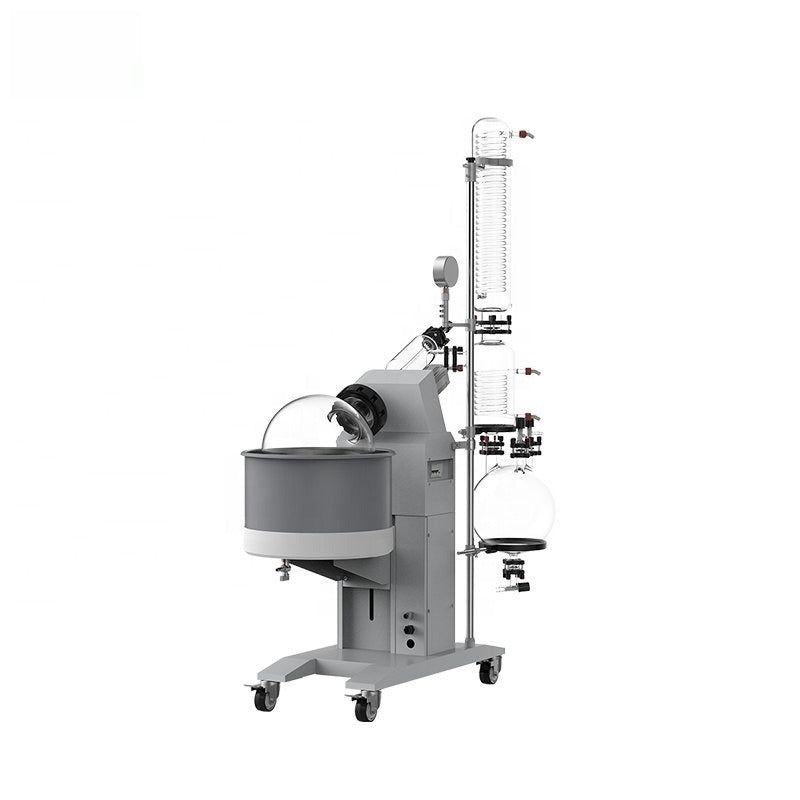

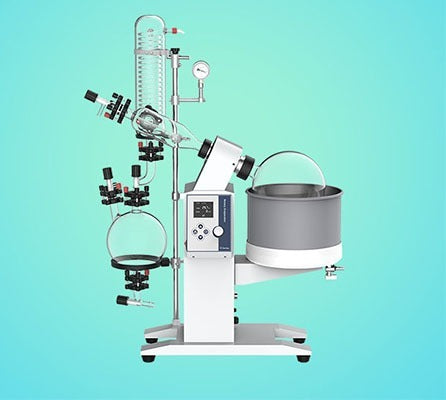

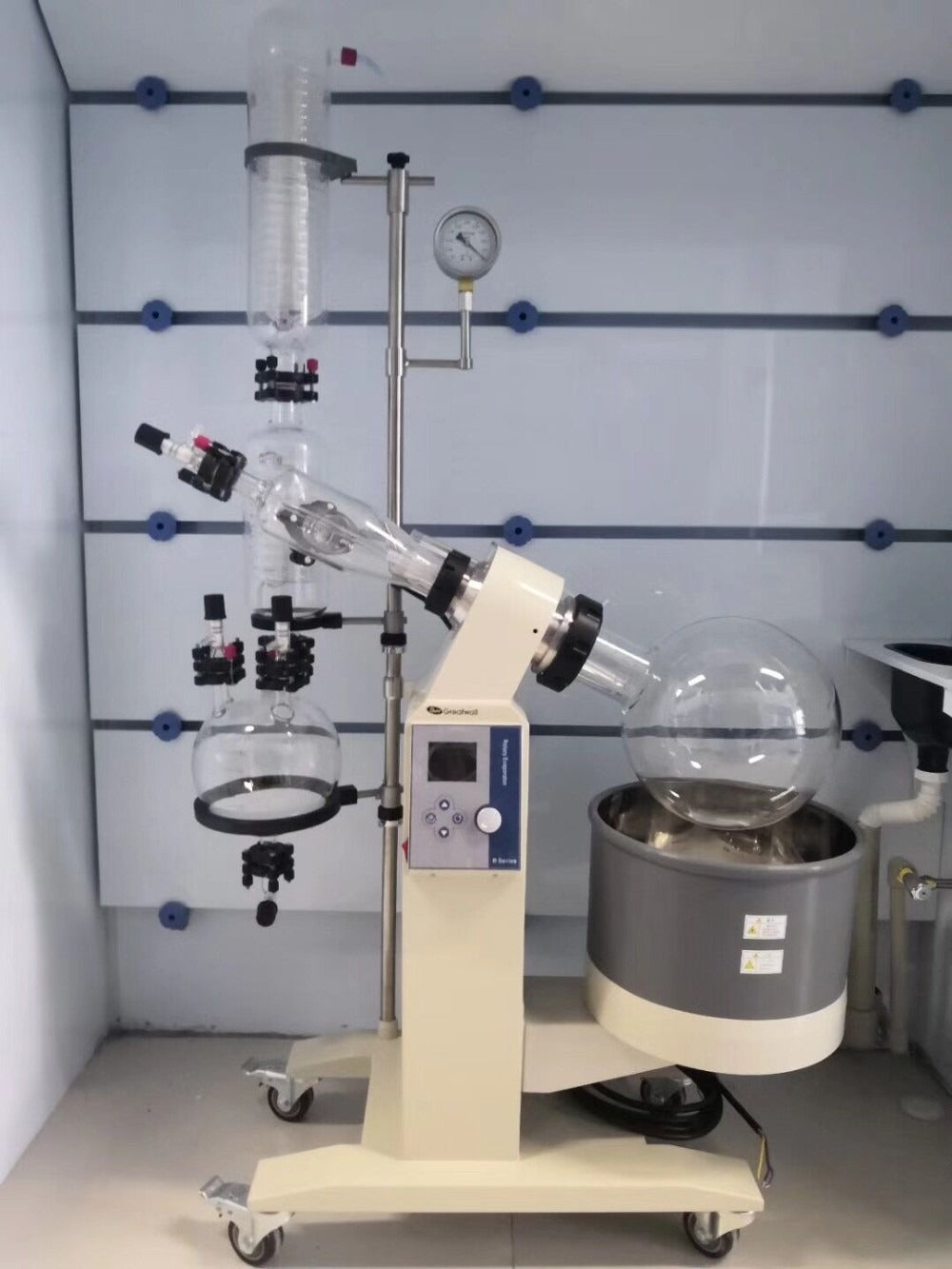

The R-1020 is a 20L rotary evaporator for pilot-scale vacuum distillation, with high borosilicate glassware and electric elevation.
Specifications
Model: ALAB-R-1020
Rotary Bottle: 20L
Collecting Bottle: 10L
Rotation Speed: 20-130 rpm
Power: 6.3 KW
Evaporation Speed: Water 5 L/h; Ethanol 14.3 L/h
Elevating: Electric elevation, stroke 0-190 mm
Temperature Control: Room temp-99°C (water bath); Room temp~180°C (oil bath)
Vacuum System Pressure Rise Rate: 20 mbar/h
Material: High borosilicate glass
Dimensions: 1120 x 680 x 1900 mm
Weight: 90 kg
Voltage: 380V
Warranty: 1 Year
Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110-120V single-phase, so a 380V three-phase supply or a suitable step-up transformer is required.
