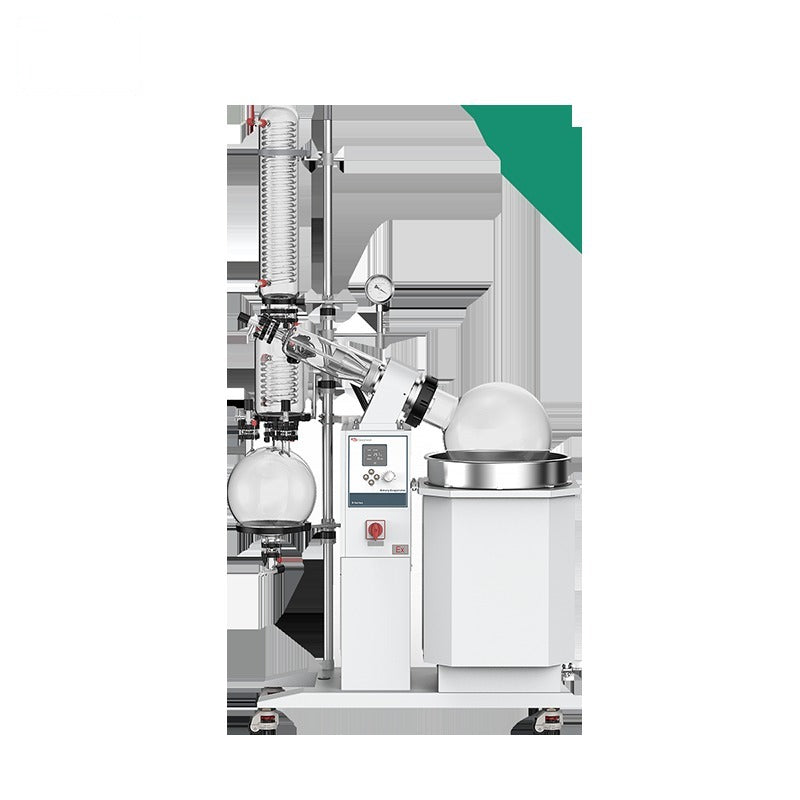

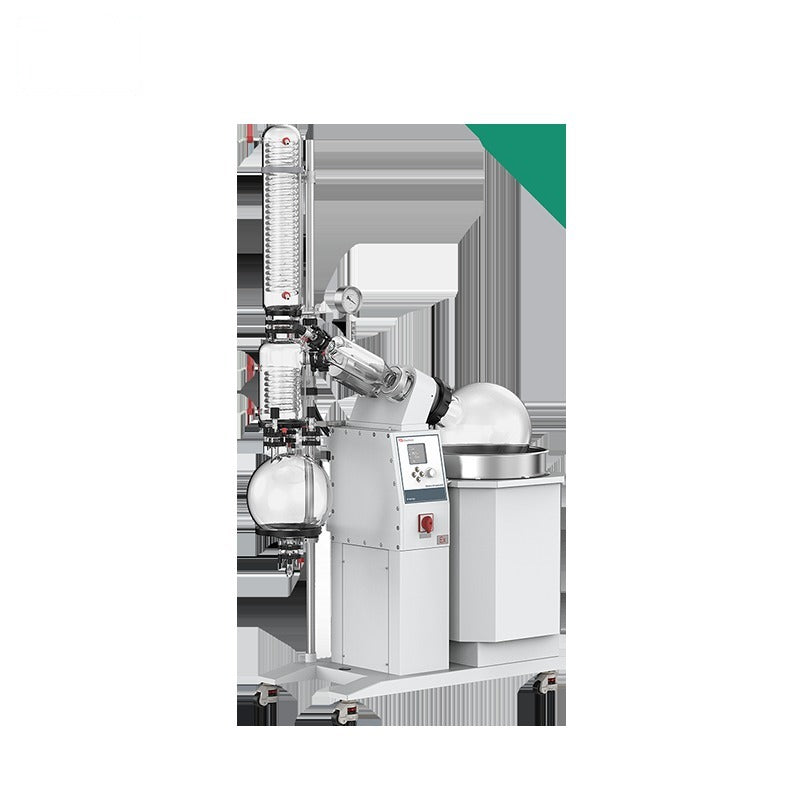

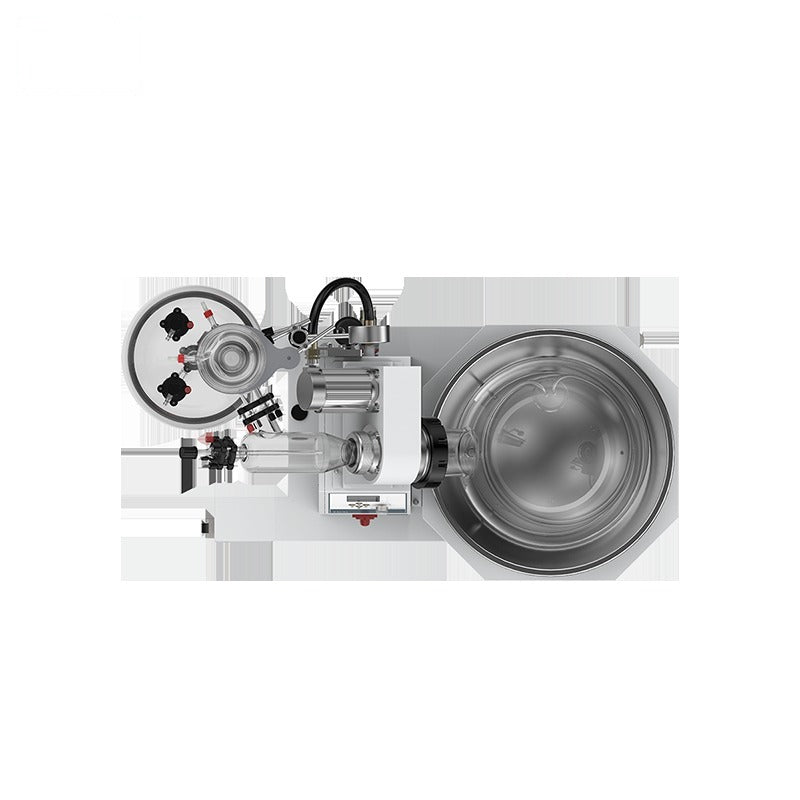

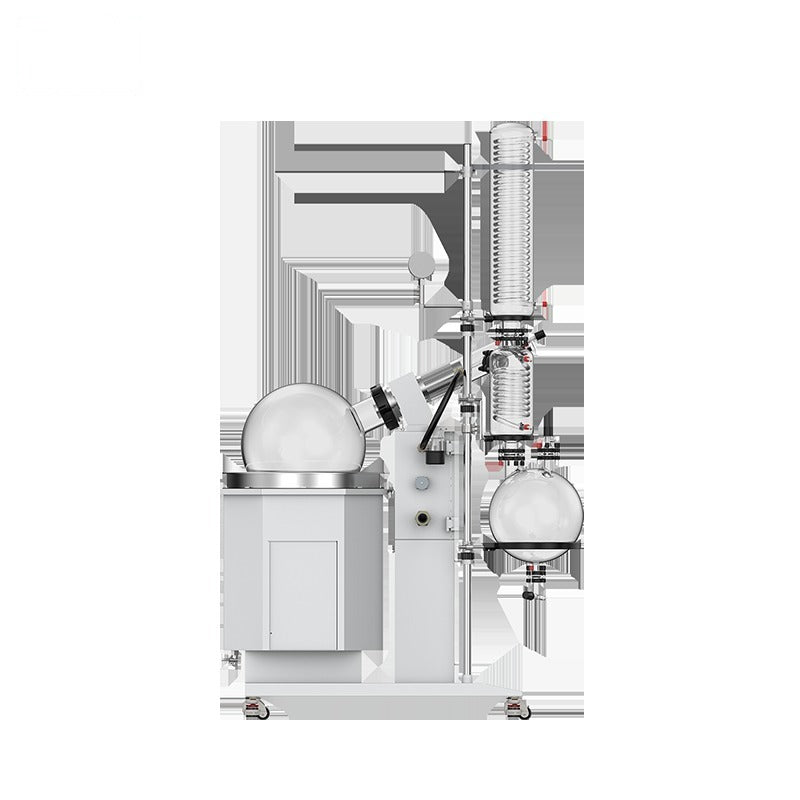

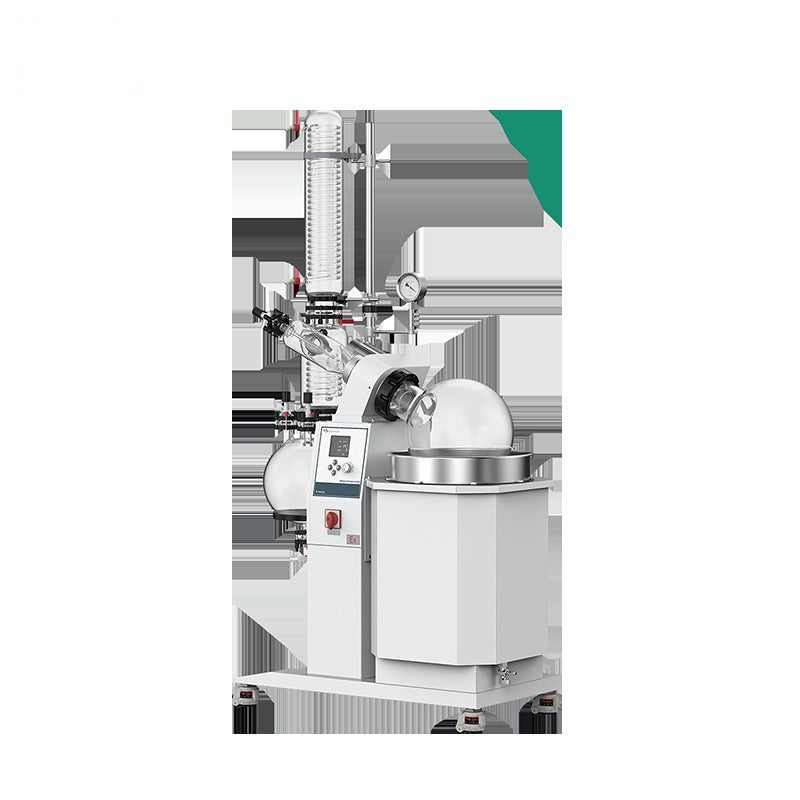

The R-2020Ex is a 20L integrated explosion-proof rotary evaporator for pilot-scale vacuum distillation, with a 10L receiving flask and motorized lift travel of 0-160 mm.
Specifications
Model: R-2020Ex
Rotary Flask: 20L
Receiving Flask: 10L
Rotation Speed: 20-130 rpm
Rotary Motor Power: 370W
Heating Power: 4 kW
Total Power: 4500W
Temperature Range: RT+5 to 95 C
Water Bath Size: 450 x 260 mm
Water Bath Temperature Stability: +/-1.5 C
Lifting Distance: 0-160 mm
Evaporating Speed: Water 5 L/h; Ethanol 14.3 L/h
Material: High borosilicate glass
Voltage: 3~, 380V 50Hz or 1~, 220V 60Hz
Dimensions: 1210 x 740 x 2040 mm
Weight: 190 kg
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
