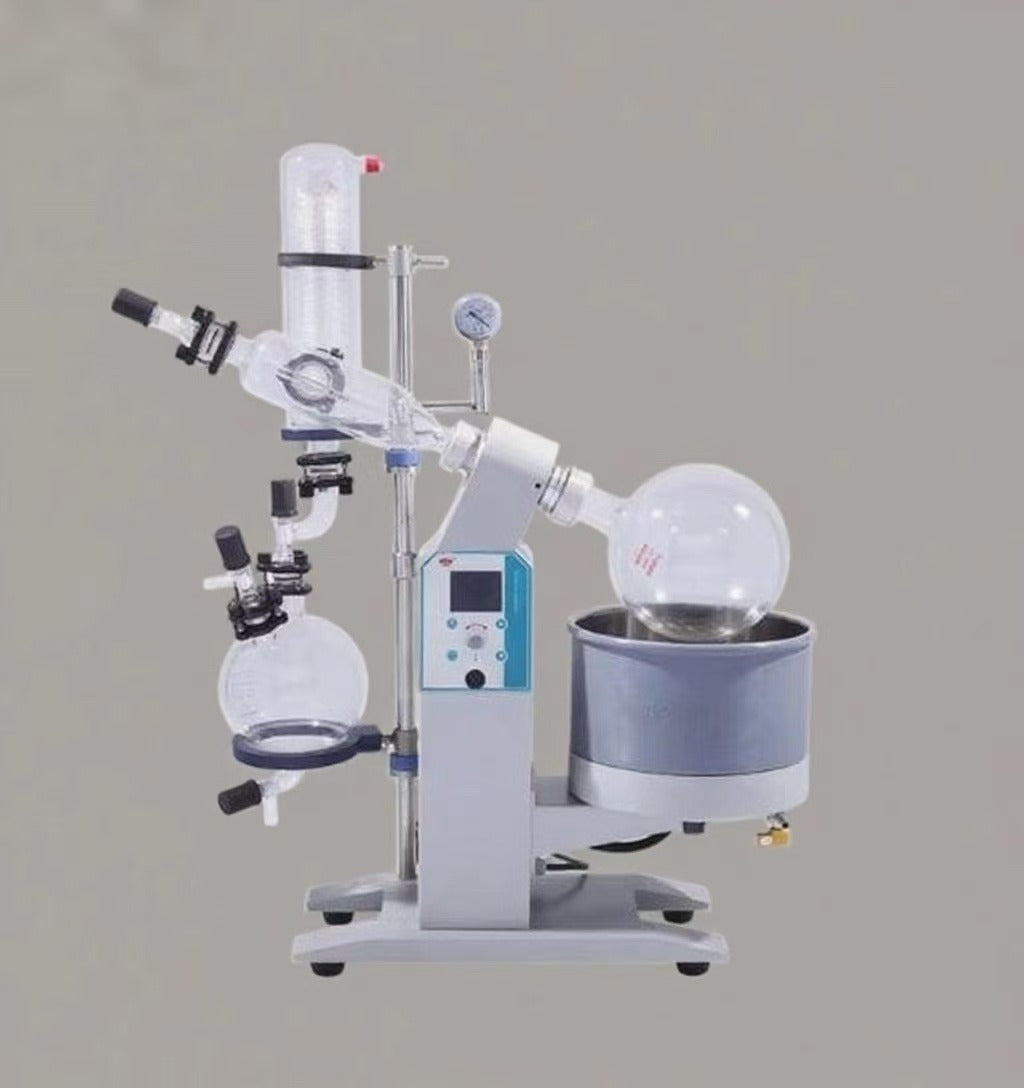

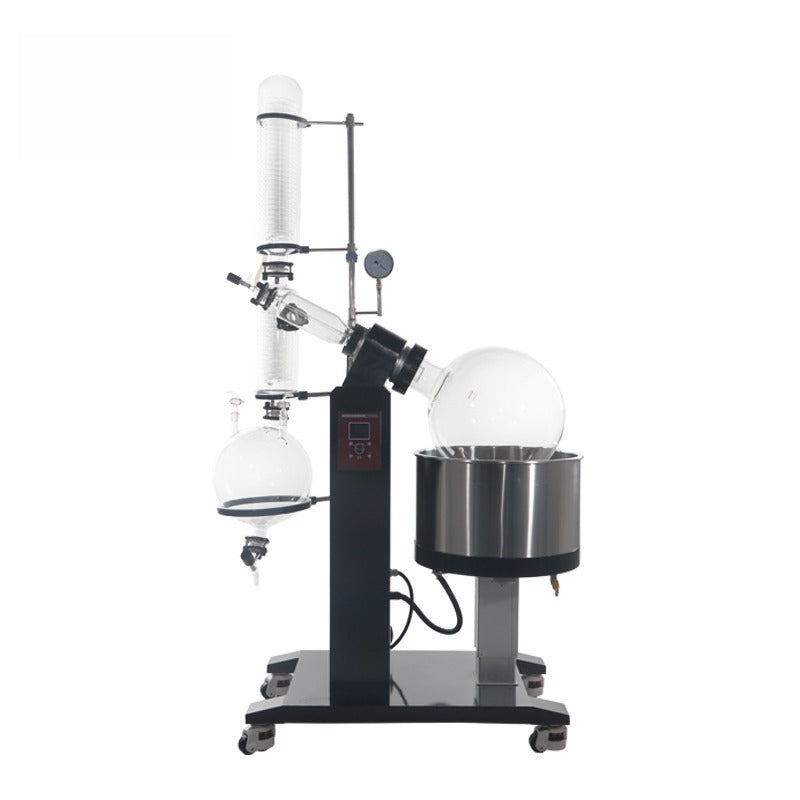

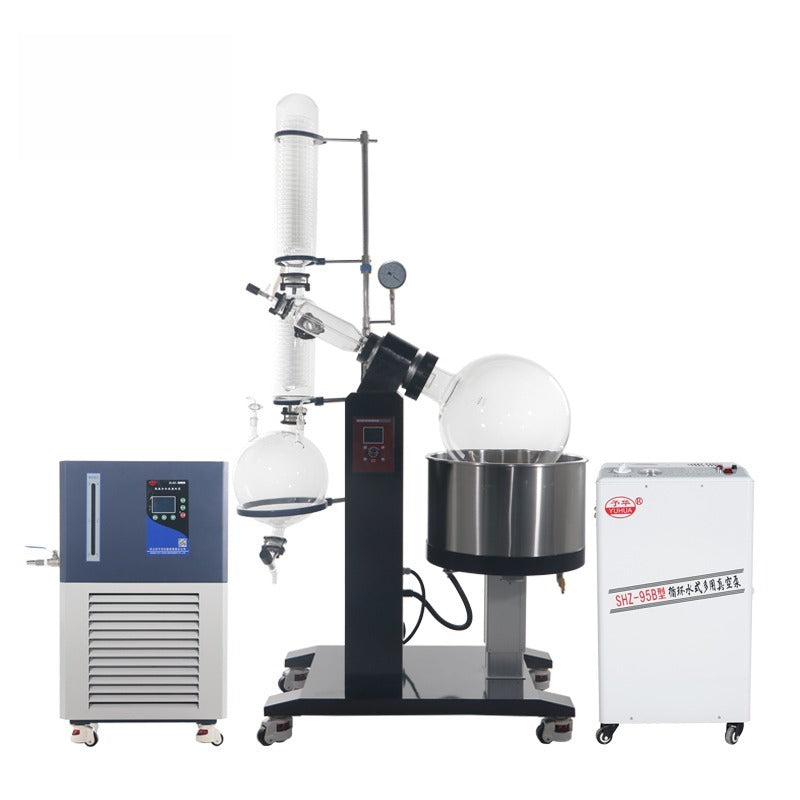

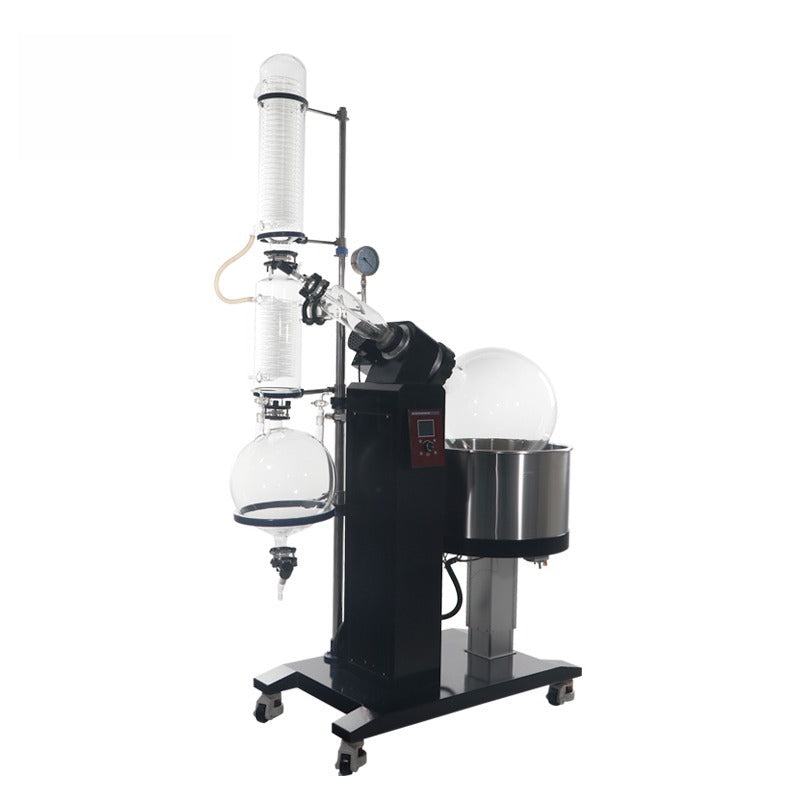

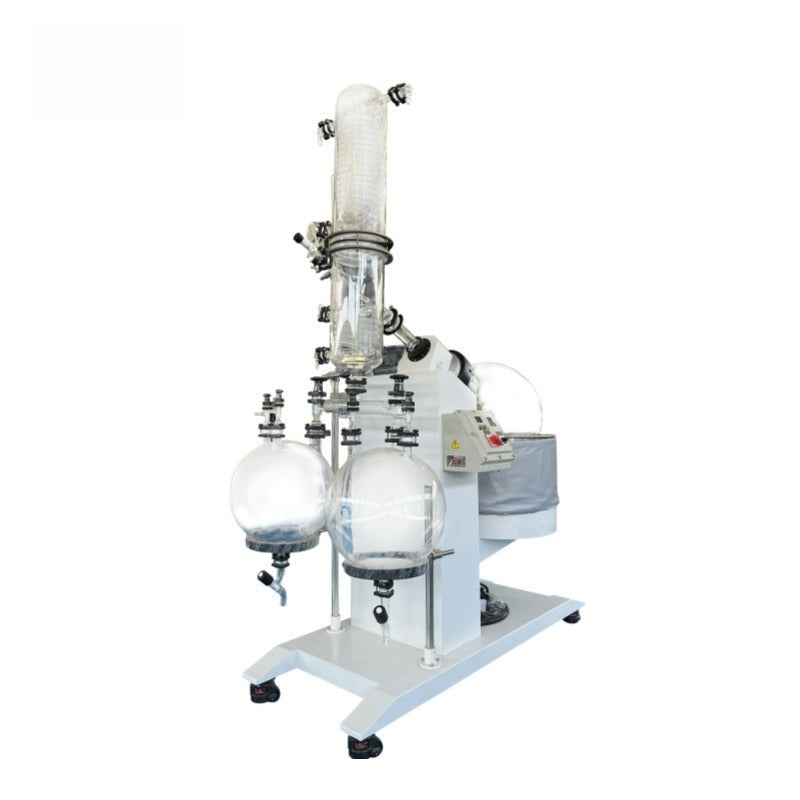

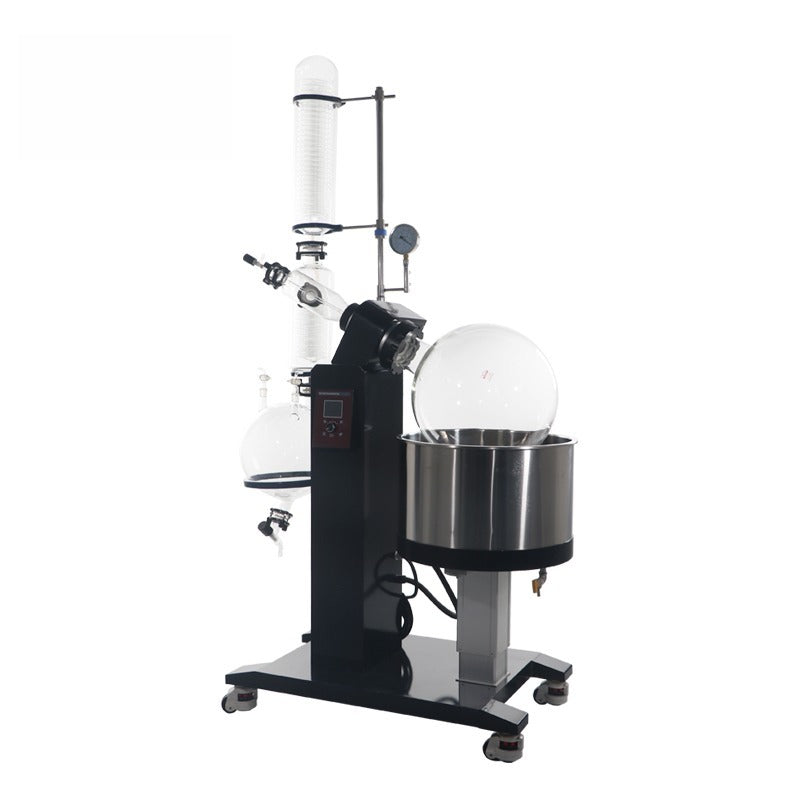

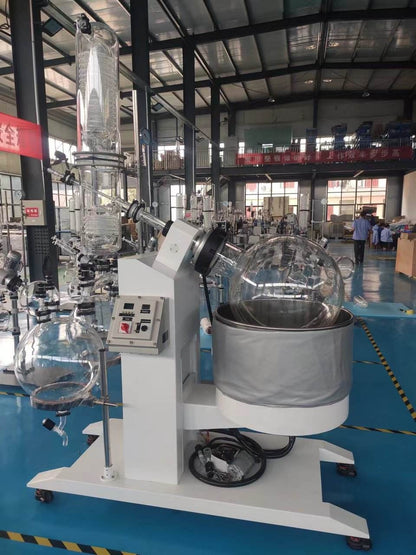

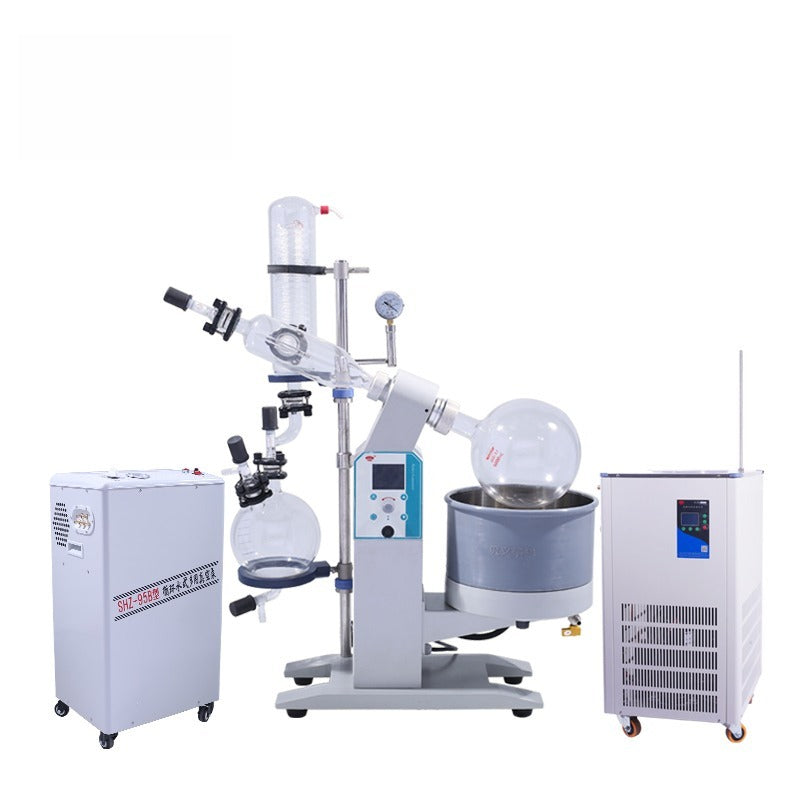

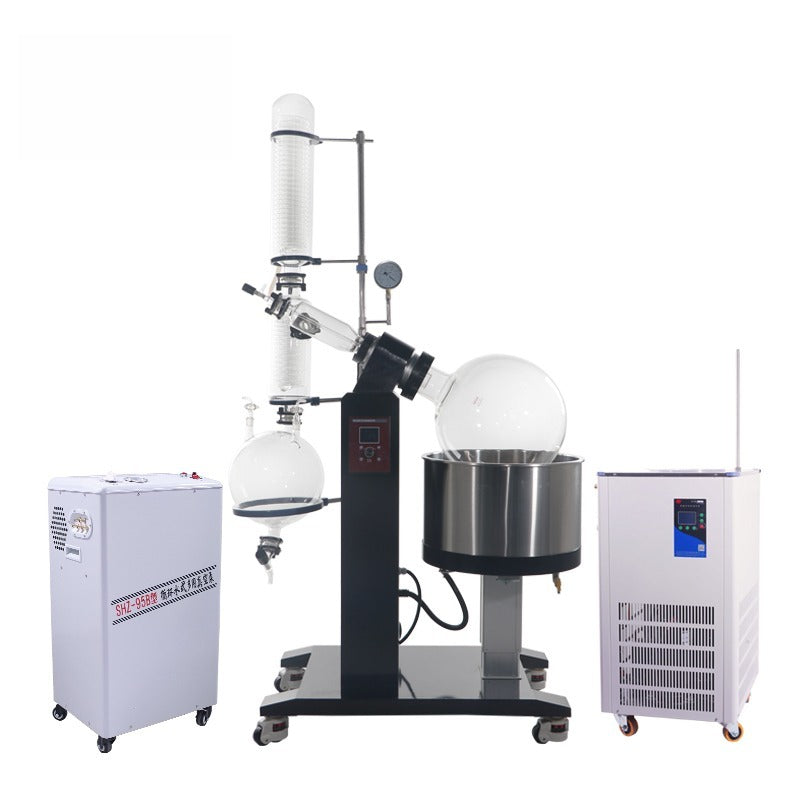

The R series are electric rotary evaporators for vacuum distillation and solvent recovery in research and pilot labs, with high borosilicate glass (GG-17) glassware and PTFE sealing. The line runs from the 2L MR-2 benchtop unit and the 5L R-1005 to the 100L R-100 industrial units, including explosion-proof EX configurations and motorized-lift models.
Model Comparison
Model
Rotary Flask
Collection Flask
Motor Power
Heating Power
Rotating Speed
Vacuum Degree
Glass Material
Lift Type
ALAB-R-1005
5L
-
-
-
-
0.098 MPa
GG-17 (3.3) Borosilicate Glass
-
ALAB-R-1010
10L
5L
90W
3 kW
0–120 rpm
0.098 MPa
GG-17 (3.3) Borosilicate Glass
-
ALAB-R-1020
20L
10L
120W
5 kW
0–120 rpm
0.098 MPa
GG-17 (3.3) Borosilicate Glass
-
ALAB-R-1050
50L
20L
400W
7.5 kW
0–120 rpm
0.098 MPa
Borosilicate Glass 3.3
-

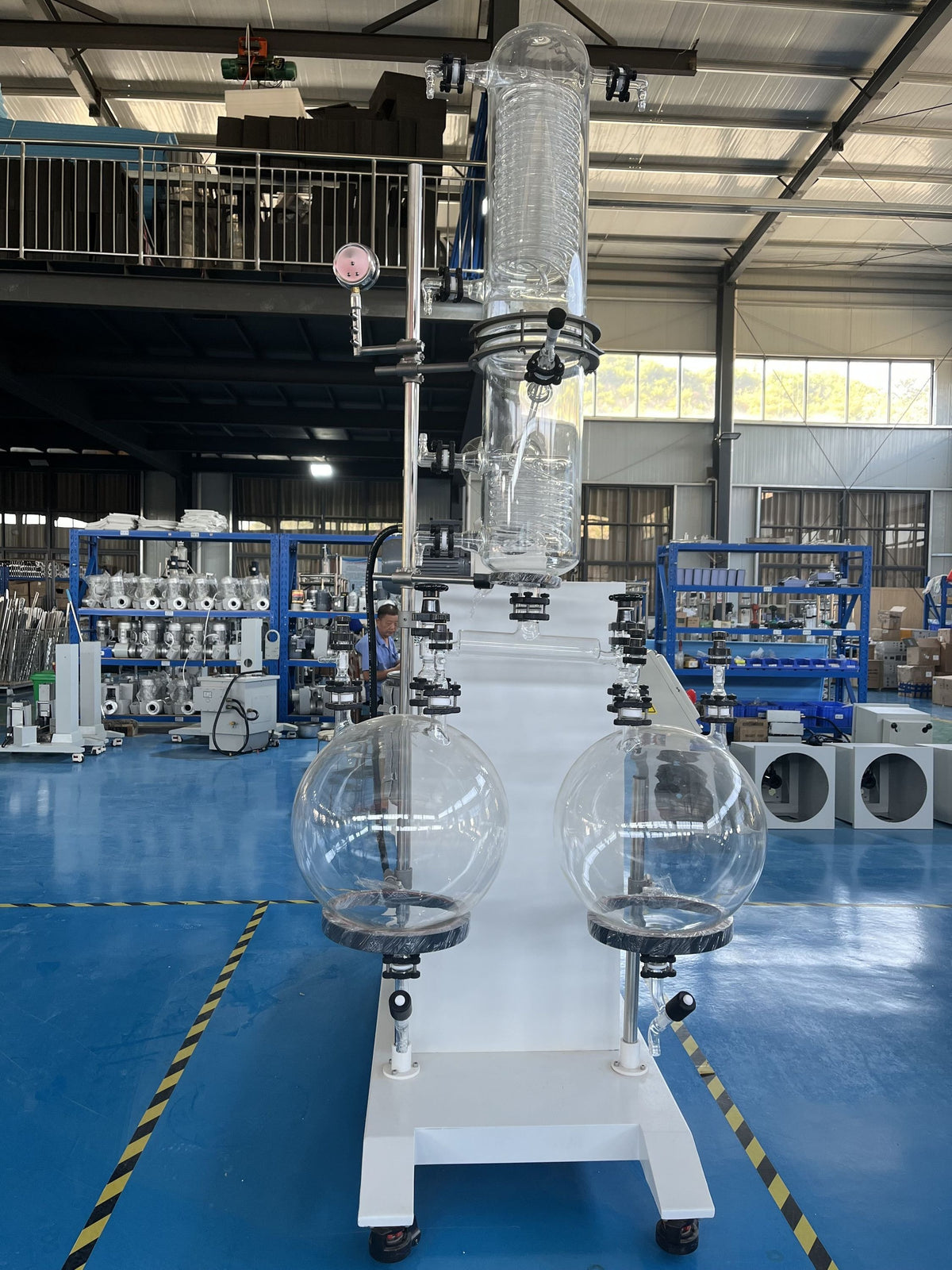

ALAB-R-100
100L
50L + 50L
90W
18 kW
-
-
Borosilicate Glass 3.3 (GG-17)
-

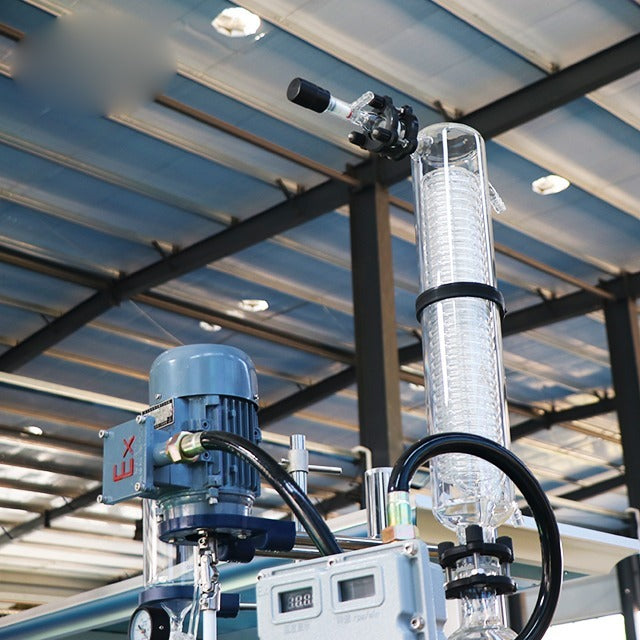

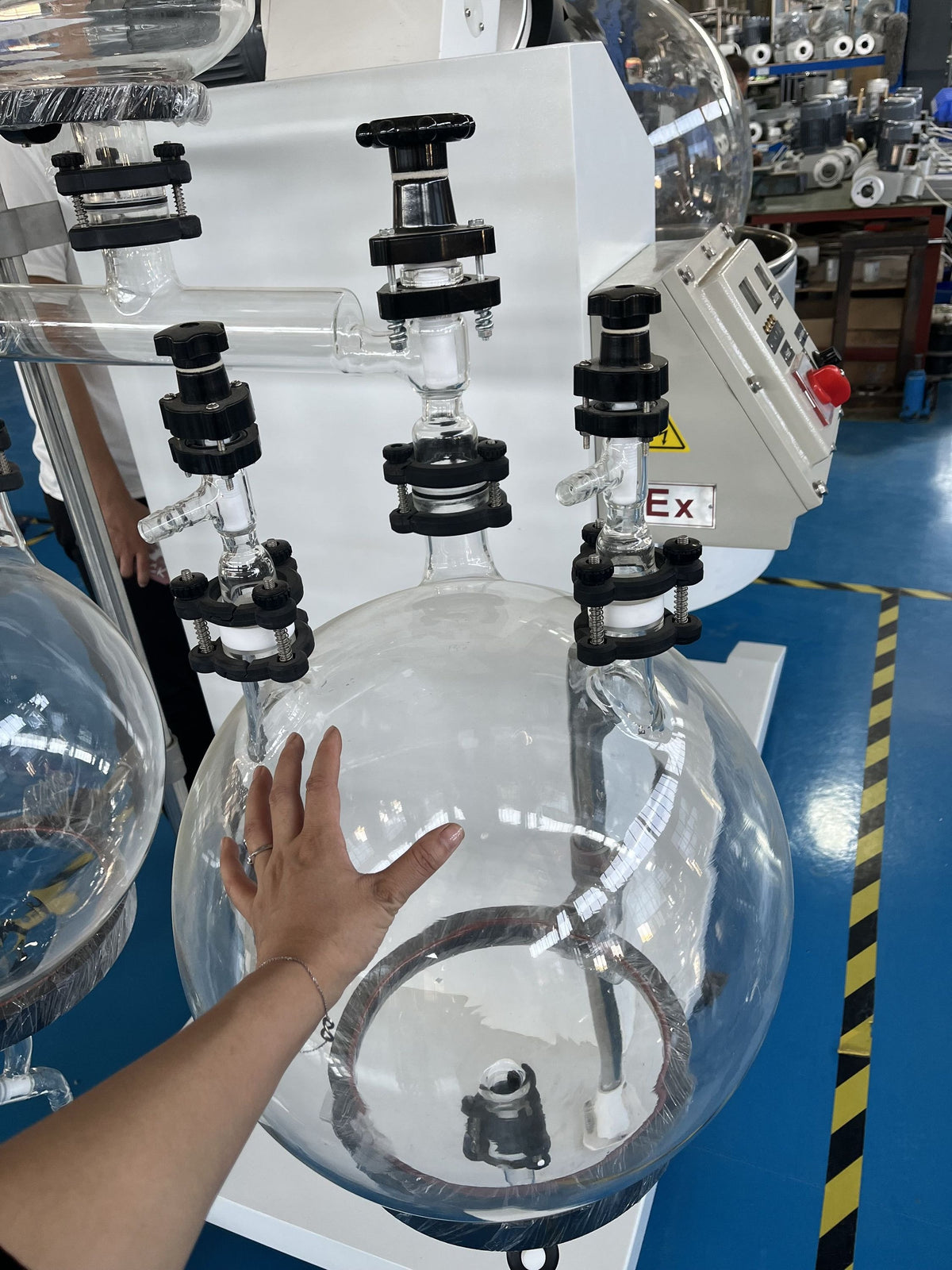

ALAB-R-100EX
100L
50L + 50L
90W
18 kW
-
-
Borosilicate Glass 3.3 (GG-17)
-
ALAB-R-1050EX
50L
20L
180W
8 kW
0–120 rpm
0.098 MPa
GG-17 (3.3) Borosilicate Glass
-
ALAB-R-2010A
10L
-
-
-
-
0.1 MPa
Borosilicate Glass 3.3
-
ALAB-R-2020Z
20L
-
-
-
-
0.1 MPa
Borosilicate Glass 3.3
-

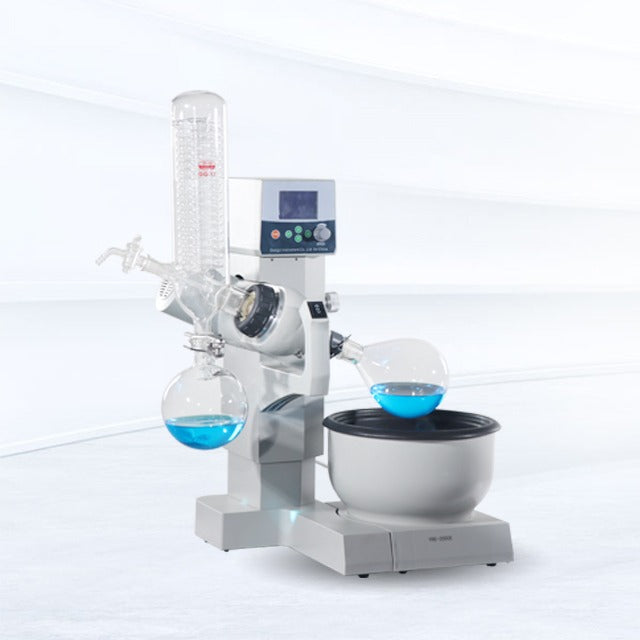

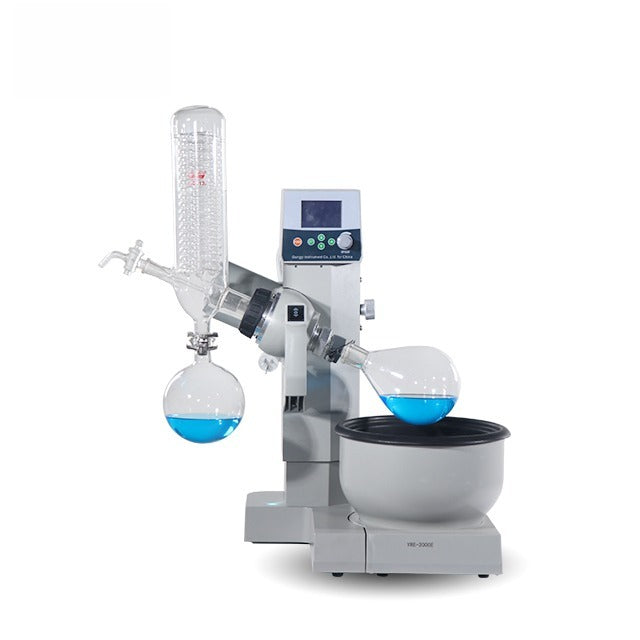

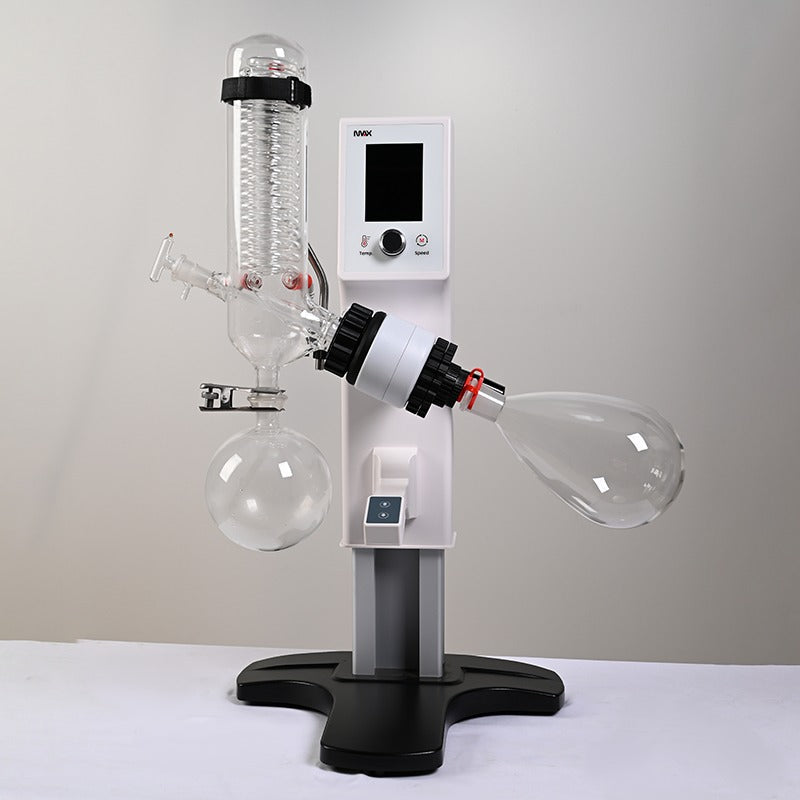

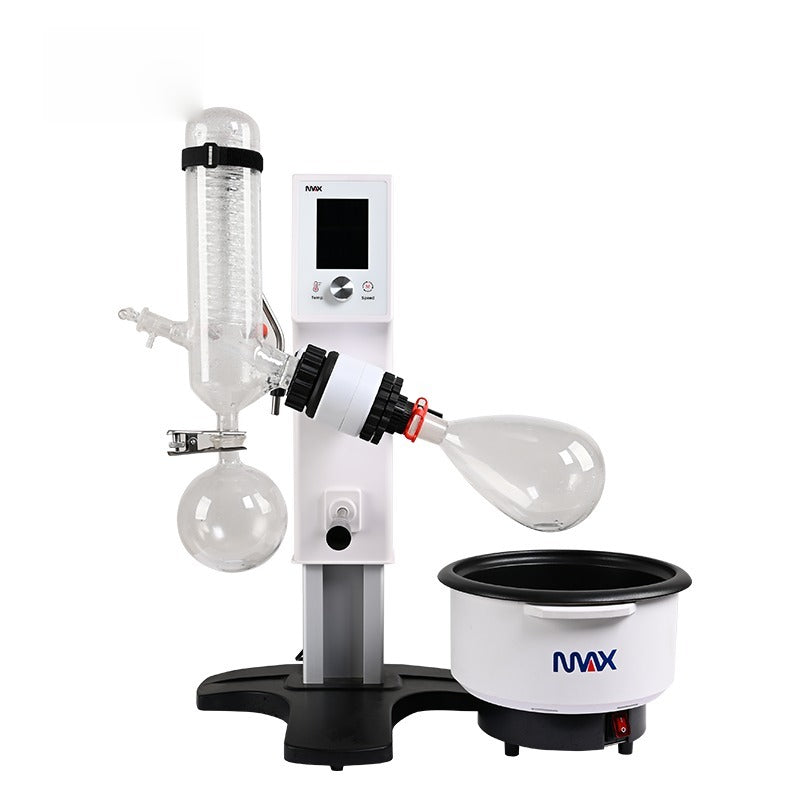

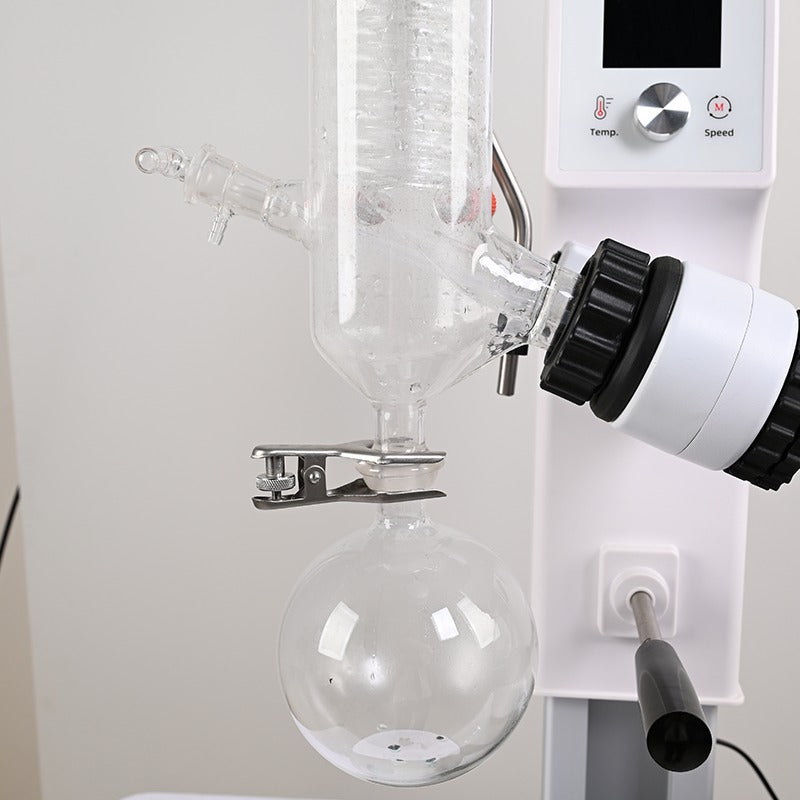

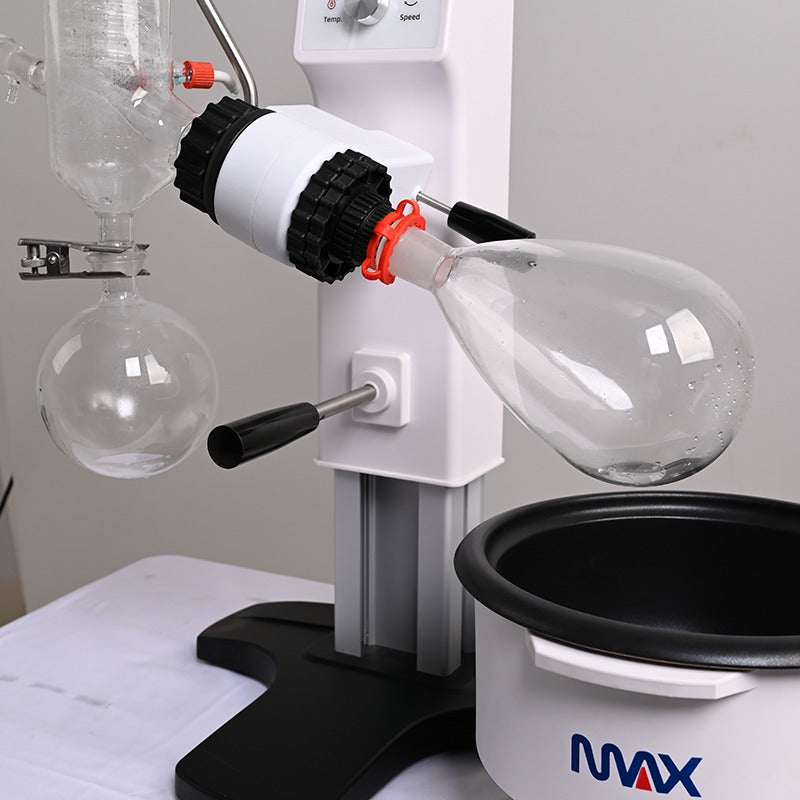

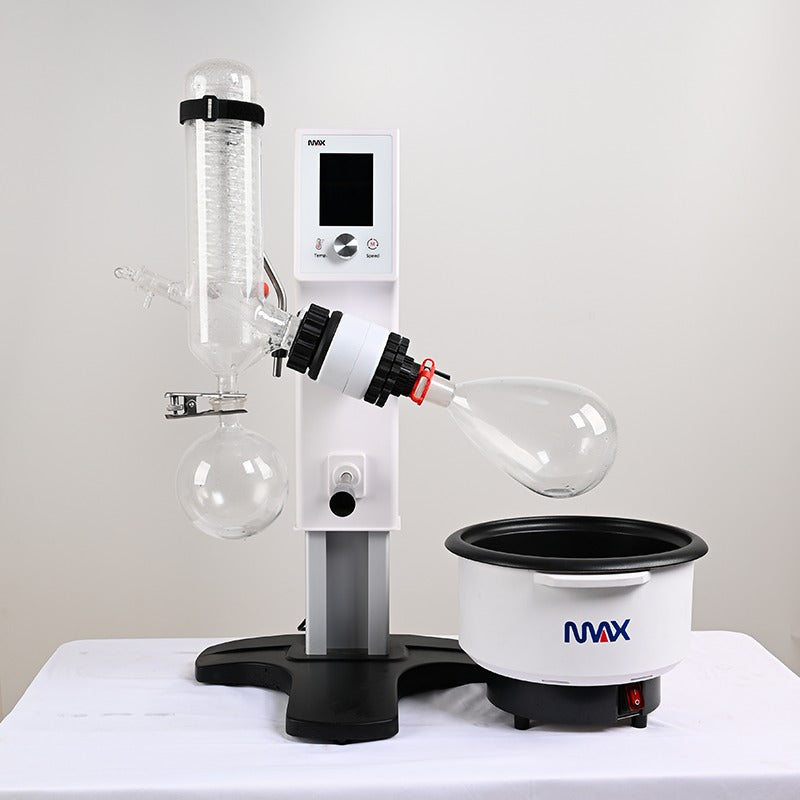

ALAB-MR-2
2L
1L
40W
2 kW
0–180 rpm
0.098 MPa
GG-17 (3.3) Borosilicate Glass
Motorized Lift
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
