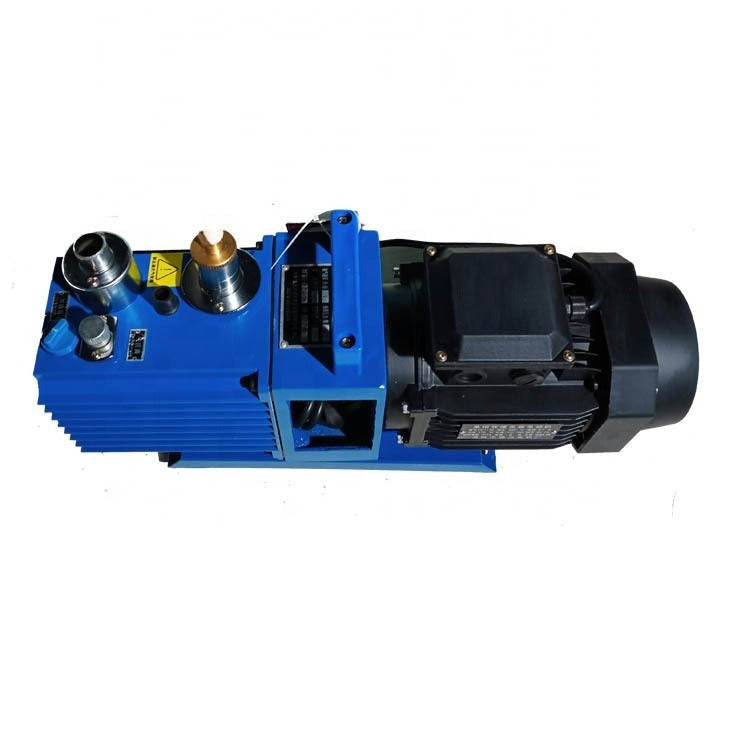

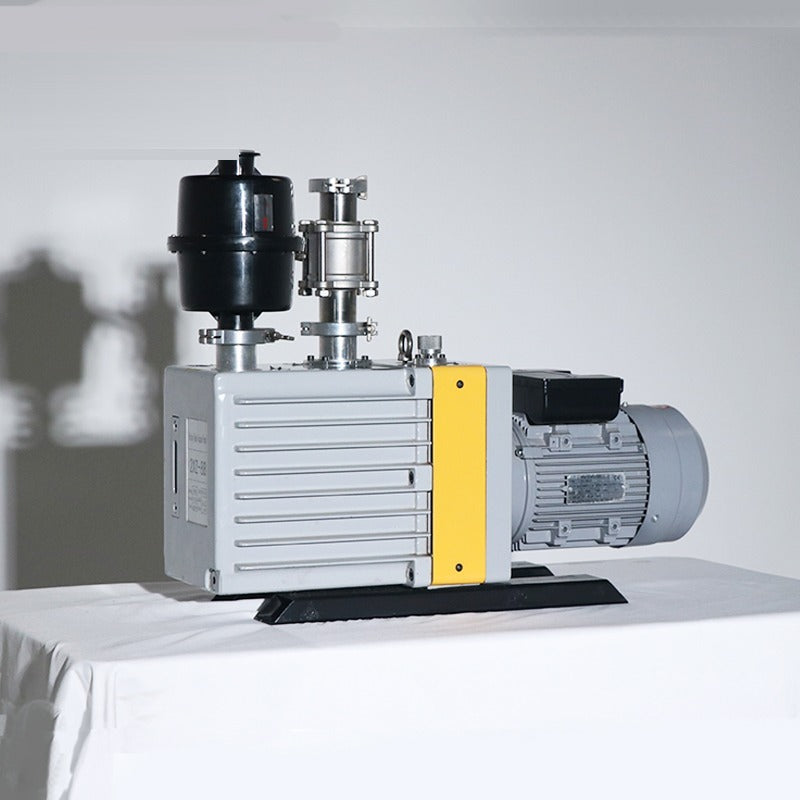

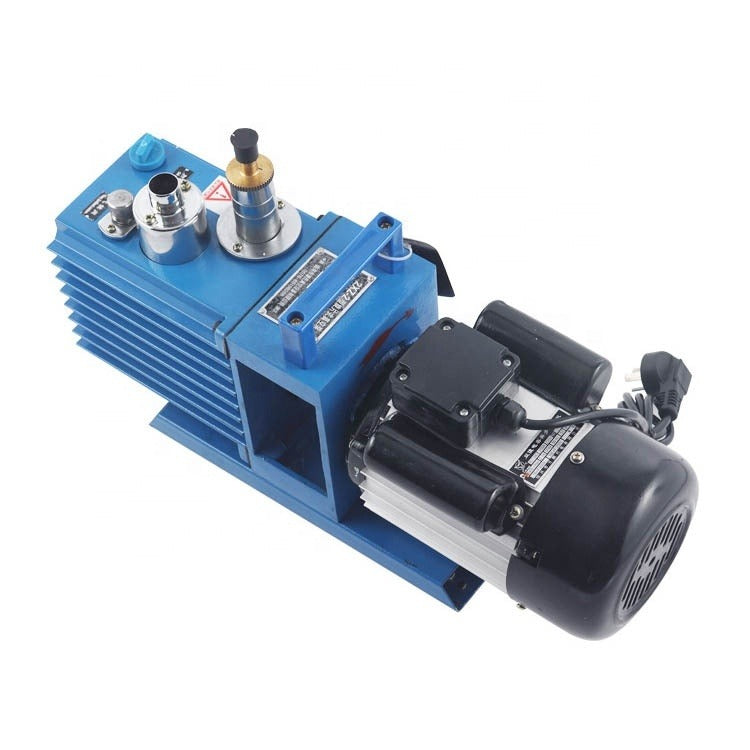

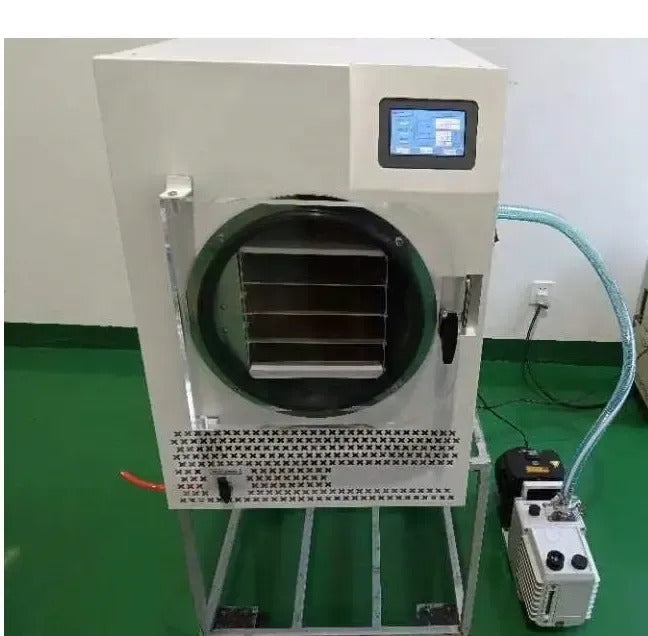

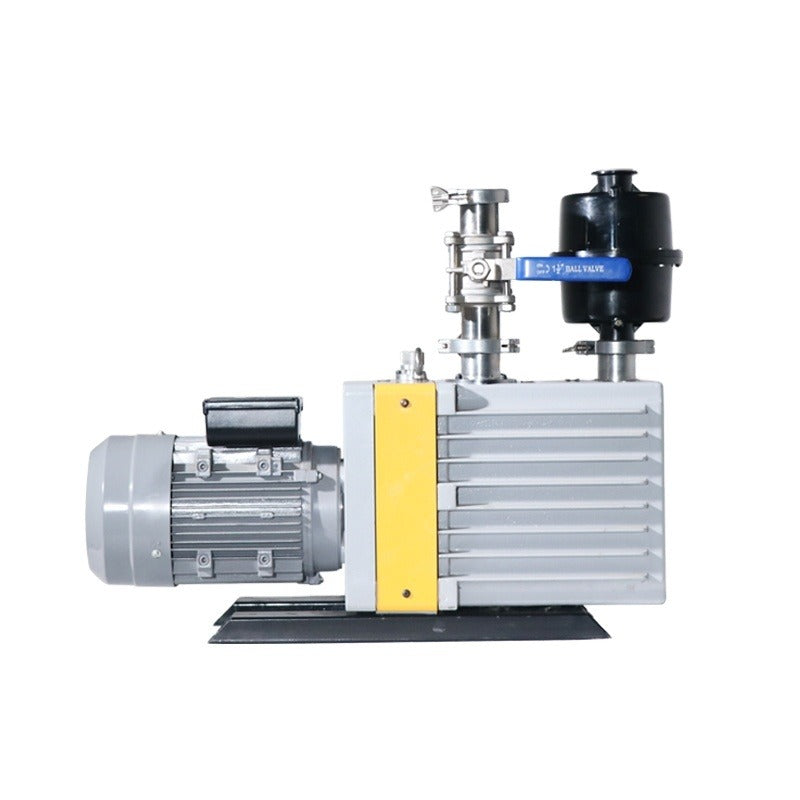

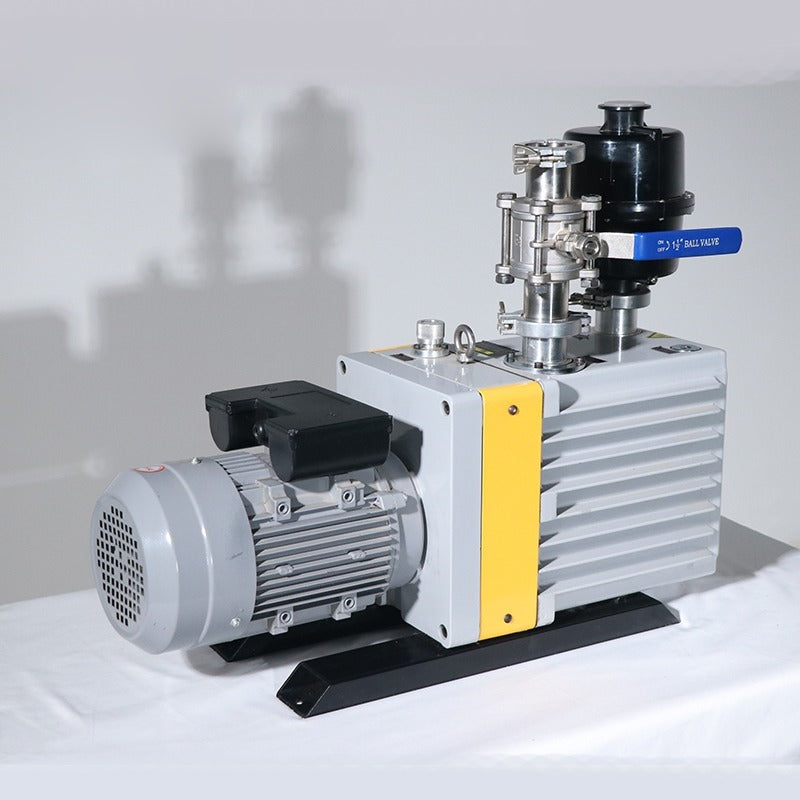

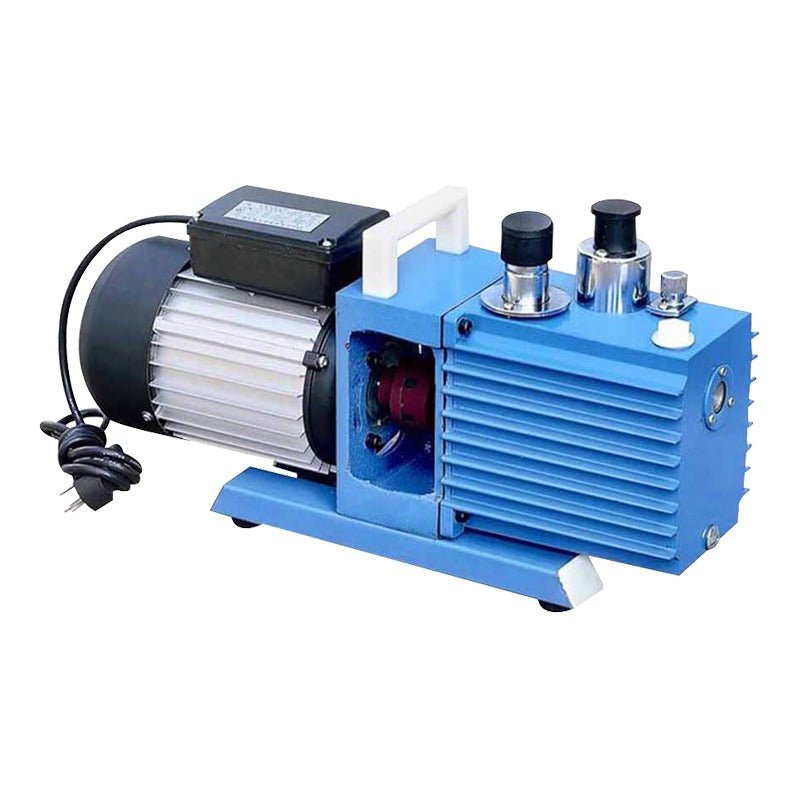

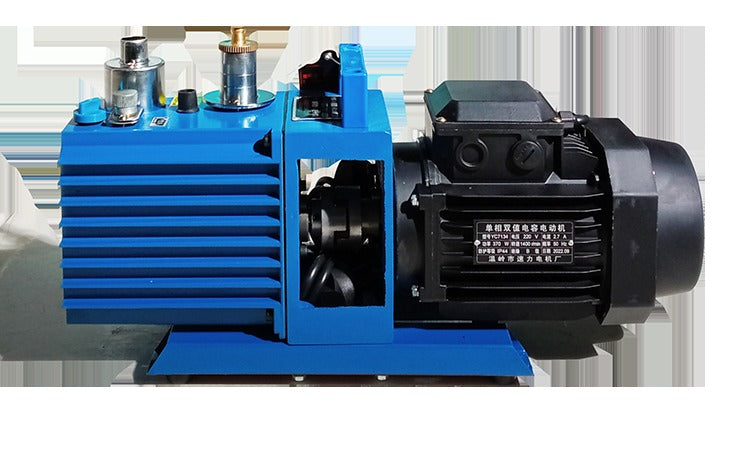

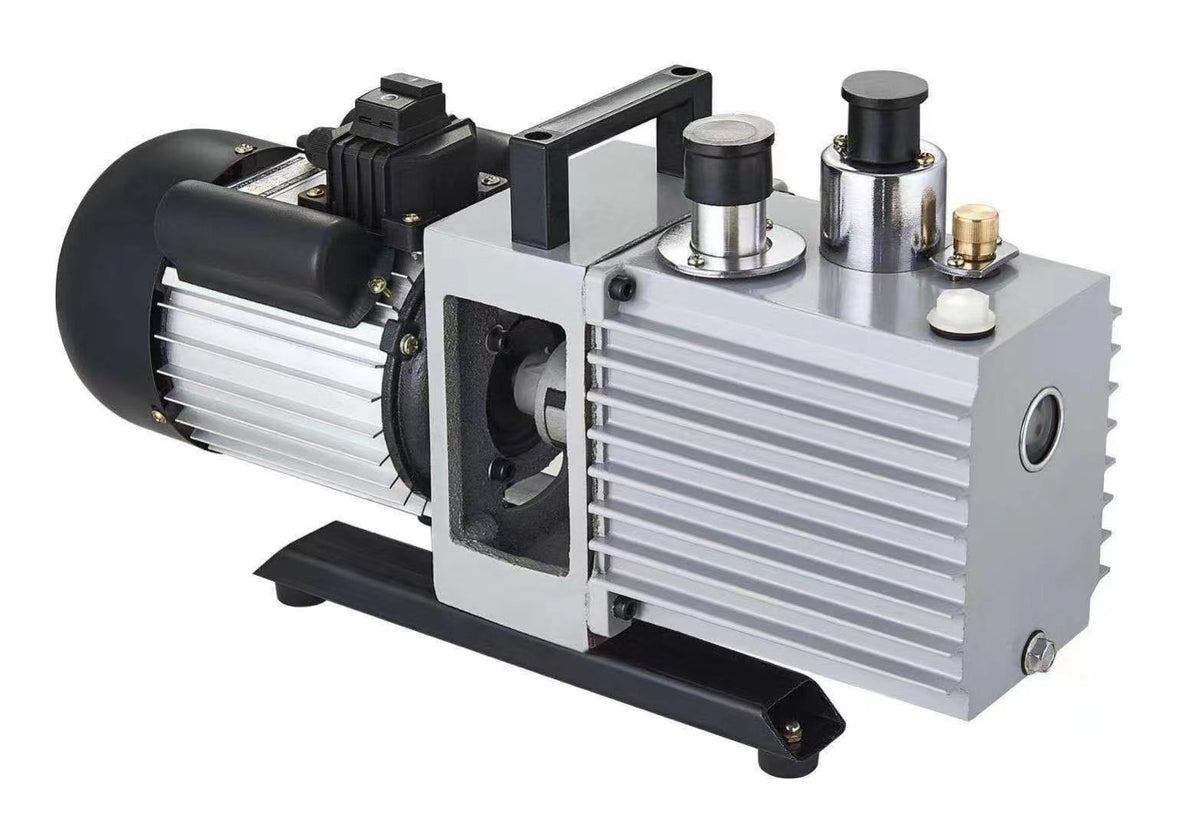

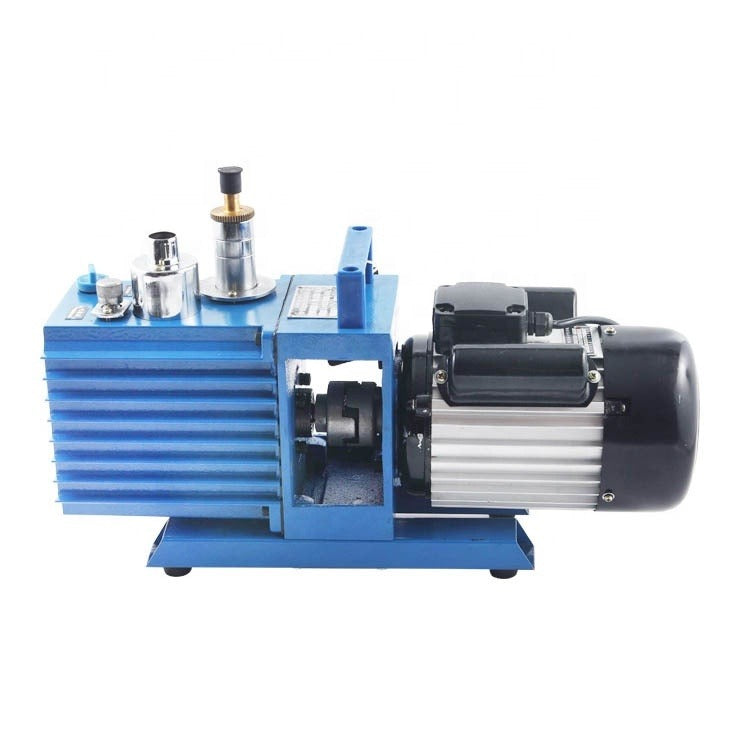

The 2XZ series are two-stage direct-driven rotary vane vacuum pumps (oil-sealed) for laboratory vacuum duties such as drying, filtration and evaporation support. Two models are available - ALAB-2XZ-2 (2 L/s) and ALAB-2XZ-4 (4 L/s) - see the comparison table below for their specifications.
Model Comparison
Specification
ALAB-2XZ-2
ALAB-2XZ-4
Pumping Speed
2 L/s
4 L/s
Ultimate Vacuum
≤6×10⁻² Pa
≤6×10⁻² Pa
Motor Power
370W
550W
Rotating Speed
1400 rpm
1400 rpm
Oil Capacity
0.48L
0.55L
Outlet Diameter
D30mm (or KF-25)
D30mm (or KF-25)
Noise
<68 dBA
<68 dBA
Weight
22 kg
24 kg
Voltage
220V / 110V
220V / 110V
Power Source
Electric
Electric
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
