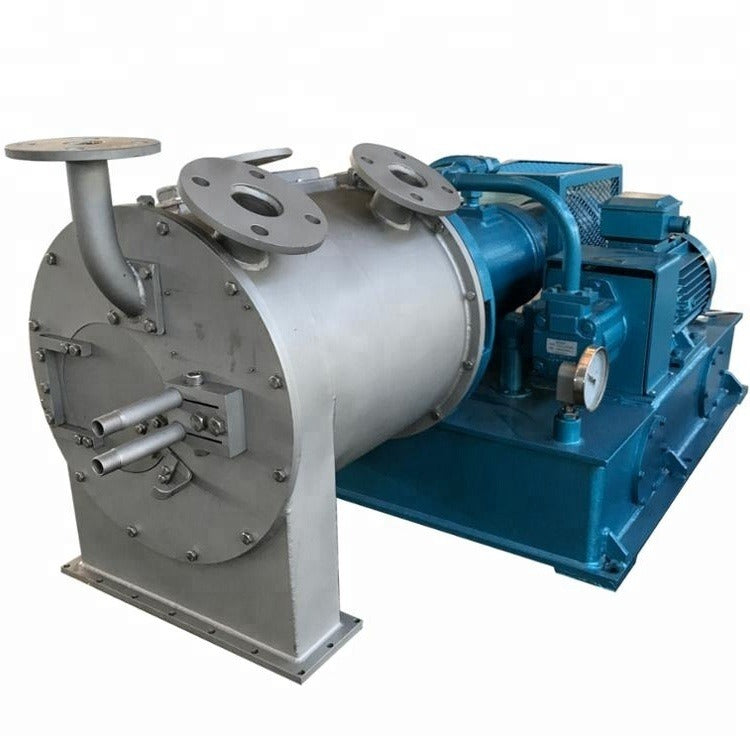

Salt Pusher Centrifuge ALAB-PP-60

Automatic continuous salt refining equipment usage table salt making machine

Product Overviews

PP Series Double Stage Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.

The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor collector.

The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket.

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore the desired humidity of the cake can be guaranteed.

Afterwards, the cake is continuously discharged out of the basket.

In case of high purity for the solid product, effective washing can be carried out in the centrifuge.

Flow chart

Processing picture

Factory

Specifications

• Basket Diameter: 560/630mm
• Bearing: SKF
• Function: Remove the water from salt mixture
• MOC: SS316 & DSS
• Machine speed: 1900rpm
• Mositure: 3-4% after separation
• Name: salt making machine
• Operative oil pressure: 8Mpa
• Stroke of pusher mechanism: 40-108times/min
• core components: Bearing, Motor, Gear, Pump
• dimension(l*w*h): 3660*1420*2078mm
• machinery test report: Provided
• output capacity: 20t/hr
• place of origin: Jiangsu, China
• power(w): 45kw
• product type: Separation Machine
• video outgoing-inspection: Provided
• voltage: 220V-480V, 50HZ, 3P
• warranty: 1 Year
