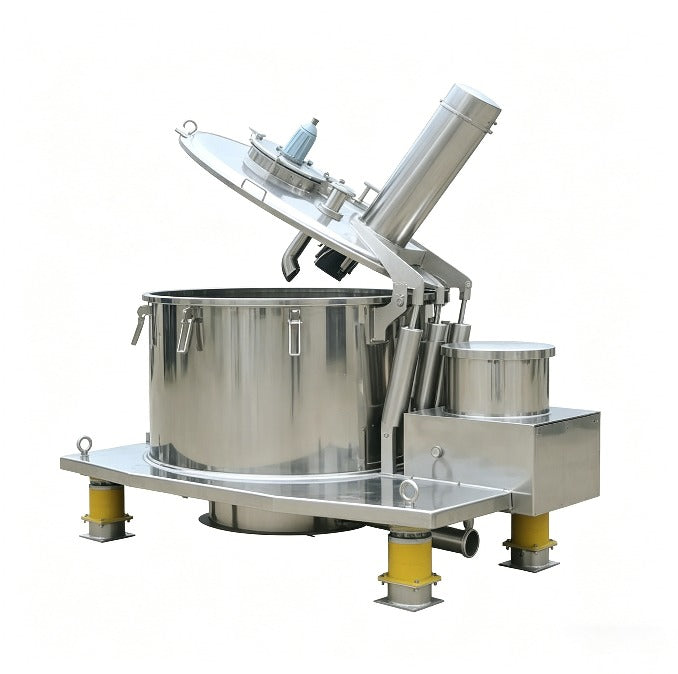

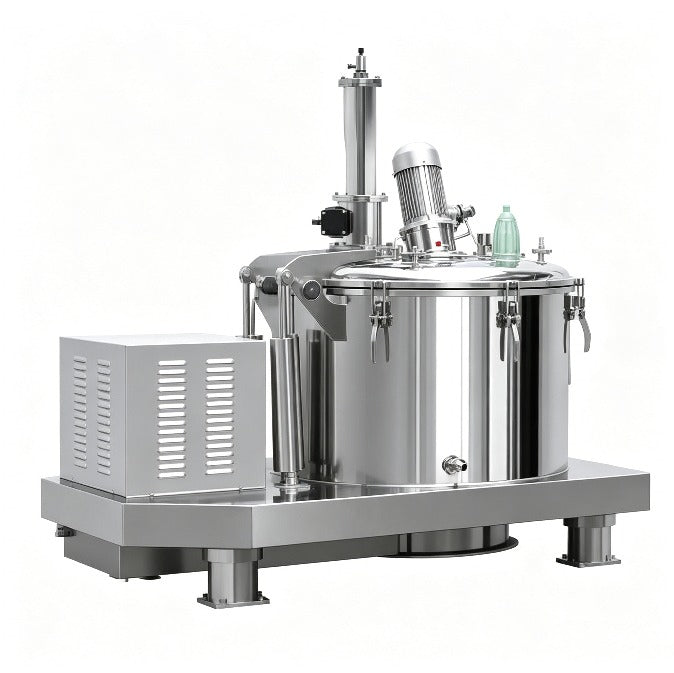

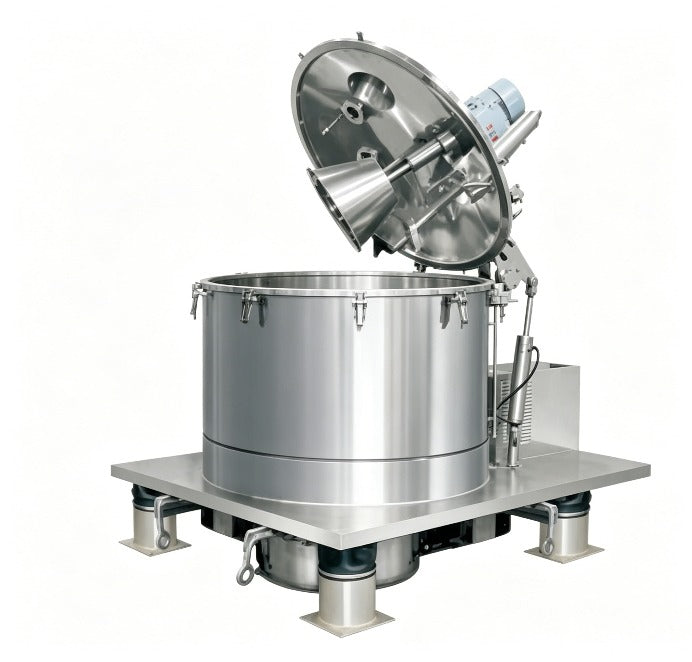

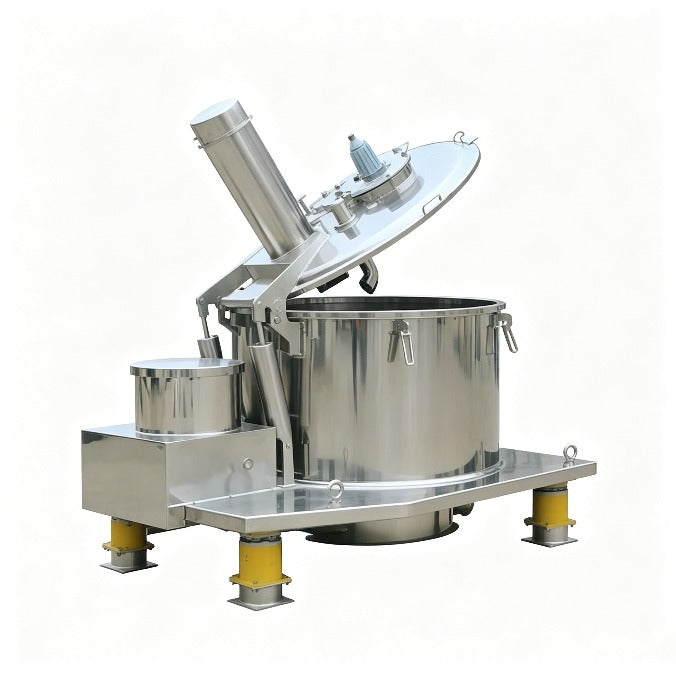

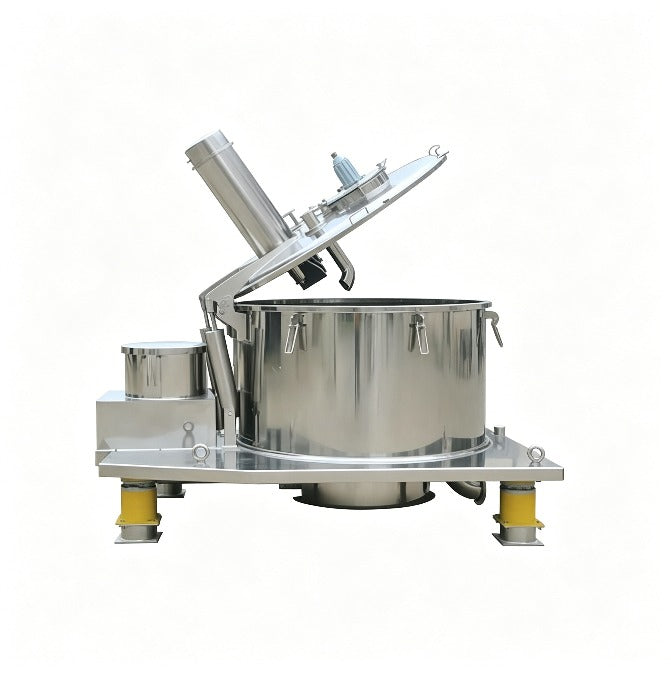

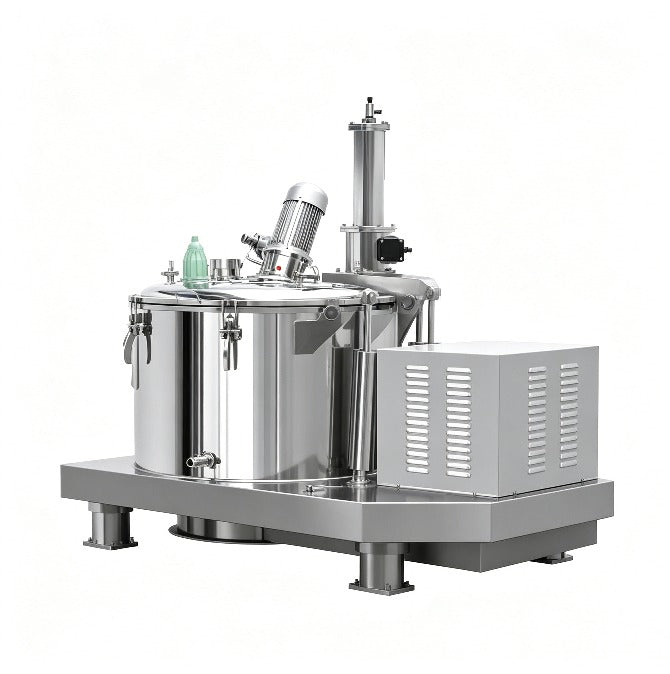

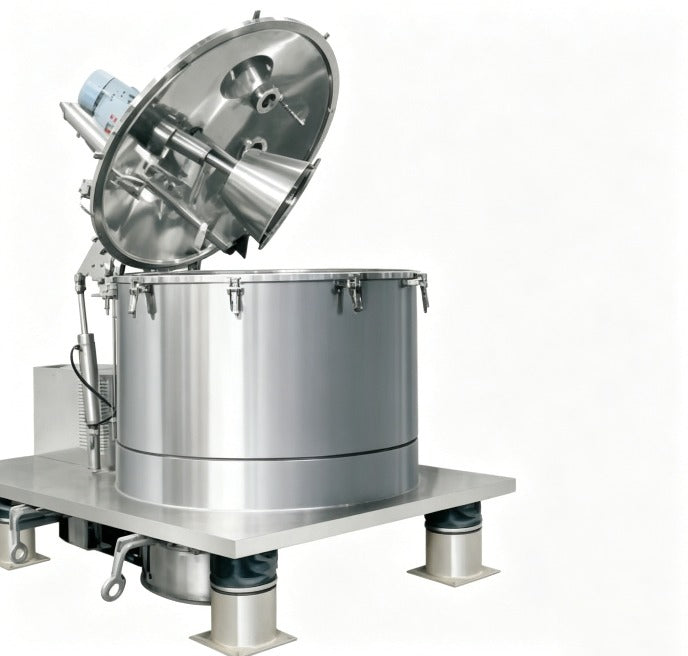

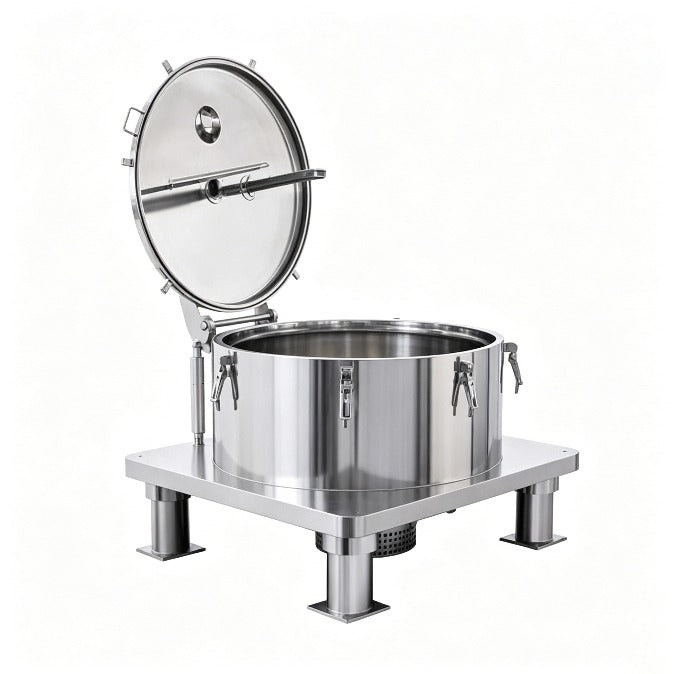

Scraper Bottom-Discharge Centrifuge ALAB-PPSBD

fully automatic solid-liquid separation system (bottom discharge centrifuge)

working principle — motor drives drum, program-controlled feeding

cake removal rate higher than 99%

suitable for suspensions with solid particles > 0.01mm, widely used in chemical industry and for fragile products

example materials: gypsum, thiamine, glauberite, iron sulfate, copper sulfate, nickel sulfate, potassium compounds

upper cover with feeding port, cleaning water port, observation port and light hole

bowl is main part of scraper centrifuge with many small holes

scraper device makes machine taller than normal filter centrifuge

Specifications

• product type: centrifuge
• Capacity: 501-1000l/h
• setting speed: 4000 RPM
• voltage: 110,220,380,440,460V
• core components: PLC, Bearing, Motor
• power(w): 2.2-11 KW
• machinery test report: Provided
• warranty: 1 Year
• video outgoing-inspection: Provided
• place of origin: Jiangsu, China
• Weight (kg): 2000
• Application: Chemical, food, light industry
• Discharge: automatic bottom discharge
• Operation Type: Batch
• MOC: 304,316
• Electrical control cabinet: optional
