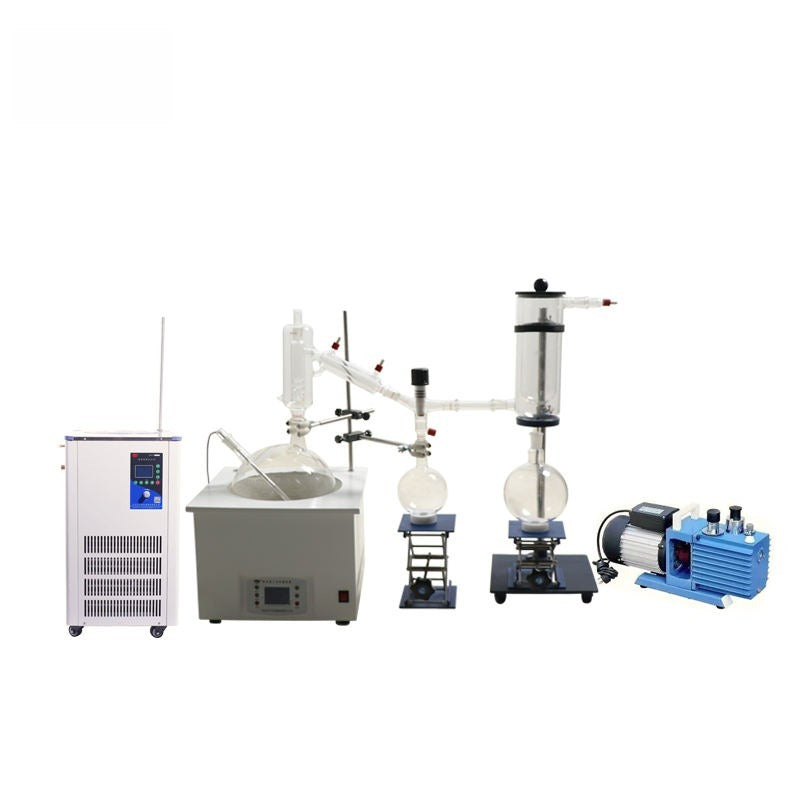

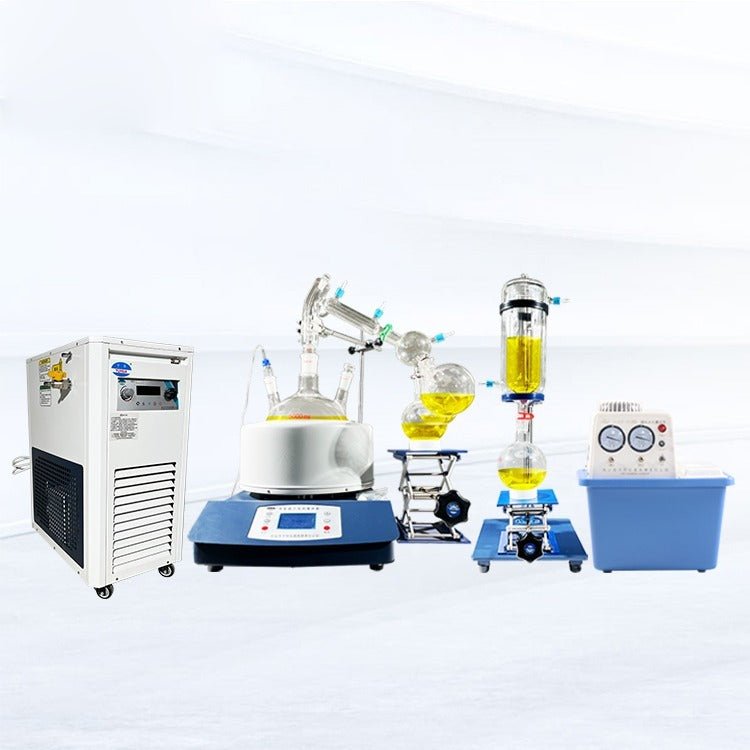

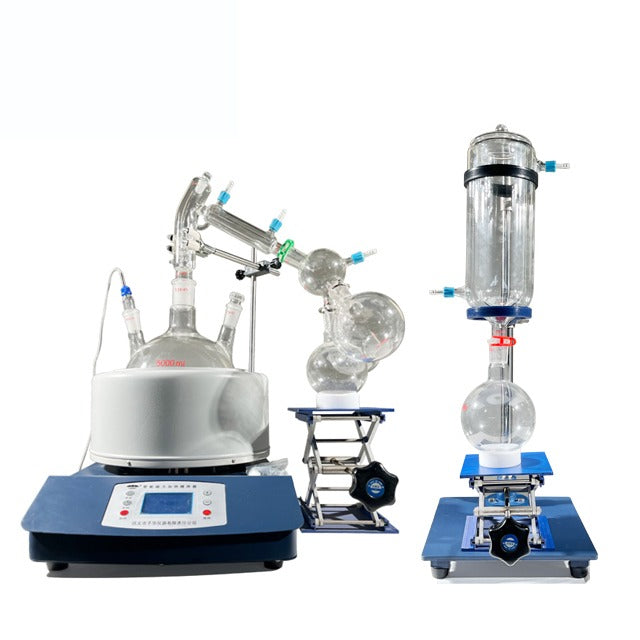

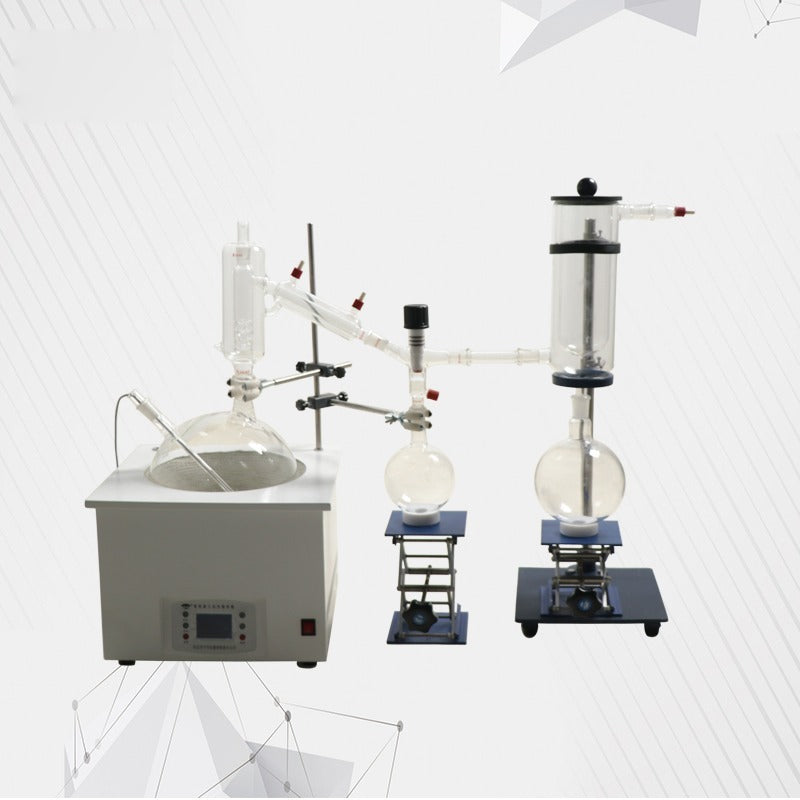

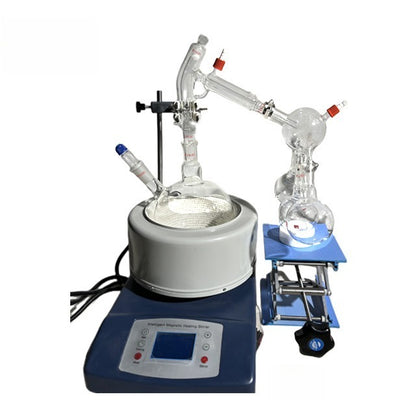

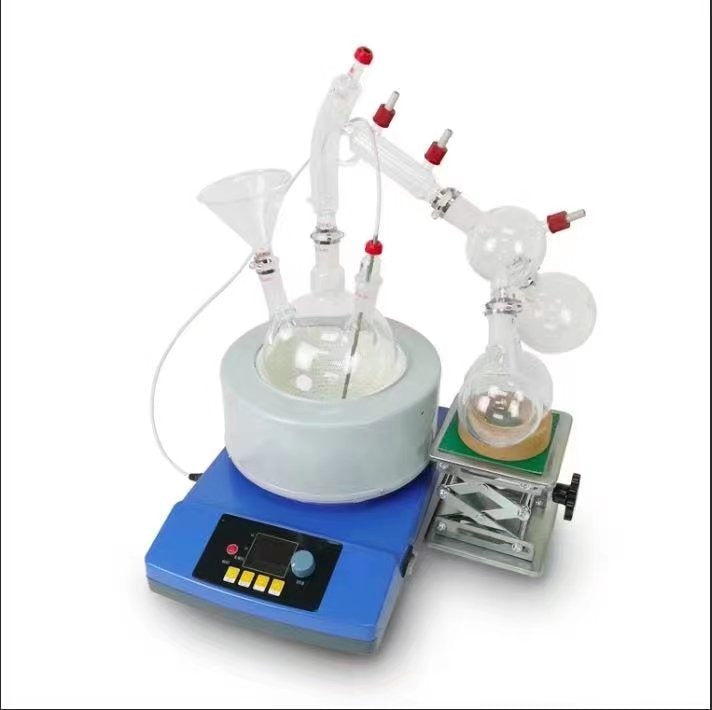

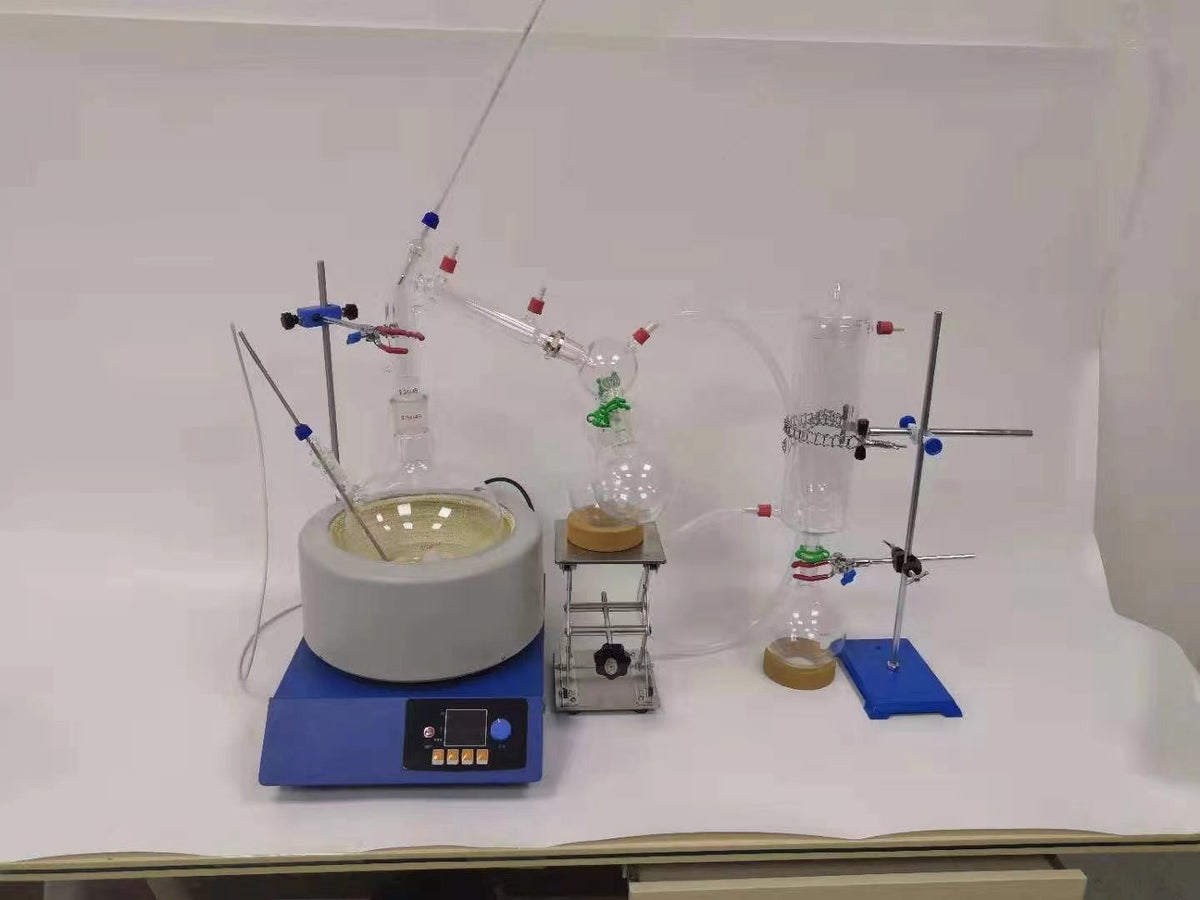

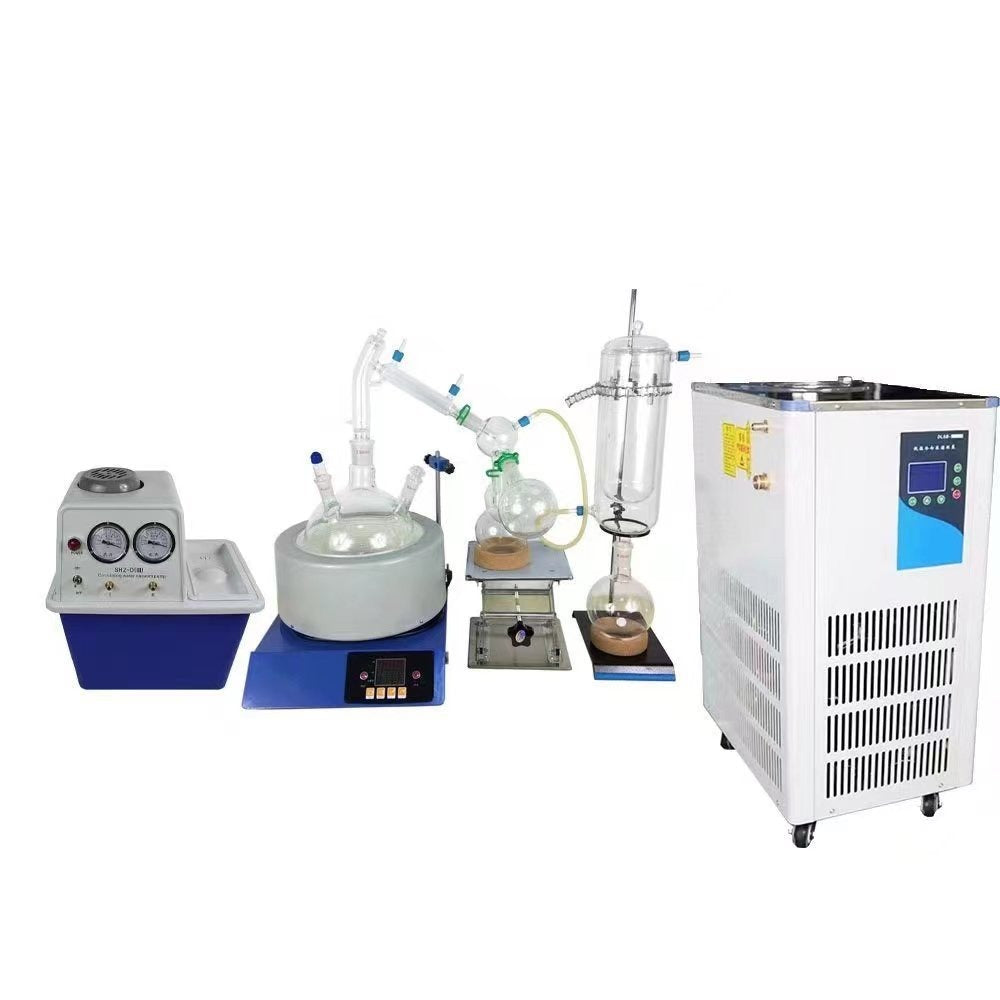

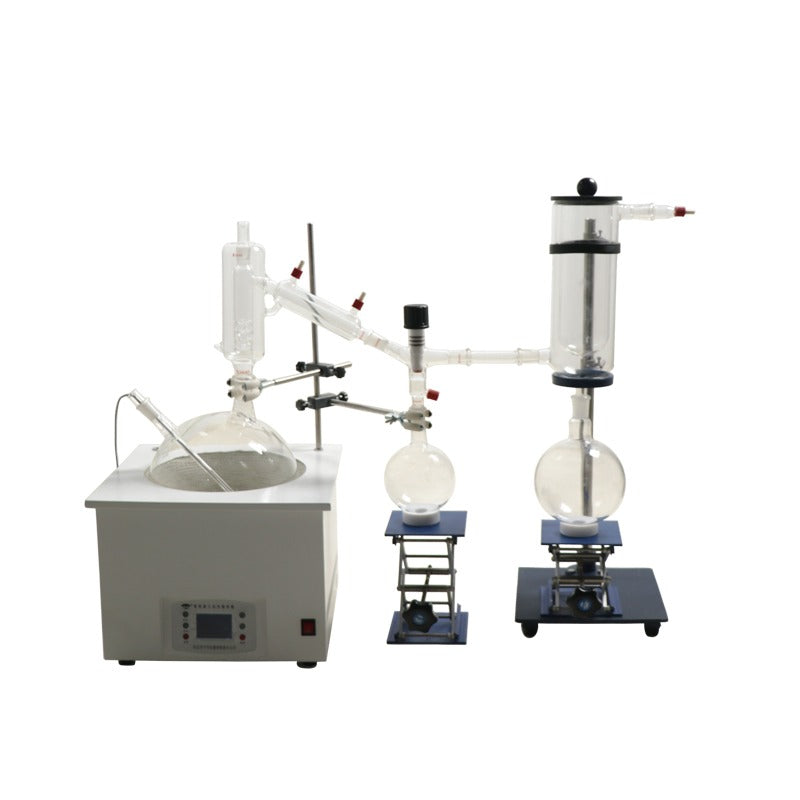

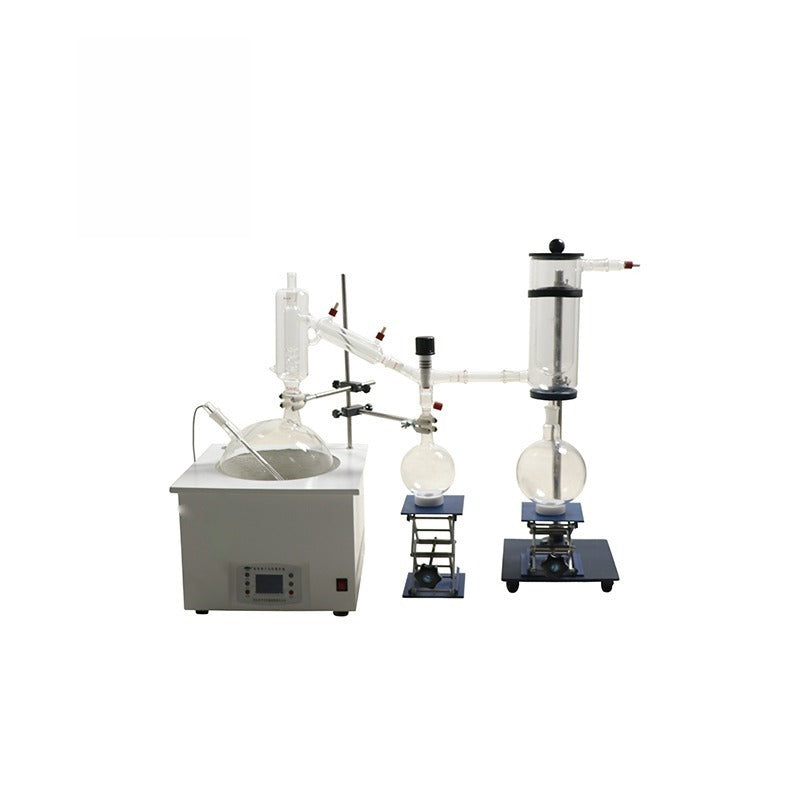

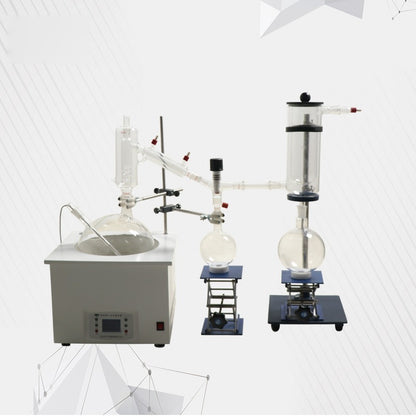

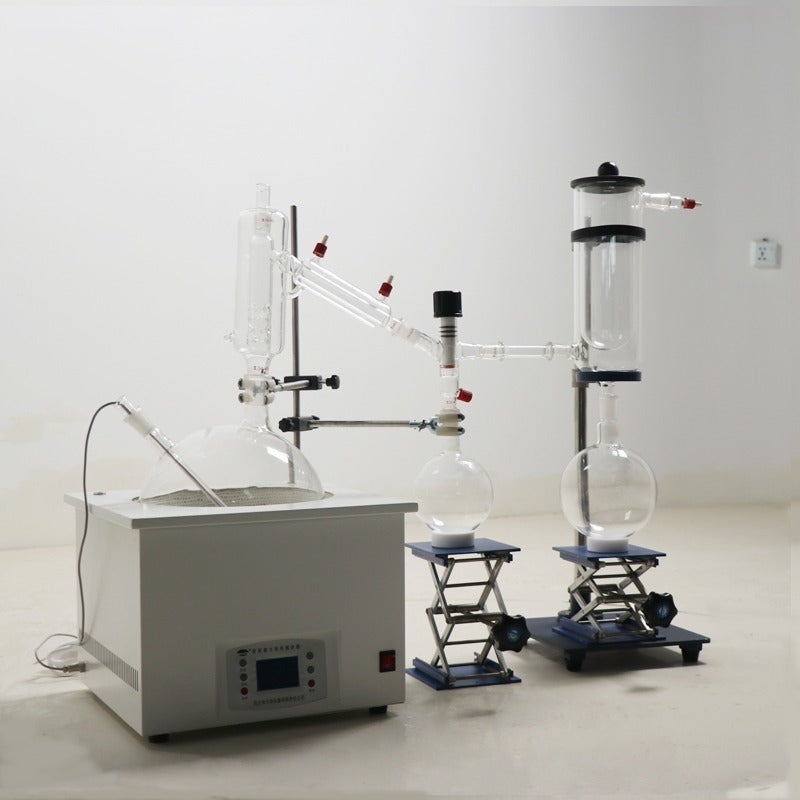

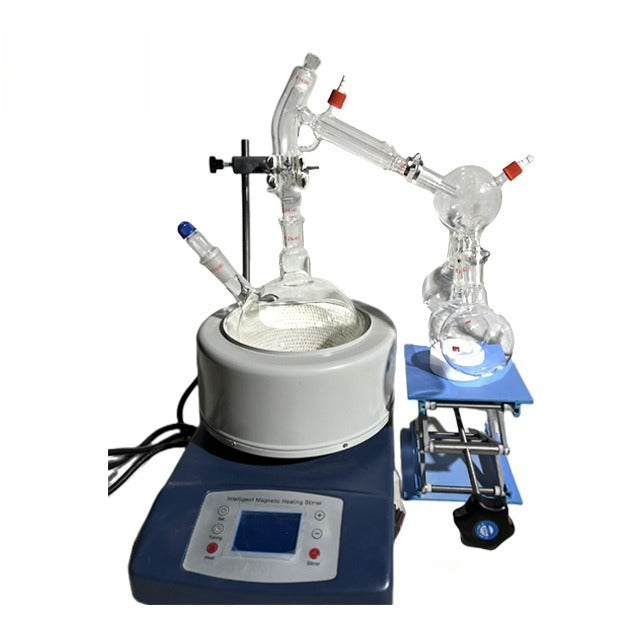

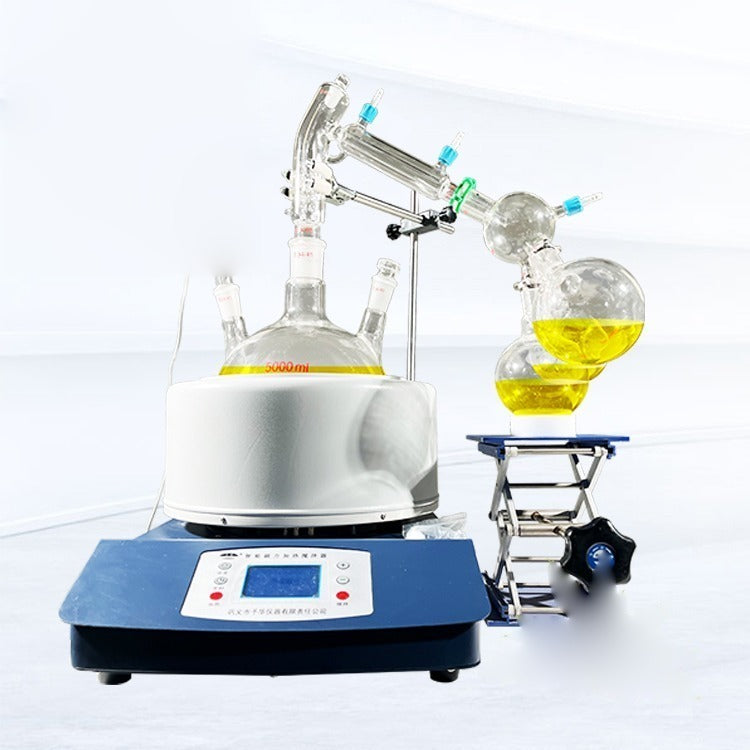

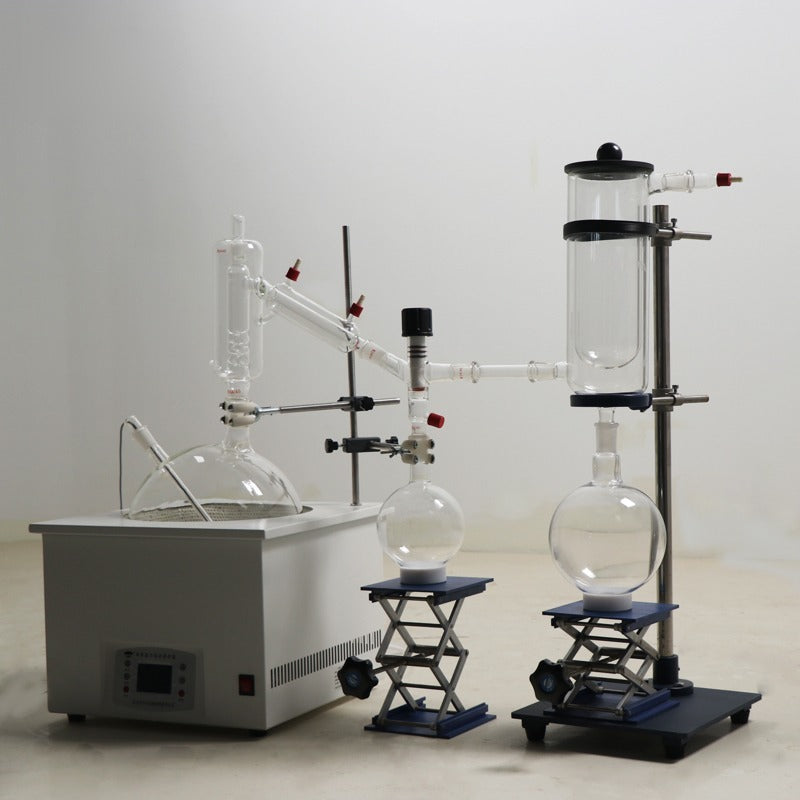

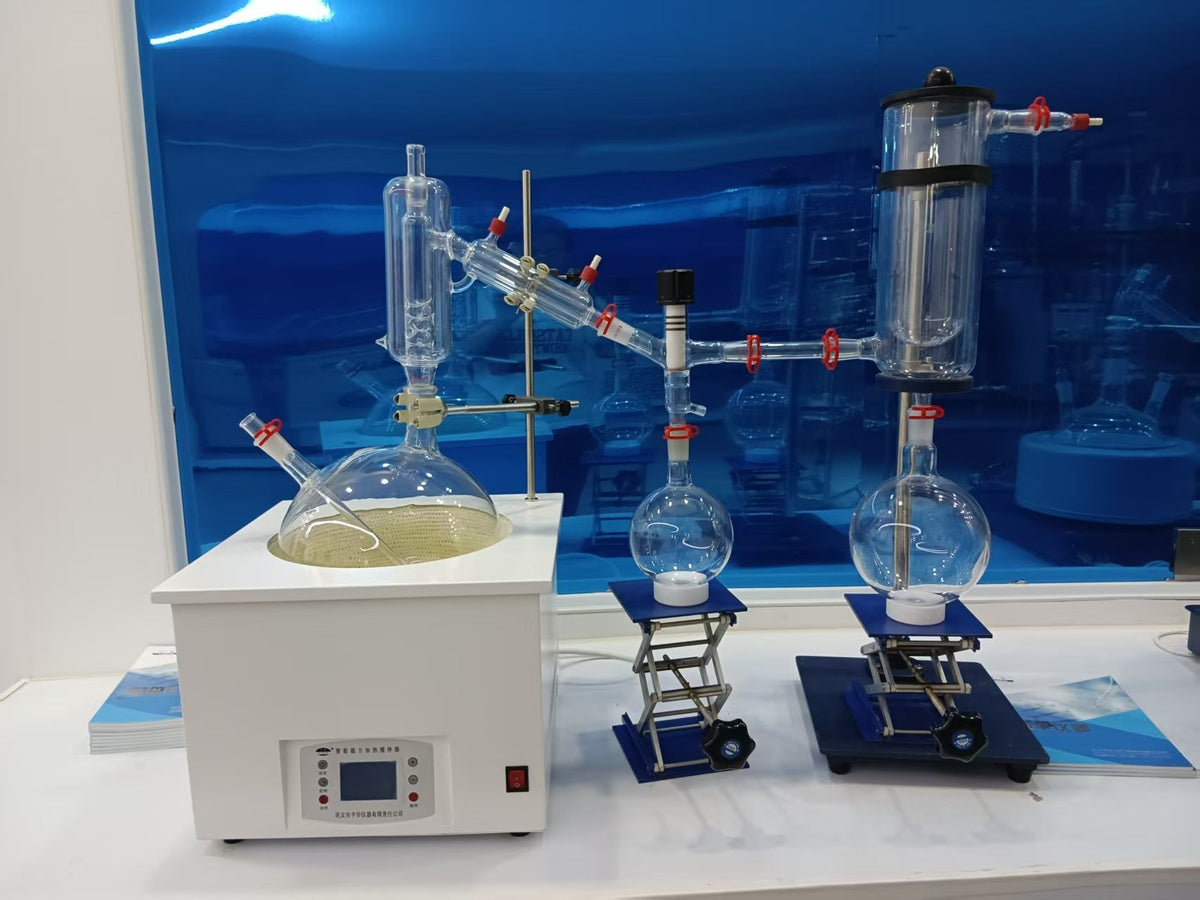

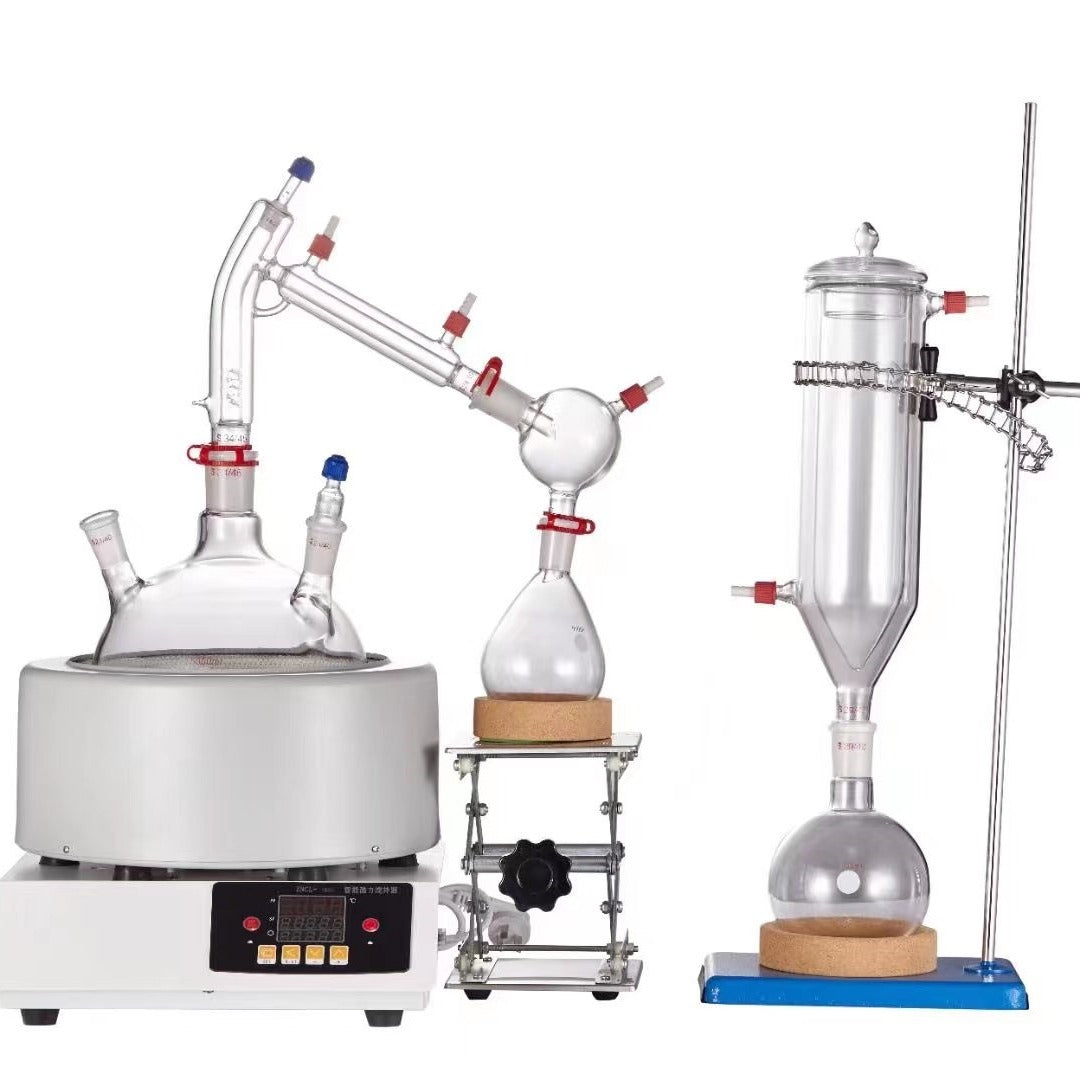

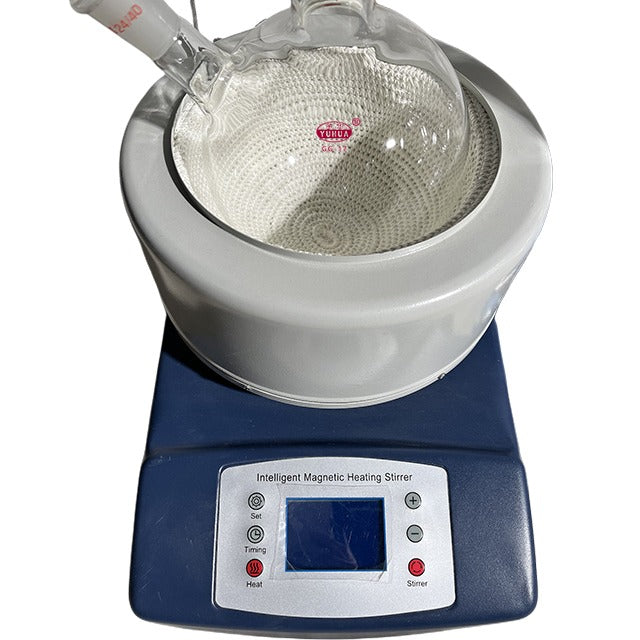

The DCZ series are short path distillation kits in borosilicate glass 3.3 for vacuum distillation work in research labs, with a magnetic stirring heating mantle. Verified specifications from the model line Technical Data table: distillation vessel capacities from 2L to 20L, heating temperature ambient to 350°C, working pressure around 5 Pa.

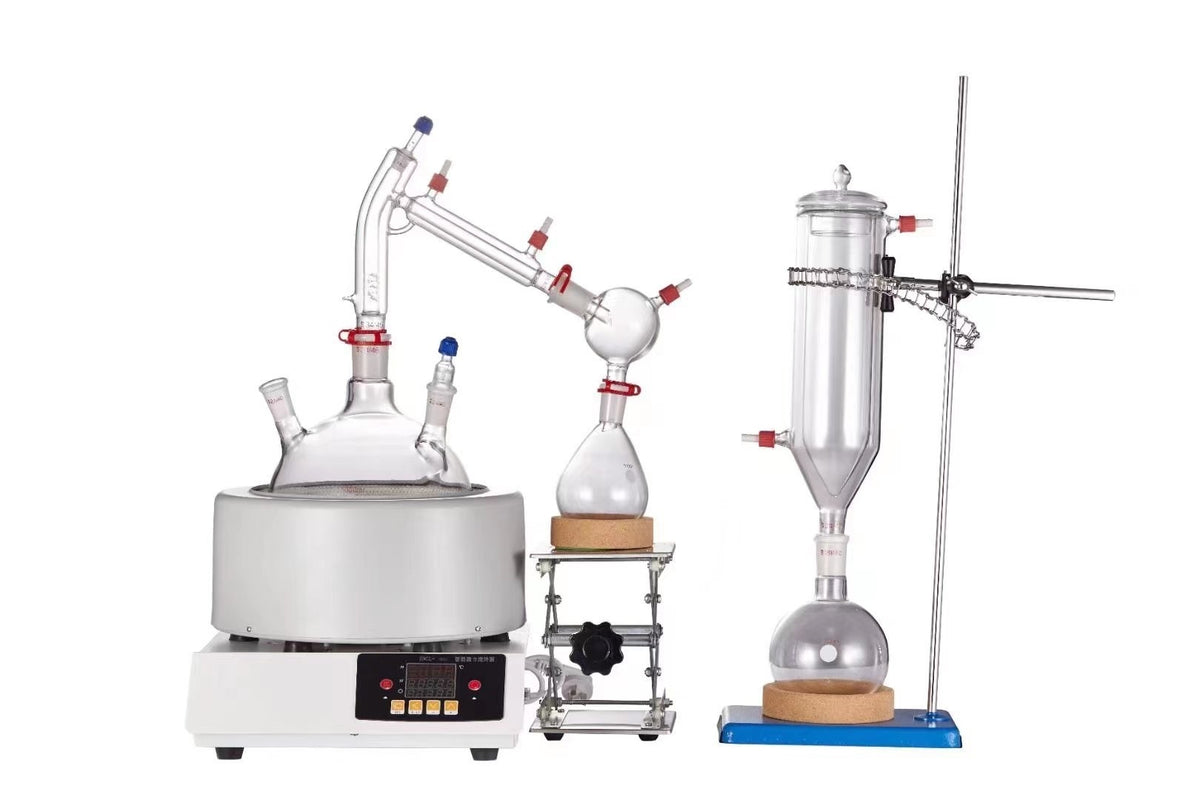

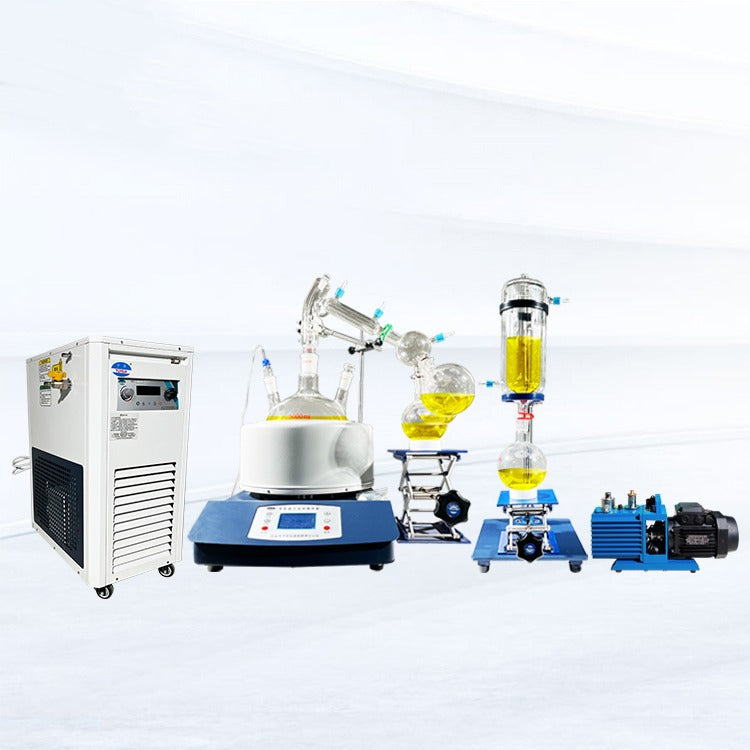

This listing also includes the SPD all-in-one kit line, which follows the same 2L to 20L vessel ladder, ambient to 350°C heating and around 5 Pa working pressure, and adds a standard 34/45 distillation head and a 220V single-phase chiller.
Model Comparison
Specification
ALAB-DCZ-2L
ALAB-DCZ-5L
ALAB-DCZ-10L
ALAB-DCZ-20L
ALAB-SPD-2L
ALAB-SPD-5L
ALAB-SPD-10L
ALAB-SPD-20L
Distillation Vessel
2L
5L
10L
20L
2L
5L
10L
20L
Receiver Flask
1L flask × 2 pcs
1L flask × 2 pcs
2L flask × 1 pc + 1L flask × 1 pc
2L flask × 1 pc + 1L flask × 1 pc
1 pc 500 ml + 2 pcs 100 ml
1 pc 1000 ml + 2 pcs 500 ml
-
1 pc 10000 ml + 2 pcs 5000 ml
Round Bottom Flask
-
-
-
-
2L, 3-neck
5L, 3-neck
-
20L, 3-neck
Heating Power
630W
1100W
2100W
-
-
-
-
-
Stirring Speed Range
50–1800 rpm
50–1800 rpm
50–1800 rpm
50–1800 rpm
-
-
-
-
Heating Temperature
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Ambient to 350°C
Working Pressure
Around 5 Pa
Around 5 Pa
Around 5 Pa
Around 5 Pa
Around 5 Pa
Around 5 Pa
Around 5 Pa
Around 5 Pa
Material
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate Glass 3.3
Borosilicate 3.3 Glass
Borosilicate 3.3 Glass
Borosilicate 3.3 Glass
Borosilicate 3.3 Glass
Distillation Head
-
-
-
-
Standard 34/45
Standard 34/45
Standard 34/45
Standard 34/45
Chiller
-
-
-
-
220V single-phase
220V single-phase
220V single-phase
220V single-phase
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
