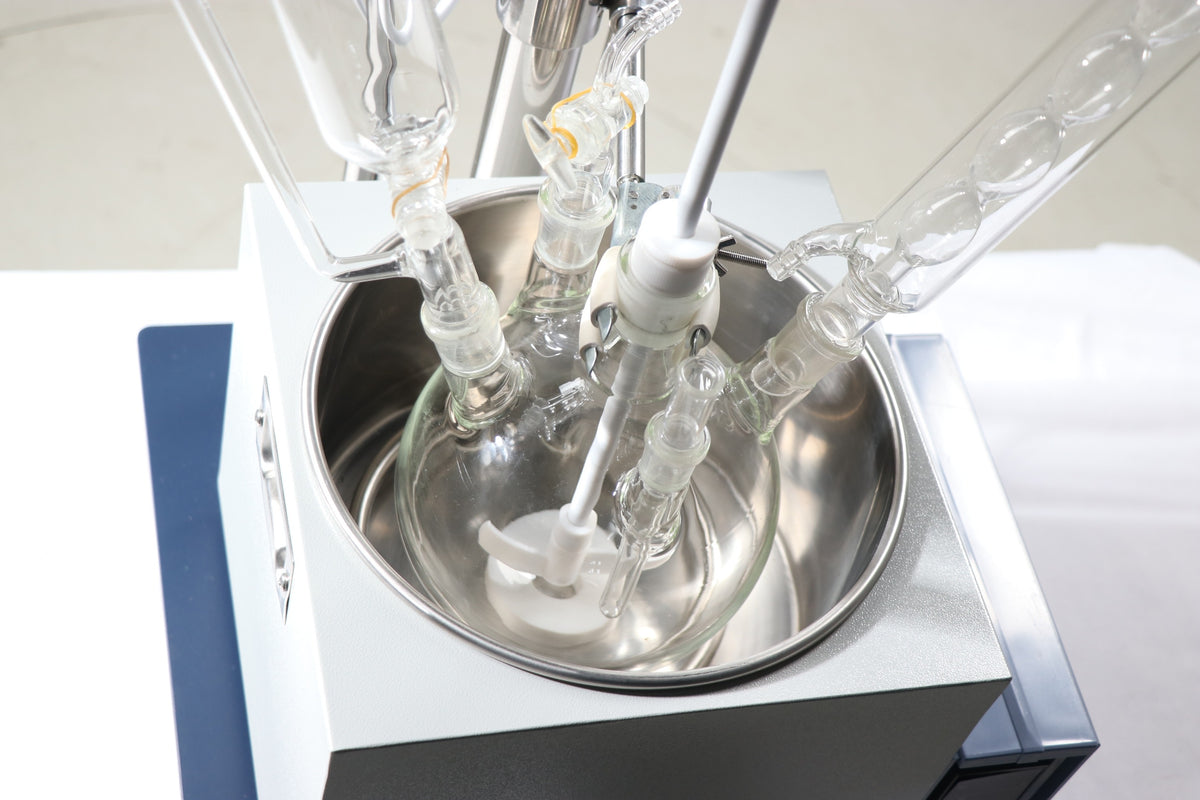

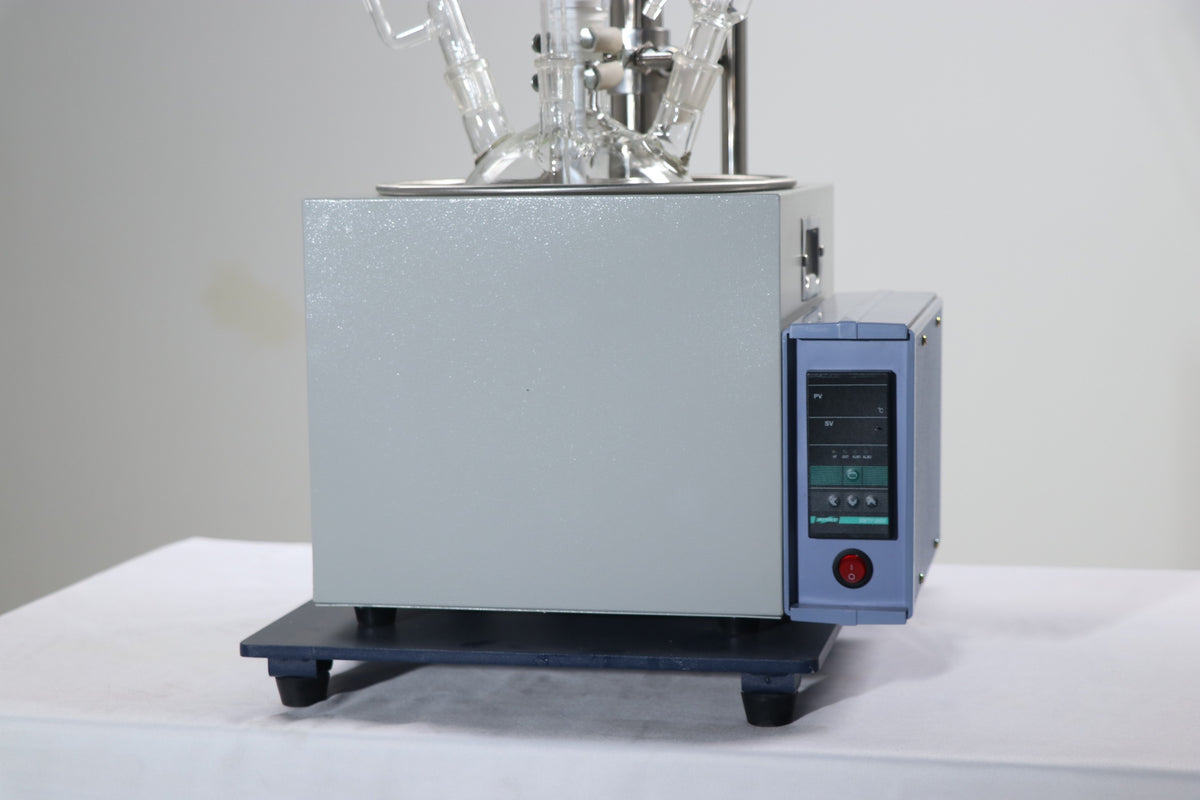

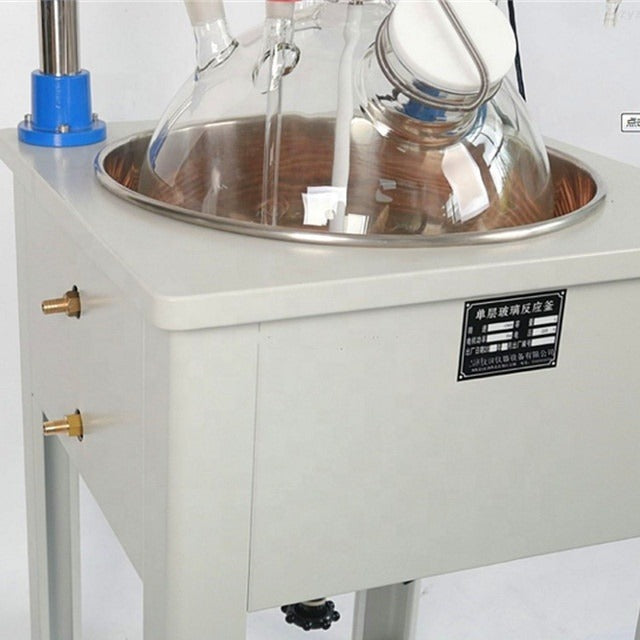

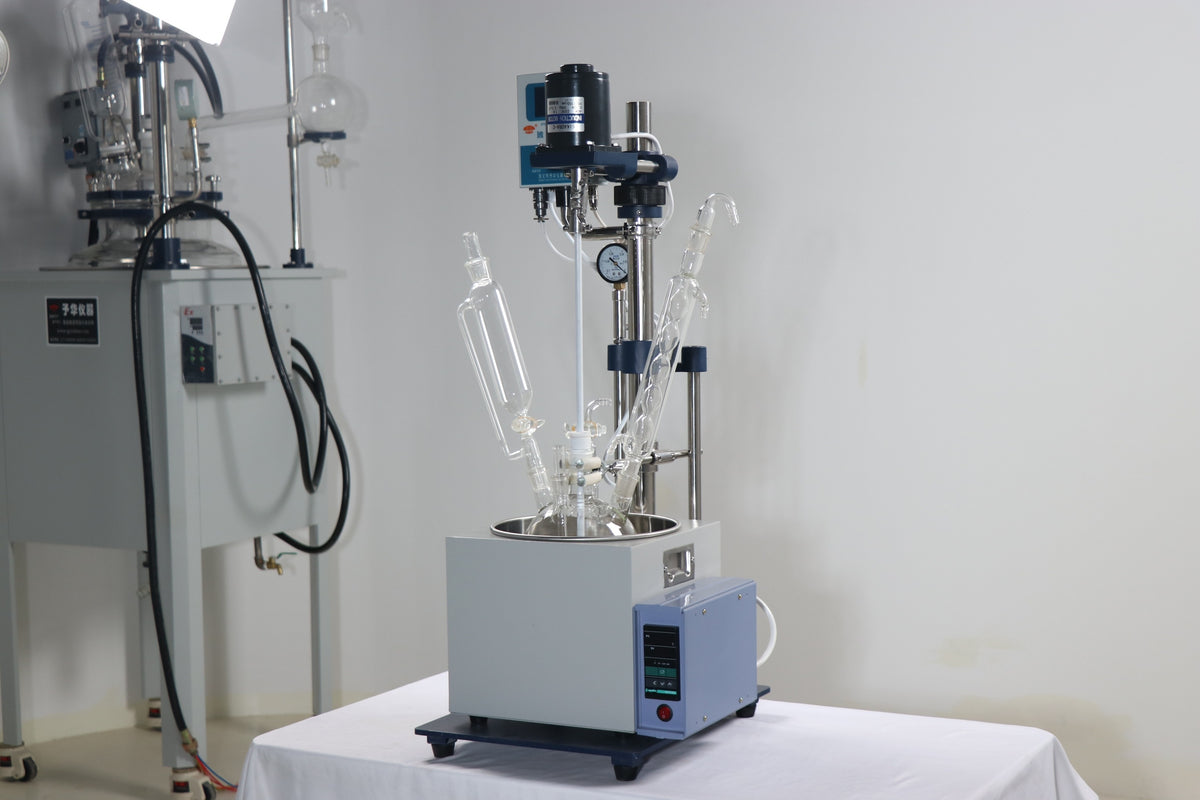

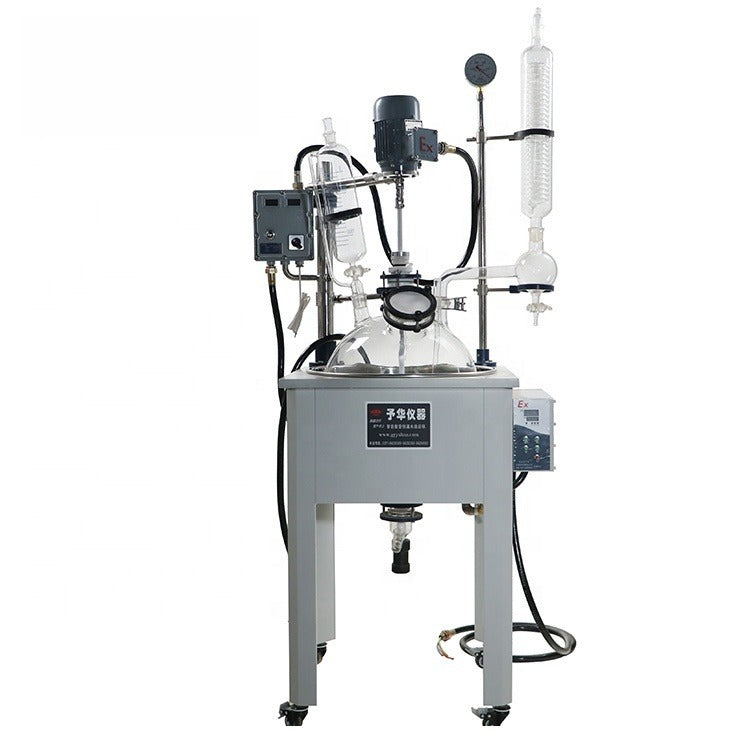

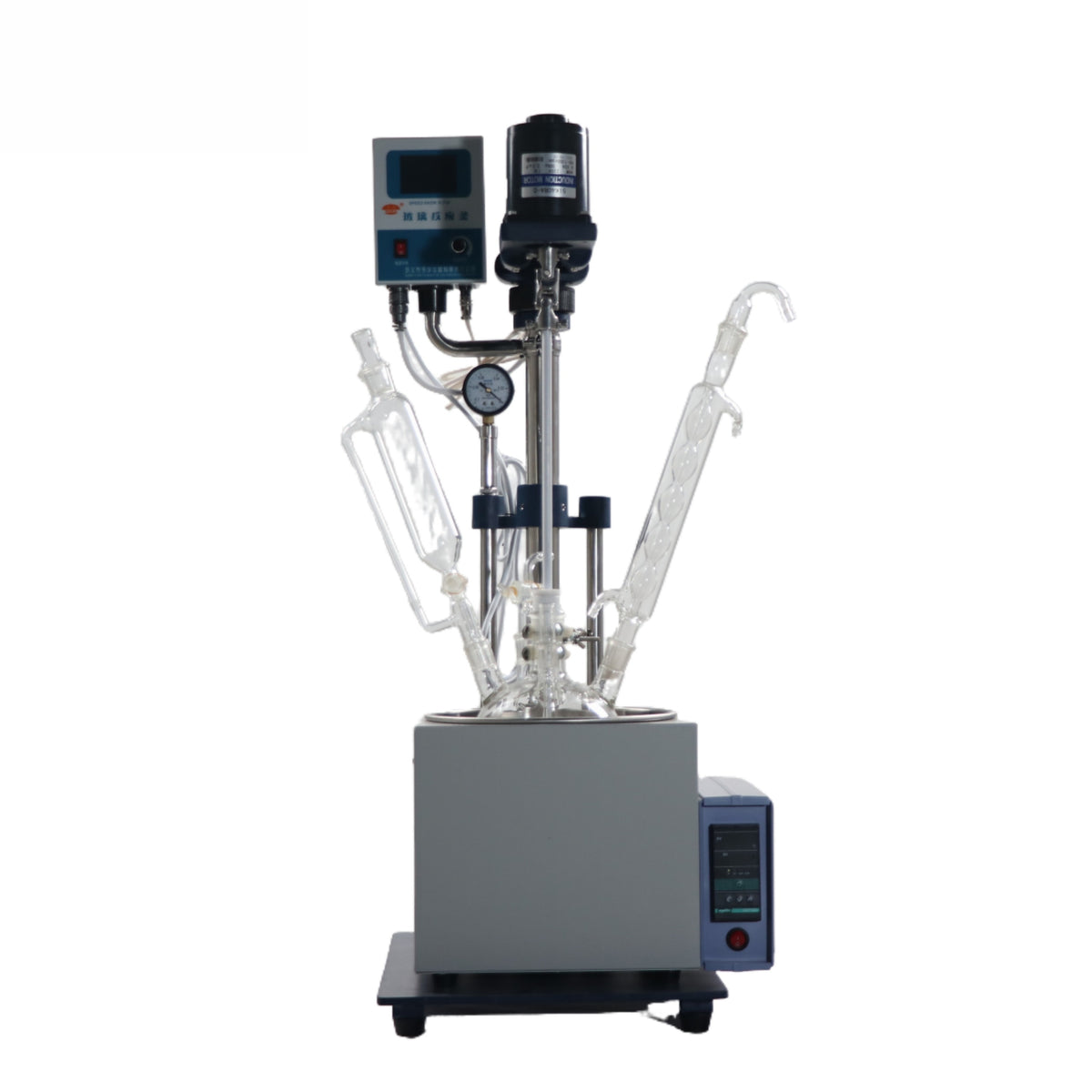

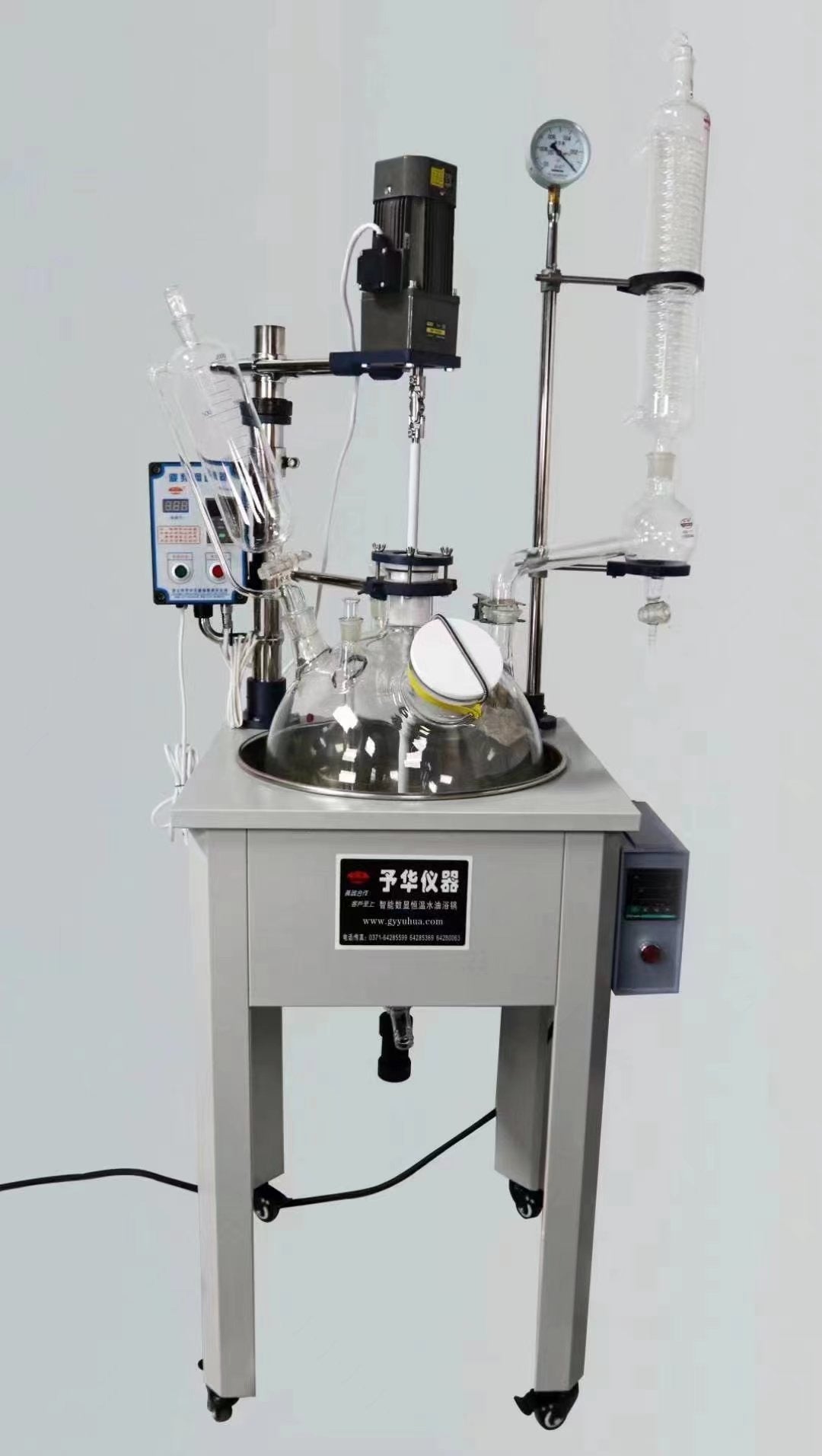

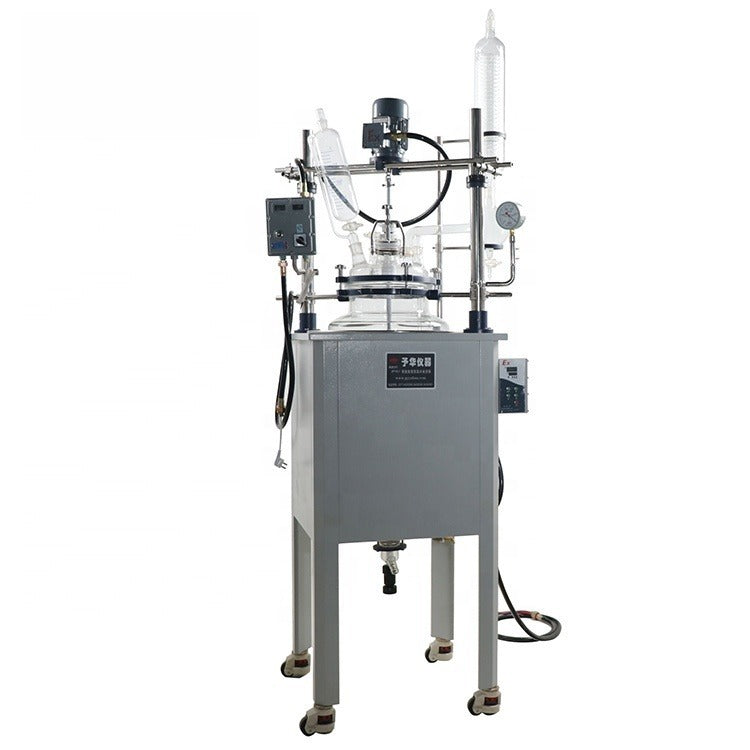

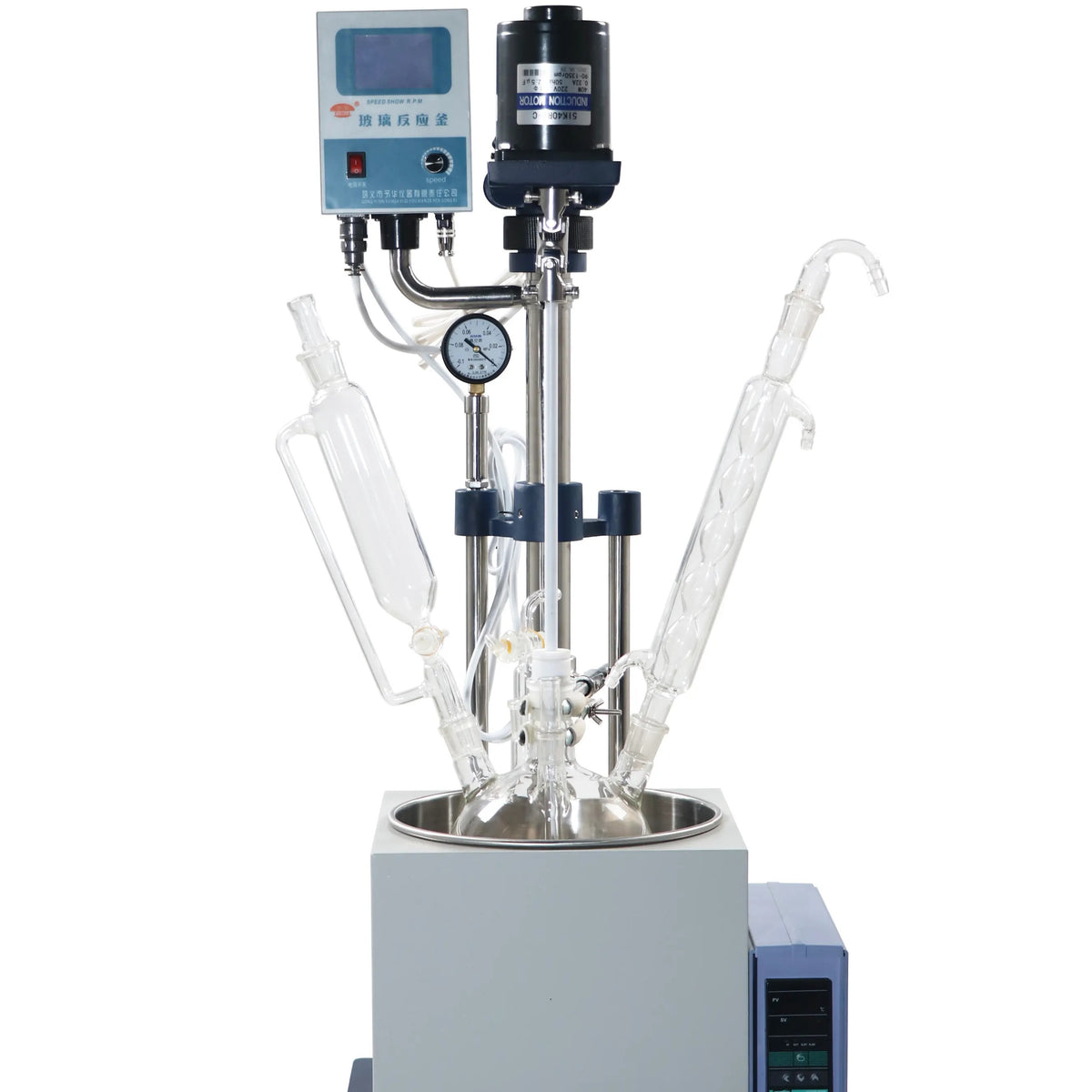

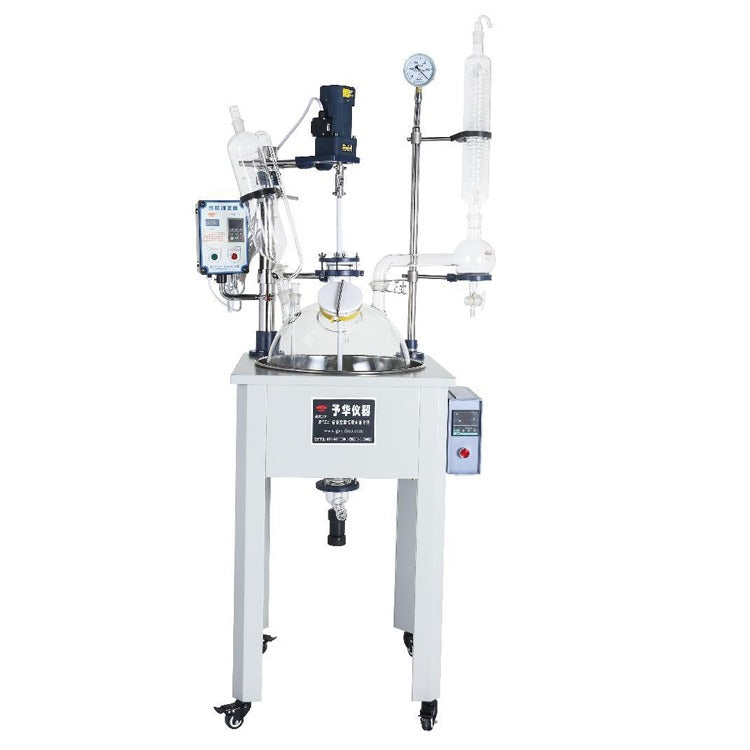

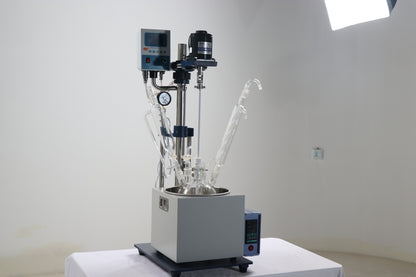

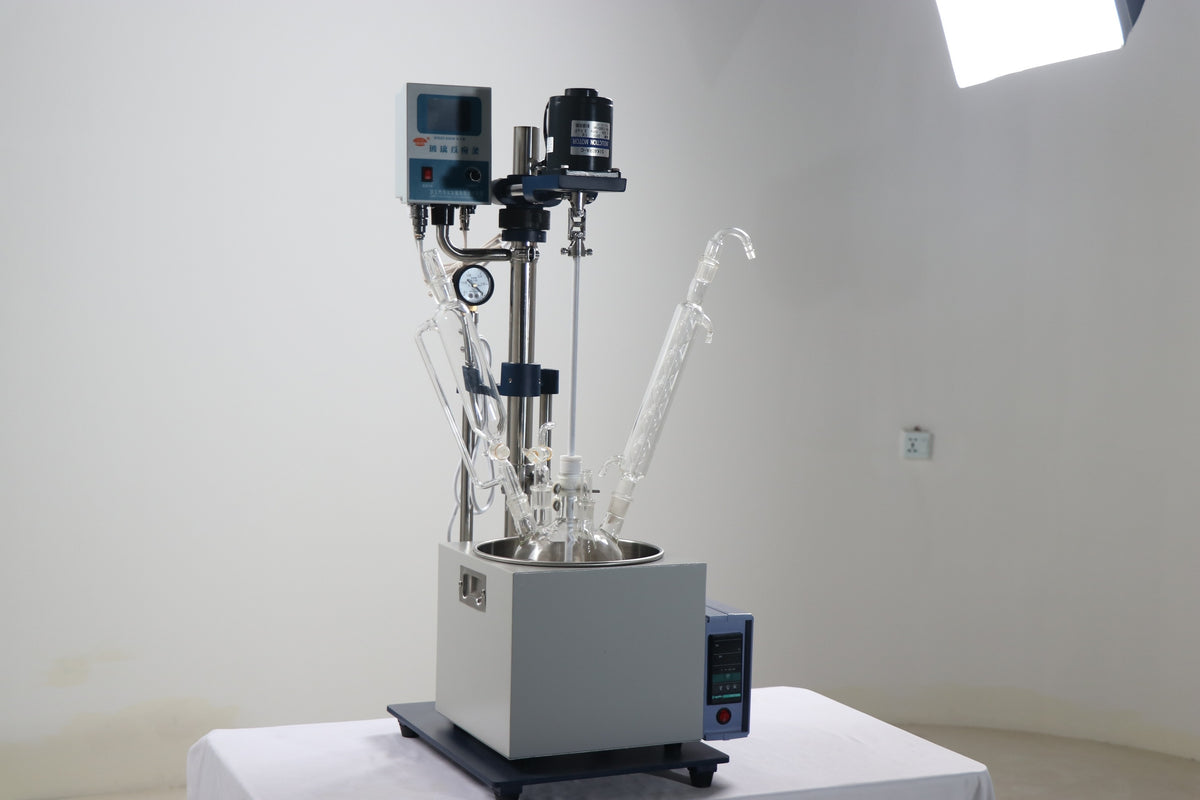

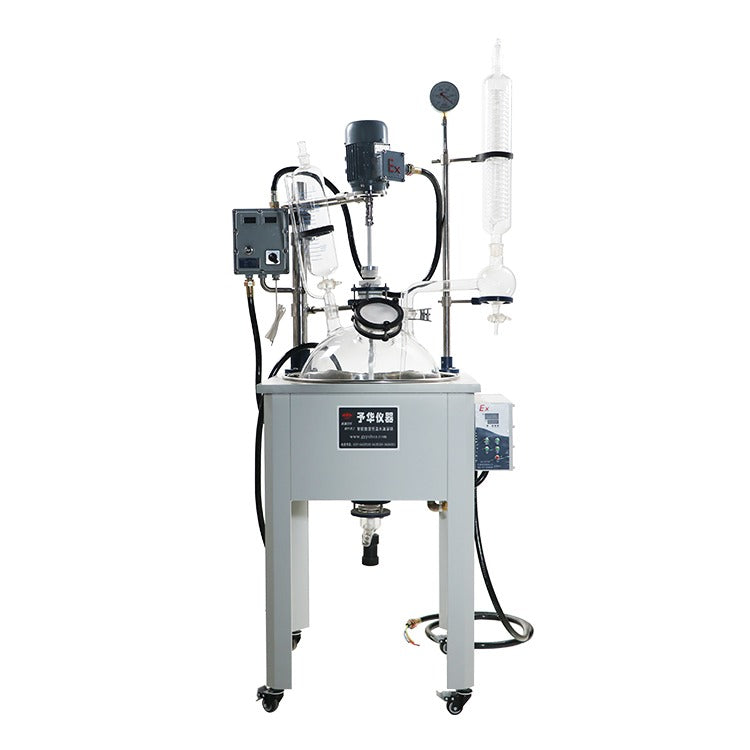

The YDF series is a single-layer glass reactor (reaction kettle) in high borosilicate glass 3.3 with bath heating on a 304 stainless steel frame. Verified family specifications: heating bath temperature from room temperature to 299°C, stirring speed 0–600 rpm (maximum 1000 rpm), vacuum degree −0.098 MPa (vacuum to atmospheric operation), semi-automatic operation, and an optional explosion-proof motor and controller. Sizes run from 1L to 100L.
Model Comparison
Model
Capacity
Heating Bath Power
Stirring Power
Stirring Speed
ALAB-YDF-1L
1L
1 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-2L
2L
1 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-3L
3L
1.8 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-5L
5L
1.8 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-10L
10L
2 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-20L
20L
4 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-30L
30L
—
—
0–600 rpm (max 1000 rpm)
ALAB-YDF-50L
50L
5 kW
120W
0–600 rpm (max 1000 rpm)
ALAB-YDF-80L
80L
6 kW
250W
0–600 rpm (max 1000 rpm)
ALAB-YDF-100L
100L
6 kW
750W
0–600 rpm (max 1000 rpm)
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
