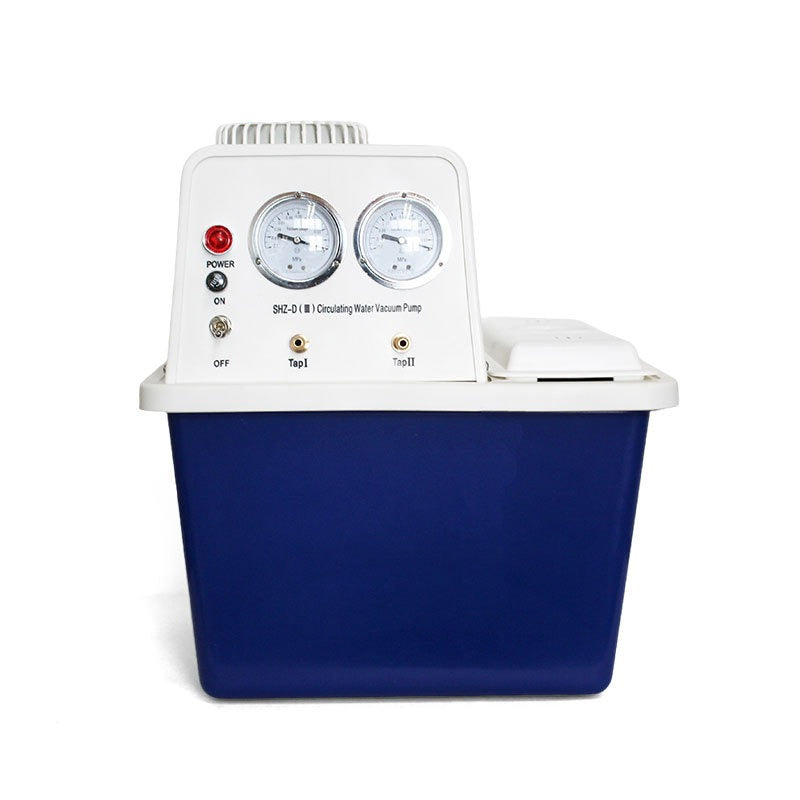

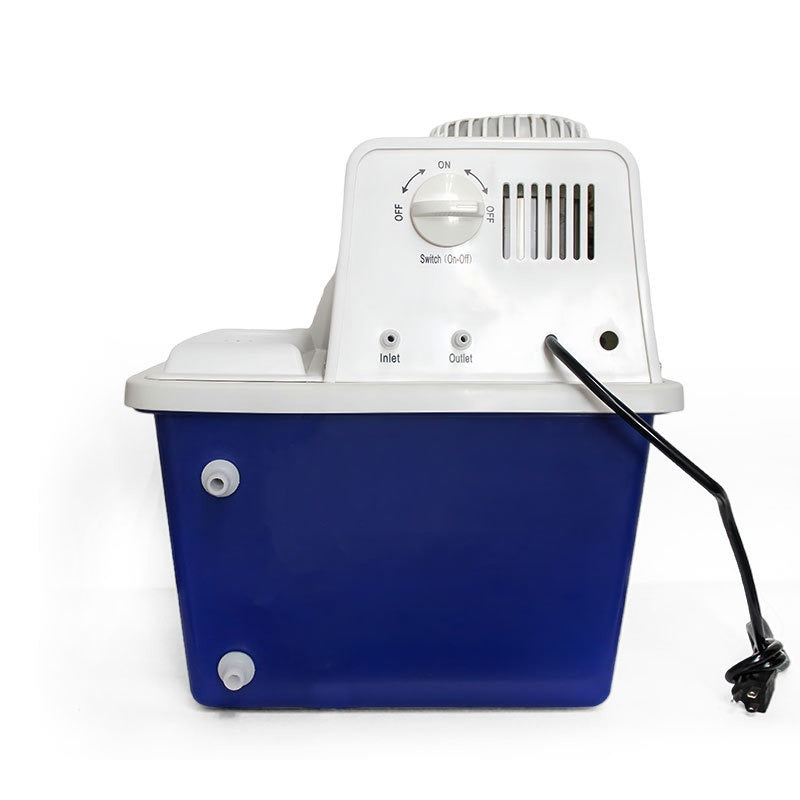

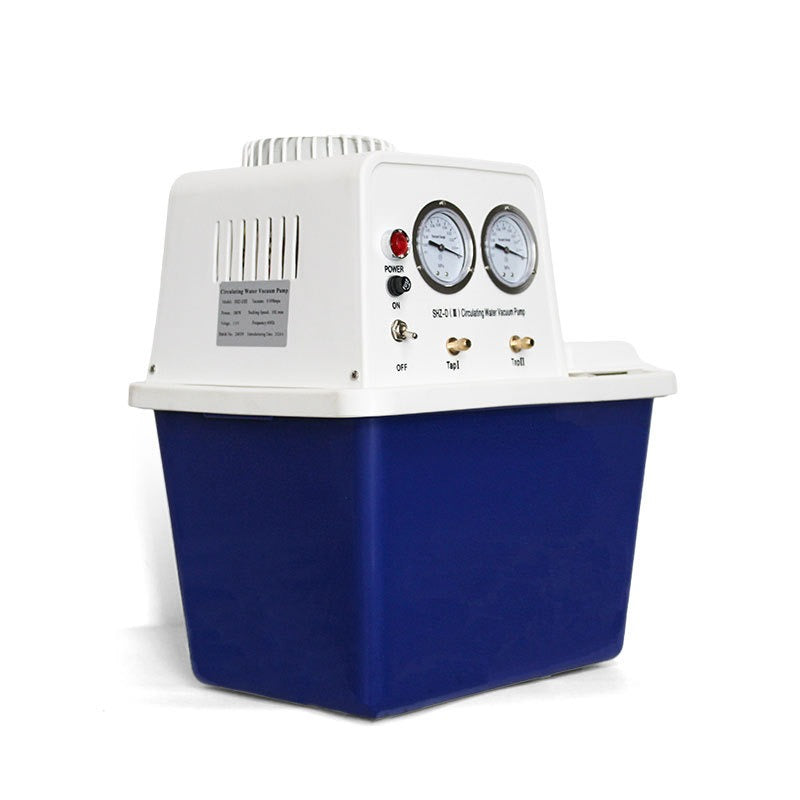

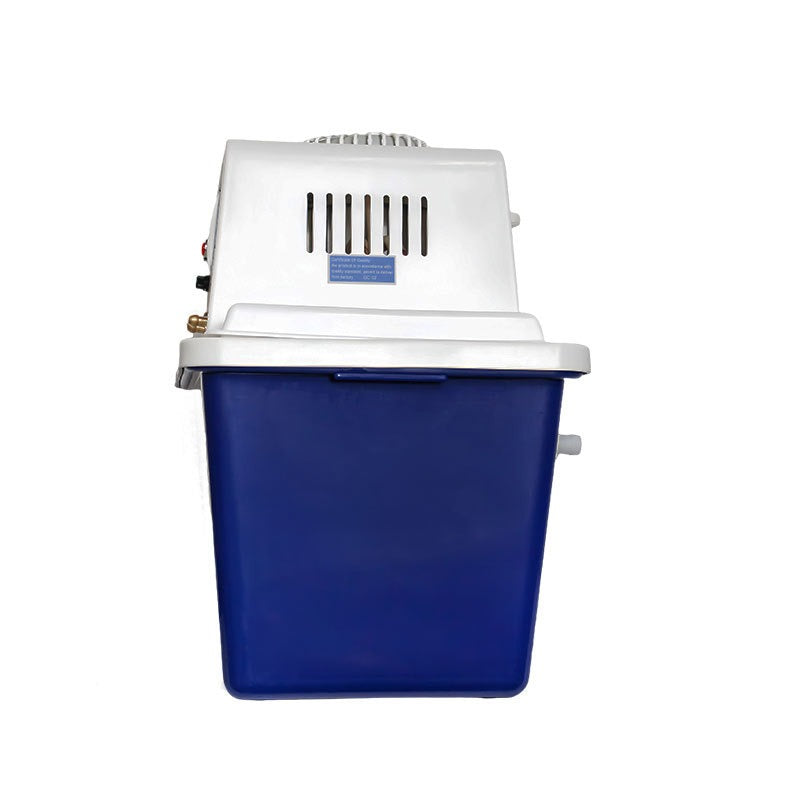

SN-SHZ-D Circulating Water Vacuum Pump, 15L
SN-SHZ-D Circulating Water Vacuum Pump, 15L
Regular price
$175.89 USD
Regular price
Sale price
$175.89 USD
Circulating water vacuum pump with a 15 L ABS tank and two suction heads: 60 L/min flow rate, 0.098 MPa max vacuum and an 180 W asynchronous motor, running on AC 220V/50Hz.
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
Model Comparison
| Specification | SN-SHZ-D |
|---|---|
| Model | SN-SHZ-D (unit nameplate: SHZ-D(III)) |
| Power supply | AC 220V/50Hz |
| Power | 180 W |
| Flow rate | 60 L/min |
| Suction heads | 2 |
| Max vacuum | 0.098 MPa |
| Single-head extraction | 10 L/min |
| Lift | 8 m |
| Tank capacity | 15 L |
| Tank material | ABS |
| Motor | Asynchronous motor, 2800 rpm |
| Product size | 400 x 280 x 240 mm |
| Net weight | 9.5-10 kg |
| Package | 45 x 35 x 52 cm, 10.3 kg gross |
