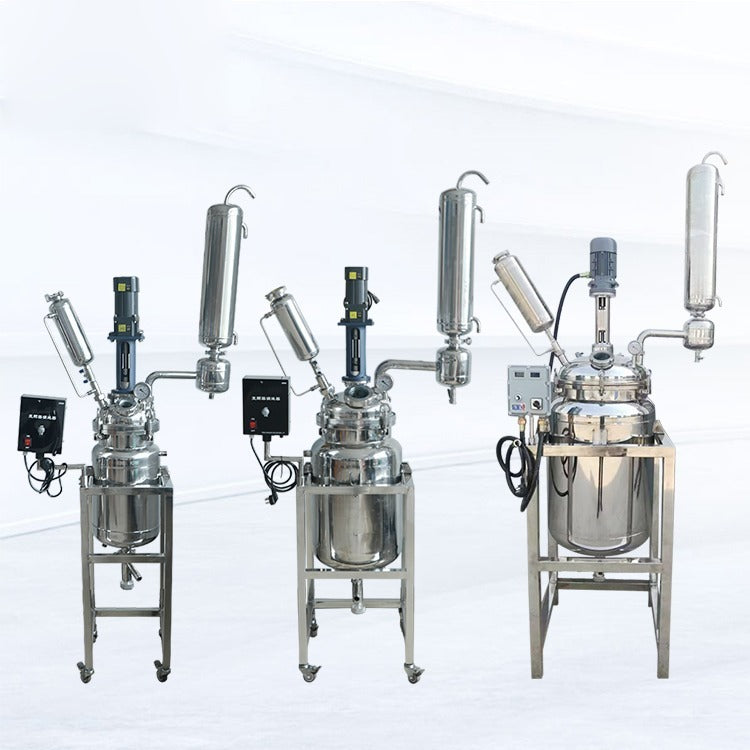

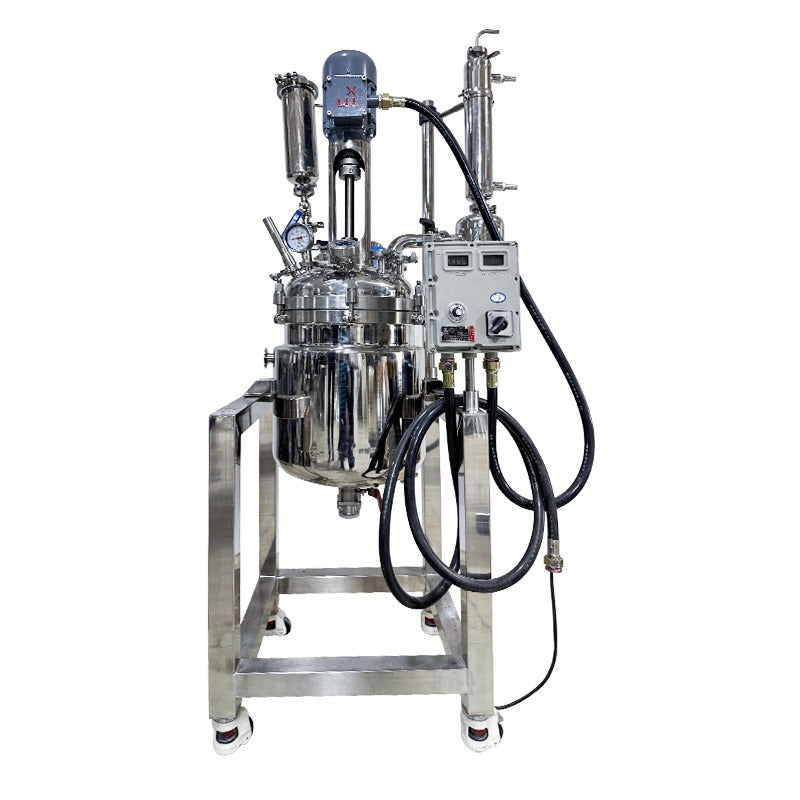

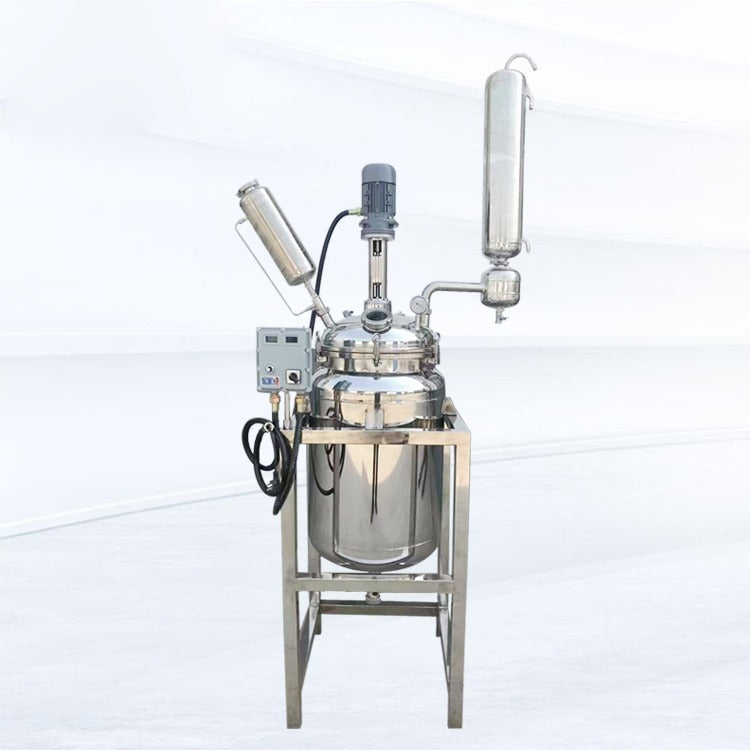

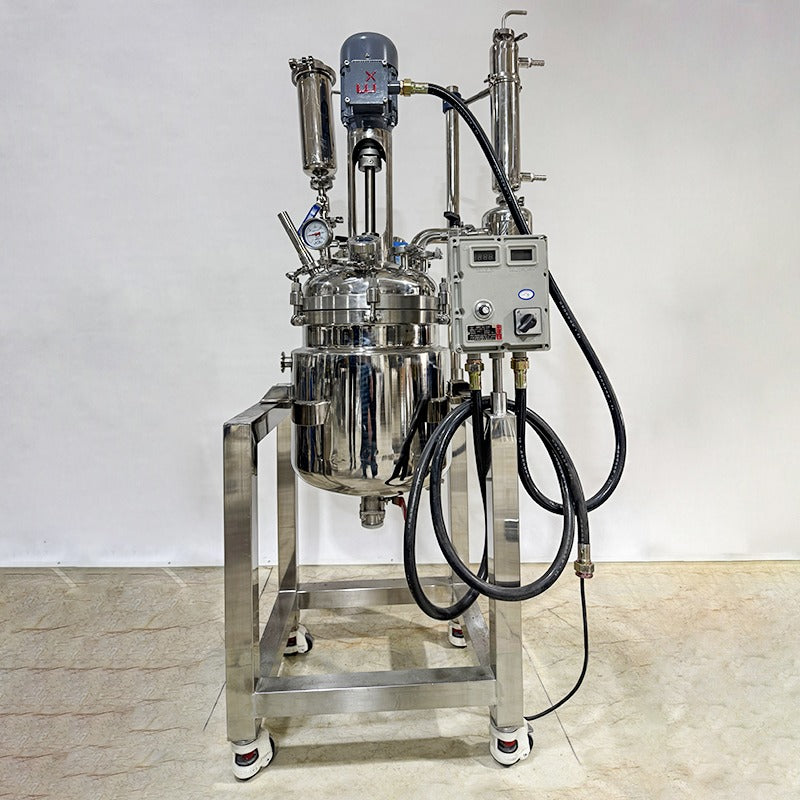

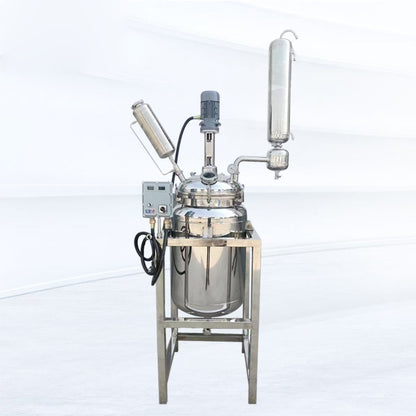

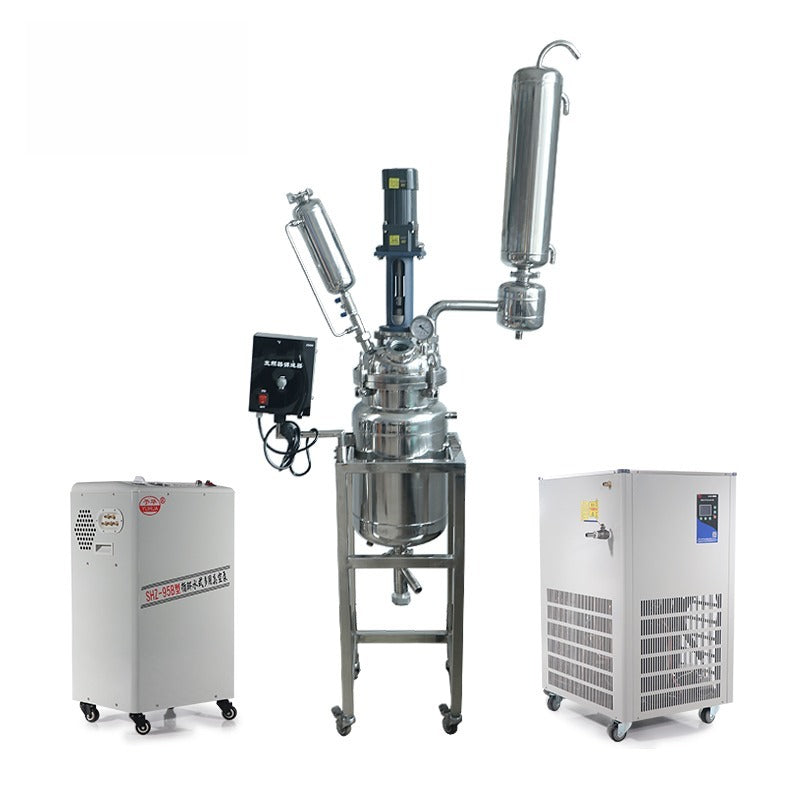

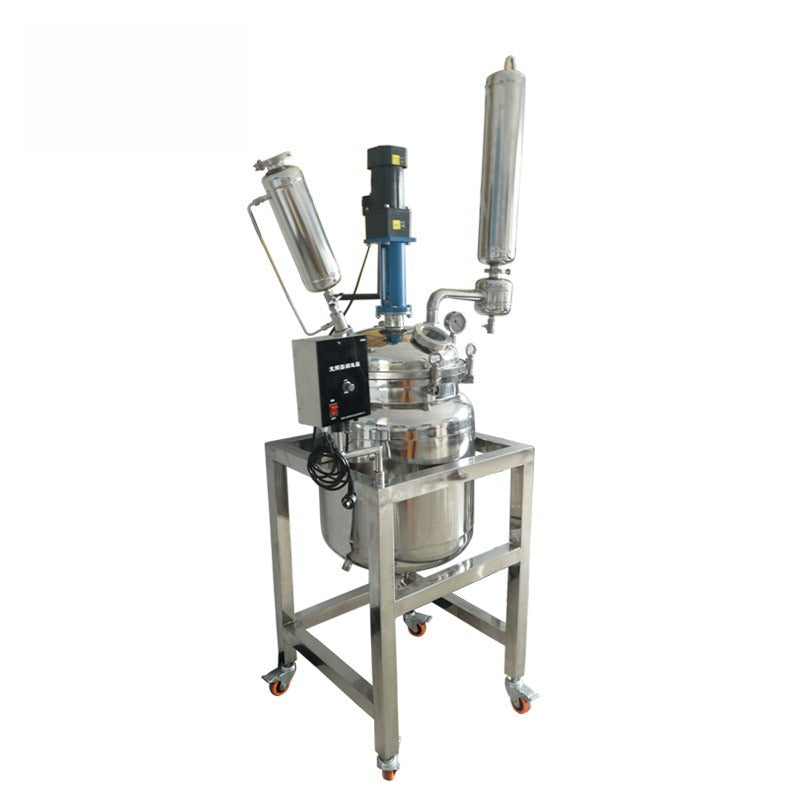

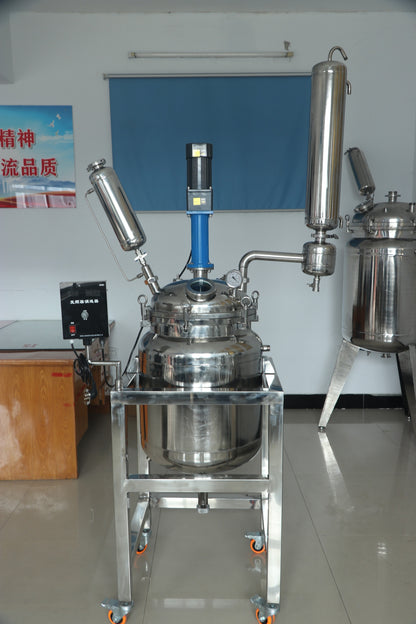

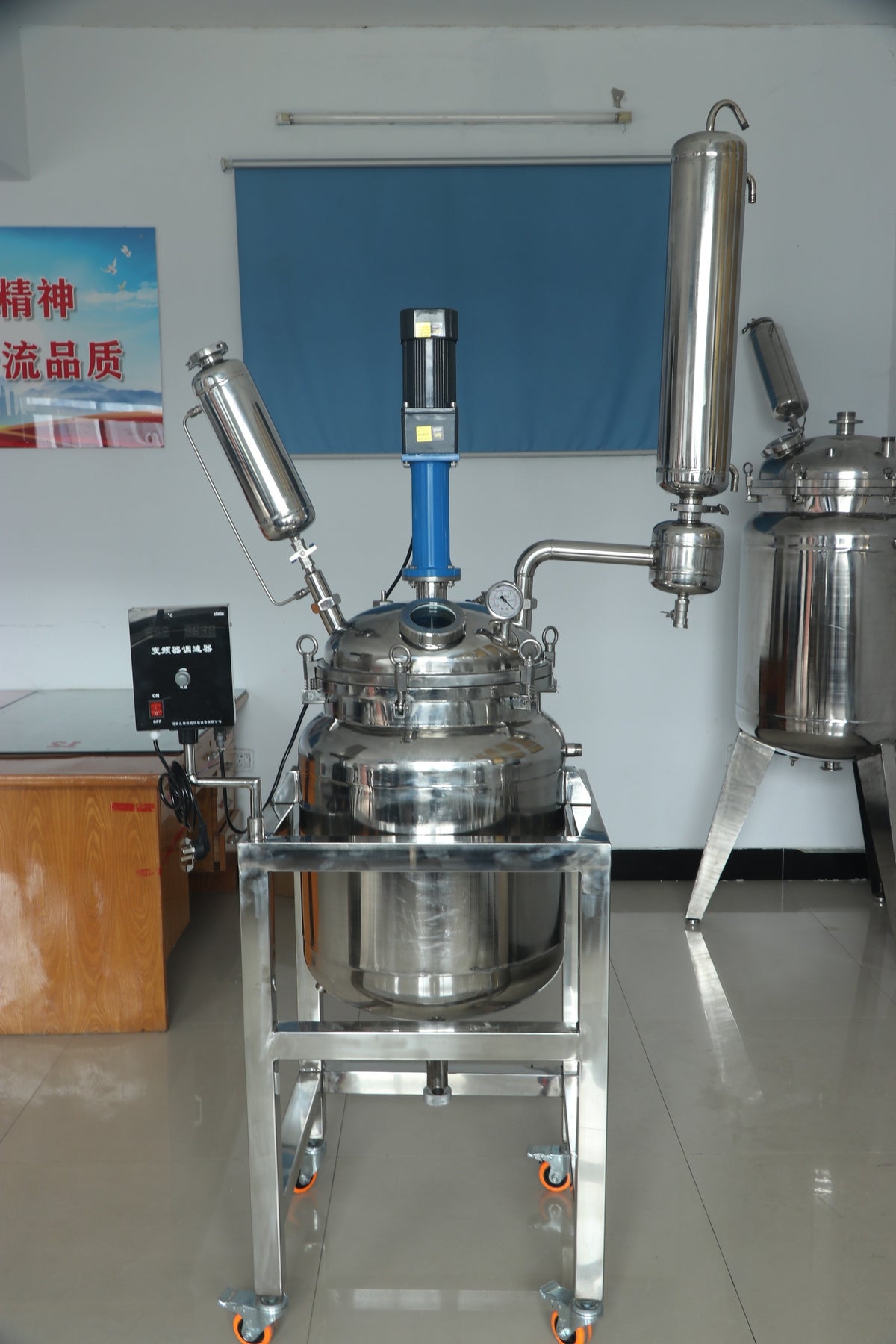

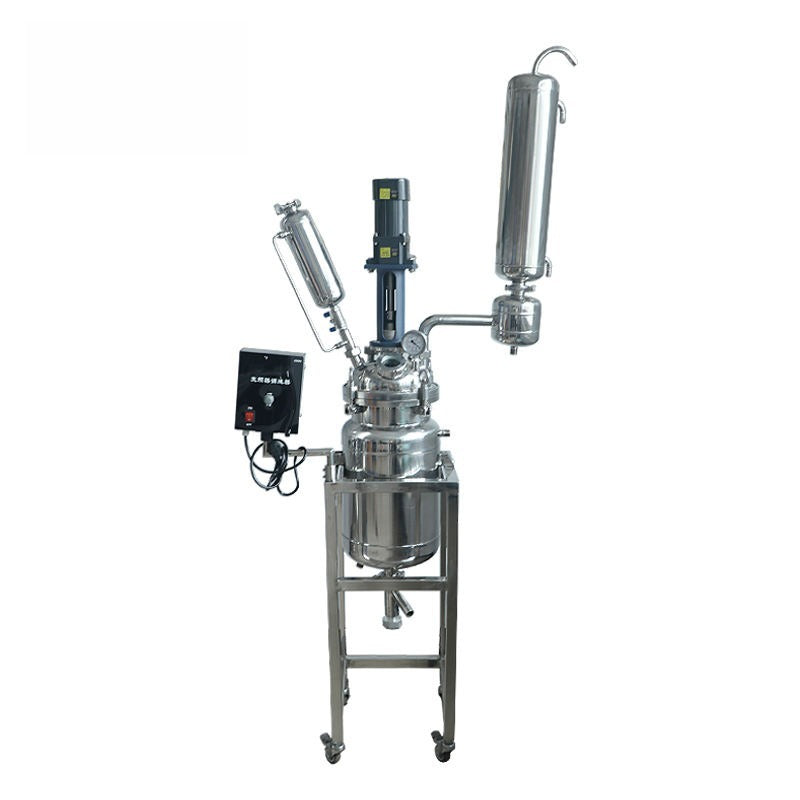

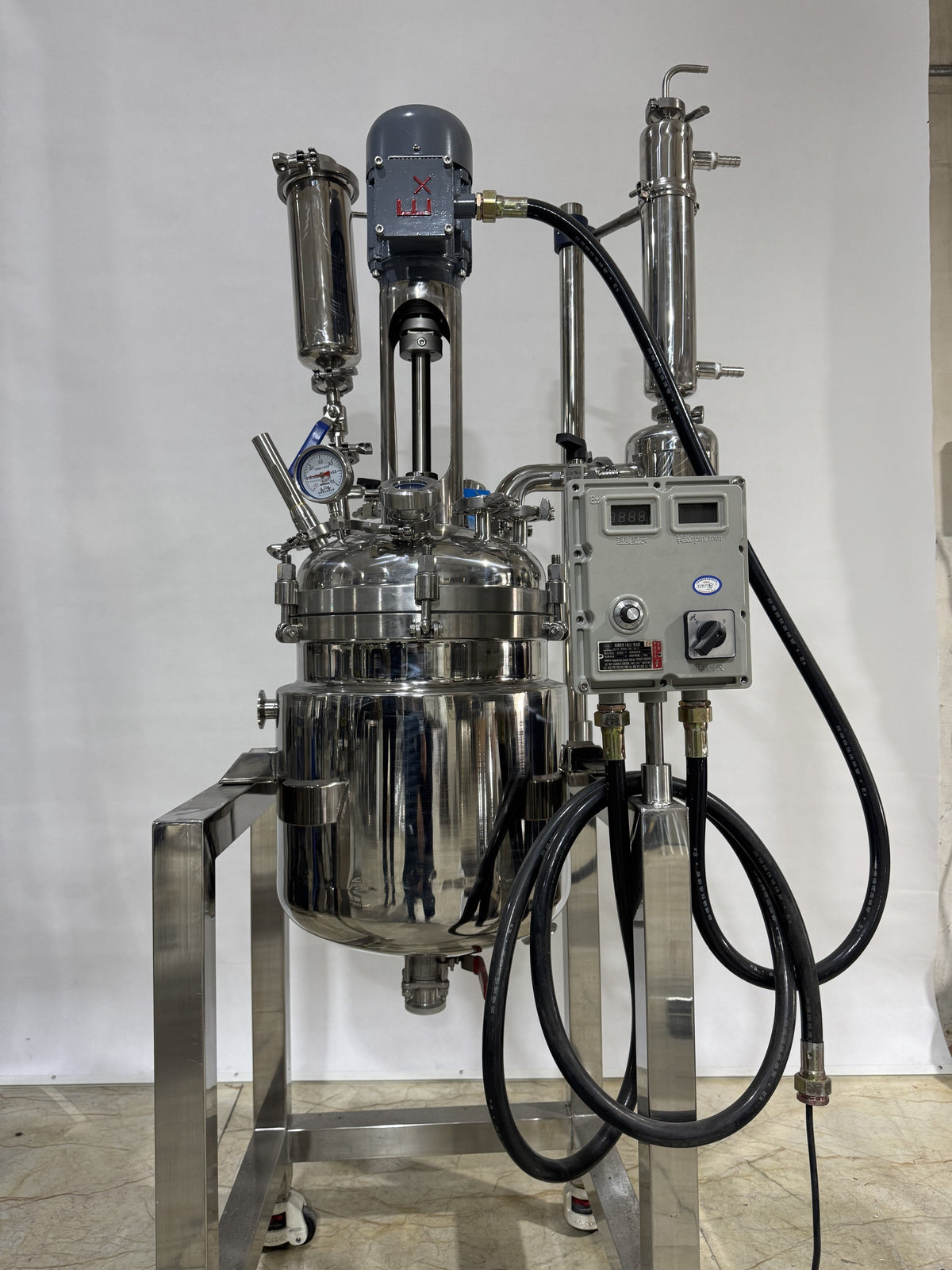

The S212 series are stainless steel jacketed reaction kettles rated at a maximum positive working pressure of 0.5 MPa (the family rating stated in the series specification table). Five nominal capacities (5L-50L) are available at verified per-model prices - see the comparison table below for the per-model parameters recorded in the series table.
Model Comparison
Specification
ALAB-S212-5L
ALAB-S212-10L
ALAB-S212-20L
ALAB-S212-30L
ALAB-S212-50L
Nominal Capacity
5L
10L
20L
30L
50L
Effective Volume
-
10.1L
20.2L
30.2L
50.6L
Reaction Capacity
-
13.9L
24.1L
42.3L
62.5L
Jacket Volume
-
8L
9.63L
23.21L
36.89L
Condensing Area
-
0.3 m²
0.3 m²
0.35 m²
0.35 m²
Dropping Funnel Volume
-
1.8L
1.8L
2.1L
2.1L
Stirring Motor Power
-
120W
120W
120W
120W
Stirring Speed Range
-
0–600 rpm
0–600 rpm
0–600 rpm
0–1400 rpm
Maximum Working Pressure
0.5 MPa (Positive Pressure)
0.5 MPa (Positive Pressure)
0.5 MPa (Positive Pressure)
0.5 MPa (Positive Pressure)
0.5 MPa (Positive Pressure)
Power Supply
220V 50Hz
220V 50Hz
220V 50Hz
220V 50Hz
220V 50Hz
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
