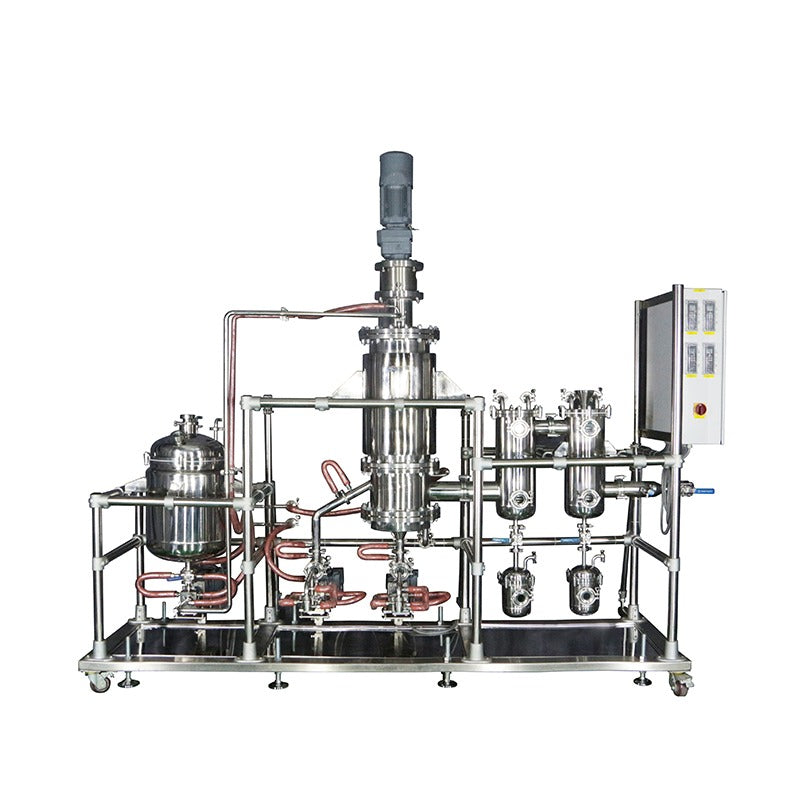

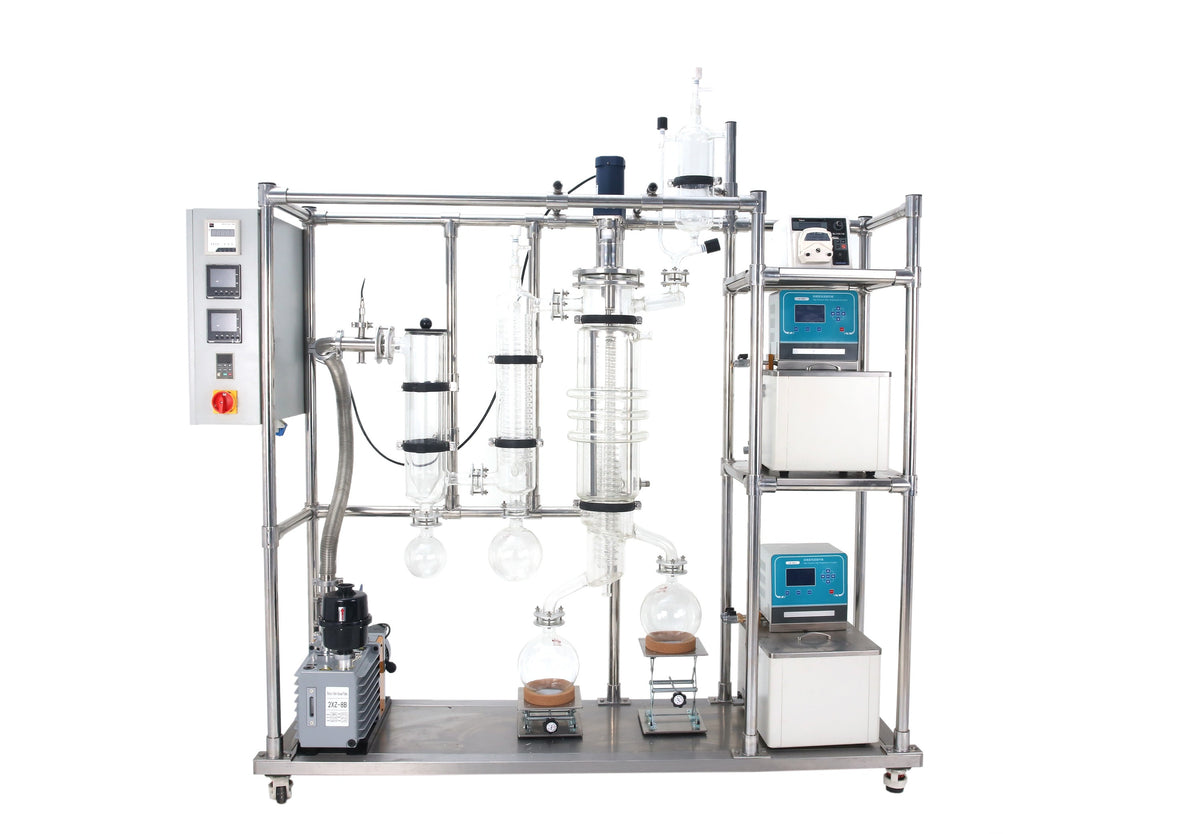

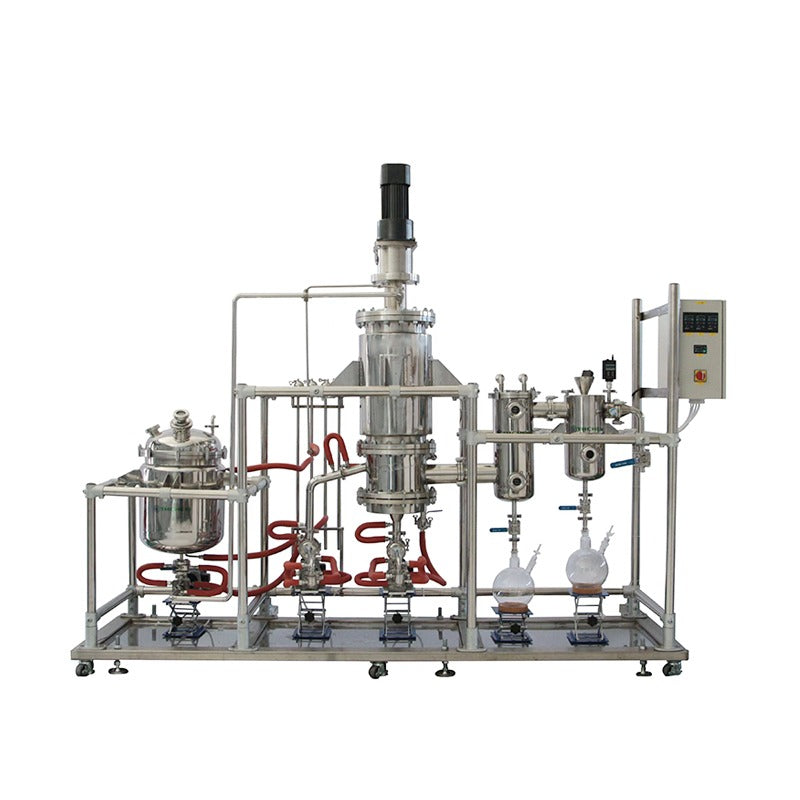

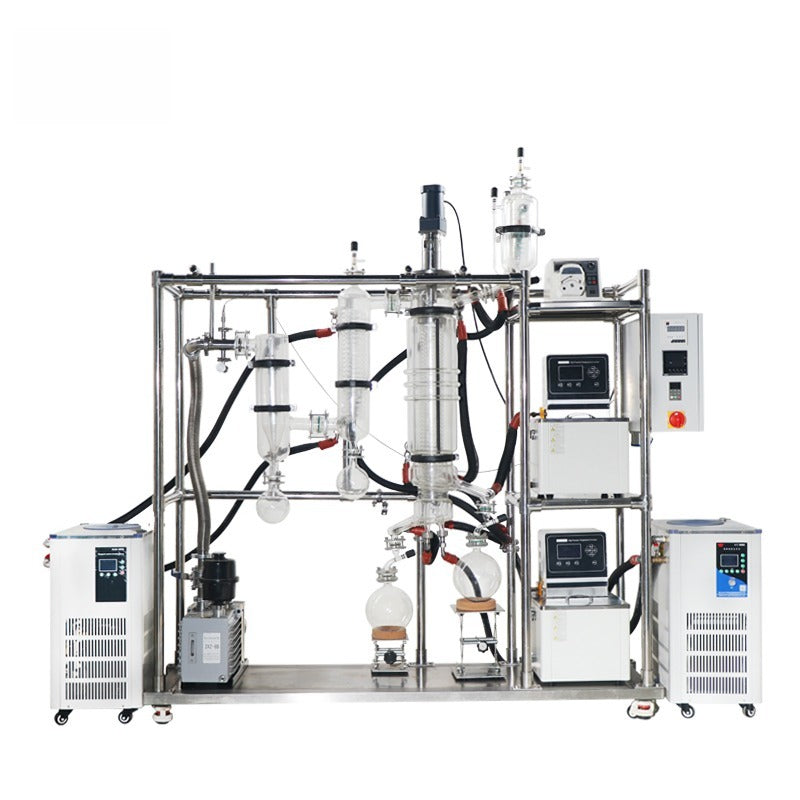

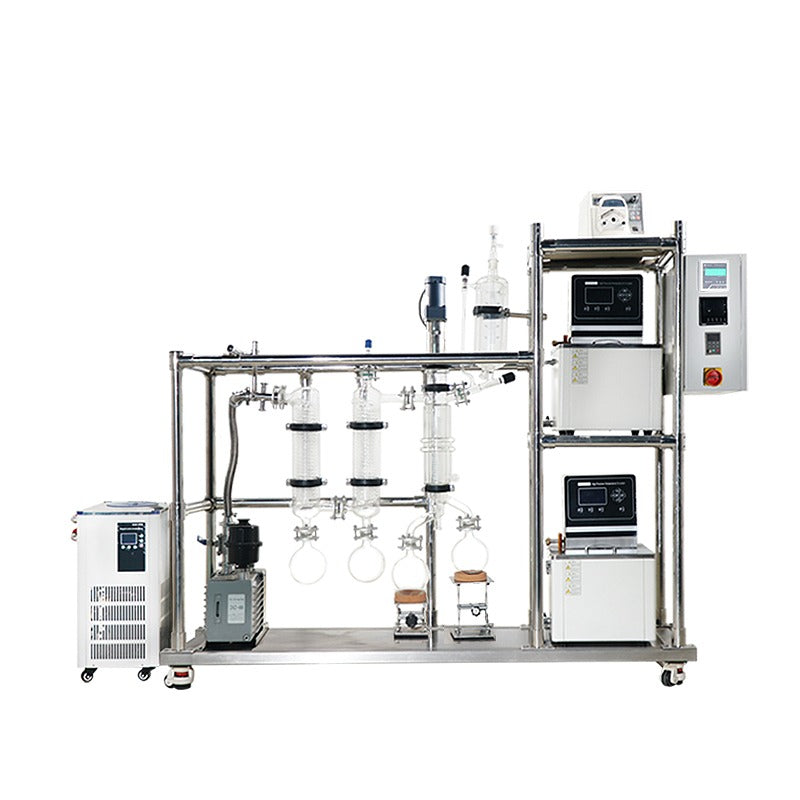

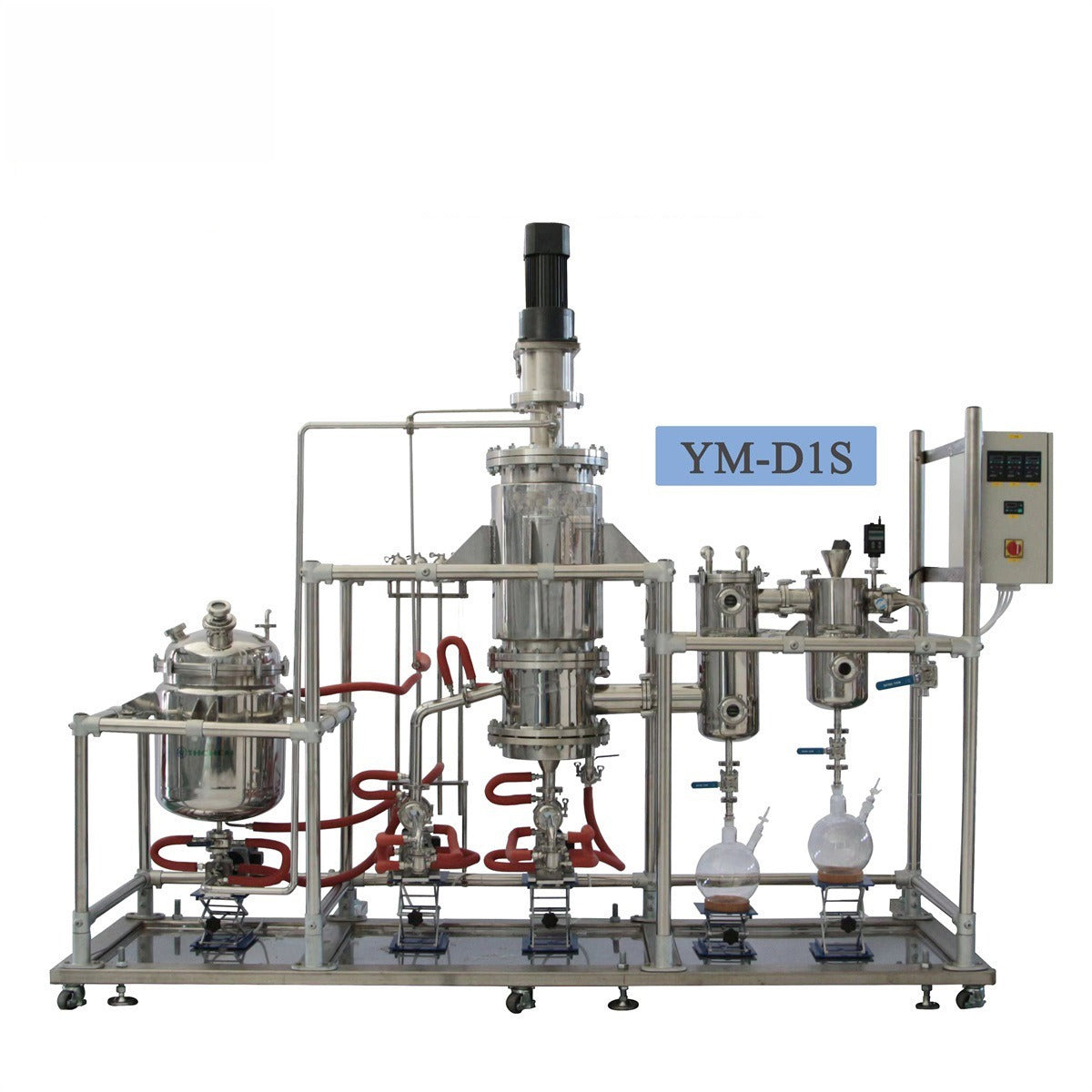

The YHMD-5S / YHMD-1S is a stainless steel three-stage wiped-film molecular distillation system (short-path) in stainless steel 304/316L and high borosilicate glass with PTFE wetted parts, for solvent recovery, essential oil distillation and laboratory research purification. Verified specifications from the model pages: an evaporation area of 0.25 m², a 4L cold trap, 120W motor power and a vacuum degree of 0.098 MPa.
Model Comparison
Specification
ALAB-YHMD-5S
ALAB-YHMD-1S
Processing
Wiped Film
Wiped Film
Material
Stainless Steel 304/316L, High Borosilicate Glass, PTFE Wetted Parts
Stainless Steel 304/316L, High Borosilicate Glass, PTFE Wetted Parts
Evaporation Area
0.25 m²
0.25 m²
Vacuum Degree
0.098 MPa
0.098 MPa
Cold Trap Capacity
4L
4L
Core Components
Gearbox, Motor, Gear, Pump
Gearbox, Motor, Gear, Pump
Power
120W
120W
Voltage
220V/50-60Hz
220V/50-60Hz
Certification
ISO9001
ISO9001
Application
Laboratory Research
Laboratory Research
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
