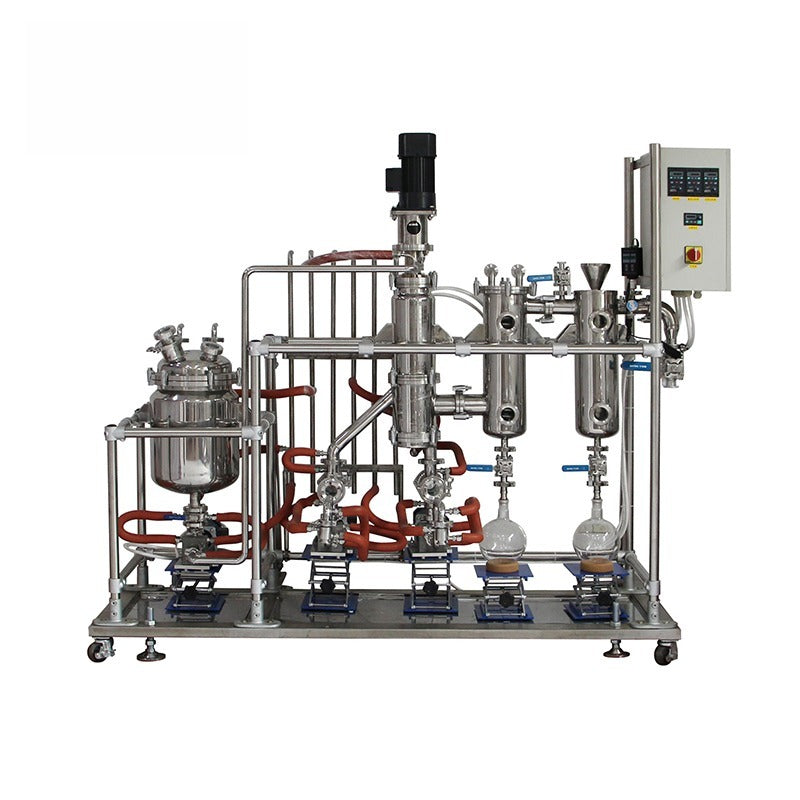

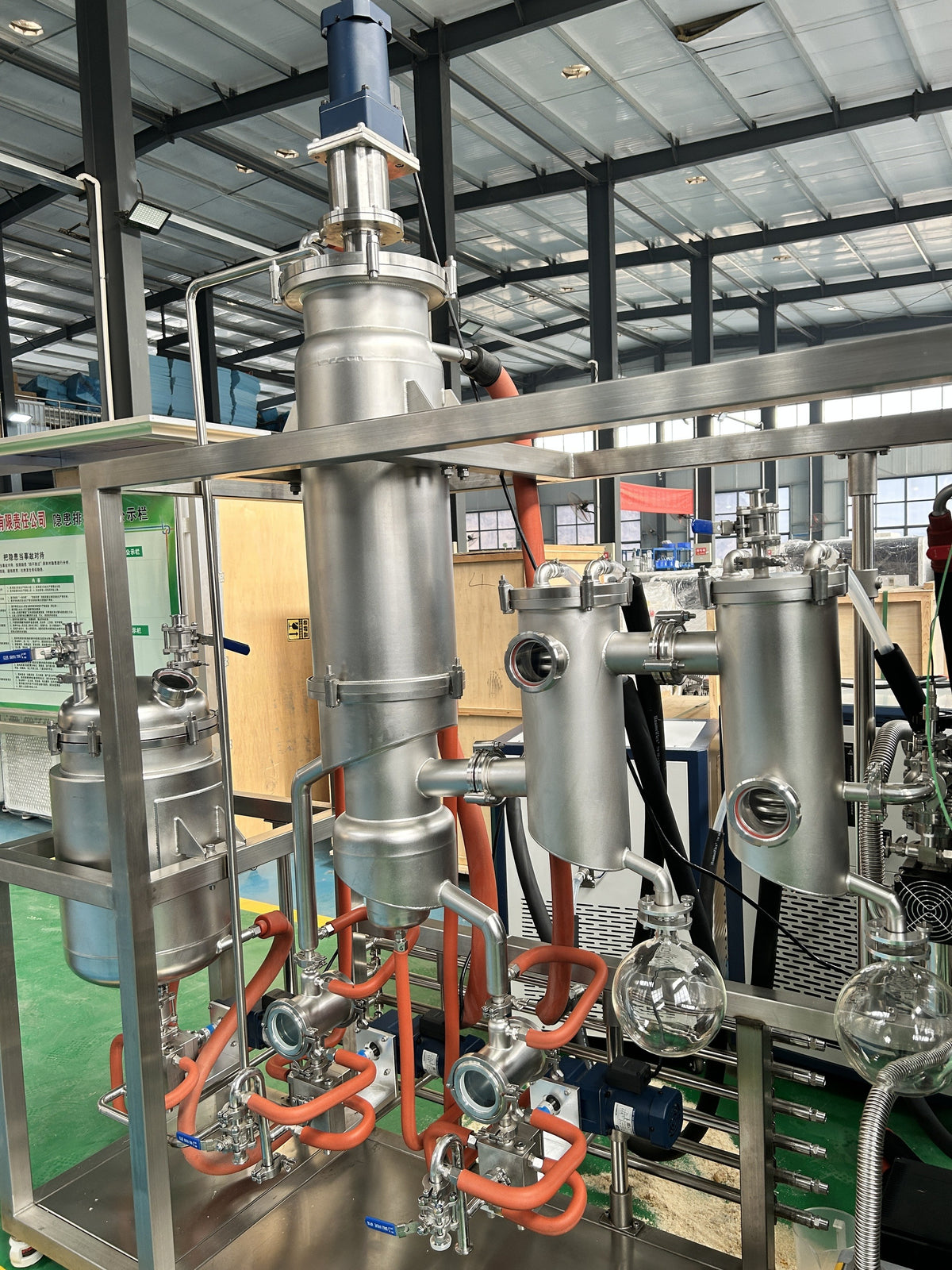

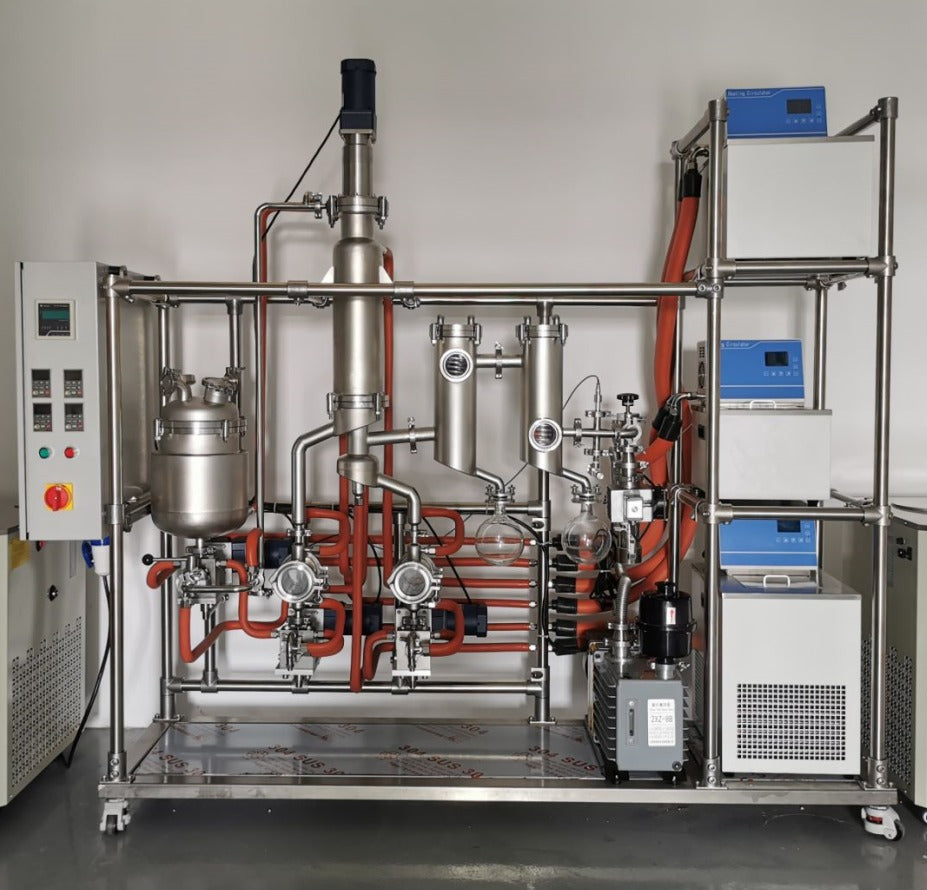

The YHMD-SS series are stainless steel wiped-film molecular distillation systems (short-path) in stainless steel 304/316L and high borosilicate glass 3.3, for solvent removal, essential oil refining and laboratory purification of heat-sensitive materials. Six sizes are available with evaporation areas from 0.06 m² to 0.5 m² - see the comparison table below for the specifications of each model. Verified shared specifications: vacuum distillation processing, motor, pump and PLC core components, 200W power and a vacuum degree of 0.098 MPa.
Model Comparison
Model
Evaporation Area
Feeding Rate
Inner Condenser Area
Feeding Funnel Capacity
Processing
Material
Core Components
Power
Vacuum Degree
ALAB-YHMD-0.06SS
0.06 m²
1-5 L/h
0.1 m²
10 L
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
ALAB-YHMD-0.1SS
0.1 m²
2-10 L/h
0.17 m²
10 L
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
ALAB-YHMD-0.15SS
0.15 m²
-
-
-
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
ALAB-YHMD-0.25SS
0.25 m²
-
-
-
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
ALAB-YHMD-0.35SS
0.35 m²
-
-
-
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
ALAB-YHMD-0.5SS
0.5 m²
-
-
-
Vacuum Distillation
Stainless Steel 304/316L, High Borosilicate Glass 3.3
Motor, Pump, PLC
200W
0.098 MPa
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
