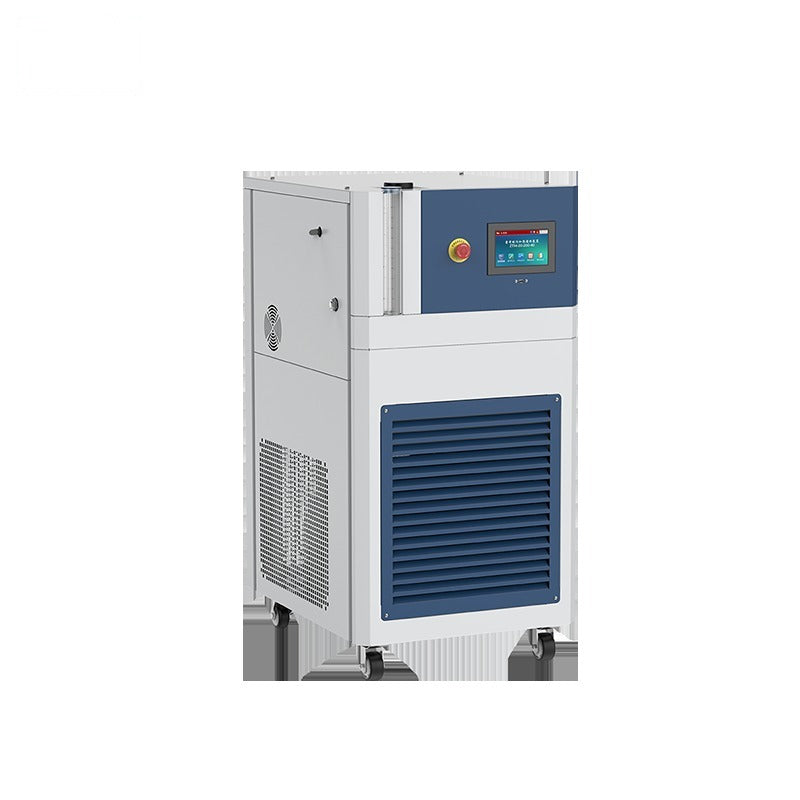

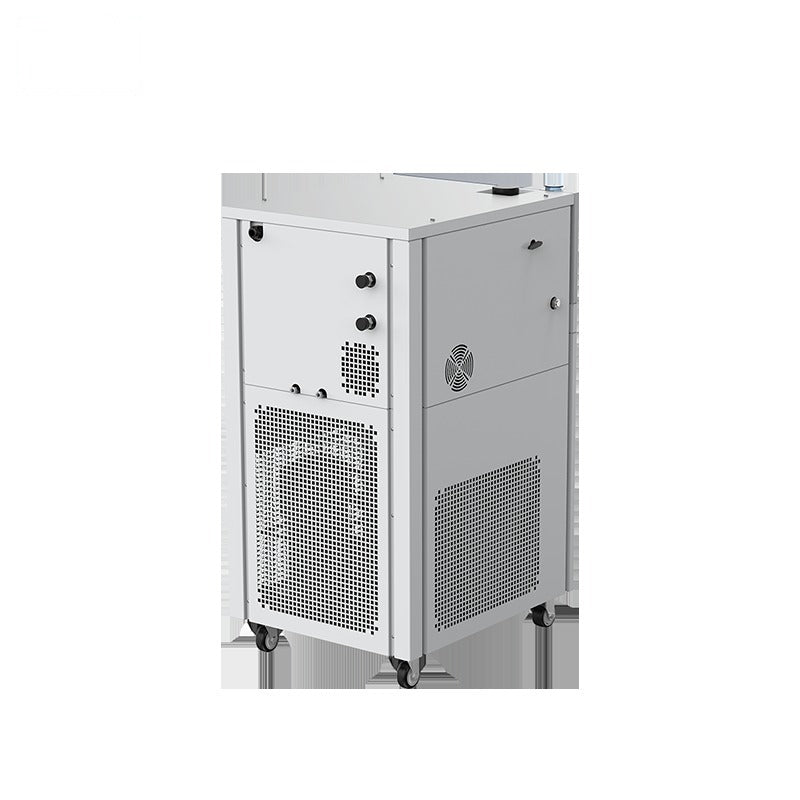

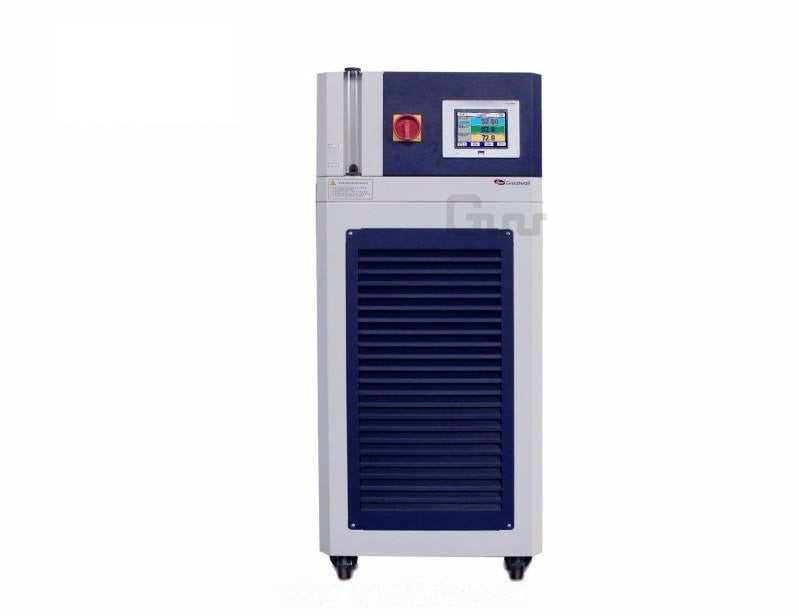

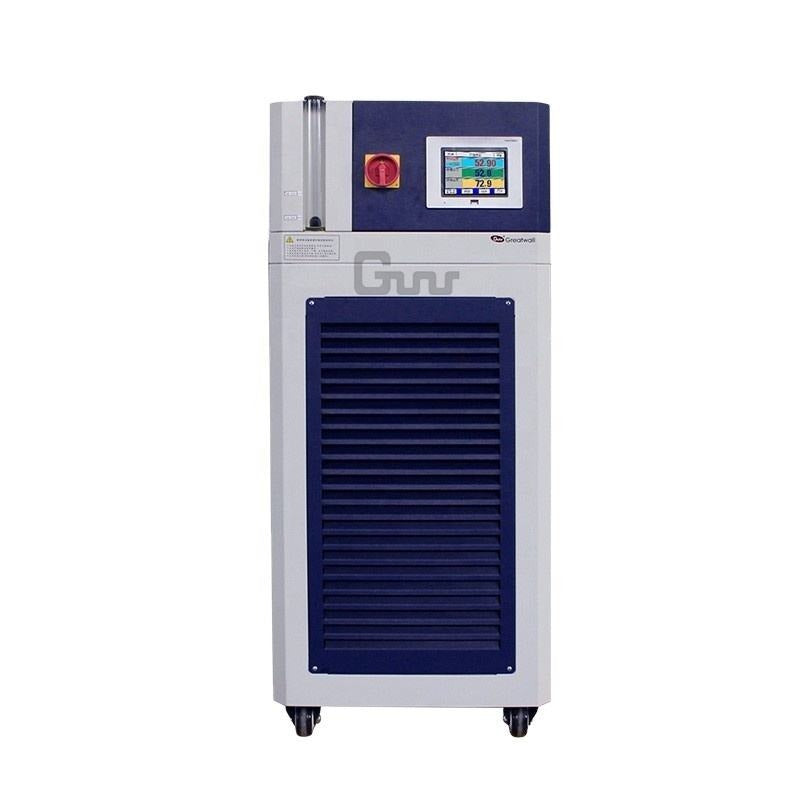

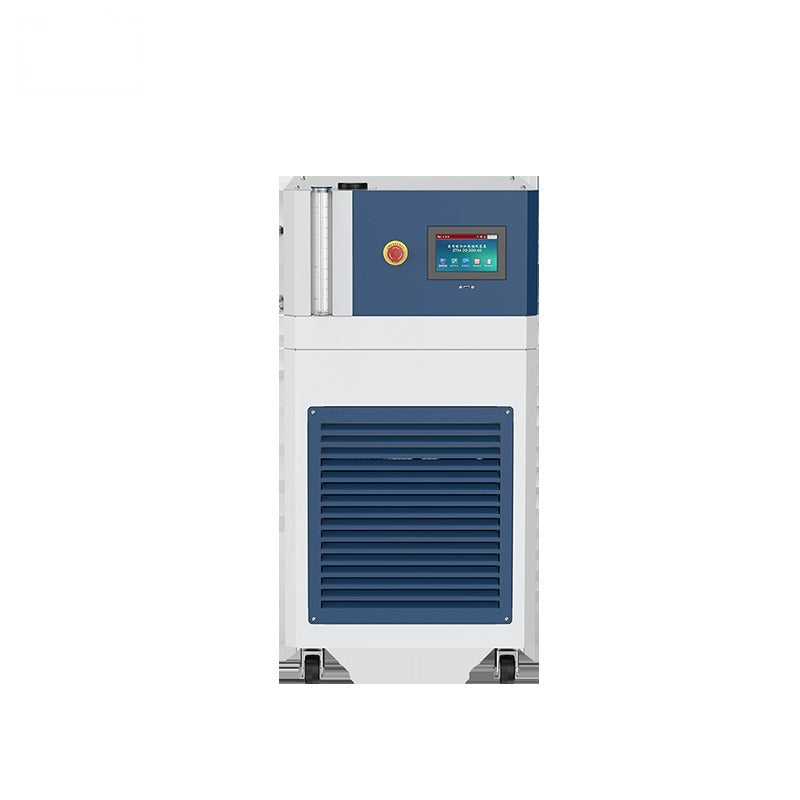

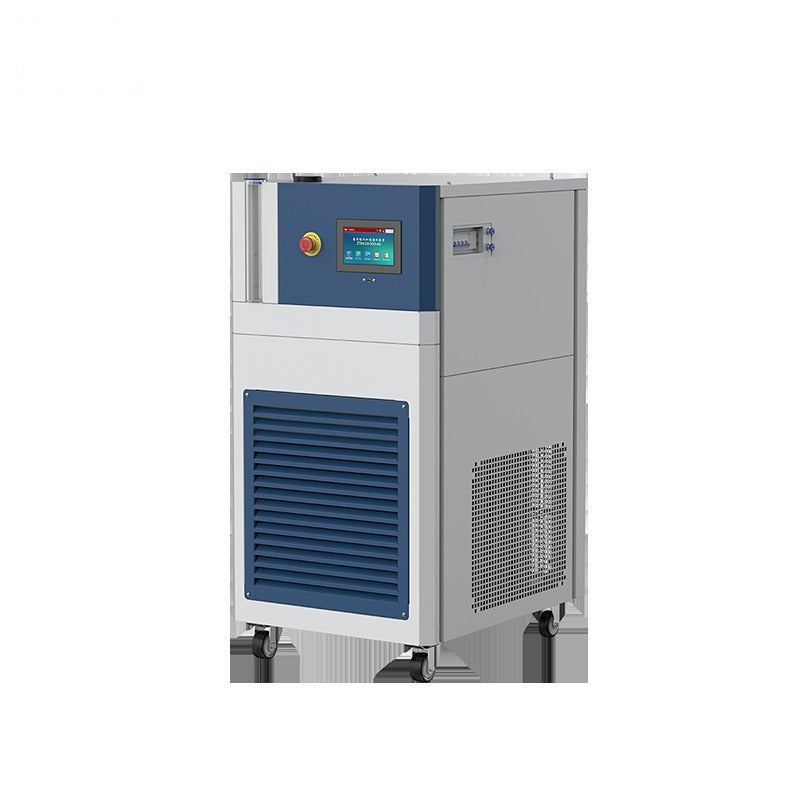

The ZTM-20-200-30 is a dynamic temperature control system for heating and cooling circulation from -30 to 200 C, with +/-0.5 C stability and combined compressor, pre-cooling, heating and refrigeration units.
Specifications
Model: ZTM-20-200-30
Working Temperature: -30 to 200 C
Temperature Stability: +/-0.5 C
Overall Power: 4.7 kW
Heating Power: 2 kW
Refrigerant: R404A
Bath Fluid Filling Volume: 10L
Flow Rate: 25 L/min
Pressure: 1 bar
Power Supply: 220-240V~, 50Hz
Core Components: Compressor, condenser, pre-cooling unit, heating unit, refrigeration unit
Weight: 177 kg
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
