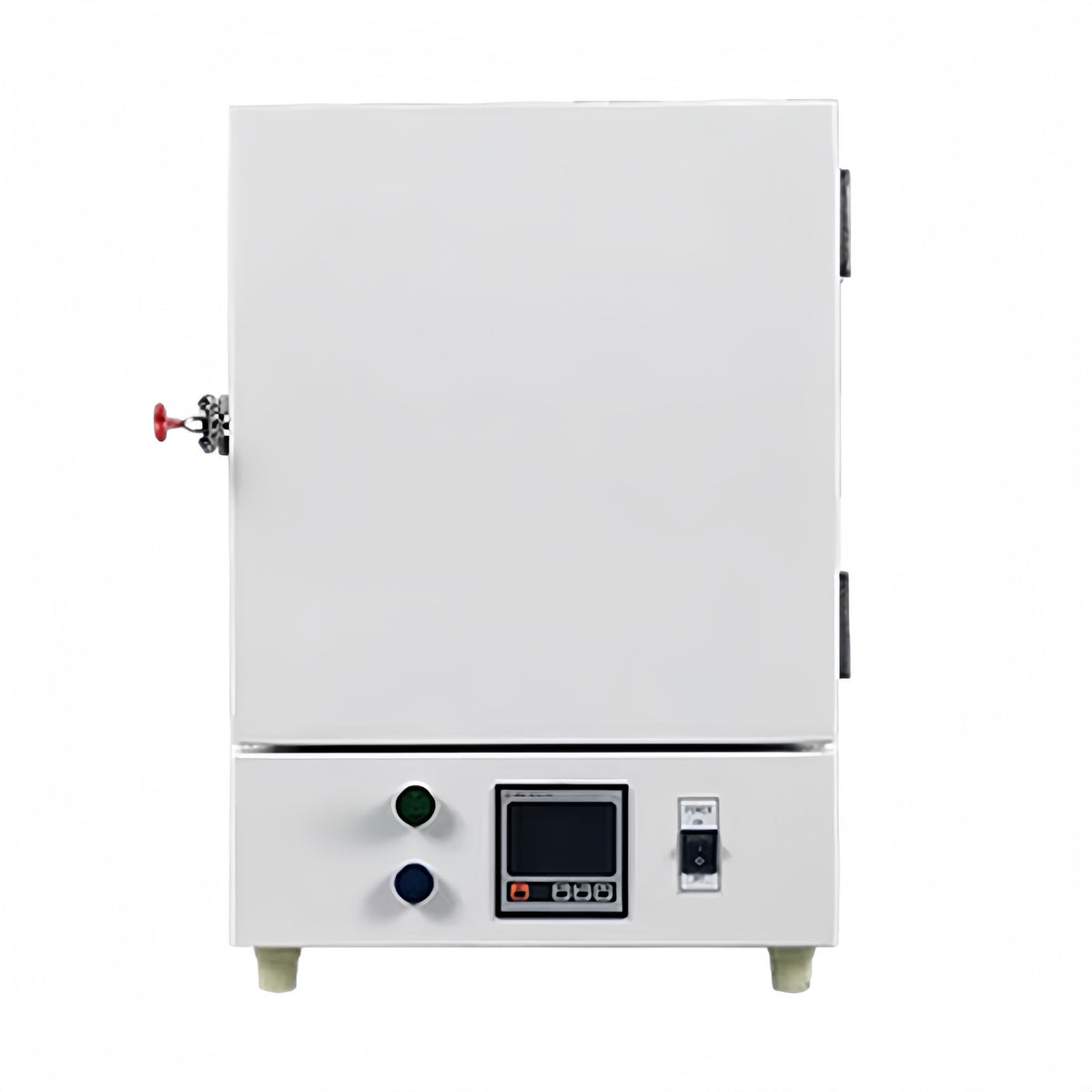

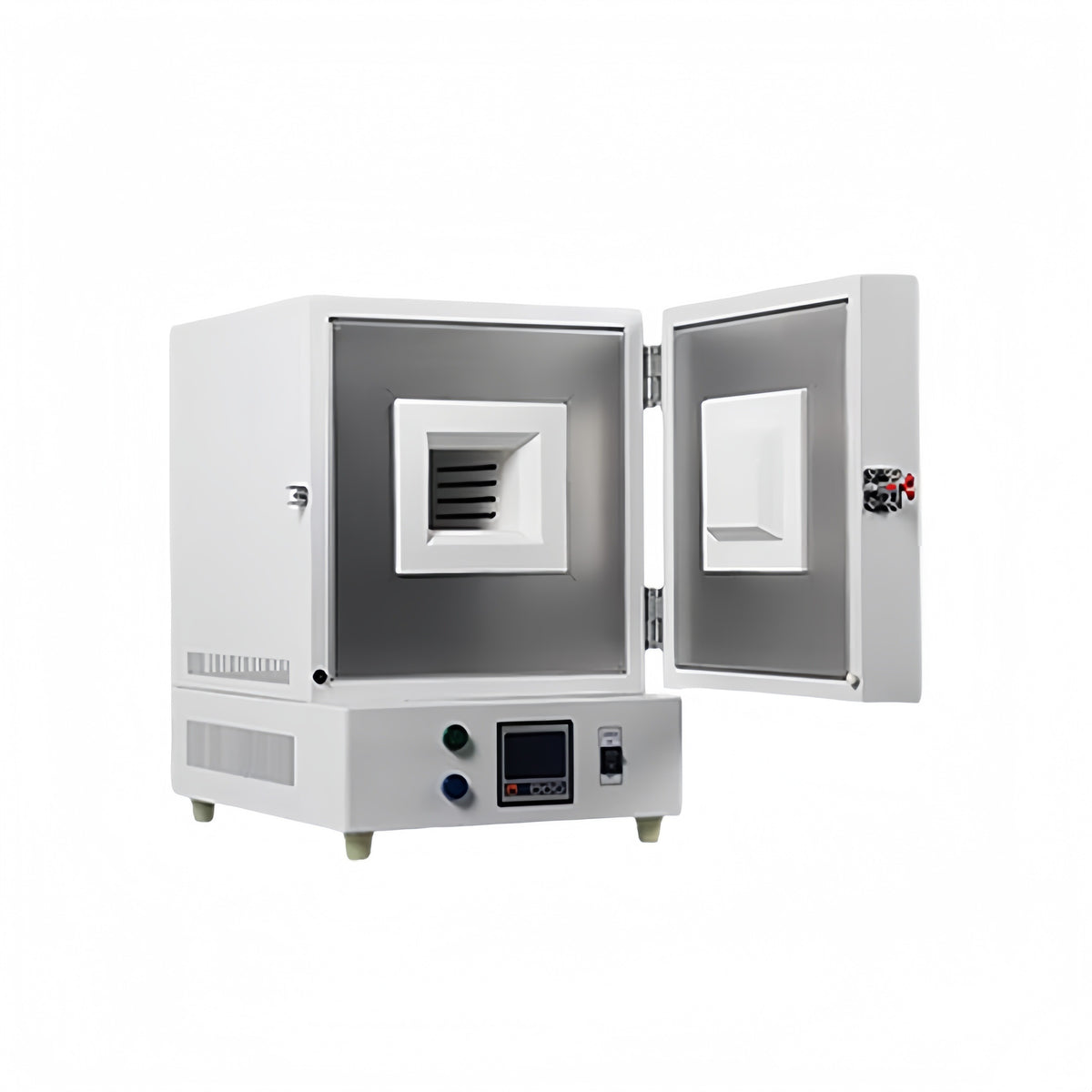

TMF Ceramic Fiber Muffle Furnace (120x200x80 mm Chamber)

Ceramic fiber muffle furnace (medium-temperature box type) with a 120x200x80 mm chamber. Maximum temperature 1200C, temperature accuracy +/-1C and a 1-9999 min timer.

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.

Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required.

Specifications

• Type: Ceramic fiber muffle furnace (medium-temperature box type)
• Sold configuration: Dialog 'TMF' only; inner size displayed 120*200*800 (read as 120x200x80 mm, the TMF-2 chamber)
• Max temperature: 1200 C (attribute)
• Voltage: AC220V 50Hz (small series, per attribute and i=3731)
• Rated power (attribute): 25000W - conflicts with the series table (2500-21000W by size); see open questions
• Control (series table): LCD (T) / programmable LCD (TP) / color touch screen (TC) - not selected in the dialog
• Accuracy (series table): +/-1 C
• Timer (series table): 1-9999 min
• Package: 57.5x69.5x82.5 cm, 63 kg
• Warranty: 2-5 years
