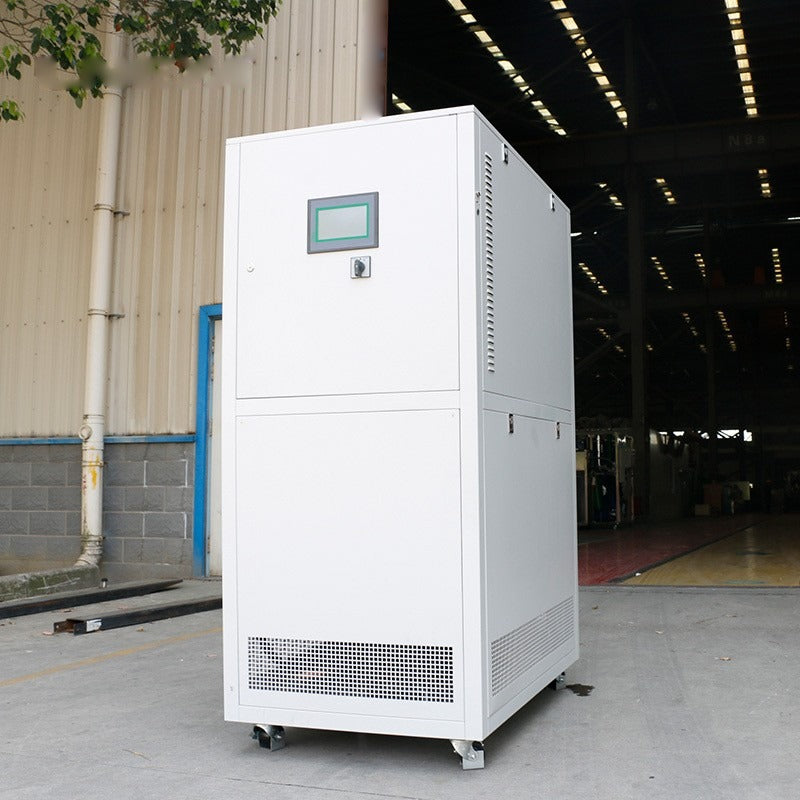

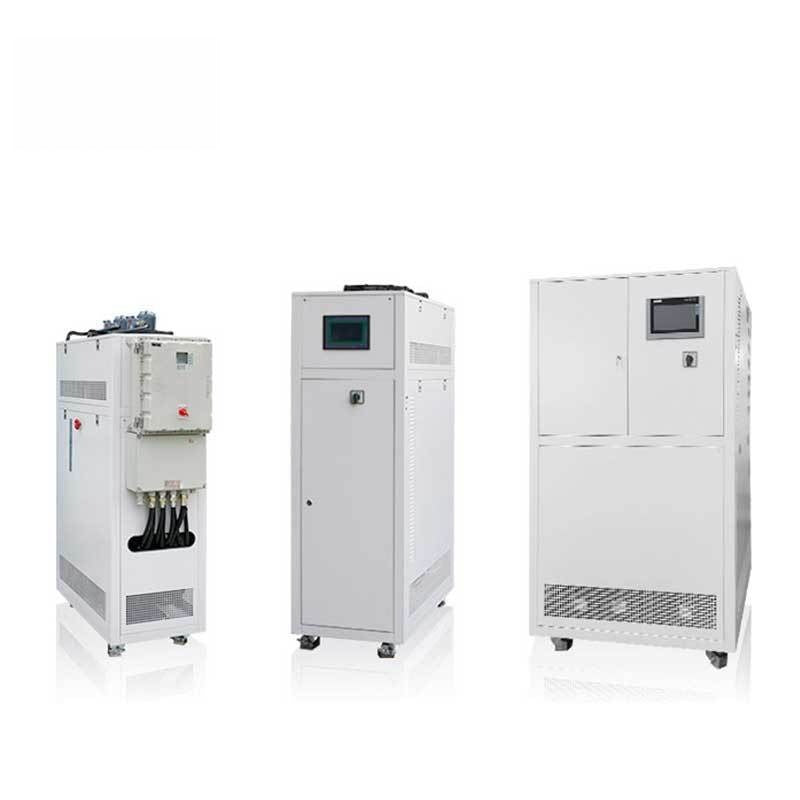

An ultra-low temperature closed-loop recirculating chiller series for laboratory and process cooling, providing temperature-controlled circulating liquid over a -115~-70 °C range (optional range -120~30 °C). Six models share one family specification set; select the model by its cooling-capacity designation.
Temperature Range: -115~-70 °C (optional: -120~30 °C)
Circulation Pump: Max. 20~50 L/min, 0.7~1 bar
Liquid Storage Tank: 15~40 L
Evaporator: Plate heat exchanger
Connection: G1/2~G1
Temperature Control: ASET multifunctional controller
Power: AC380V, 5.5~14 kW (model-dependent)
Weight: 235~480 kg (model-dependent)
Dimensions: 55x100x175 ~ 100x150x185 cm
Voltage note for US customers: This unit operates on 380V. Standard US outlets supply 110-120V, so a 380V circuit or a suitable step-up transformer is required.
