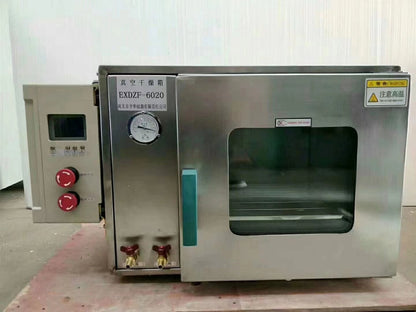

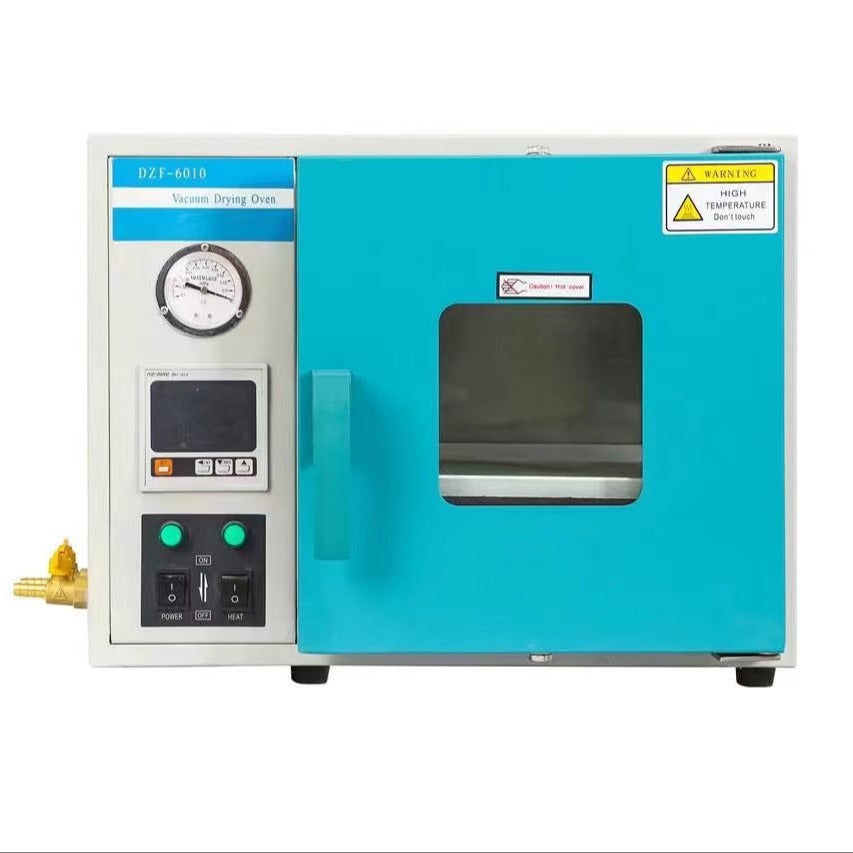

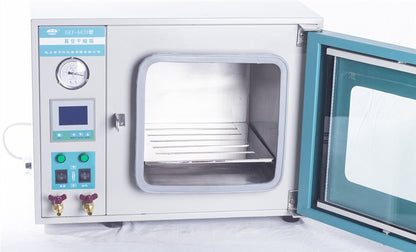

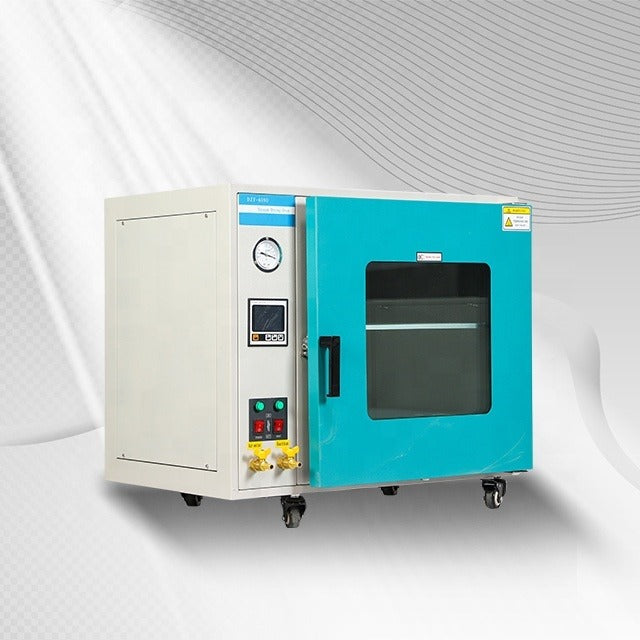

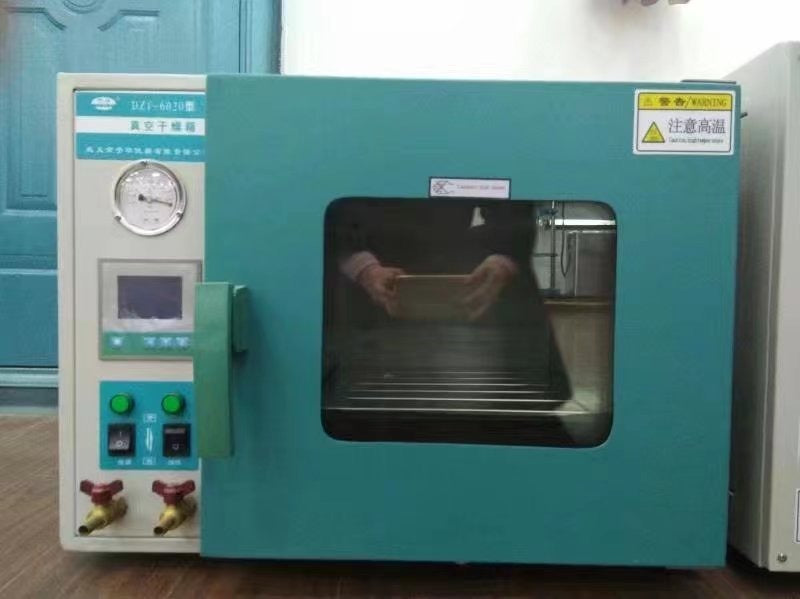

The DZF series are desktop vacuum drying ovens with 304 stainless steel chambers, for drying materials under vacuum in the laboratory. Five models are available - see the comparison table below for their specifications.
Model Comparison
Specification
ALAB-DZF-6010
ALAB-DZF-6020
ALAB-DZF-6050
ALAB-DZF-6090
ALAB-DZF-6210
Chamber Capacity
8 L
25 L
55 L
90 L
430 L
Input Power
400 W
700 W
1400 W
2000 W
2060 W
Temperature Range
RT+10–200 °C
RT+10–200 °C
RT+10–200 °C
RT+10–200 °C
RT+10–200 °C
Temperature Stability
±1.0 °C
±1.0 °C
±1.0 °C
±1.0 °C
±1.0 °C
Temperature Resolution
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
Vacuum Degree
133 Pa
133 Pa
133 Pa
133 Pa
133 Pa
Timer Range
1–9999 min
1–9999 min
1–9999 min
1–9999 min
1–9999 min
Liner Material
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
Shell Material
Spray-paint Anti-corrosion
Spray-paint Anti-corrosion
Spray-paint Anti-corrosion
Spray-paint Anti-corrosion
Spray-paint Anti-corrosion
Voltage
110V 50Hz / 220V 50–60Hz
110V 50Hz / 220V 50–60Hz
110V 50Hz / 220V 50–60Hz
110V 50Hz / 220V 50–60Hz
110V 50Hz / 220V 50–60Hz
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
