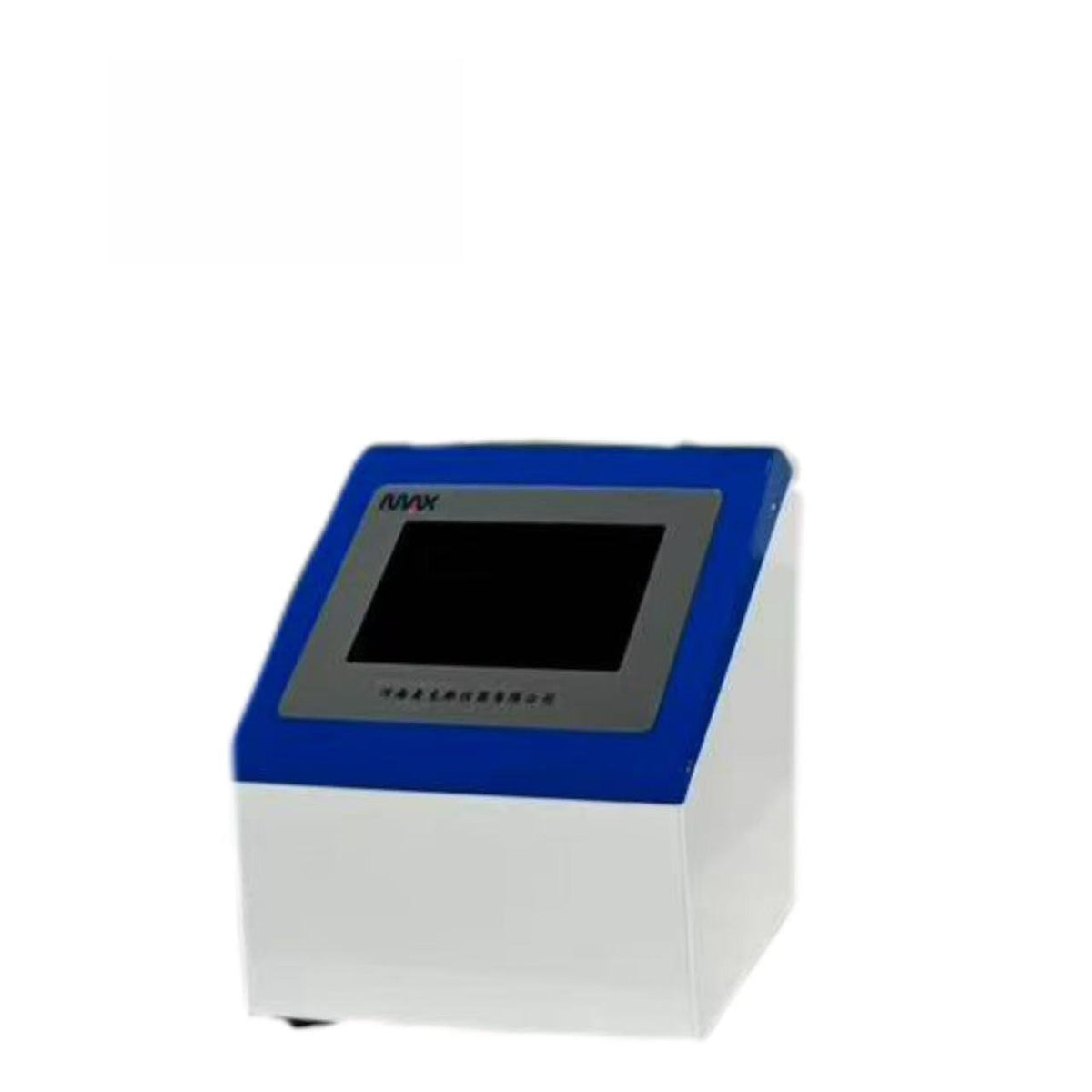

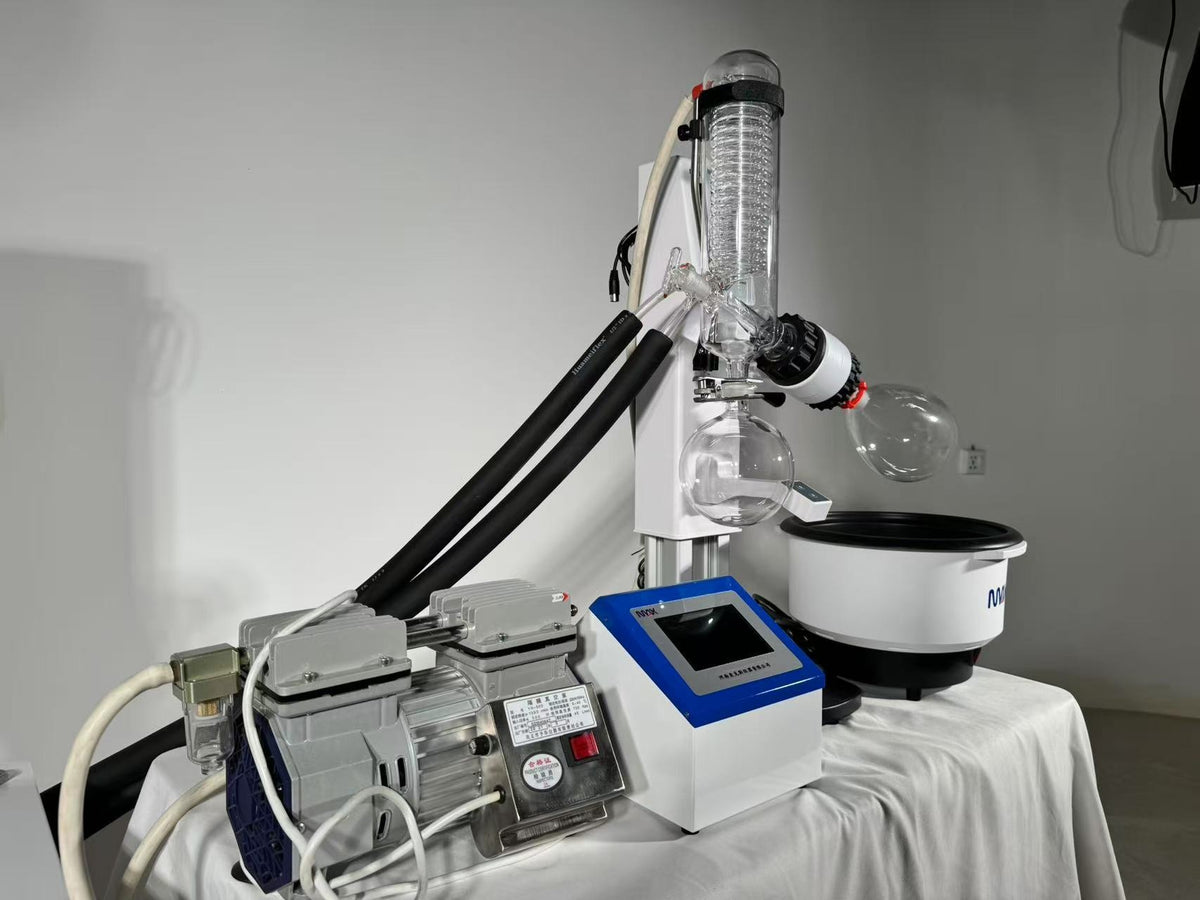

The VC-01 is a vacuum pressure gauge controller for laboratory vacuum systems, combining vacuum measurement and setpoint control over a 0–1000 mbar range.
Vacuum Setting Range: 0–1000 mbar
Vacuum Measurement Range: 0–1000 mbar
Sensor Overload Pressure: 1000 mbar
Connection Pipe Interface Diameter: 6 mm
Materials in Contact with Steam: Polytetrafluoroethylene (PTFE), PP, silicone
Steam Temperature: 5–40 °C
Input Power: AC 220V / 50Hz
Maximum Input Power: 45 W
Maximum Power Output: 1000 W
Environment Temperature: −10–40 °C
Relative Humidity: < 85% RH
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
