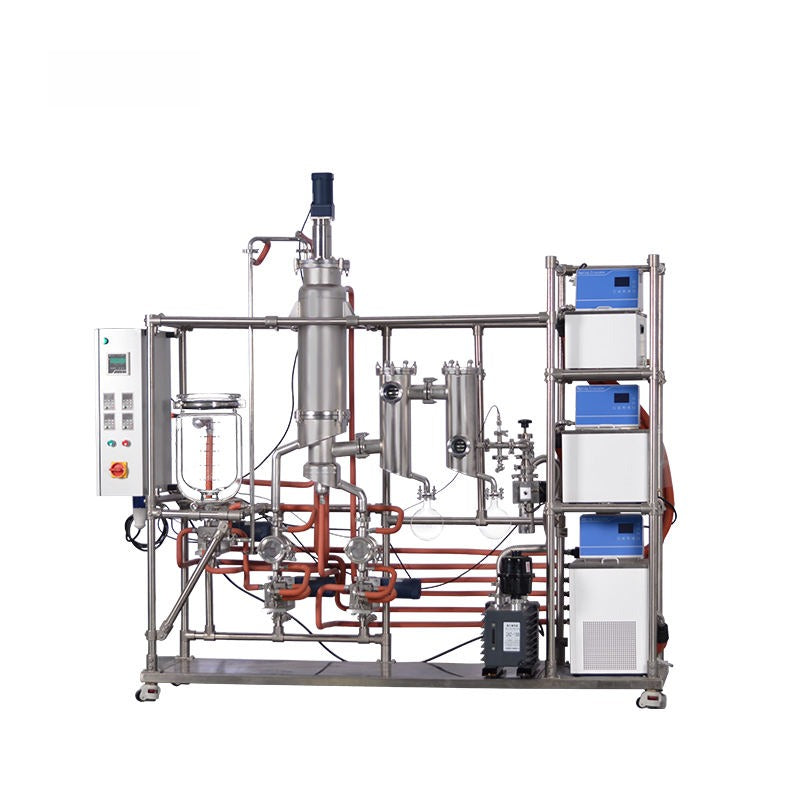

Wiped Film Molecular Distillation System FMD-150

$66,000.00 USD

Sale Sold out

Stainless steel wiped-film (short path) molecular distillation system with a PTFE scraper, magnetic oil-less stirrer seal and 0.25 m2 evaporation area, complete with feed, distillate and residue vessels.

Model Comparison

Specification	FMD-150
Feed rate	2.5-40 kg/hr
Effective evaporation area	0.25 m2
Motor power	120W
Maximum speed	350rpm
Barrel diameter	150mm
Feeding funnel	3L
Internal condenser area	0.4 m2
Jacketed feeding vessel	3L
Distillate receiving vessel	5L
Residue receiving vessel	3L
Stirrer seal	Oil-less magnetic, high vacuum
Wiper	PTFE scraper
Structure material	Stainless steel
