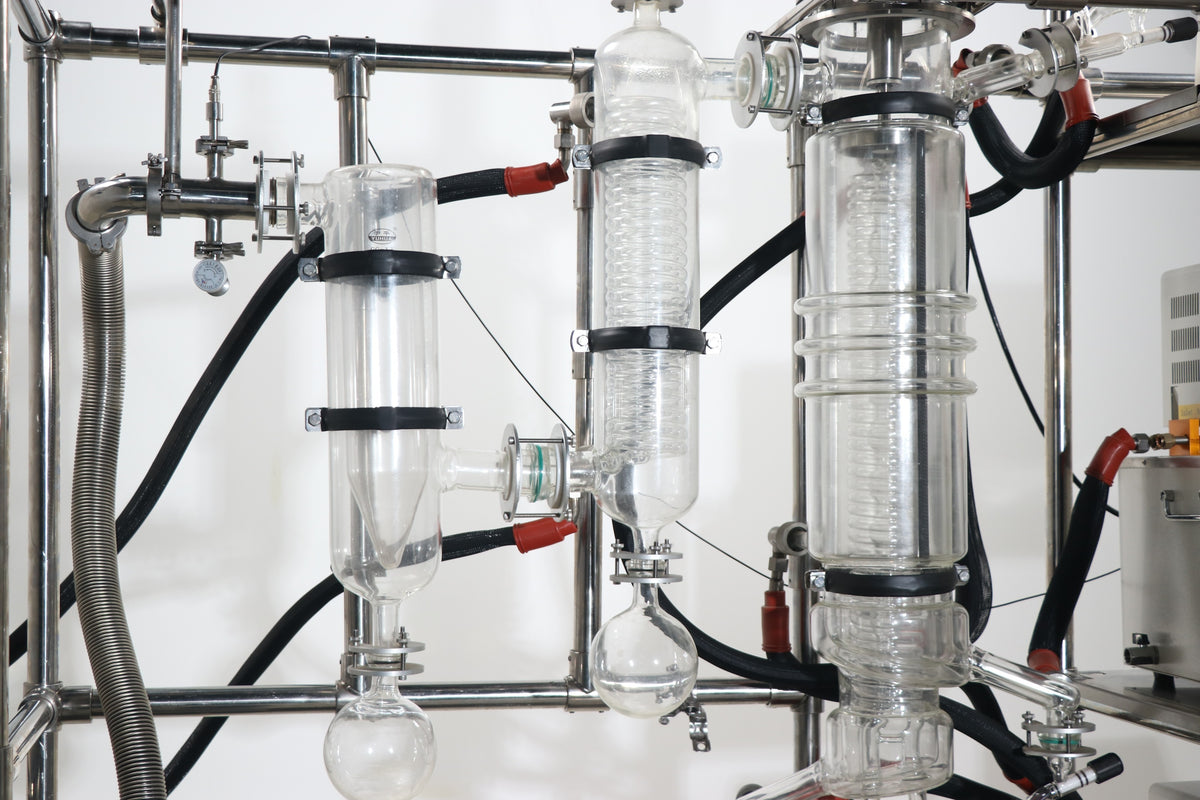

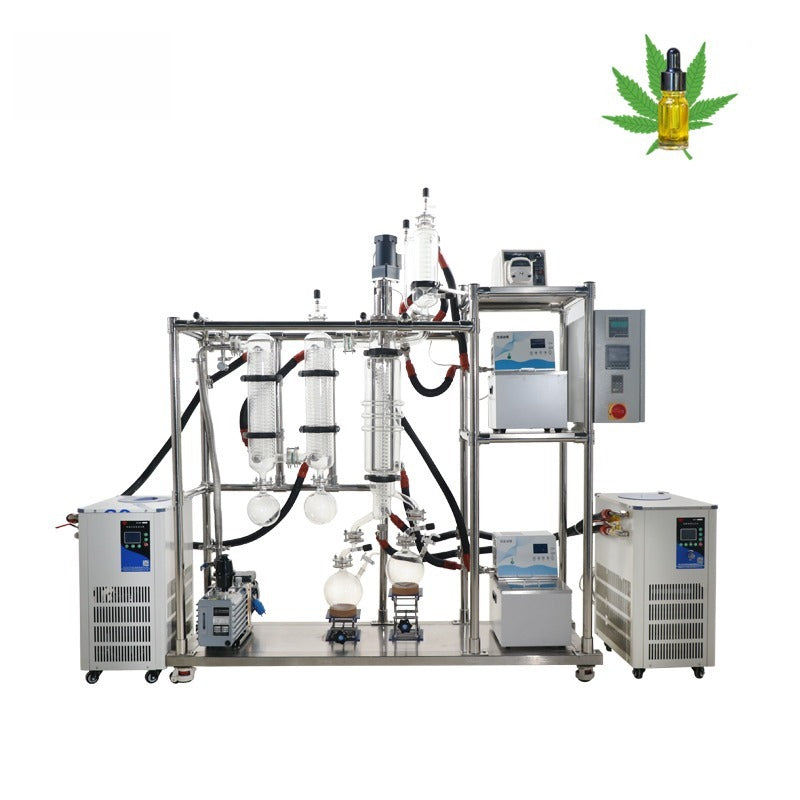

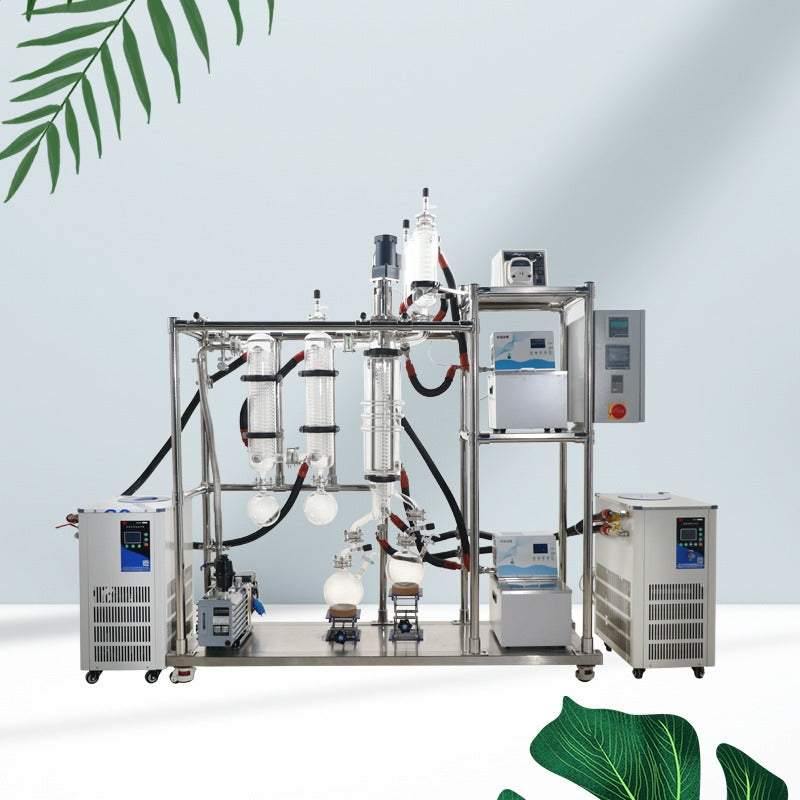

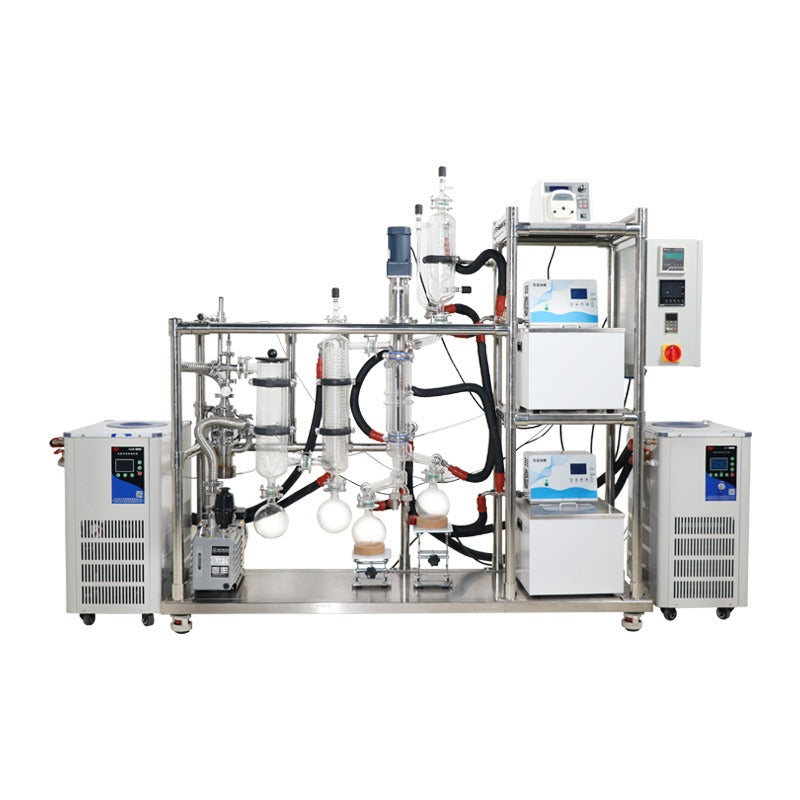

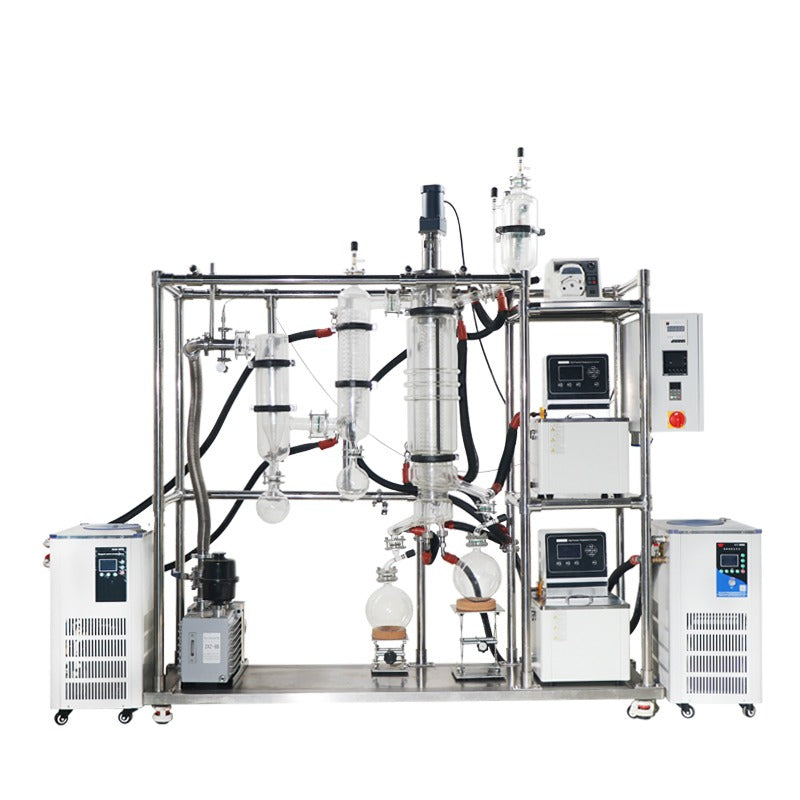

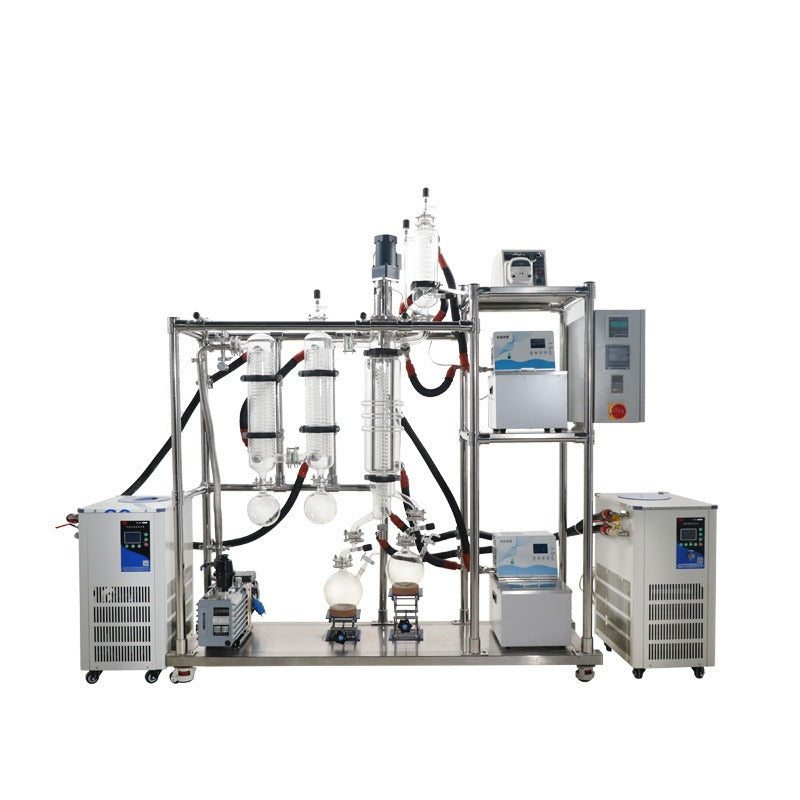

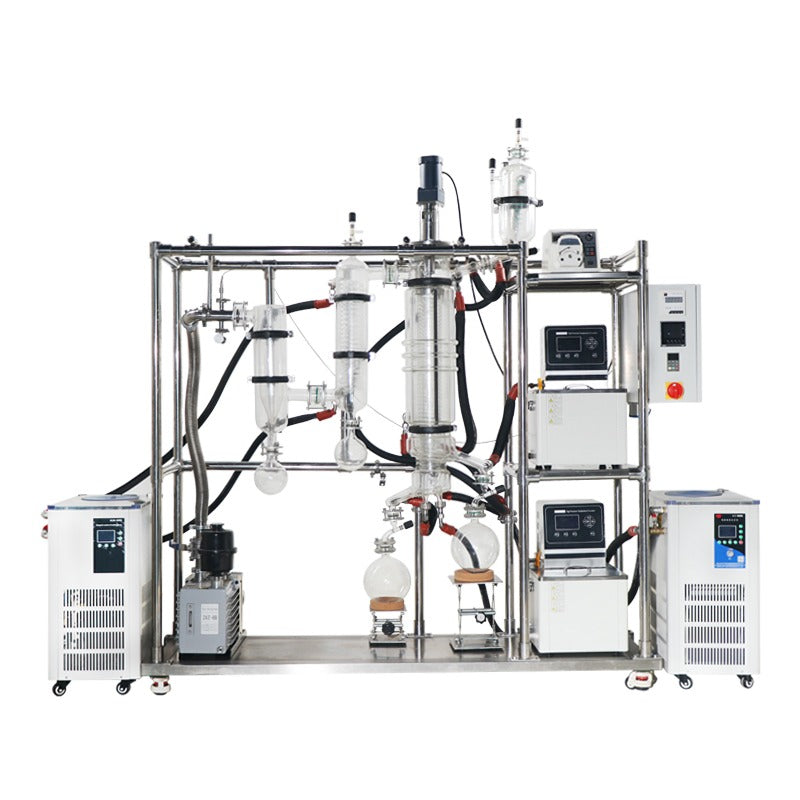

The YHMD A/B series are wiped-film molecular distillation systems (short-path) in stainless steel 304/316L and high borosilicate glass with PTFE wetted parts, for solvent recovery, essential oil distillation and natural product purification. Verified specifications from the model-line description tables: effective evaporation areas of 0.05 m² (60A/60B) and 0.15 m² (100A/100B), cold trap volumes of 2.5L and 3.5L, 120W motor power, a maximum stirring speed of 450 rpm and a vacuum degree of 0.098 MPa.
Model Comparison
Model
Effective Evaporation Area
Inner Barrel Diameter
Internal Condensation Area
Cold Trap Volume

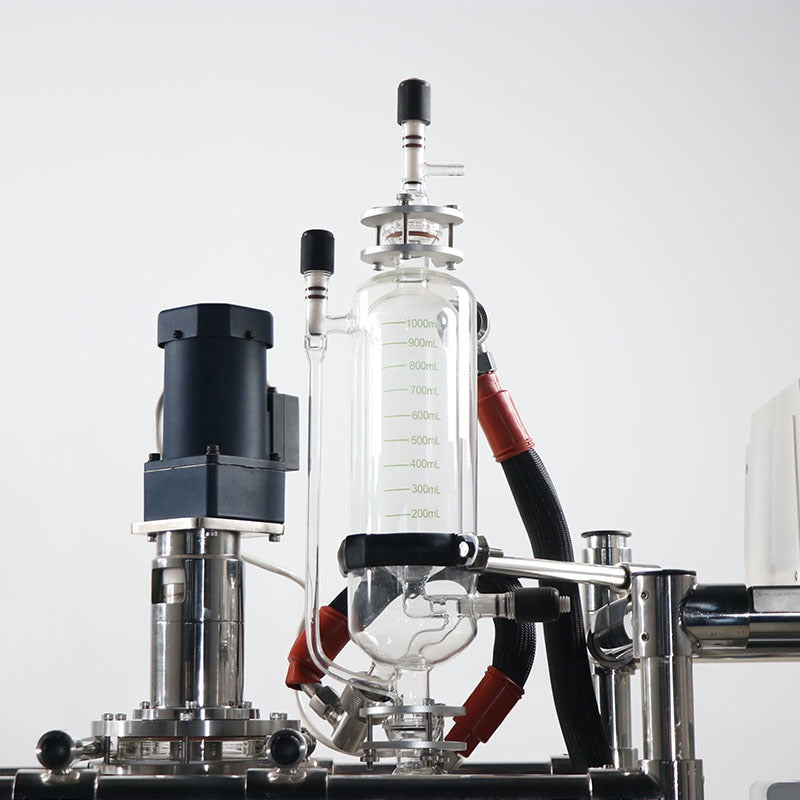

Constant Pressure Feeding Hopper
Motor Power
Max Stirring Speed
ALAB-YHMD-60A
0.05 m²
60 mm
0.1 m²
2.5L
1.5L
120W
450 rpm
ALAB-YHMD-60B
0.05 m²
60 mm
0.1 m²
2.5L
1.5L
120W
450 rpm
ALAB-YHMD-100A
0.15 m²
100 mm
0.2 m²
3.5L
2L
120W
450 rpm
ALAB-YHMD-100B
0.15 m²
100 mm
0.2 m²
3.5L
2L
120W
450 rpm
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
